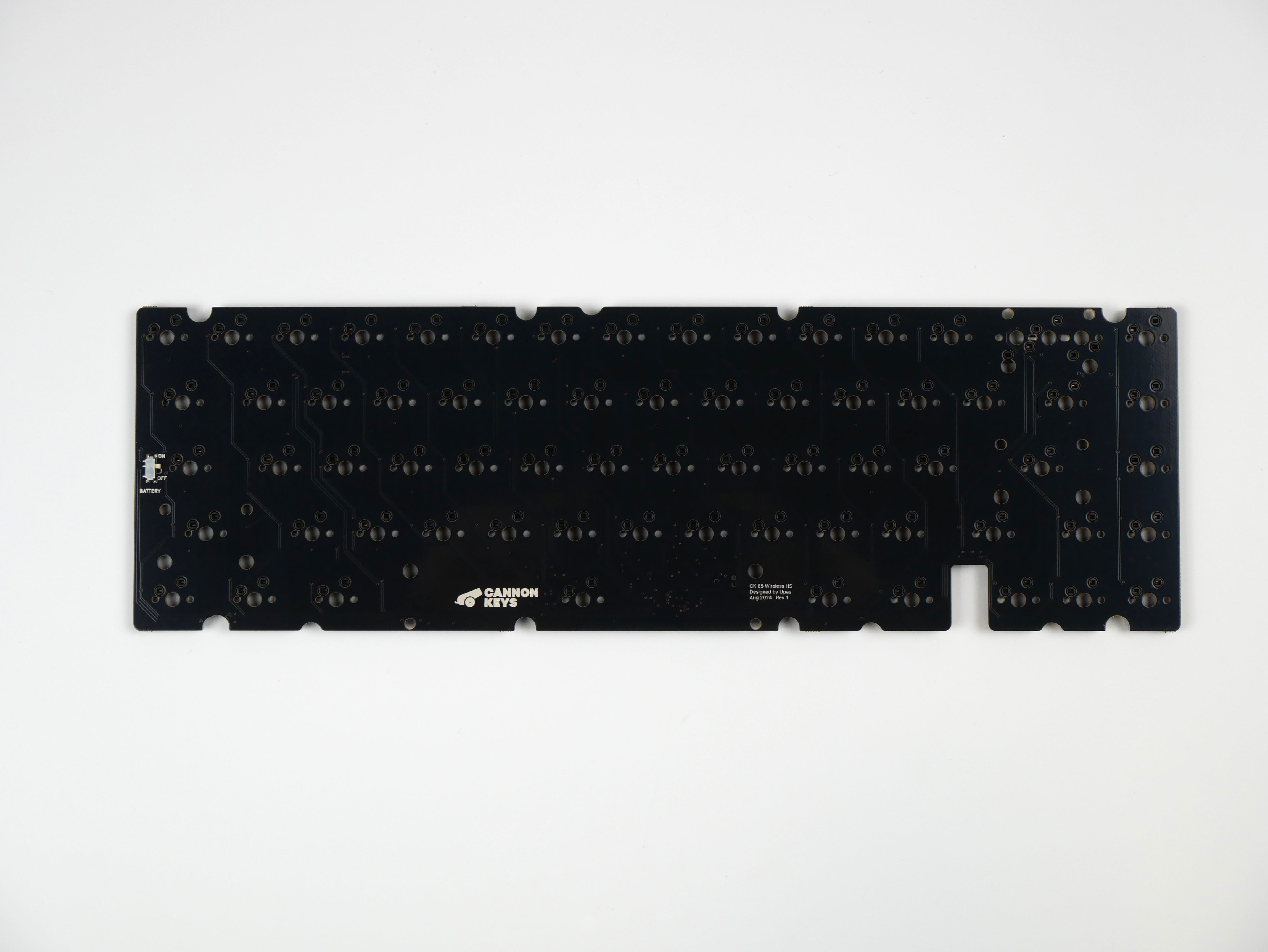

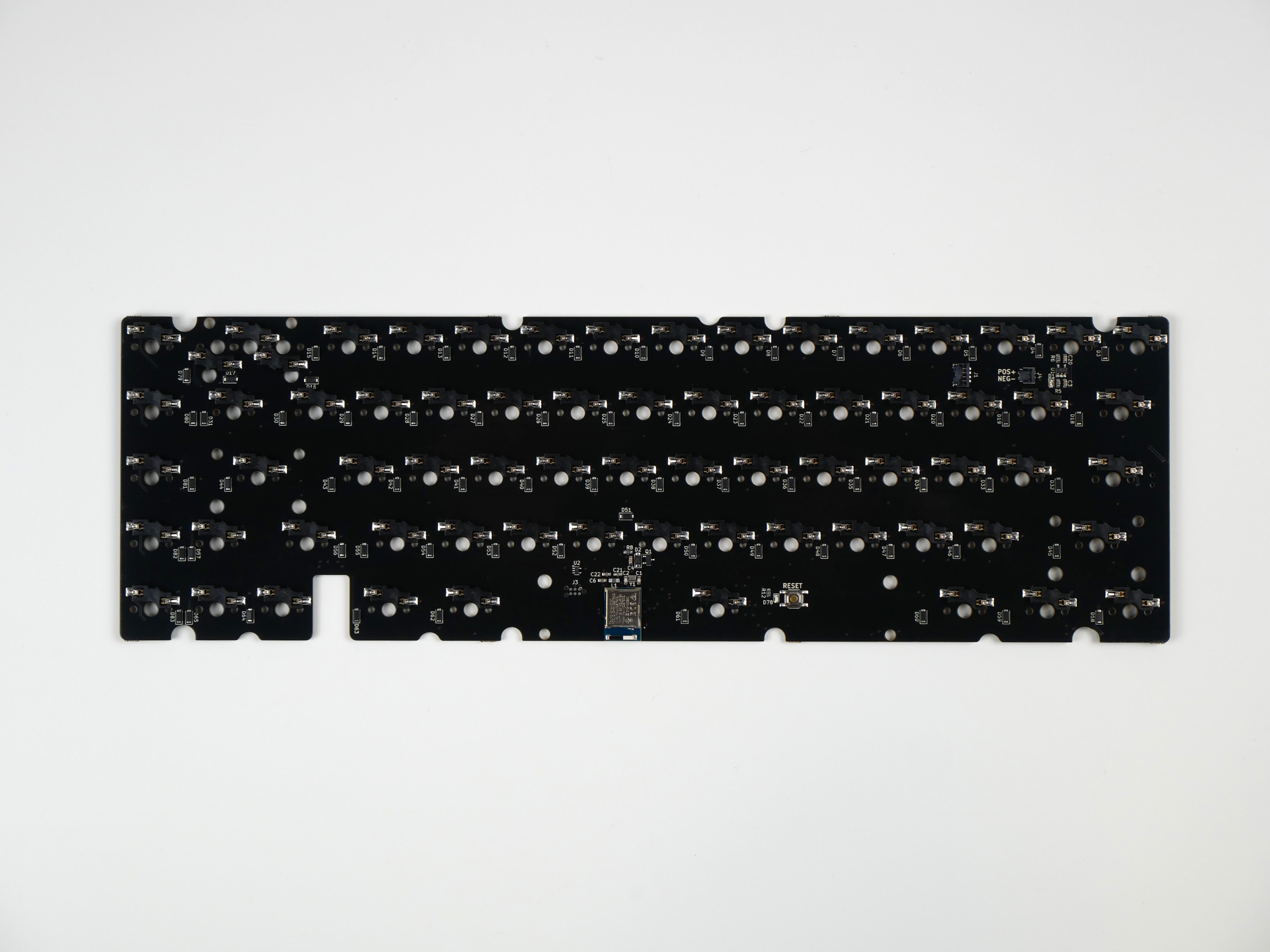

CK65 Wireless PCB

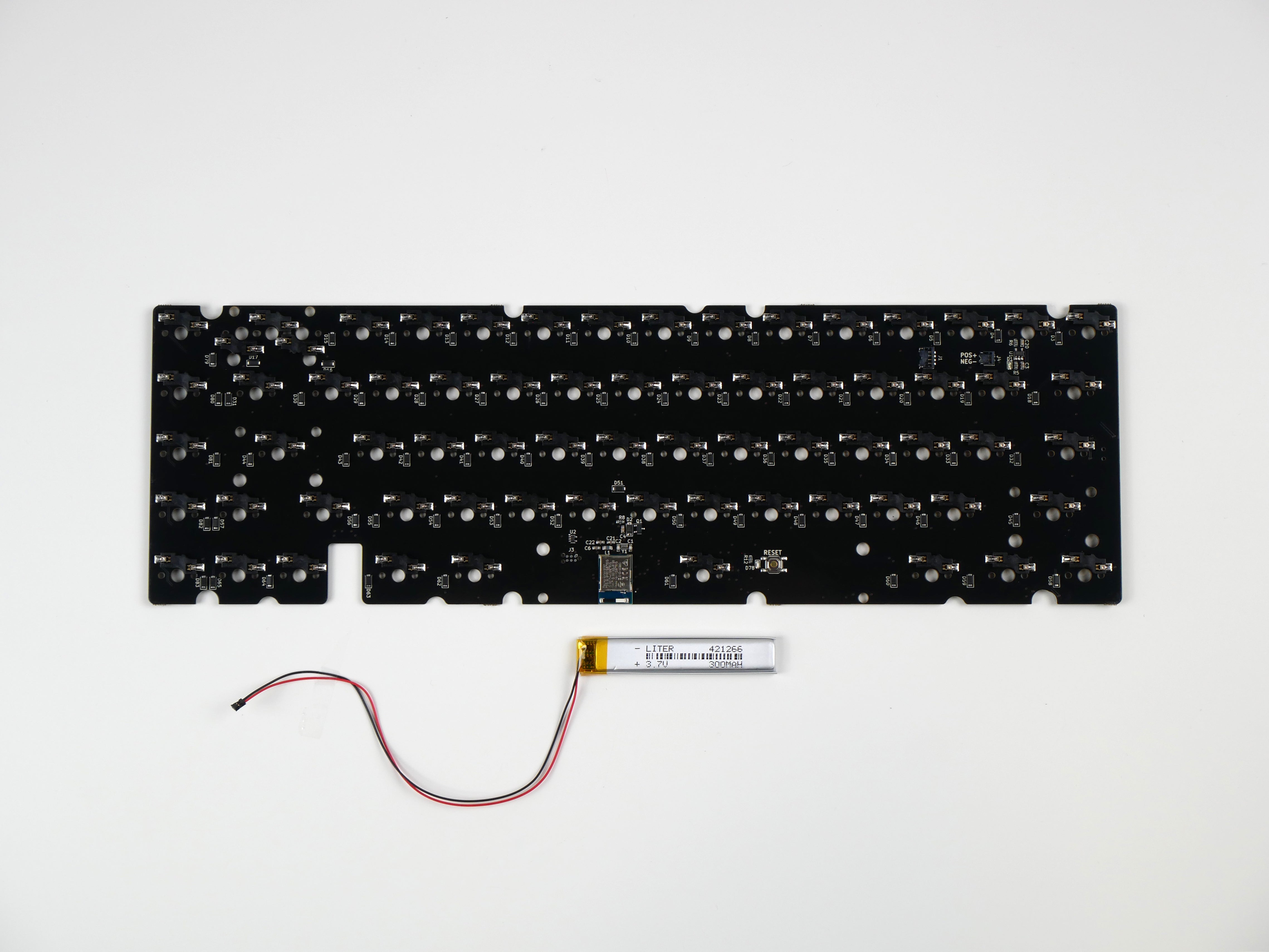

A PCB & battery combo to convert Brutal V2 65% & Bakeneko65 into wireless keyboards!

Convert your board to wireless with this hotswap PCB powered by ZMK Studio! Currently, this PCB is only available in the USA due to the inclusion of a battery.

Specs

• NRF52840
• ZMK
  • Rebind your keys using ZMK Studio
• Hotswap
• Battery included


Works in

• Brutal V2 65%
• Bakeneko65

  • Original & CNC

User Guide

Keymap

Bluetooth functionality

Battery Switch

To turn the battery on or off, there is a switch located below your caps lock key.

First Time Setup

When you first get your Reverie it won't be paired to anything. Before starting the pairing process make sure your Reverie is unplugged from any devices, the battery is properly installed, and the battery toggle switch is set to on. Open the BT menu on your device. Start the pairing process on your computer/phone/device so it begins to look for BT devices. Next, initiate BT pairing on your Reverie by using one of the below keycodes.

• BT1 - Hold MO(1)+MO(2) and tap Tab

• BT2 - Hold MO(1)+MO(2) and tap Caps Lock

• BT3 - Hold MO(1)+MO(2) and tap Left Shift

• BT4 - Hold MO(1)+MO(2) and tap Left Ctrl

After pressing one of the key combinations above, your Reverie should pop up on your device..

Shortened Version

1. Open the BT menu on the device you want to use Reverie with so it starts to look for devices.

2. Make sure your Reverie is not plugged into any device and the battery has been installed.

3. Turn the battery on using the battery toggle switch.

4. Press the key combination that correlates to the BT profile you want the device to be set to. Key combinations can be found above.

5. The Reverie should pop up in your device's BT pairing interface once successfully paired.

Understanding How Devices Work

Reverie can store 4 devices onboard, meaning once paired you can cycle through 4 devices on the fly. These are called BT1, BT2, BT3, and BT4 on the keymap. Once a device is paired to a specific BT profile, it can be swapped to by hitting the same key combination you used to originally pair it.

If you want to remove a device from a BT profile, cycle to the device using the above shortcuts, and do the following:

• Hold MO(1)+MO(2) and tap Esc

This item is not currently available internationally due to the inclusion of a battery but we are going to work with our shipping providers to change that.
