Cipulot EC PCBs and Daughterboards
Couldn't load pickup availability
Kitting Contents
EC Pro-2 Hub Bundle
- Cipulot EC Pro-X ANSI/ISO Mainboard PCB
- Cipulot EC Pro-2 Hub Controller Daughterboard
- 170mm 4-pin JST to JST cable
EC Pro-3 Bundle
- Cipulot EC Pro-X ANSI/ISO Mainboard PCB
- Cipulot EC Pro-3 Slim Controller Daughterboard
- 170mm 4-pin JST to JST cable
EC660C Bundle
- Cipulot EC660C Mainboard PCB
- Cipulot EC660C Daughterboard
- 170mm 4-pin JST to JST cable
EC980C Bundle
- Cipulot EC980CMainboard PCB
- Cipulot EC980C Daughterboard
- 170mm 4-pin JST to JST cable
Cipulot EC PCBs and Daughterboards
We are extremely happy to be partnering with Cipulot to bring several replacement EC PCBs for Topre keyboards such as the Realforce R1 TKL series, HHKB Professional 2, HHKB Classic/Hybrid (Pro-3), Leopold FC660C, and several aftermarket cases. The PCBs are QMK and VIA compatible, and also offer calibration, actuation customization, and rapid trigger (beta) built right into the VIA compatibility.
PCB Information
EC Pro-2 Hub DB
At a glance - Designed to be used with the EC Pro-X PCB inside of HHKB Professional 2 and some aftermarket Pro 2 compatible cases. Featured 2 external facing USB-A 2.0 ports and 1 internal only USB-A 2.0 port.
- USB-C
- JST Header
- USB hub with 2x USB 2.0 ports facing outwards where the stock board has cutouts
- One additional internal only USB 2.0 port for low powered devices such as dongles
For full support of this DB, please see Cipulot's documentation.
EC Pro-3 Slim DB
At a glance- Designed to be used with EC Pro-X PCB inside of Heavy Grail Pro 3 and HHKB Classic/Hybrid (Often called Pro 3).
- USB-C
- JST Header
For full support of this DB, please see Cipulot's documentation.
EC Pro-X PCB
At a glance- Designed be used with the EC Pro-2 Hub or EC Pro-3 daughterboards inside of HHKB Professional 2 and HHKB Professional Classic/Hybrid (Often called Pro 3).
- Support for ANSI and ISO layouts
- QMK and VIA support
- Calibration, actuation customization, and rapid trigger (beta) available within VIA
- Wired connection only
For compatibility, Guides, and more information, please see Cipulot's Website.
RF R1 8-9Xu PCB
At a glance- At Designed to be a drop in replacement for the Realforce R1 family of TKL keyboards (86u, 89u, etc). Also works in some Norbaforce and other aftermarket cases.
- Support for ANSI, ISO, and JIS layouts
- QMK and VIA support
- Internal support for JST cable, USB-C cable, and OEM JST EH 2.5 4-Pin connector
- Calibration, actuation customization, and rapid trigger (beta) available within VIA
For compatibility, Guides, and more information, please see Cipulot's Website.
EC660C PCB and DB
At a glance- Designed be used with the Leopold FC660C and several aftermarket cases.
- Support for ANSI and ISO layouts
- USB-C on DB
- JST on DB and Mainboard
- QMK and VIA support
- Calibration, actuation customization, and rapid trigger (beta) available within VIA
- Wired connection only
For compatibility, Guides, and more information, please see Cipulot's Website.
EC980C PCB and DB
At a glance- Designed be used with the Leopold FC980C and several aftermarket cases.
- Support for ANSI and ISO layouts
- USB-C on DB
- JST on DB and Mainboard
- QMK and VIA support
- Calibration, actuation customization, and rapid trigger (beta) available within VIA
- Wired connection only
For compatibility, Guides, and more information, please see Cipulot's Website.

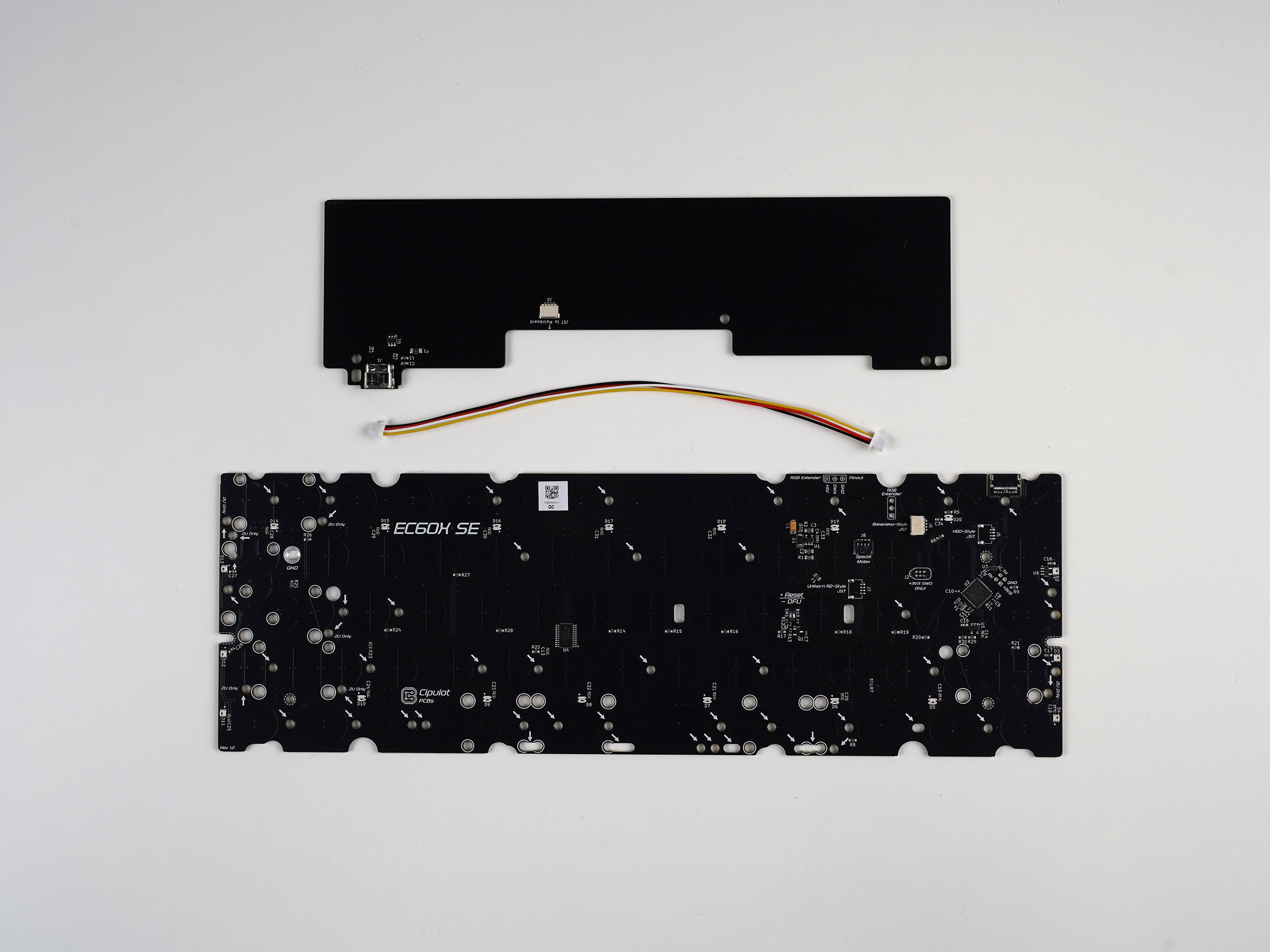

EC60X
At a glance- Designed be used nearly universally with 60% keyboards
- Support for ANSI, JIS, & ISO layouts
- USB-C on PCB in the "standard 60% location" used by most 60% tray mounted keyboards
- Cutouts for tray mount, CK Bakeneko, & more!
- JST header pre-soldered in H-60 location, with pads present for CK Bakeneko & Unikorn
- GH60 outline compatible
- RGB underglow
- QMK and VIA support
- Calibration, actuation customization, and rapid trigger (beta) available within VIA
- Wired connection only
For compatibility, Guides, and more information, please see Cipulot's Website. Plate generator can be found here.
While the pre-soldered JST header location is compatible with our Bakeneko60, you need a special plate is required to complete a build. We'll have more information on this plate in the coming months!
PCB Layout Support
These are the layouts supported by these PCBs. Please remember that while the PCB might have compatibility for the layout you want to use, the plate your keyboard is using might not.
EC Pro-X
RF R1
EC660C
EC60X
Guides and Firmware
Guides
For compatibility, Guides, and more information, please see Cipulot's Website.
Firmware
For the most up to date firmware, please use Cipulot's Firmware Page.
