Bastion 75% PCB
The Bastion PCB Series by CannonKeys is a series of in-house designed PCBs that are available to help standardize compatibility and be continuously available as replacements. Looking to use one of our Bastion PCBs in keyboard design? Check out our collaborator portal for more information.
The Bastion 75% PCB is available in solder and hotswap. It uses a Molex Pico-EZmate Connector that is compatible with our C4 and S1 daughterboards, an RP2040 MCU, and offers an onboard reset and bootloader button.
Specs and Compatibility
Looking to see if a Bastion PCB fits your keyboard?
Community Compatibility Chart
Bastion 75% PCB Features
RP2040
Onboard RP2040 makes flashing a breeze!
Pico-EZmate Molex
The Pico-EZmate molex connector makes connecting to a daughterboard exceptionally easy!
Reset Buttons
Getting into flashing mode and resetting your PCB at the hardware level.
Design
Our Bastion PCB Series is a selection of standardized PCBs that can be easily designed around. If you are looking to use one of our many PCBs in your keyboard design, check out our collaborator portal for more details and relevant files.
Connect
Our Bastion Series is compatible with the S1 and C4 Unified Daughterboards. All of our Bastion Series PCBs are compatible with QMK and VIA.

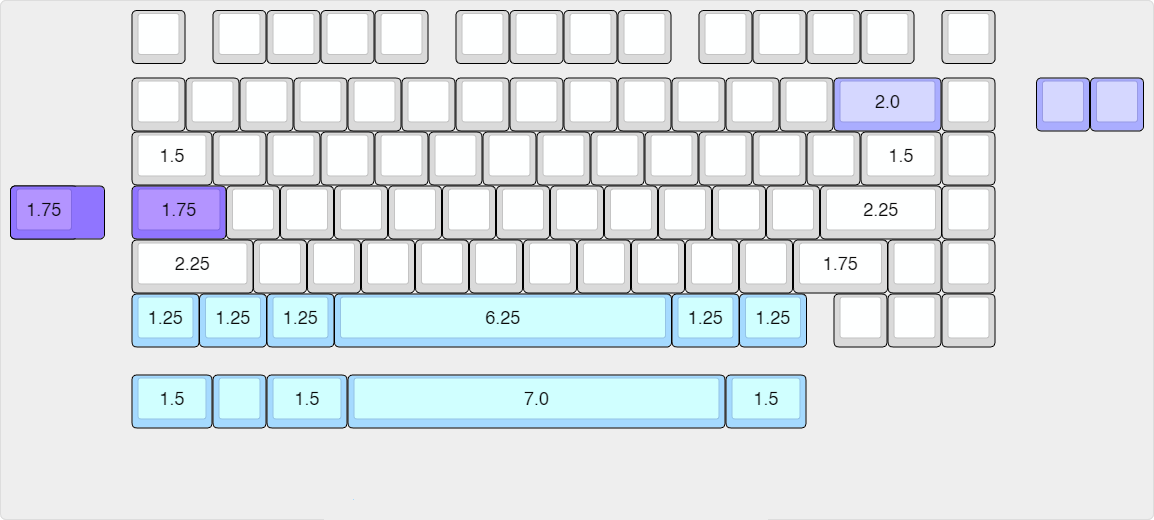

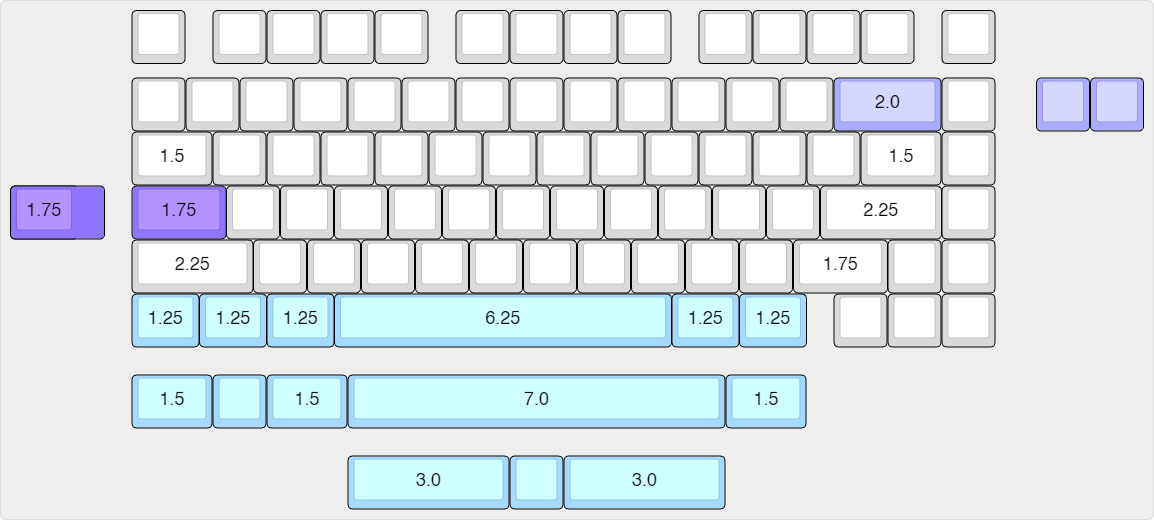

Layout Support
Solder
Hotswap
