Introducing JRIS80

Affordable WK/WKL aluminum TKL keyboard

The JRIS80 by Mykeyclub is brought to you by the same creator of JRIS series keyboards and MKC75 keyboard.

Starting at $165, this 80% TKL aluminum keyboard offers rich features and customization options. The JRIS80 also features easily swappable top cases (WK or WKL), magnetic accent weight, and adjustable PCB gasket.

JRIS80 supports wired and wireless Tri-mode PCB, rotary knobs, and LED light strip.

GB live 11/28 - 12/10 2023. ETA of April 2024

JRIS80 Addons

JRIS80 Keyboard Details

Tri-Mode Function Guide

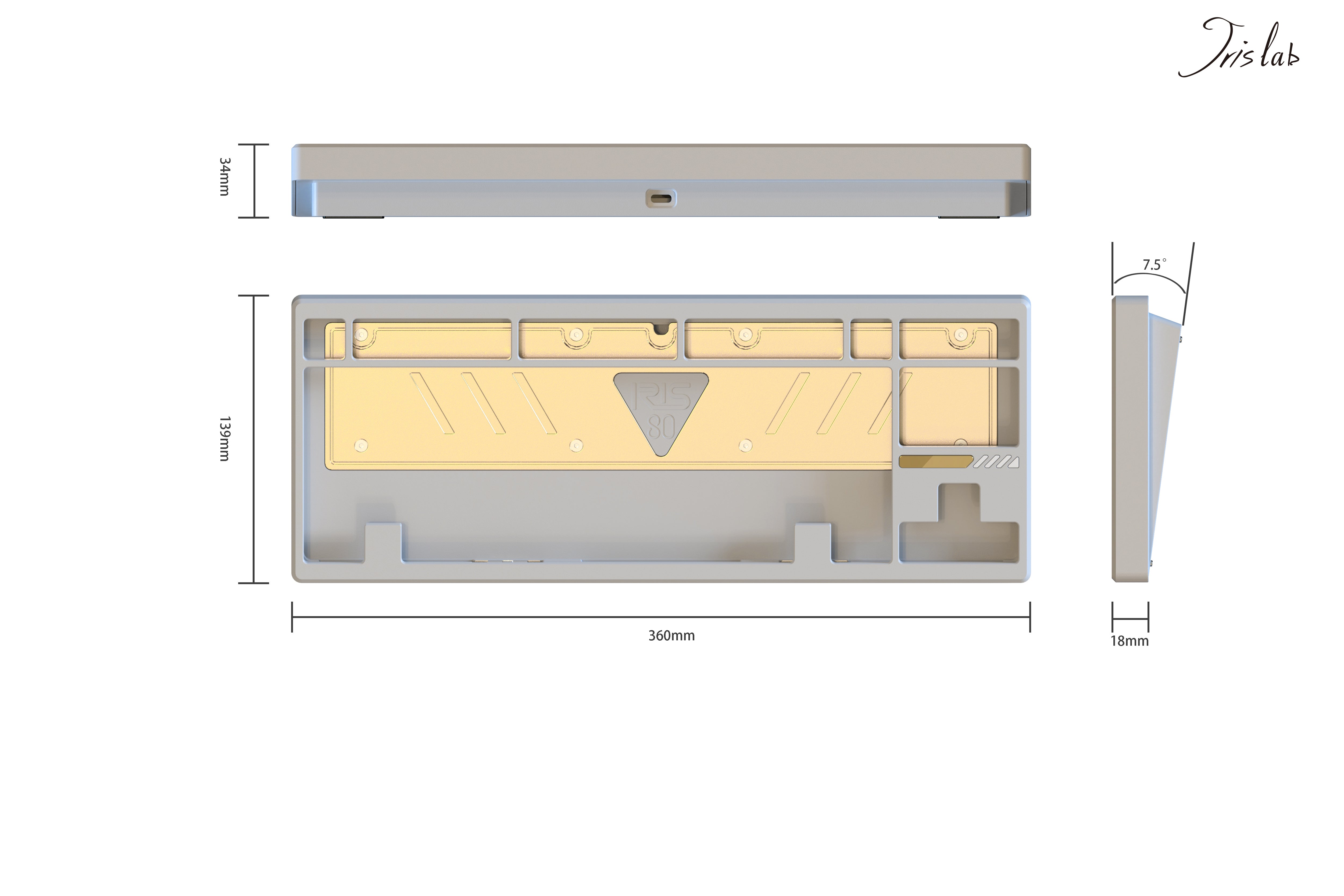

Specifications

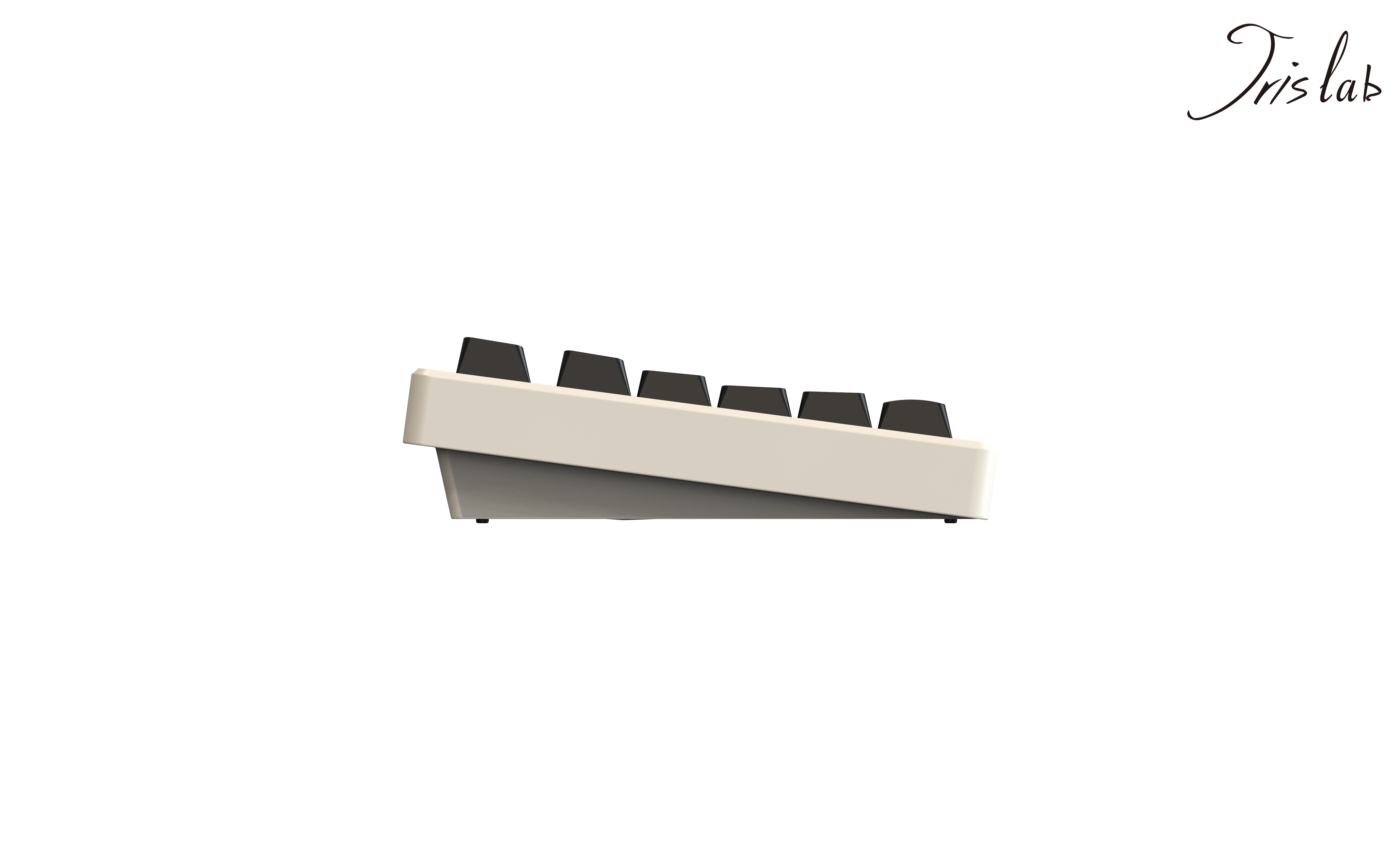

  • Typing angle: 7.5°
  • Front height: 18 mm
  • Material: Full CNC 6063 aluminum
  • Dimensions: 360mm x 139mm x 34mm
  • PCB Gasket Structure
  • QMK/VIA Supported（wired)
  • Support PCB stabilizers
  • With PVD weight (Unbuilt): 2.35kg
  • With Titanium weight (Unbuilt): 2.15kg
  • With Alu weight (Unbuilt): 1.98kg
  • With PVD weight (Built): 2.55kg
  • With Titanium weight (Built): 2.35kg
  • With Alu weight (Built): 2.18kg
What's included
  • Full CNC Aluminum Top case
  • Full CNC Aluminum Bottom case
  • Alu or PVD Weight (Rectangle and default Inverted Triangle Weight)
  • Gold Front PVD Strip
  • Internal Brass Weight
  • Plateless or Plate
  • PCB
  • IXPE Foam
  • Poron Case Foam
  • Poron Plate Foam
  • Type-C Daughterboard with JST Cable
  • PCB GAS Silicone Column Pack
  • Footpad

The following items are spare and misc parts that are not subject to post purchase support.

  • Carrying Case
  • Type-C Cable
  • Silicone pad for battery compartment
  • 2 x 2200mha Battery (Tri-mode version only）
  • Customized PVD Artisan keycap
  • Aluminium Alloy Screwdriver with 2 replaceable bits
  • 2 in 1 Switch puller and Keycap puller
Plate Options
  • Flex Cut plates: ALU, FR4
  • Non-Flex Cut plates: PC, POM
  • Aluminium & FR4 Half-plate/Brass plate (Add-on only)
  • Plateless (Add-on only)

Note: PC/POM/FR4 plate is best for Tri-mode PCB connectivity

Geekhack
Mykeyclub discord
Cannonkeys discord
Video showcase by Edward Tanujaya
Play

Easy Assembly

Quick assembly and disassembly. No screws nor tools are required!

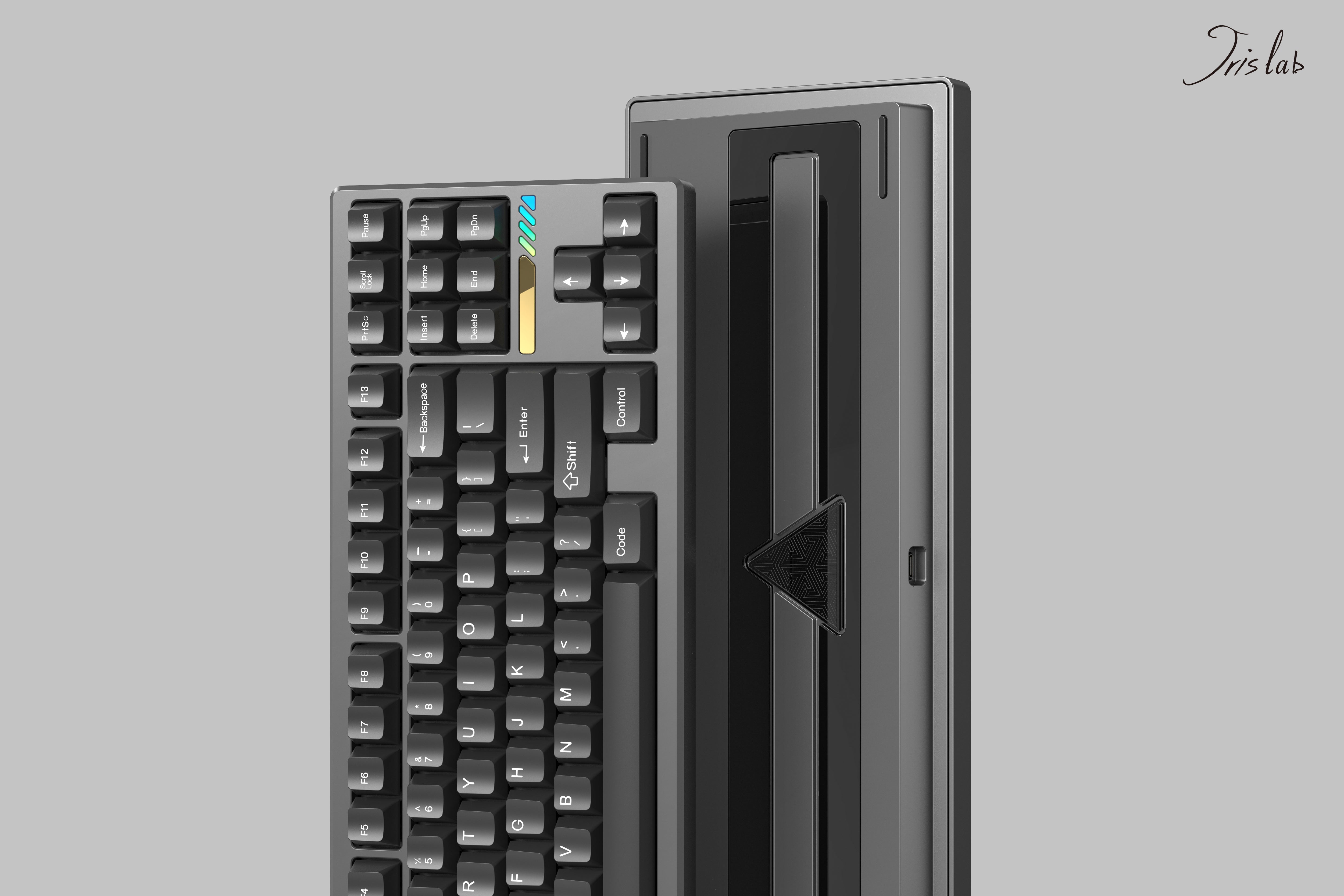

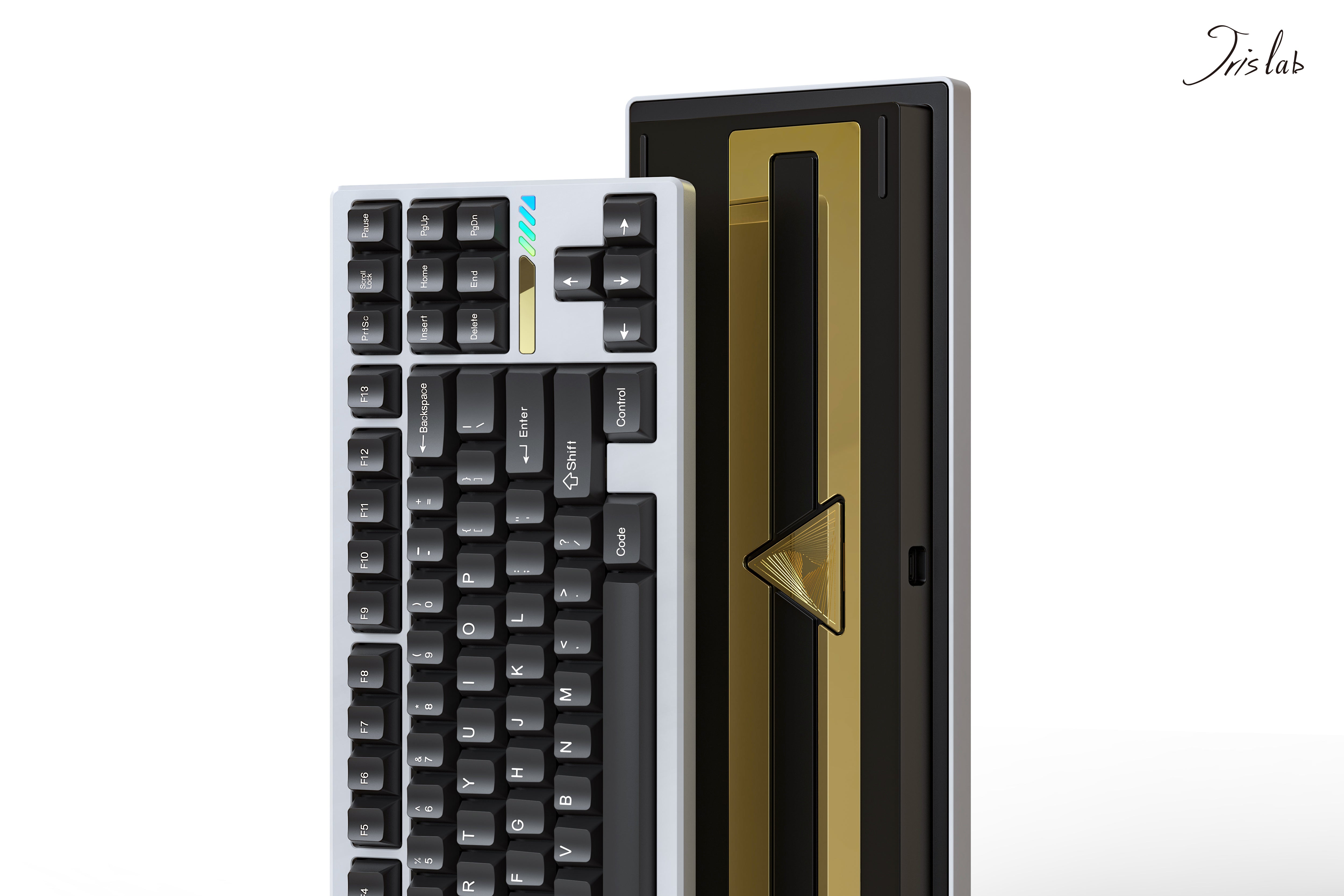

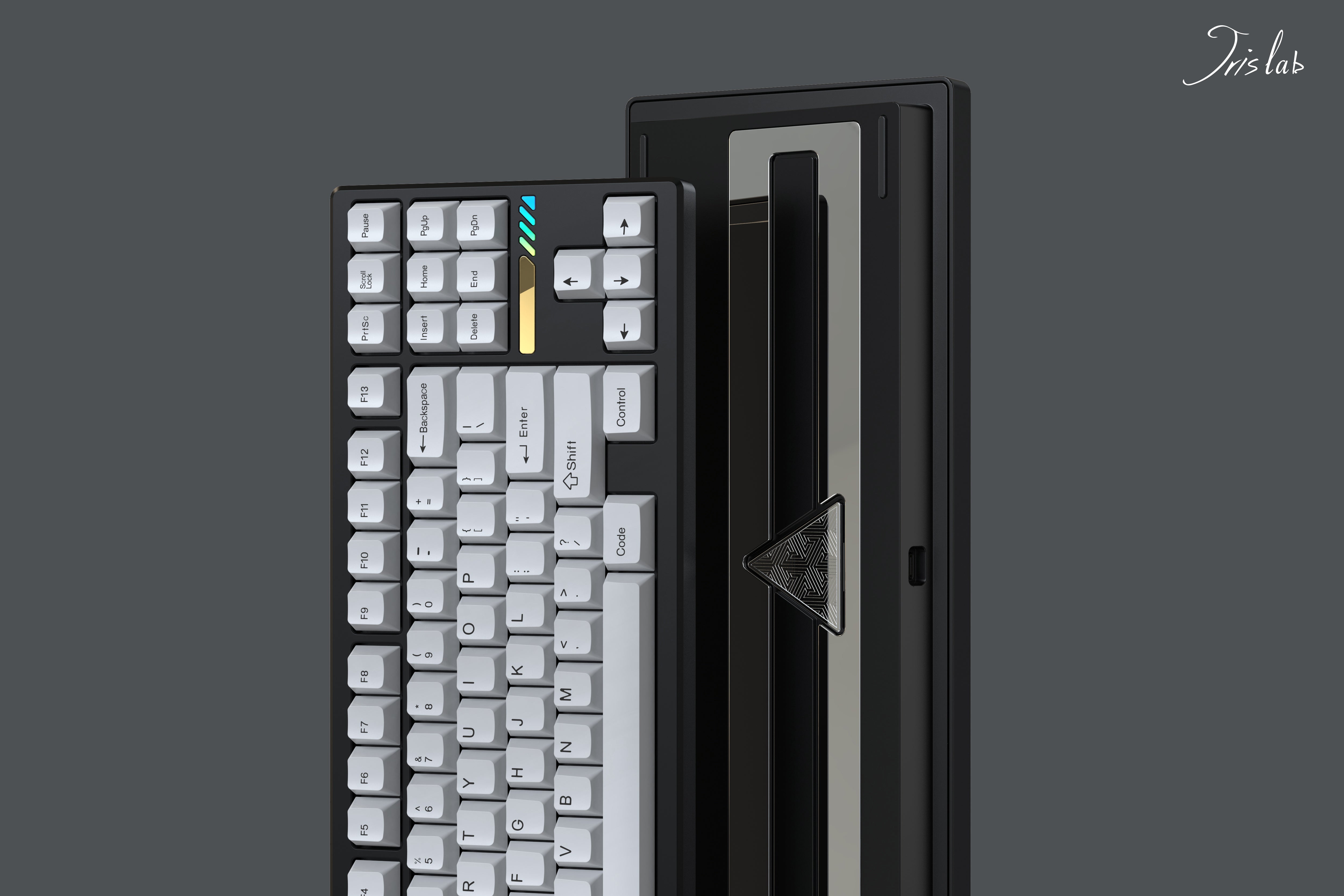

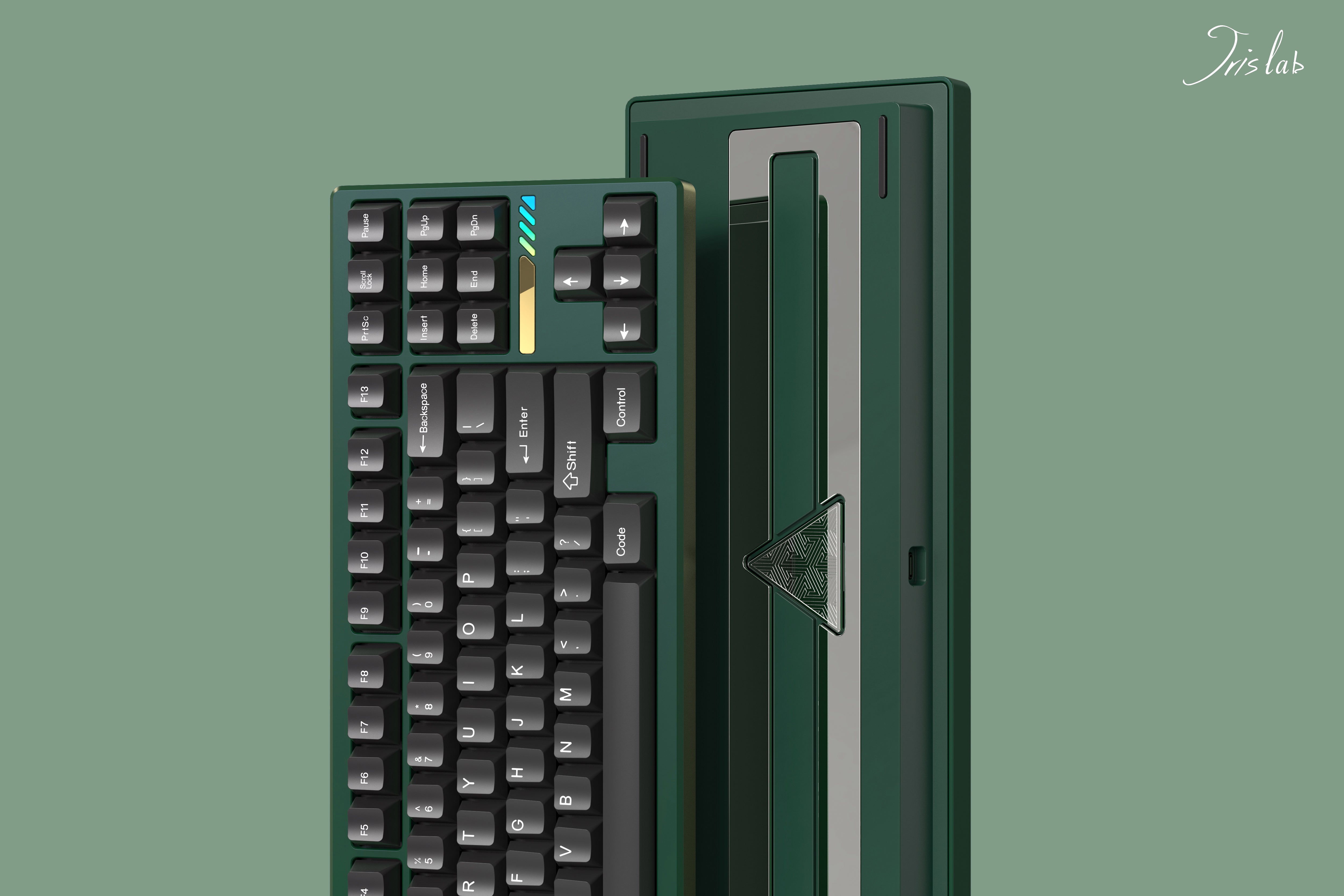

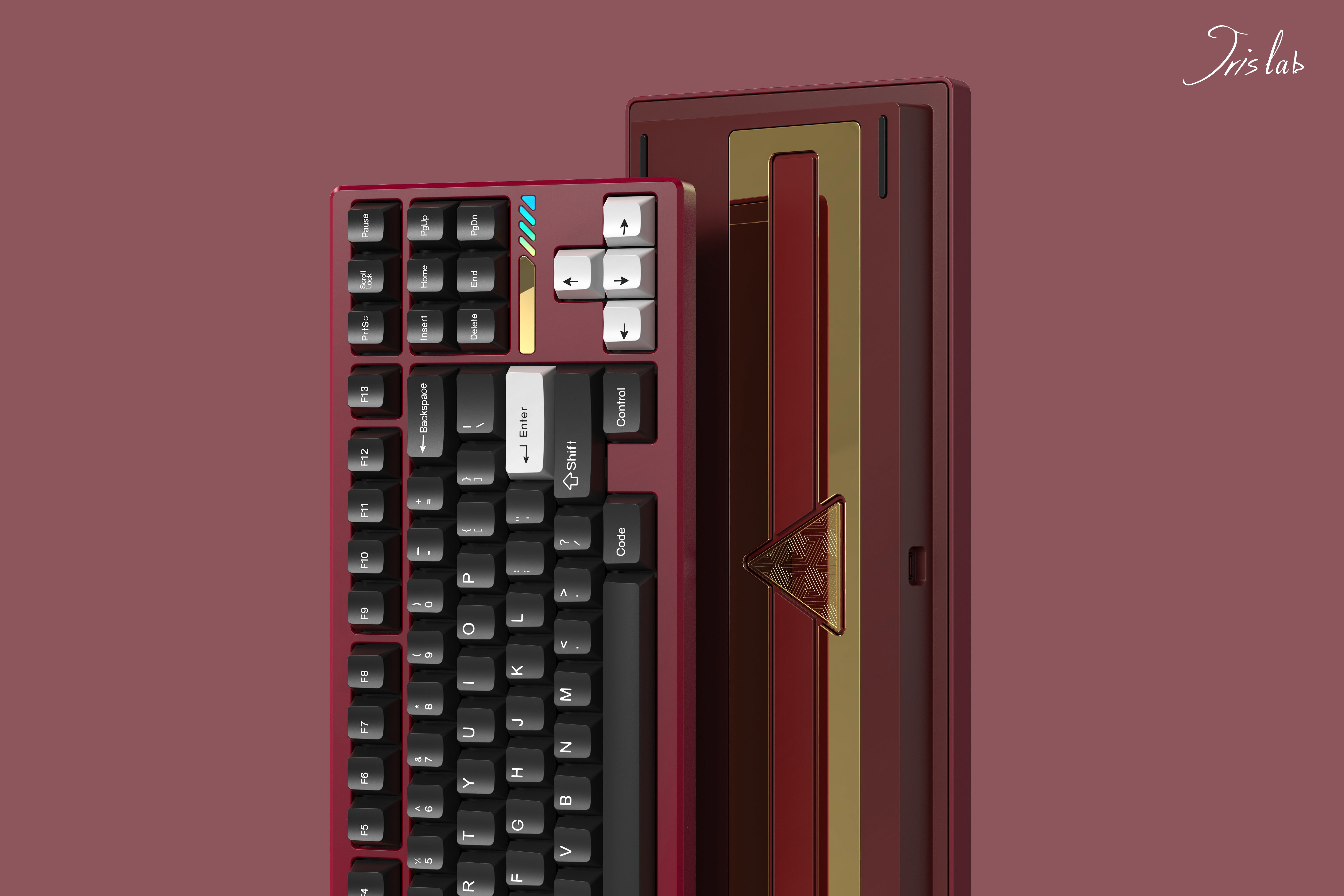

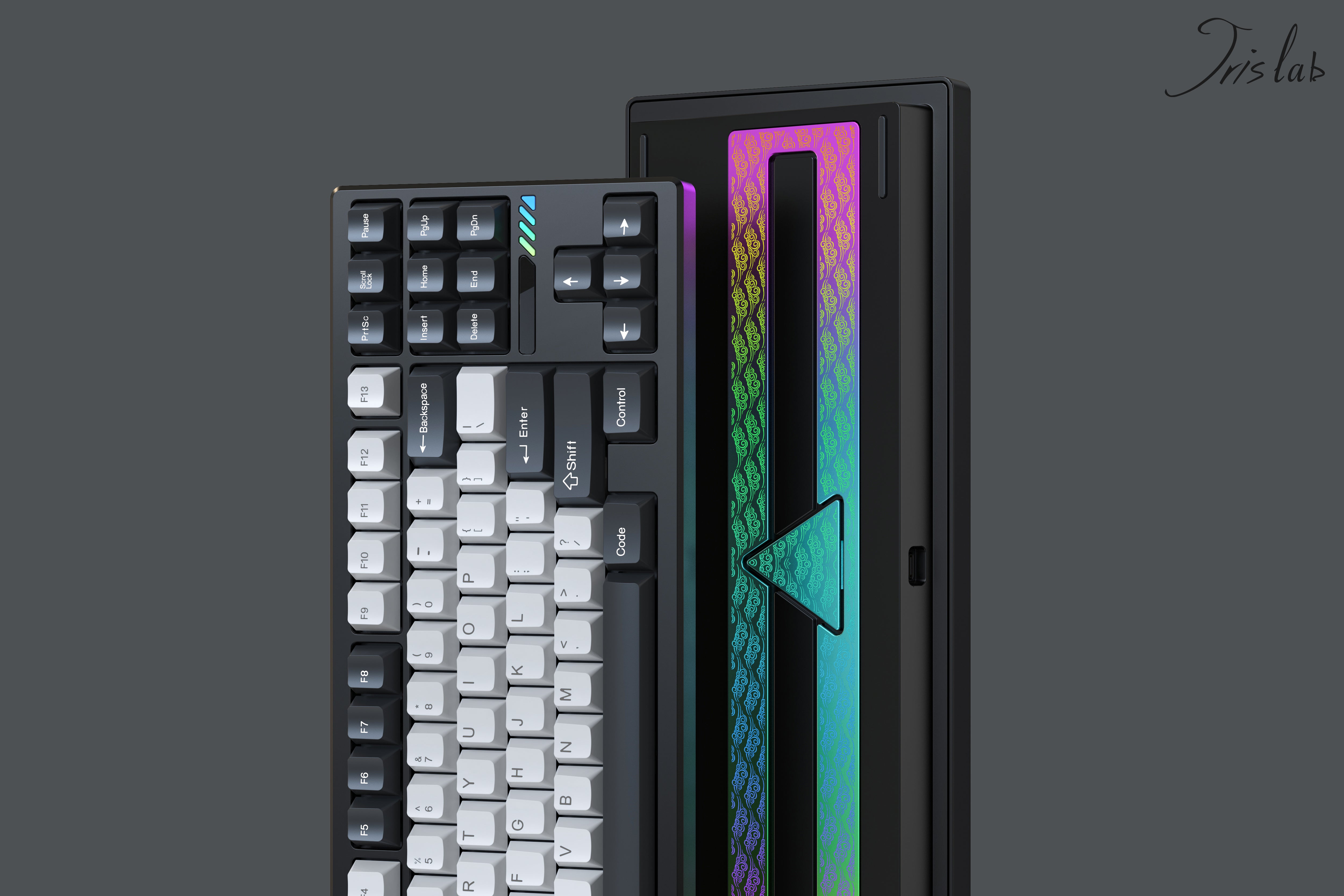

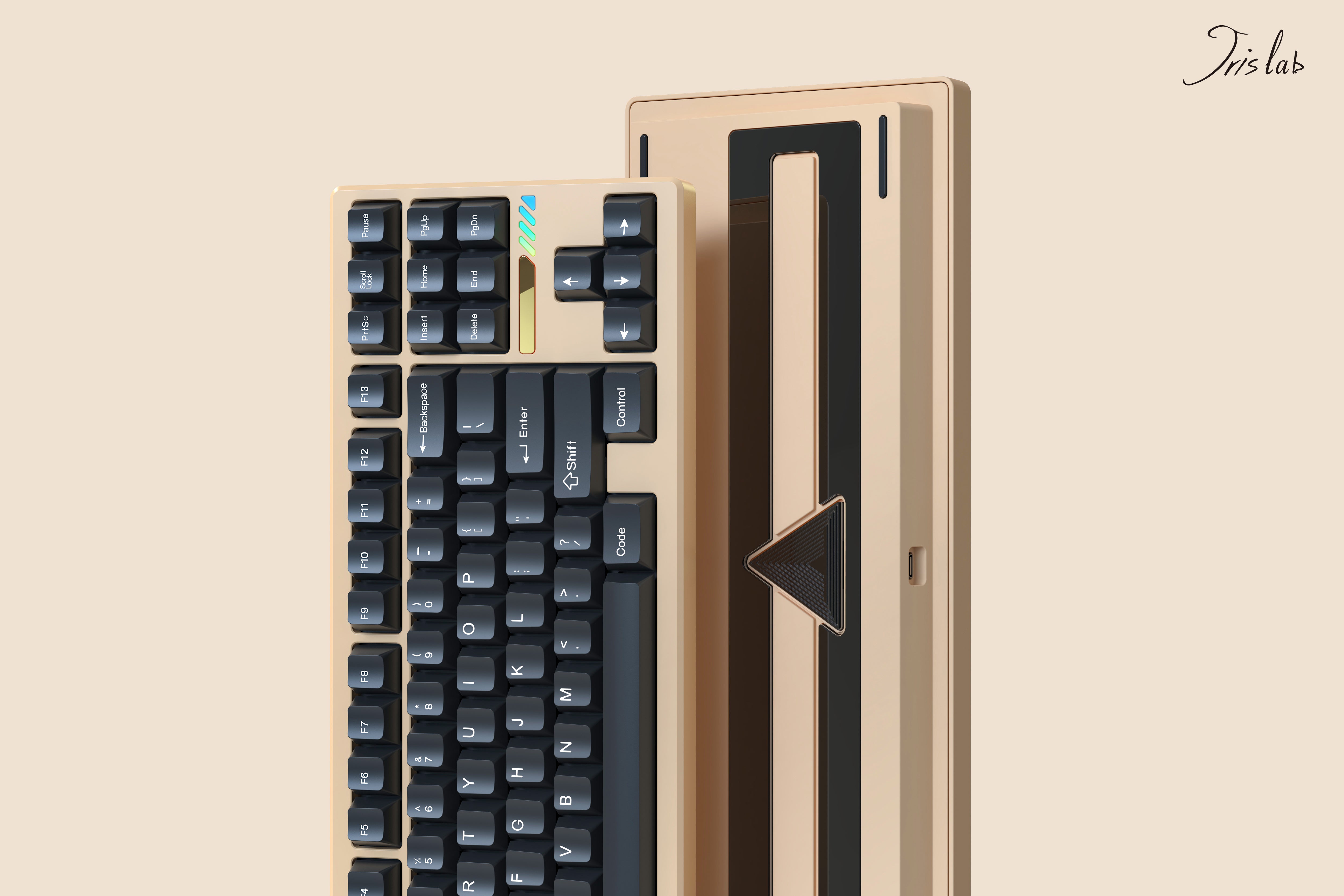

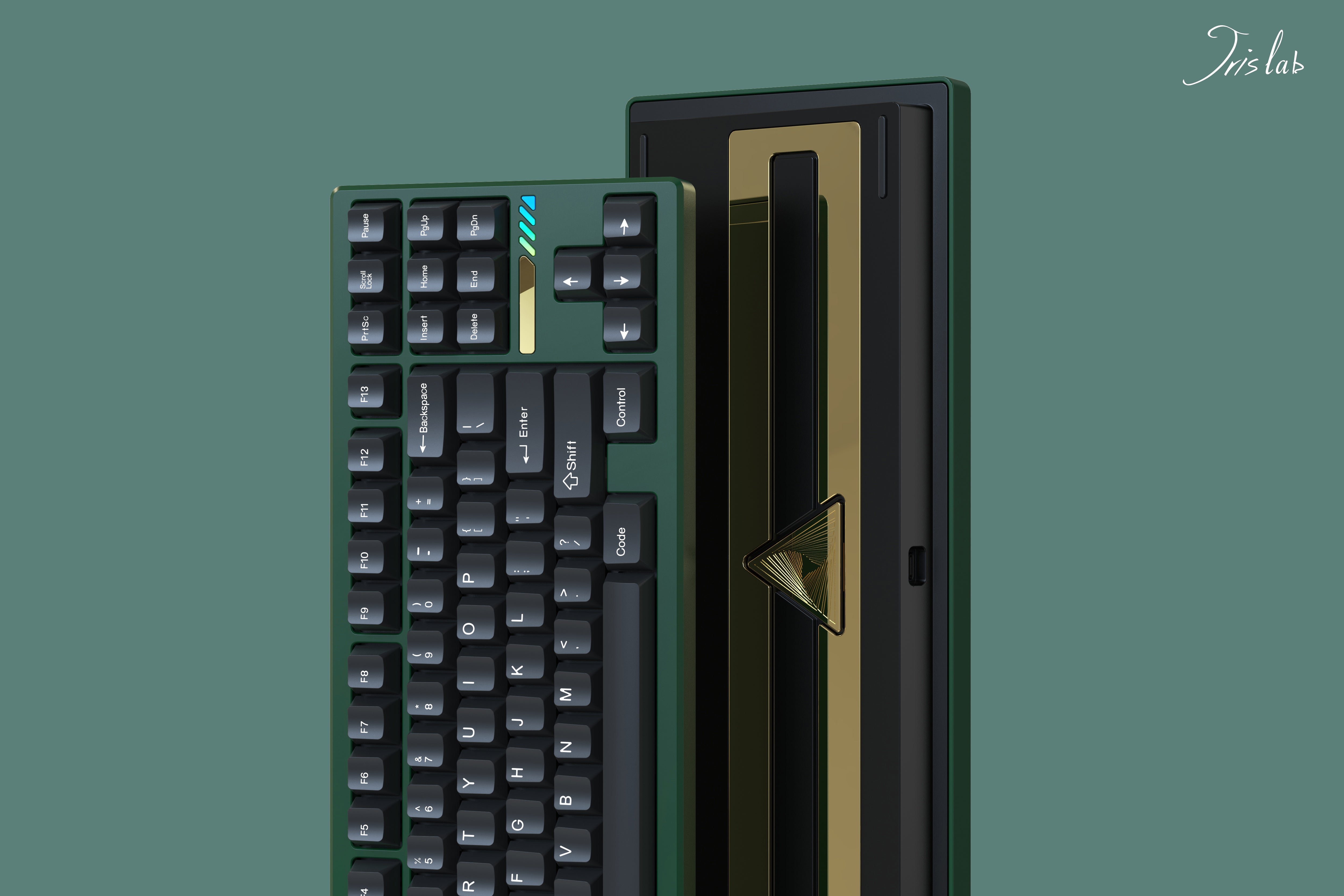

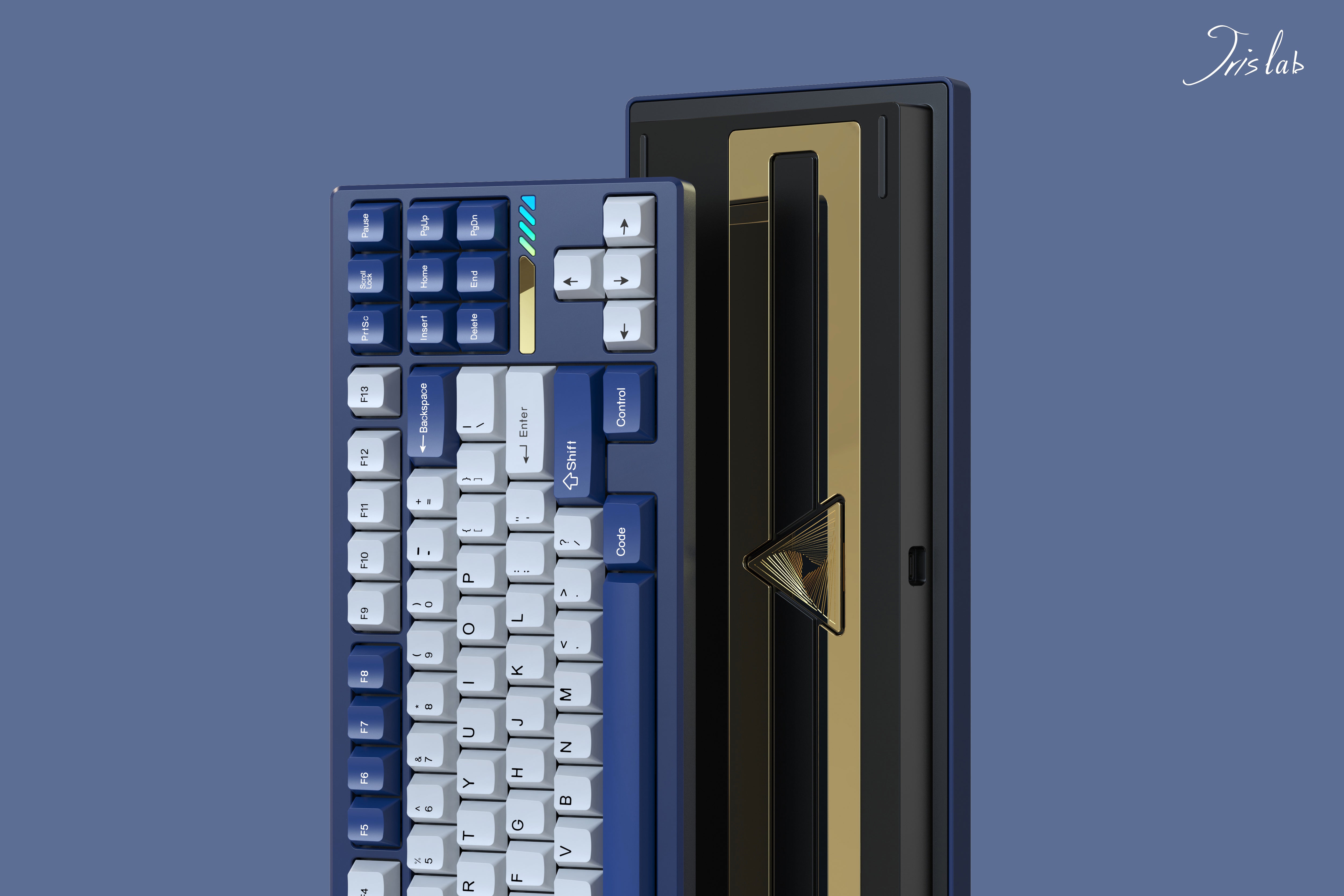

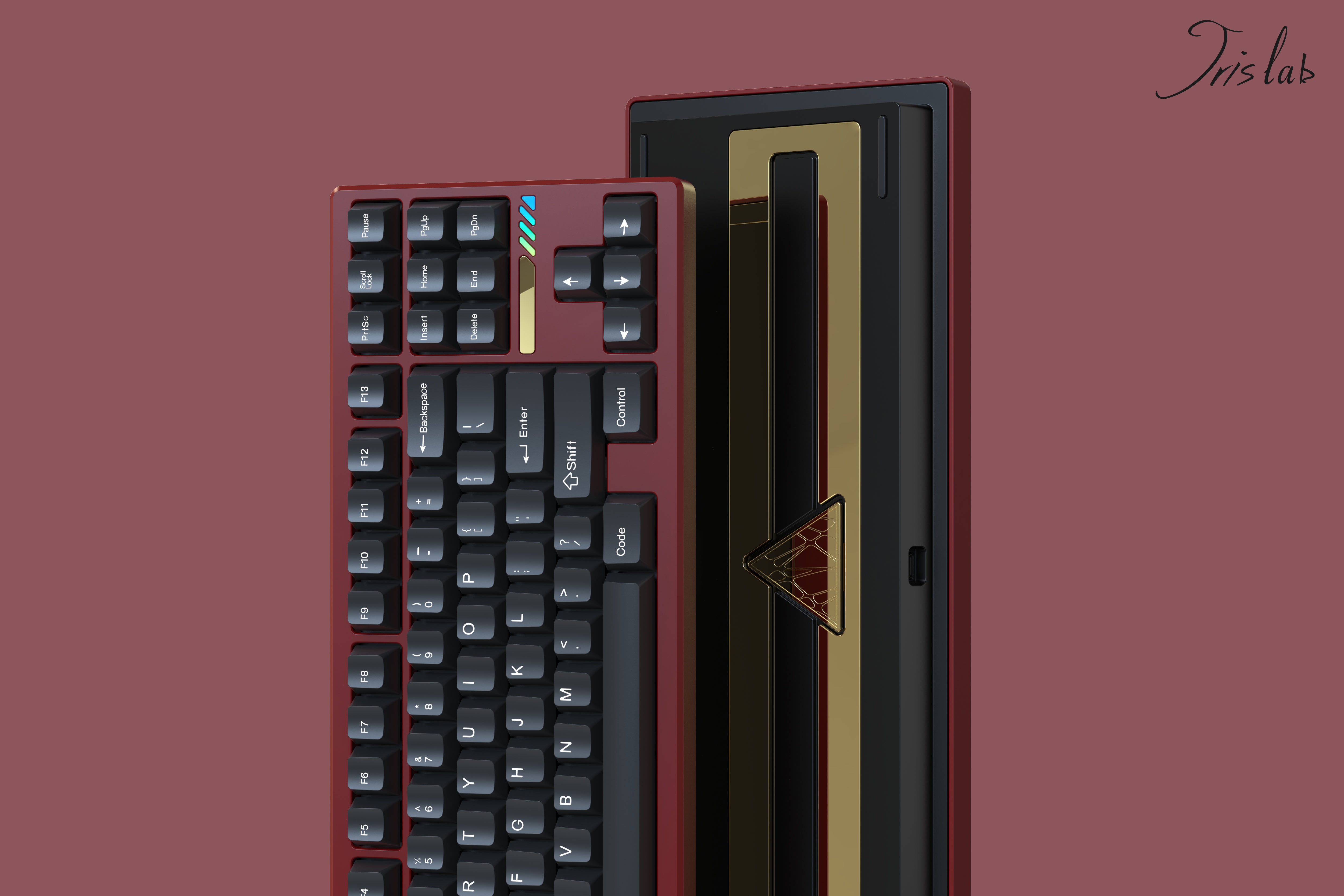

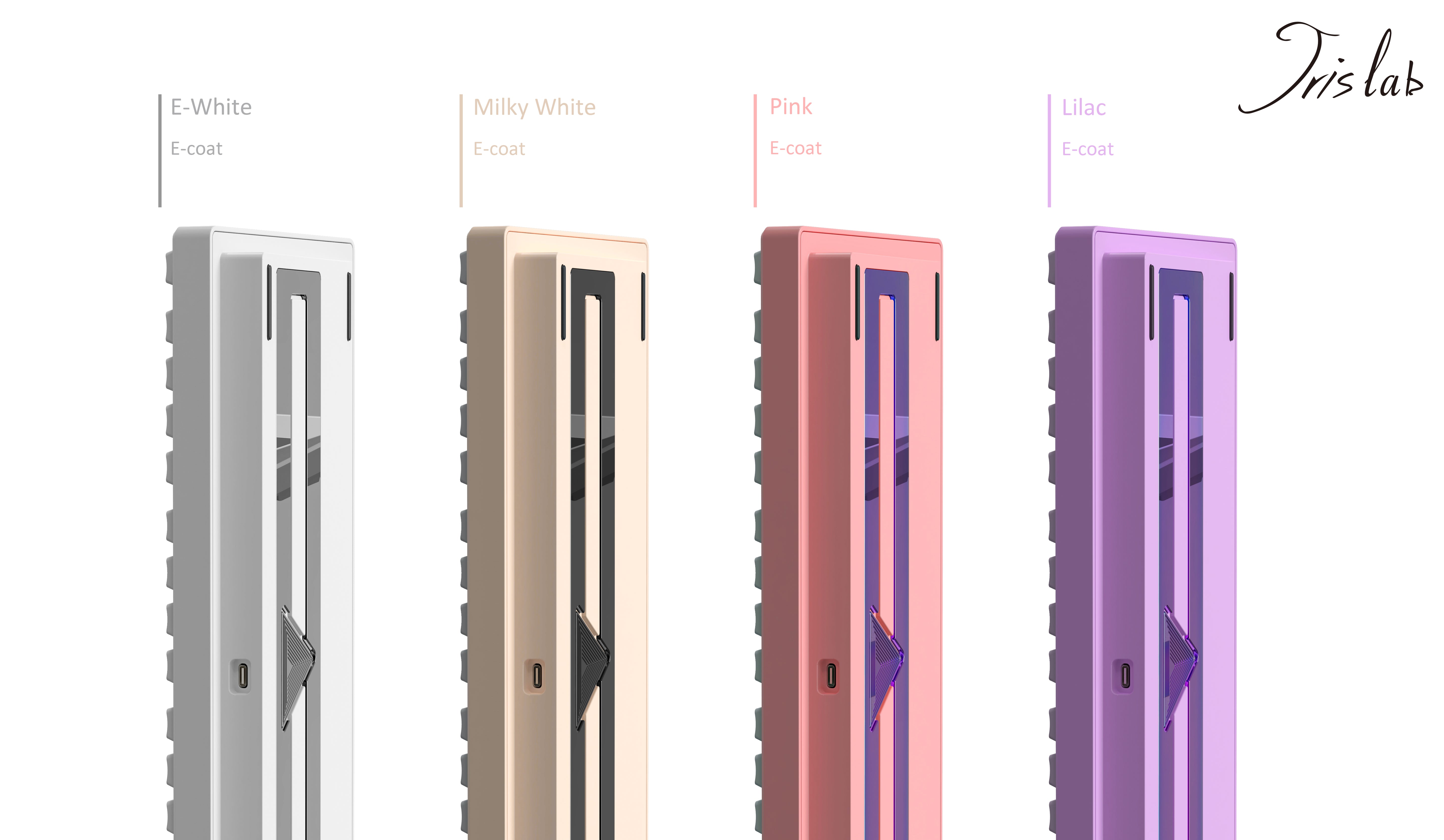

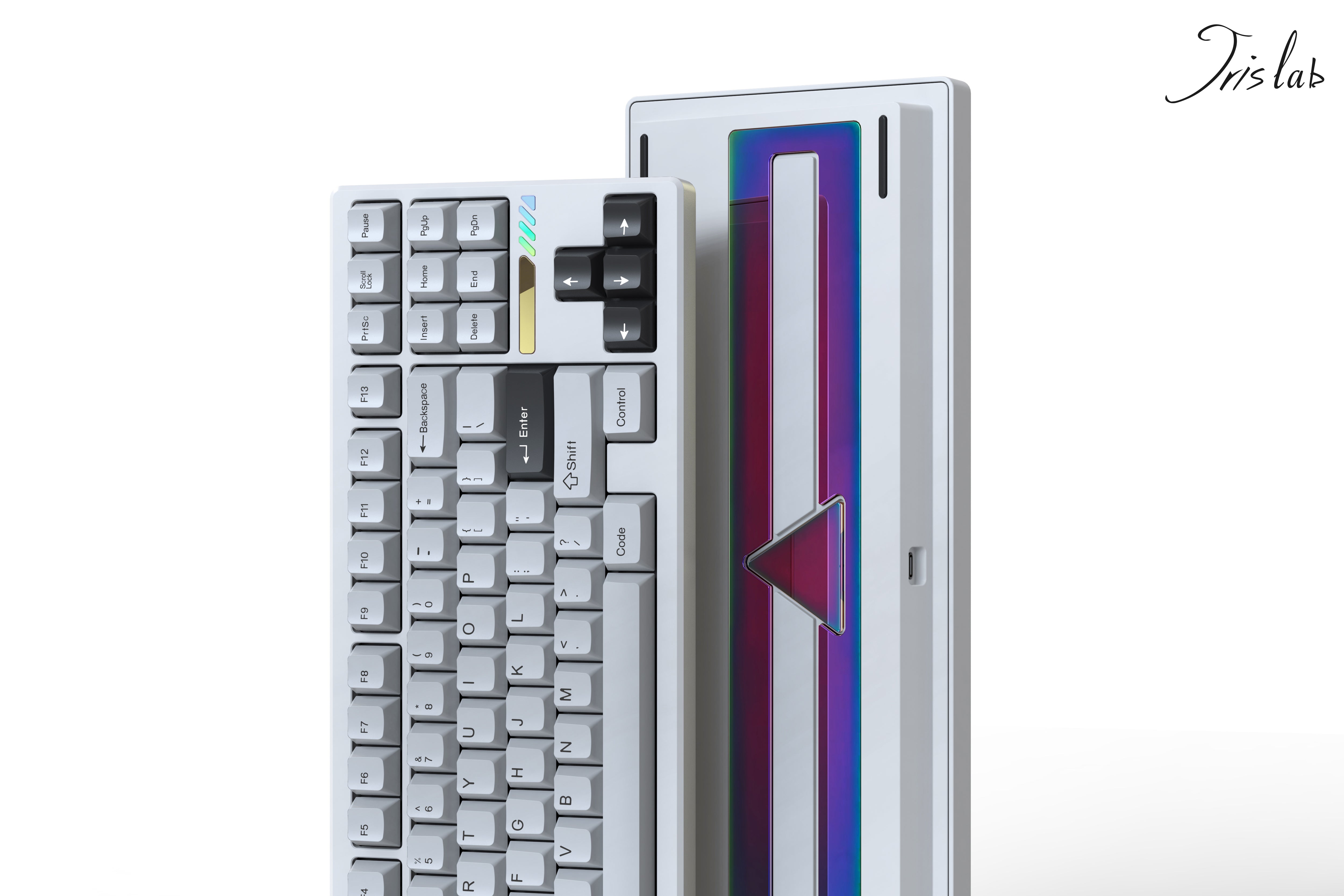

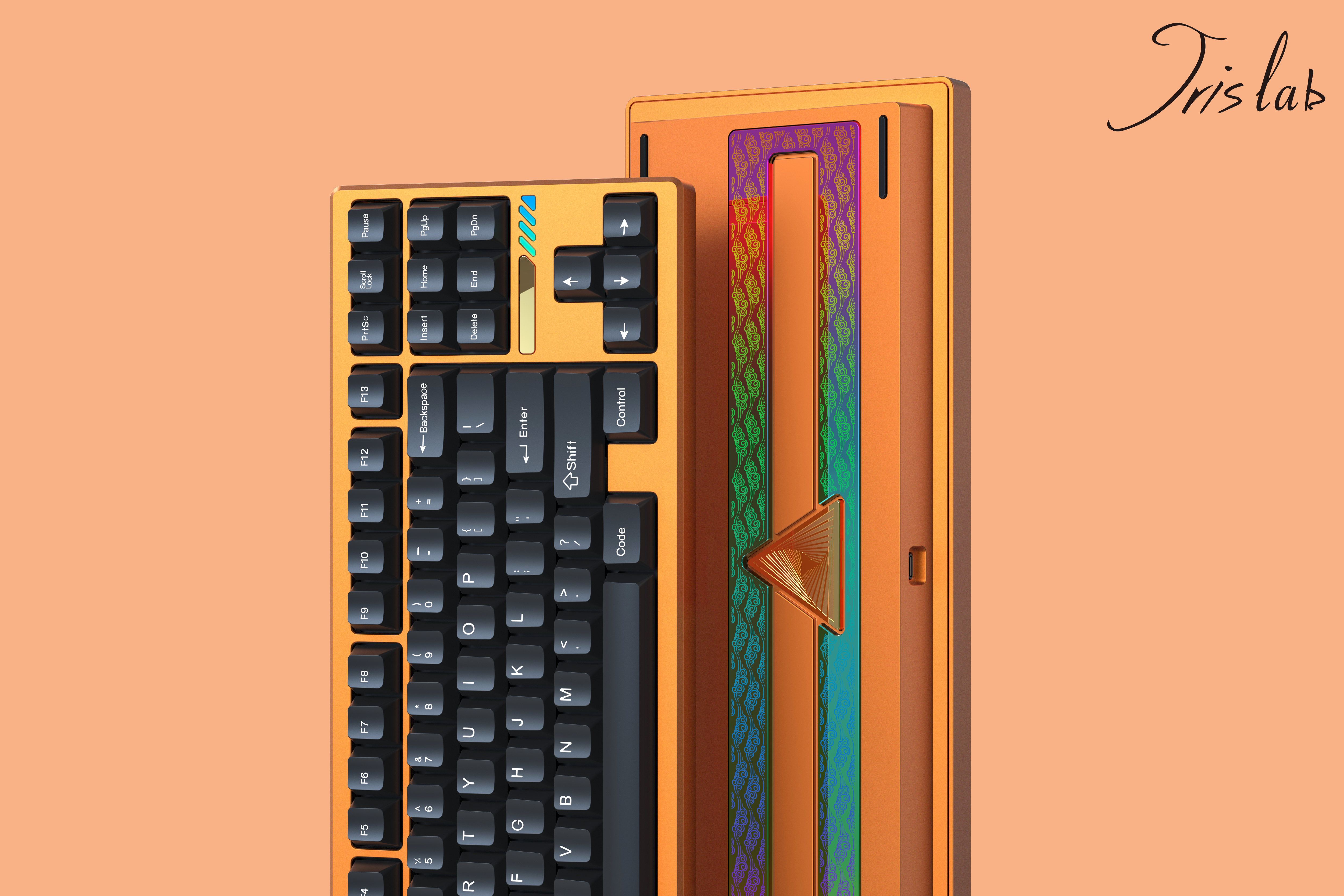

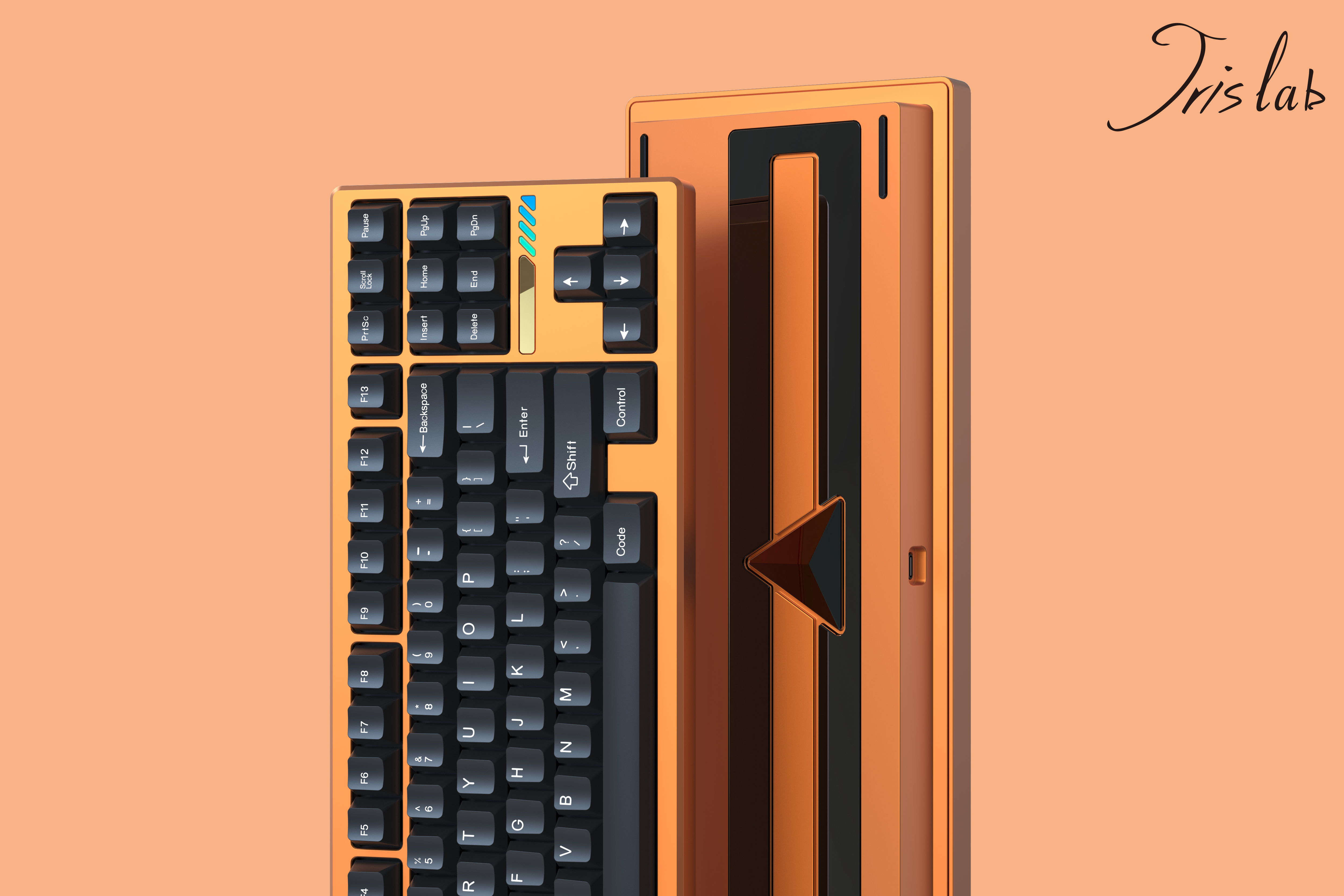

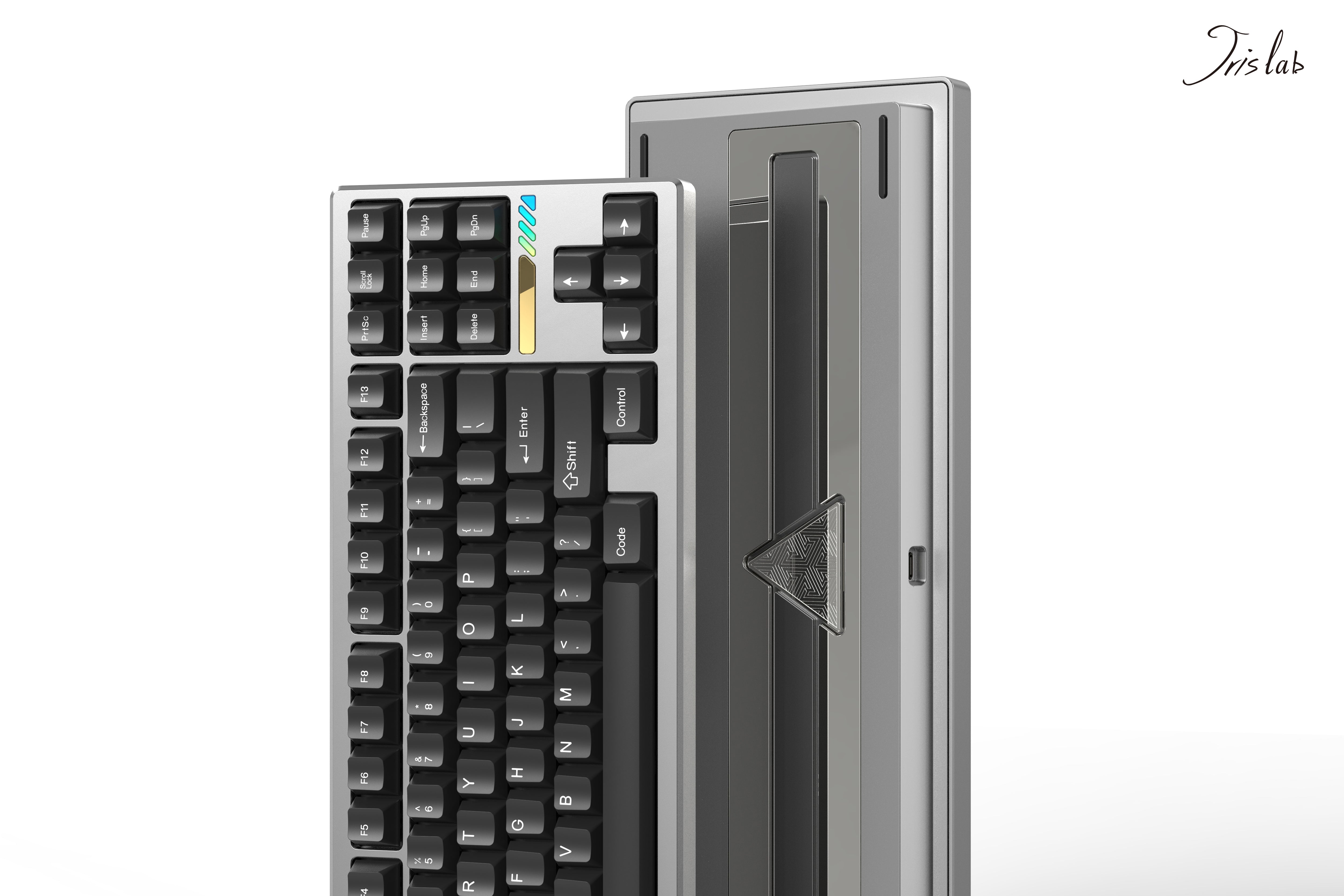

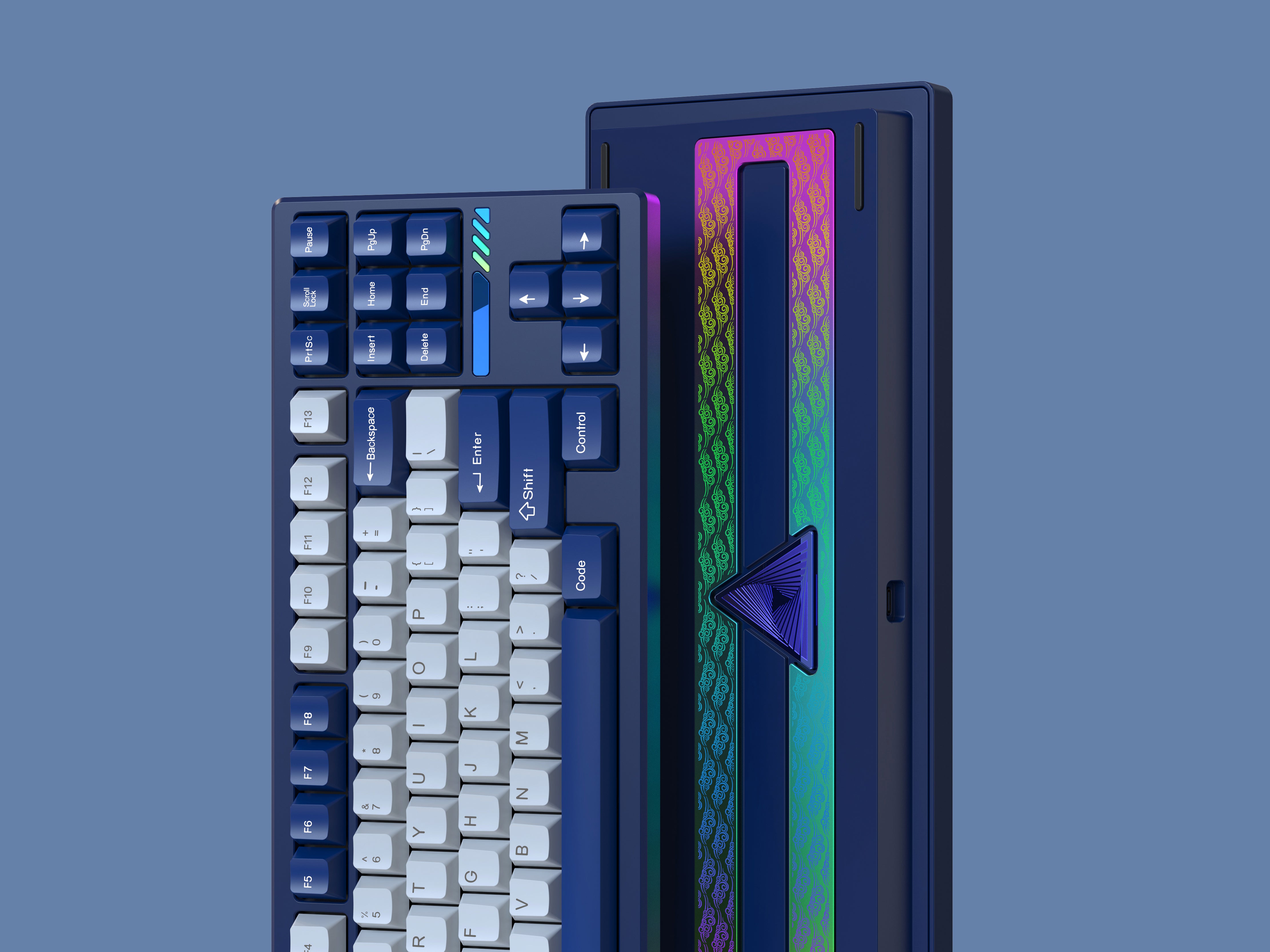

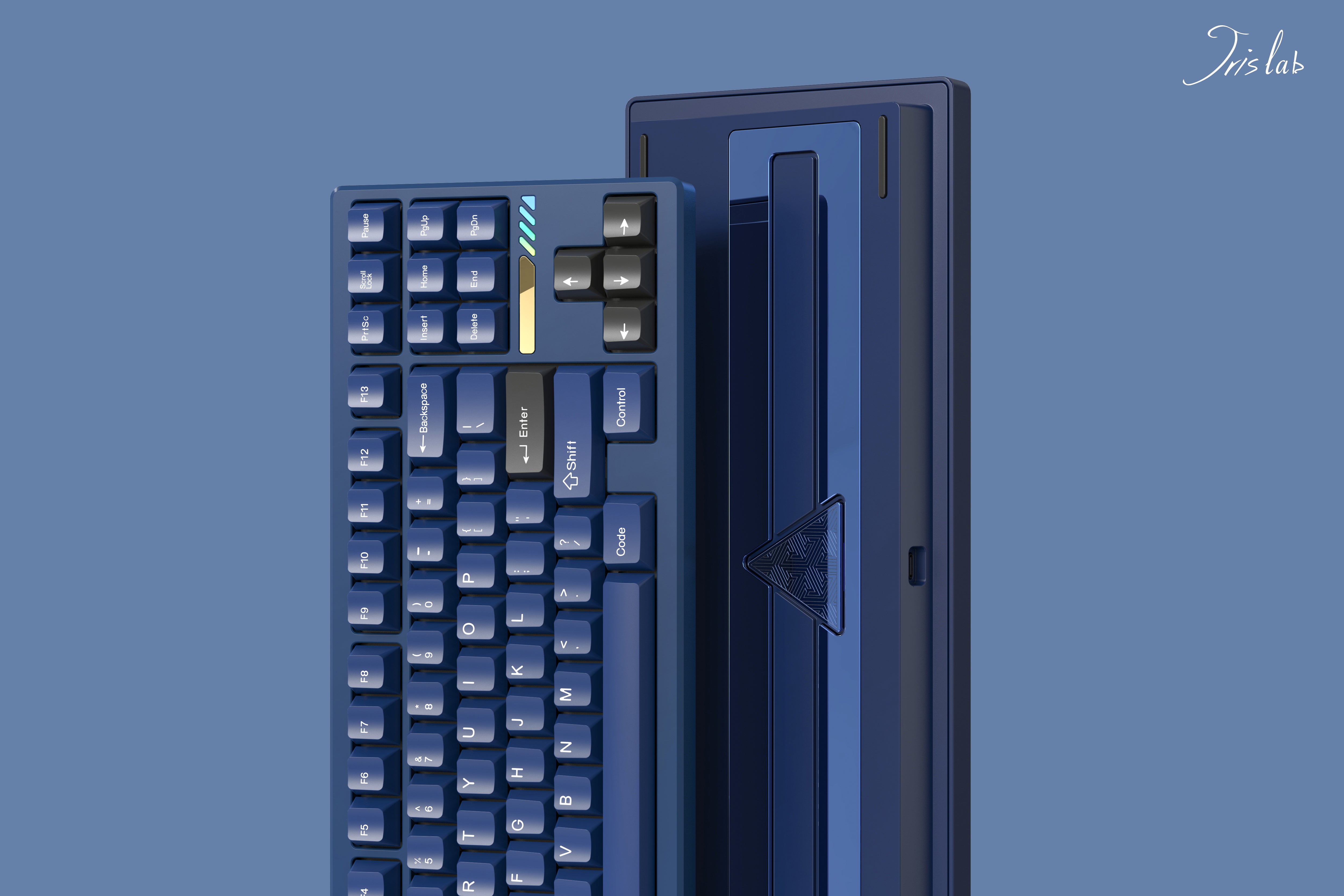

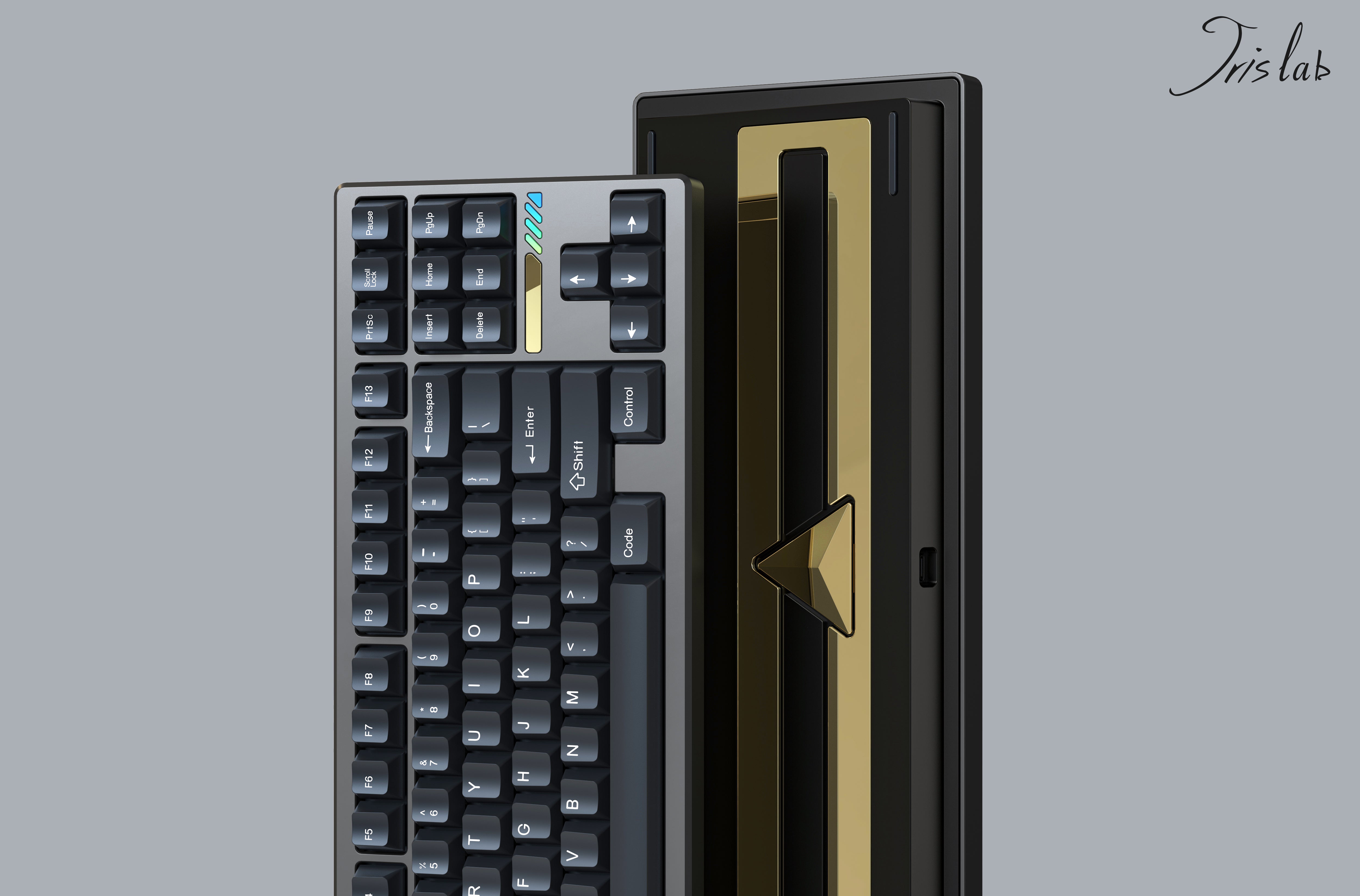

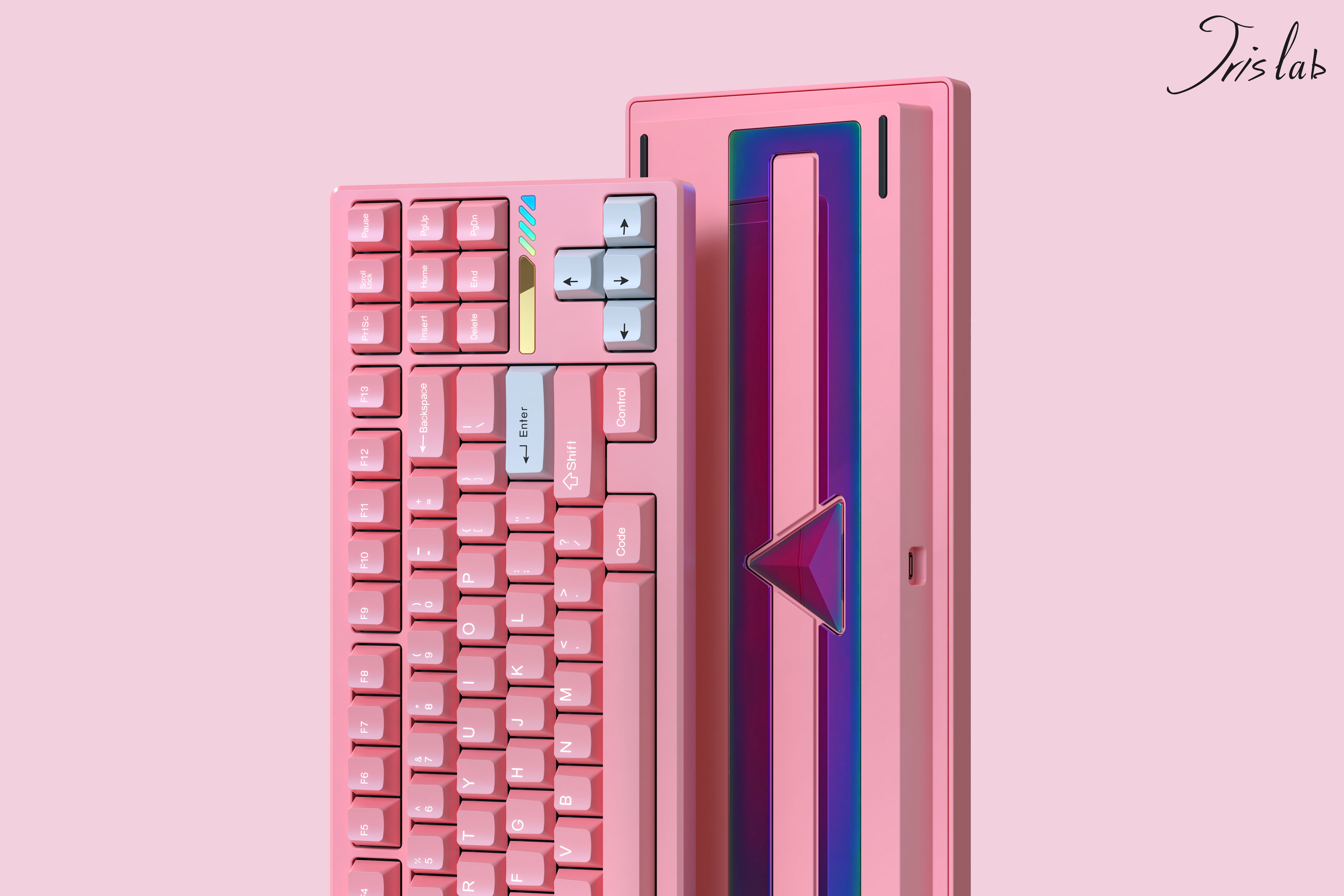

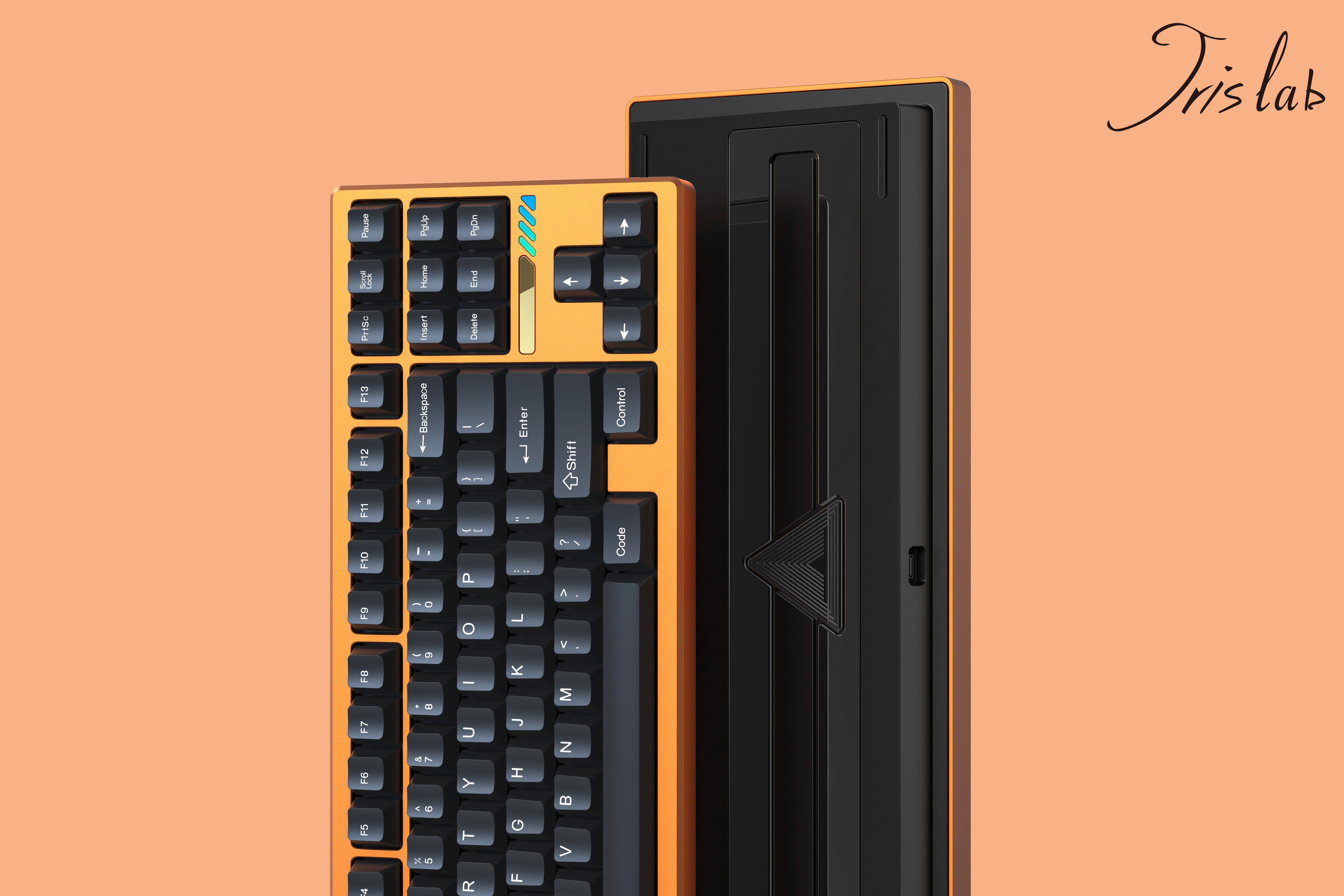

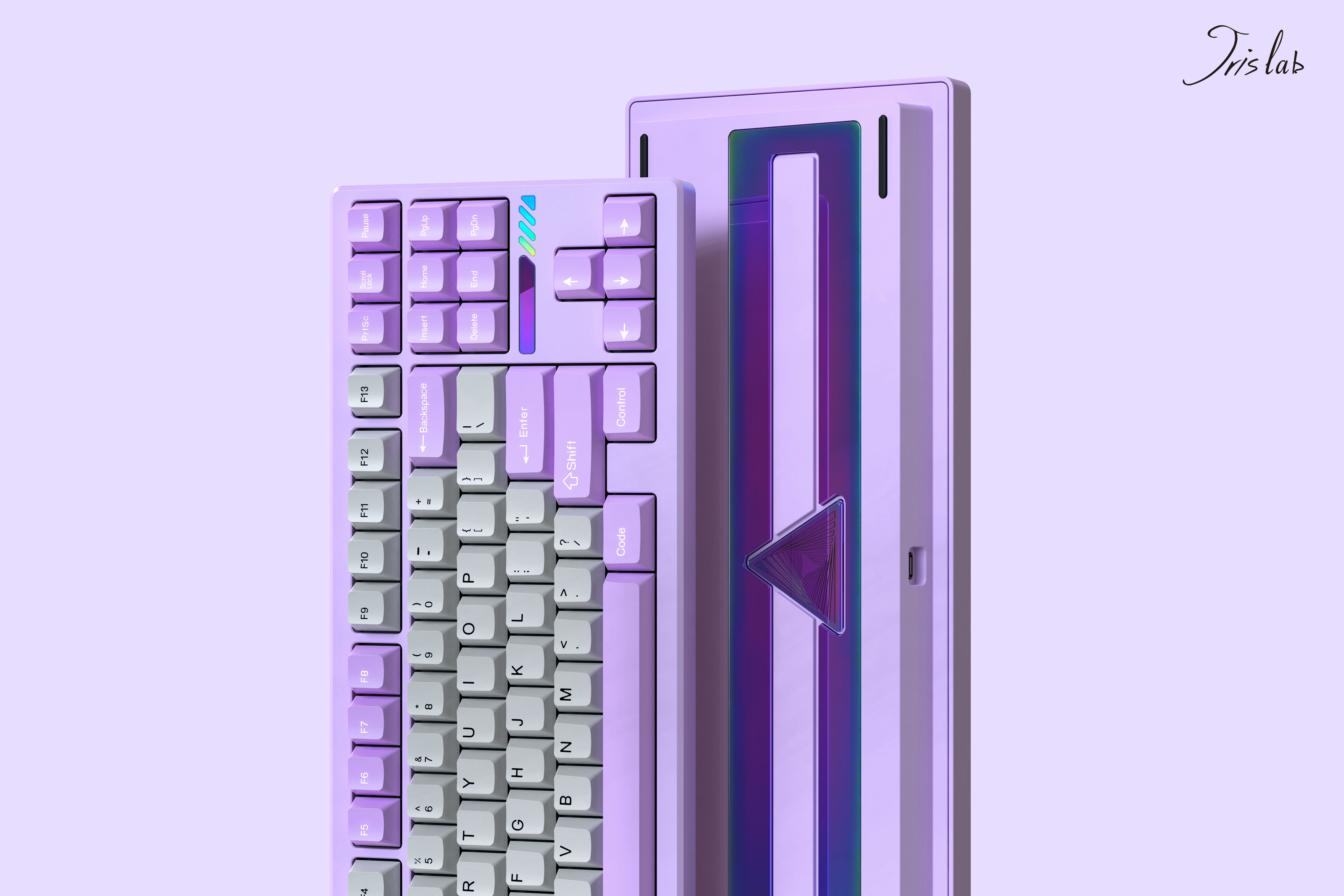

Case Colors

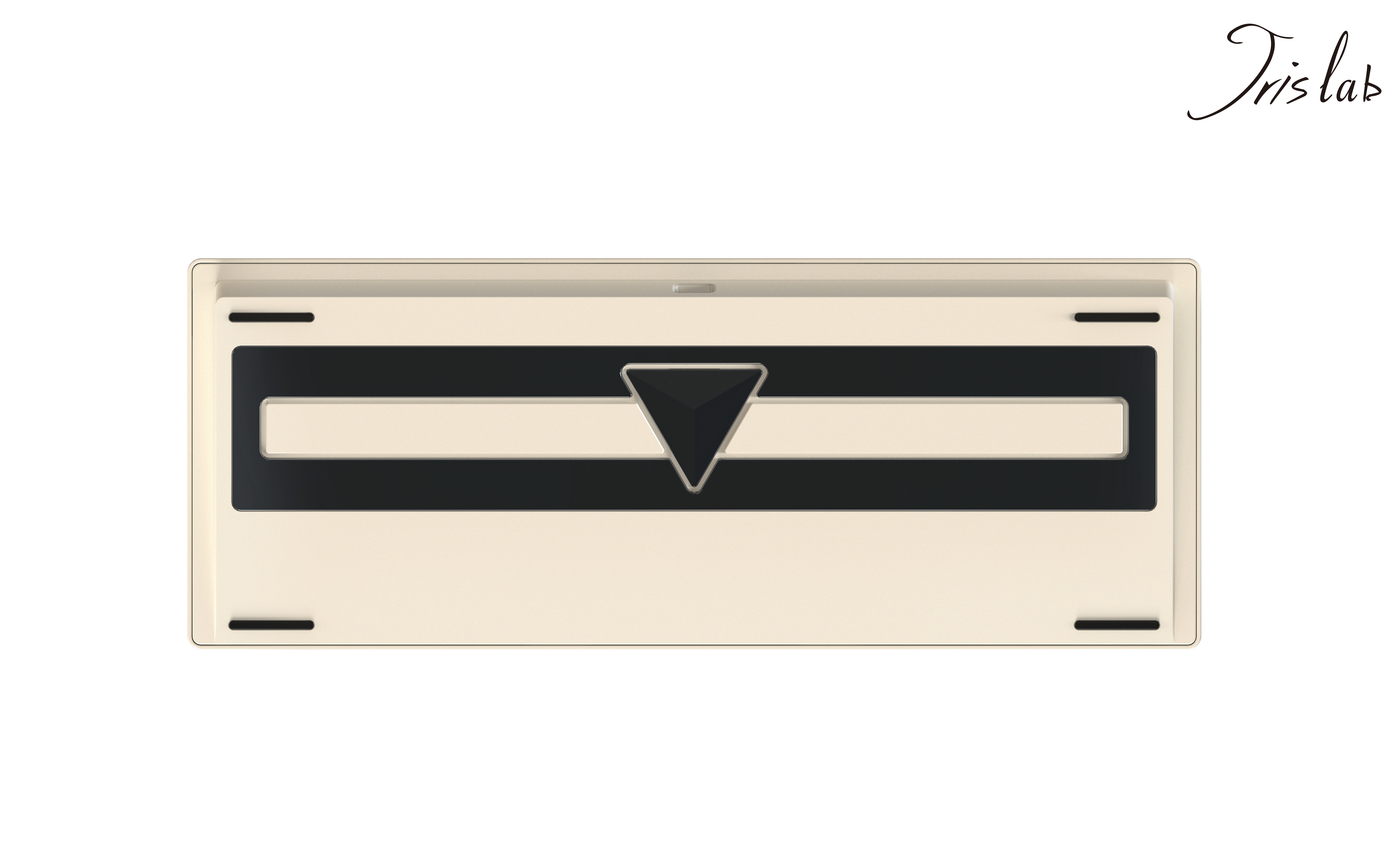

Weight Options

Each JRIS80 comes with the default Alu/PVD weight and magnetic inverted triangle weight. Titanium Alloy Weights are available as an addon only.

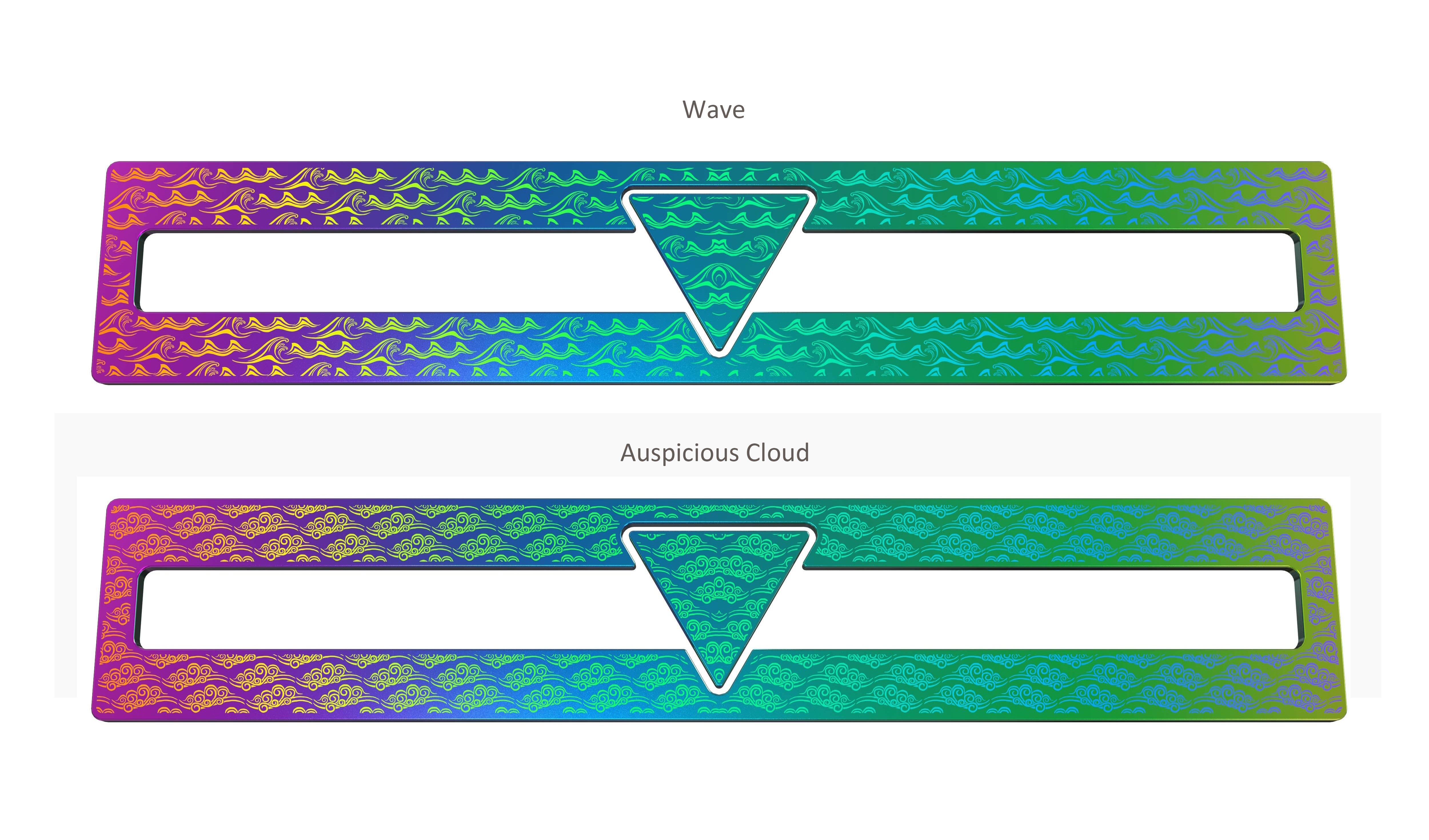

Titanium Alloy Weight - Cloud Pattern

Titanium Alloy Weight - Wave Pattern

PCB Options

Wired Multi Layout Hotswap & Solder (Flex and Non-flex cut)

  • Hotswap flex cut (1.2mm)
  • Hotswap non-flex cut (1.6mm)
  • Solder non-flex cut (1.6mm)

No per-key RGB. Supports QMK and VIA

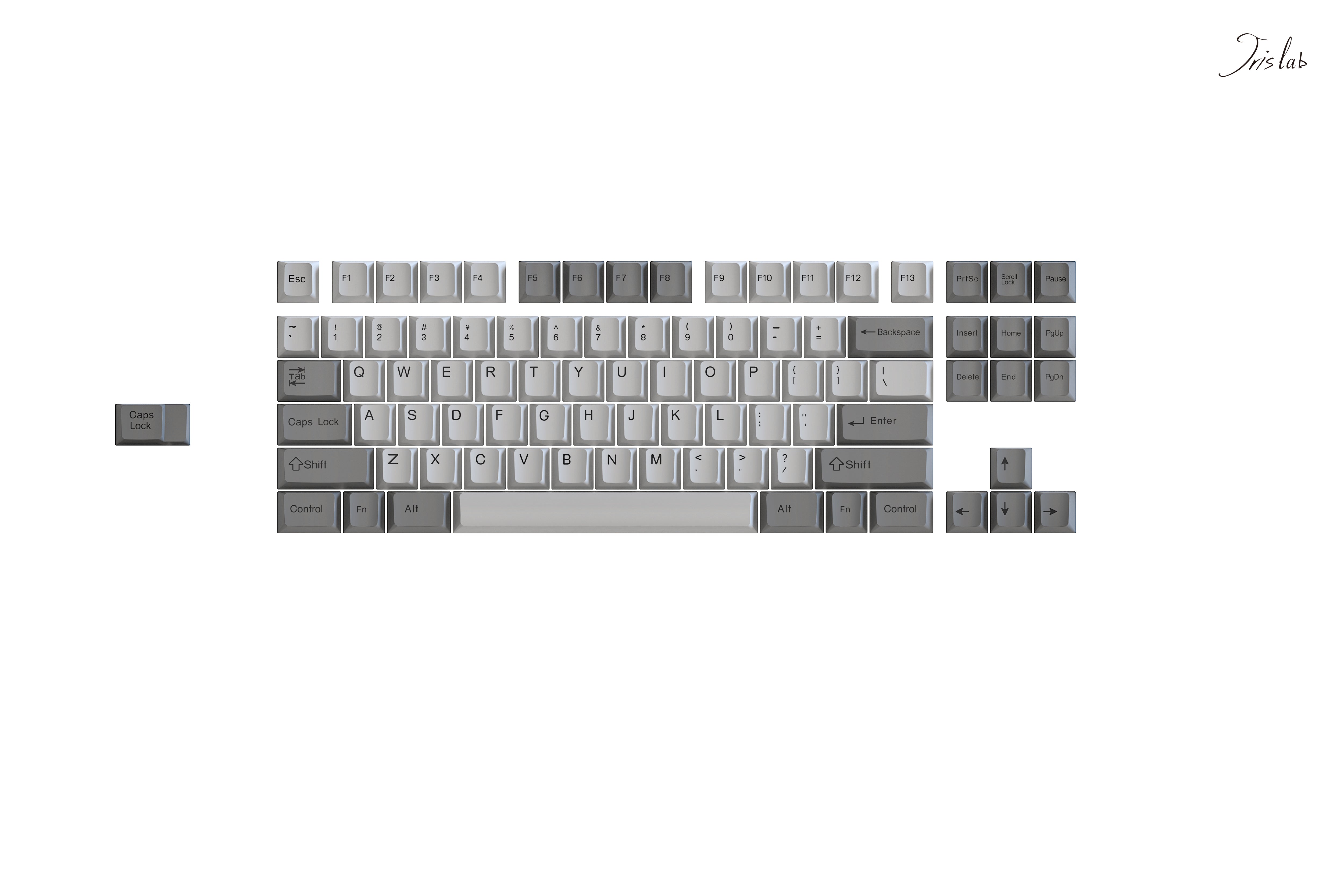

ANSI layout (Wired and Tri-mode) Non-flex Cut Hotswap

  • Wired per-key RGB (1.6mm)
  • Wireless Tri-mode (1.2mm, without per-key RGB, supports IRISLab software)

Plate Options

Flex Cut Plates: ALU/ FR4
Non-flex Cut Plates: POM/ PC

Alu, FR4 Half-plate/brass plate and plateless build are Add-ons only. We recommend using PC/POM/FR4 plate on Tri-mode PCB for smooth connectivity.

Alu/POM/FR4/PC Plate

Alu/FR4 Half Plate

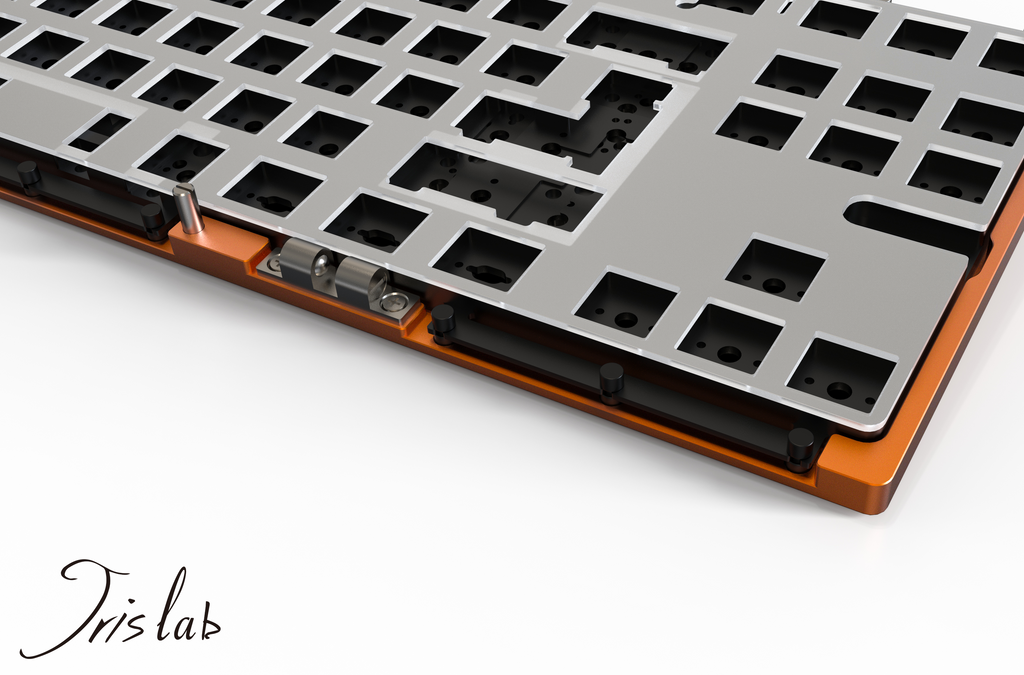

Gasket Adjustments

The silicon dumbbell-looking gaskets let you adjust the typing feel depending on your preference.

Softest

Medium

Hardest

Other Add-ons Options

Screwless WK/WKL Top Cases, Rotary Knobs and PVD accent strips.

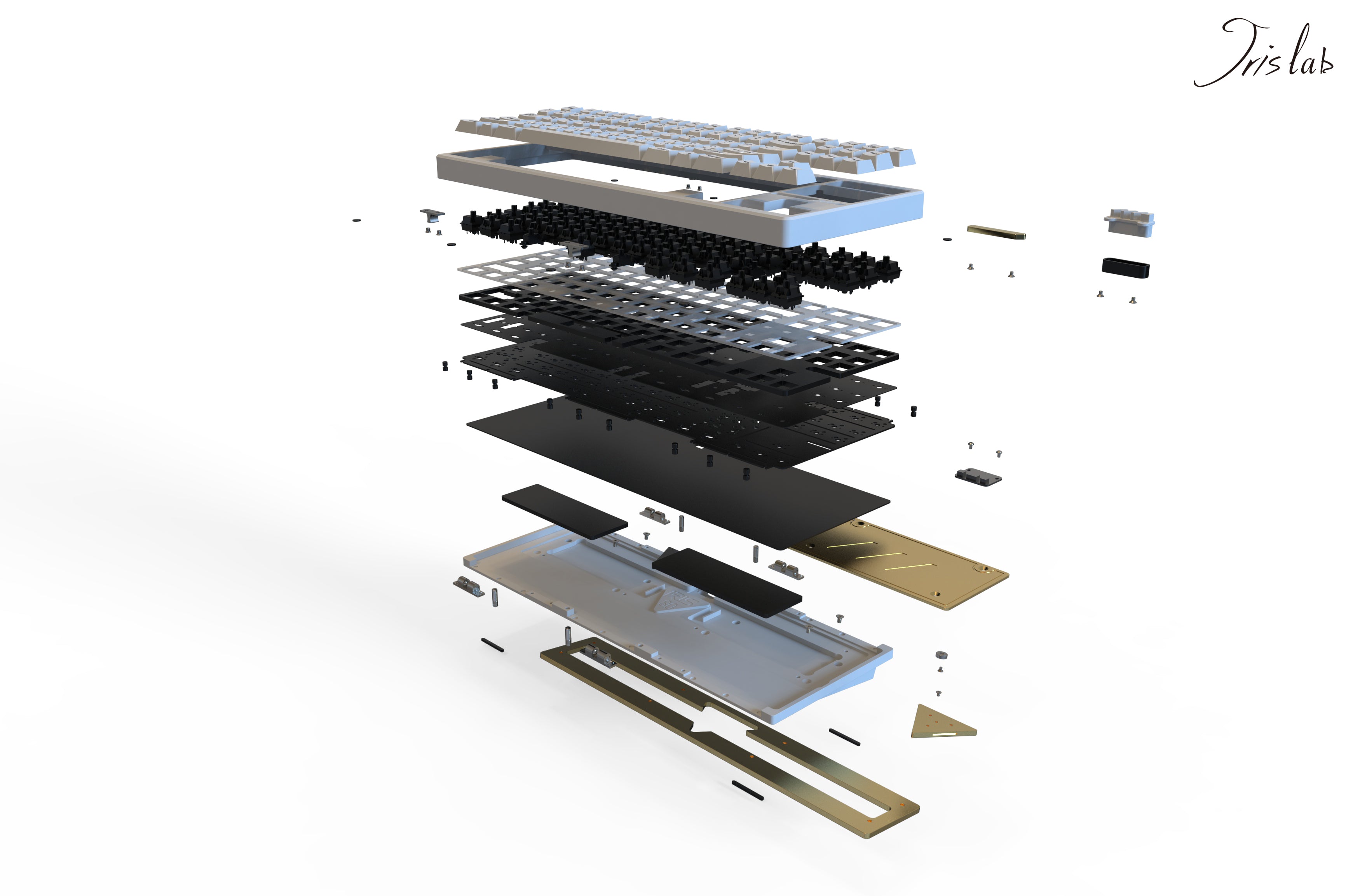

JRIS80 Exploded View
