Boog75 HE Module

$99.00

Boog75 HE Module - Compatible with Zoom75

Purchase Boog75 Pre-Built here


The Boog75 HE module can be dropped into a Zoom75 to convert it to be a HE (Hall Effect) keyboard. While this works in the Zoom75, other modules such as the knob and LCD will not work with the HE Module at this time.

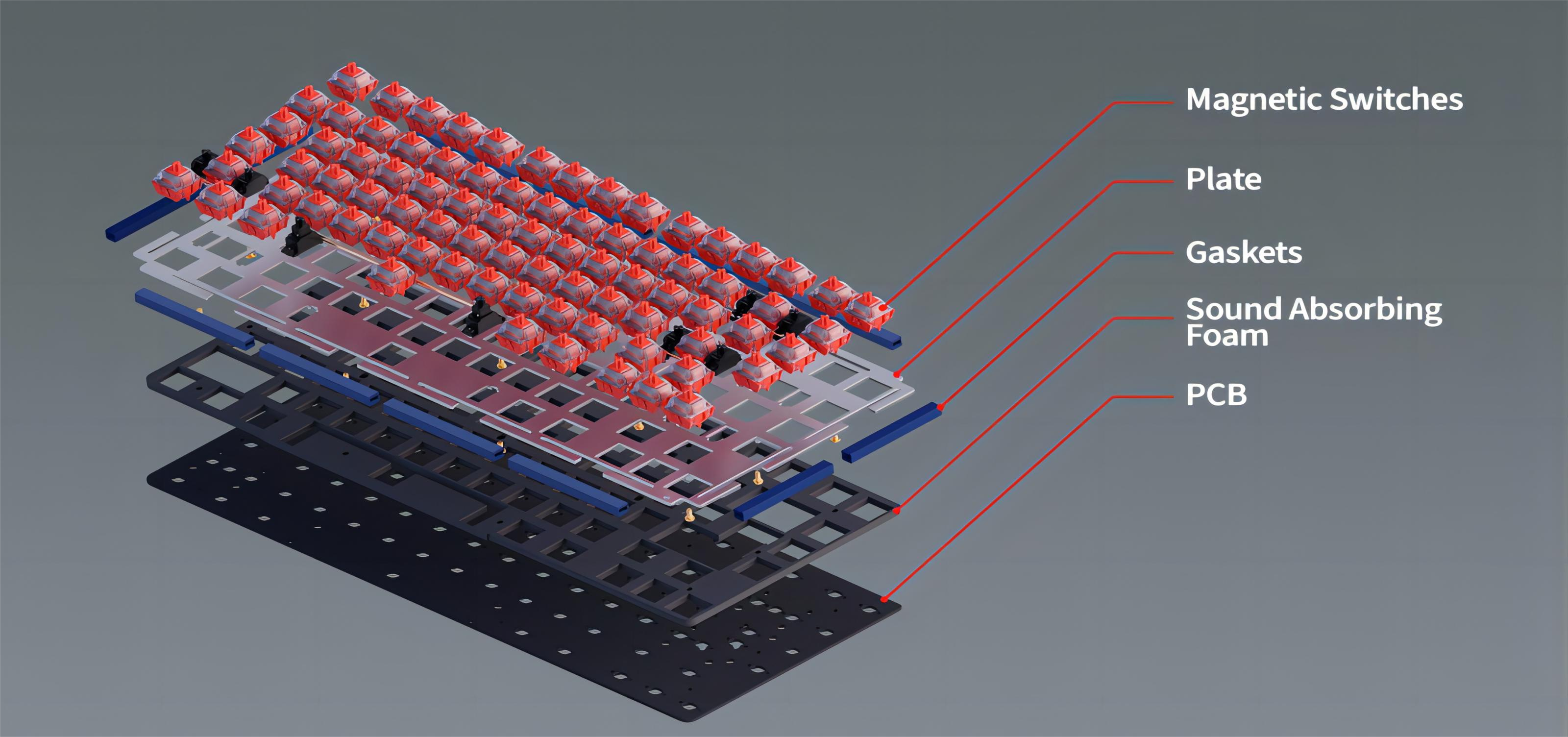

In the box

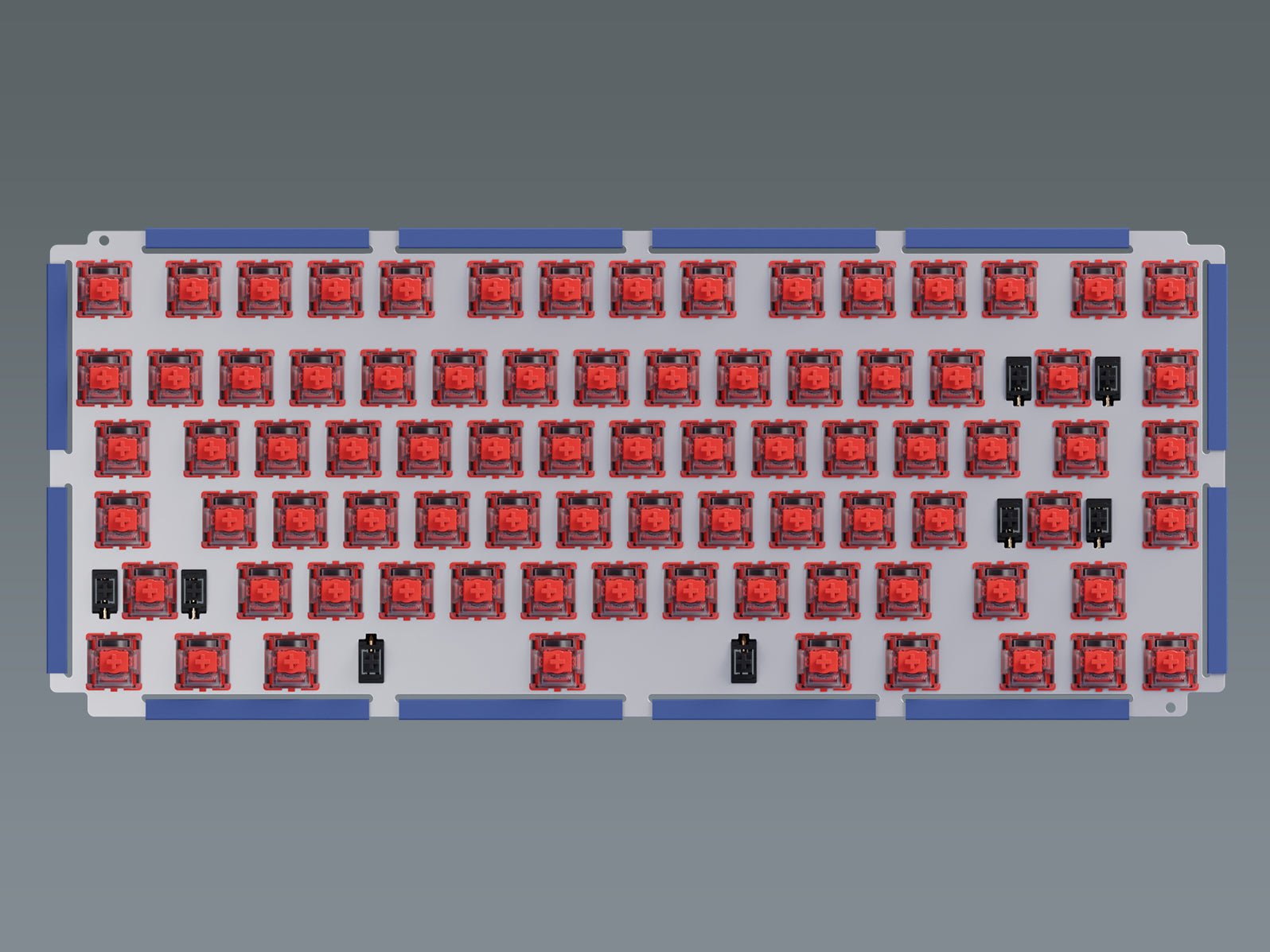

  • Aluminum plate
  • Poron gaskets
  • Boog75 HE PCB
  • Gateron KS3-37B magnetic hall effect switches
  • Factory lubed stabilizers
  • Plate foam

Keyboard case and keycaps are not included. The HE module comes assembled.

PCB Specs

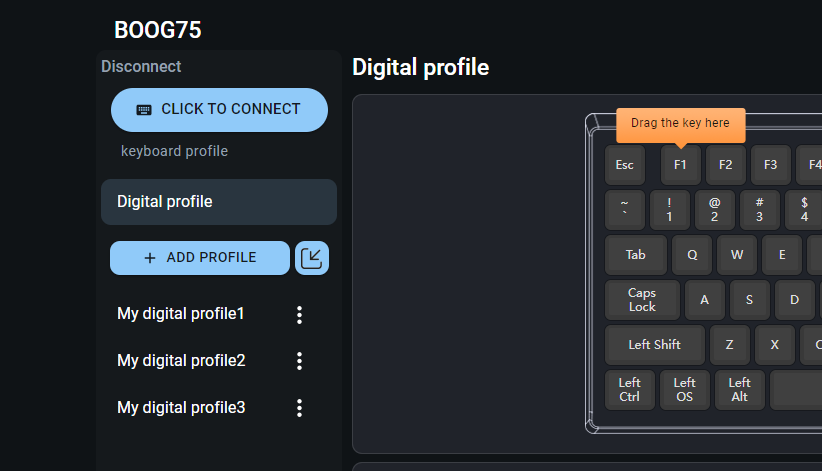

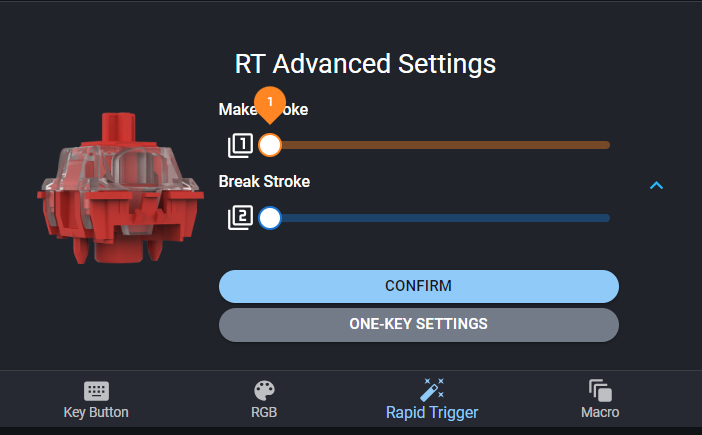

  • Remappable and configurable with the Boog75 software
  • Only works with HE (Hall Effect) switches
  • North facing switches
  • 1.6mm thick
  • 1000Hz polling (wired)
  • Per-Key RGB

Stabilizer Specs

  • Wuque Stabilizers V 3.1
  • Lubed

Switch Specs

  • Initial force - 30±10gf
  • Bottom out - 50±10gf
  • Travel - 4.0±0.2mm
  • Top housing - Thermoplastic
  • Bottom housing - Thermoplastic
  • Stem - Thermoplastic
  • Spring - Stainless steel
  • Factory lubed
  • Dual-rails to help reduce stem wobble

The ETA for this pre-order is March 2024.

Estimated Date of Delivery: Please refer to our Project Updates page for the most up to date information.

This is a Group Buy, and Group Buy terms and conditions apply. The estimated date of delivery is just that - an estimate. Delays and setbacks may occur. Upon purchase, you will be charged immediately. And by purchasing this item, you acknowledge everything stated above. For cancellation and refund policies on this order, please refer to our policies and FAQ.
