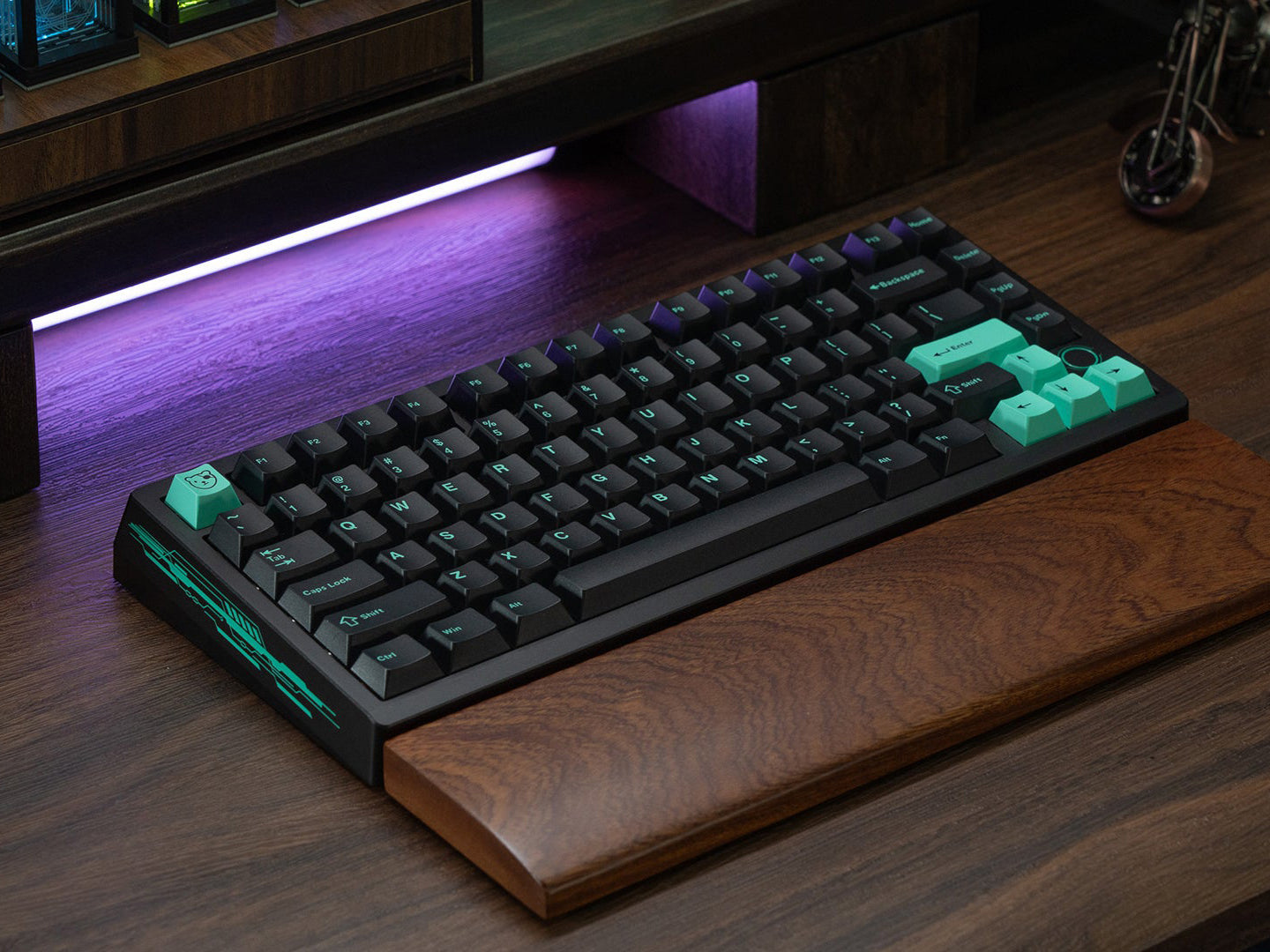

BOOG75
Introducing the BOOG75 - a premium magnetic hall effect switch compatible variant of the popular Zoom75 keyboard by Meletrix. 1000Hz hall effect goodness, in a premium aluminum chassis.
Choose between pre-built keyboard in two versions, or enhance your existing Zoom75 with the HE Module.
BOOG75 Details
Keyboard Details
Keyboard Details
- Aluminium keyboard case
- Available in two colors - Shockwave (Black) and Induction Coil (White)
- 5° typing angle
- 1.6mm thick PCB
- Per-Key RGB
- 22.14mm front height
- 323.6mm x 145.78mm x 34.73mm
- Alu plate
- Backplate and external weight are anodized and infilled
- Gateron KS-37B HE switches
- No internal weight
- 1000Hz polling rate (wired)
- Not compatible with QMK or VIA. Uses custom software.
Keycap Details
Keycap Details
- WS PBT
- Doubleshot PBT
- 1.6mm thick
- Cherry profile
- 81 keys
Switch Details
Switch Details
- KS-37B HE Switches
- Initial force - 30±10gf
- Bottom out - 50±10gf
- Travel - 4.0±0.2mm
- Top housing - Thermoplastic
- Bottom housing - Thermoplastic
- Stem - Thermoplastic
- Spring - Stainless steel
- Factory lubed
- Dual-rails to help reduce stem wobble
Boog75 Kit Contents
In the box
Fully assembled keyboard, which includes the following
- Top and bottom case
- HE Module (Switches, plate, gasket, foam, PCB)
- Themed keycaps
- Tools and accessories
FAQ
- Is the PCB only compatible with the Zoom75? Yes.
- Will Boog75 support LCD or Knob Module? No, only 2-key module for now.
- Can I buy the Boog75 Case only? No, only available as a full pre-built keyboard.
- Is the Boog75 wireless? No, only wired for now.
- Can the Boog75 be used with wireless Zoom75 PCB? Boog75 does not have a battery slot, so only the wired Zoom75 PCB will function in it.
Adjustable activation point for each key from 0.1 to 4mm - with 0.1mm accuracy!
The unique traits of magnetic switches on BOOG75 let you customize key activation triggers for swift press/release and adjustable activation point - More advantage for you in several game that demands high execution/action in miliseconds.
The software also support Per-key RGB and saving multiple profiles to tailor your gaming needs.

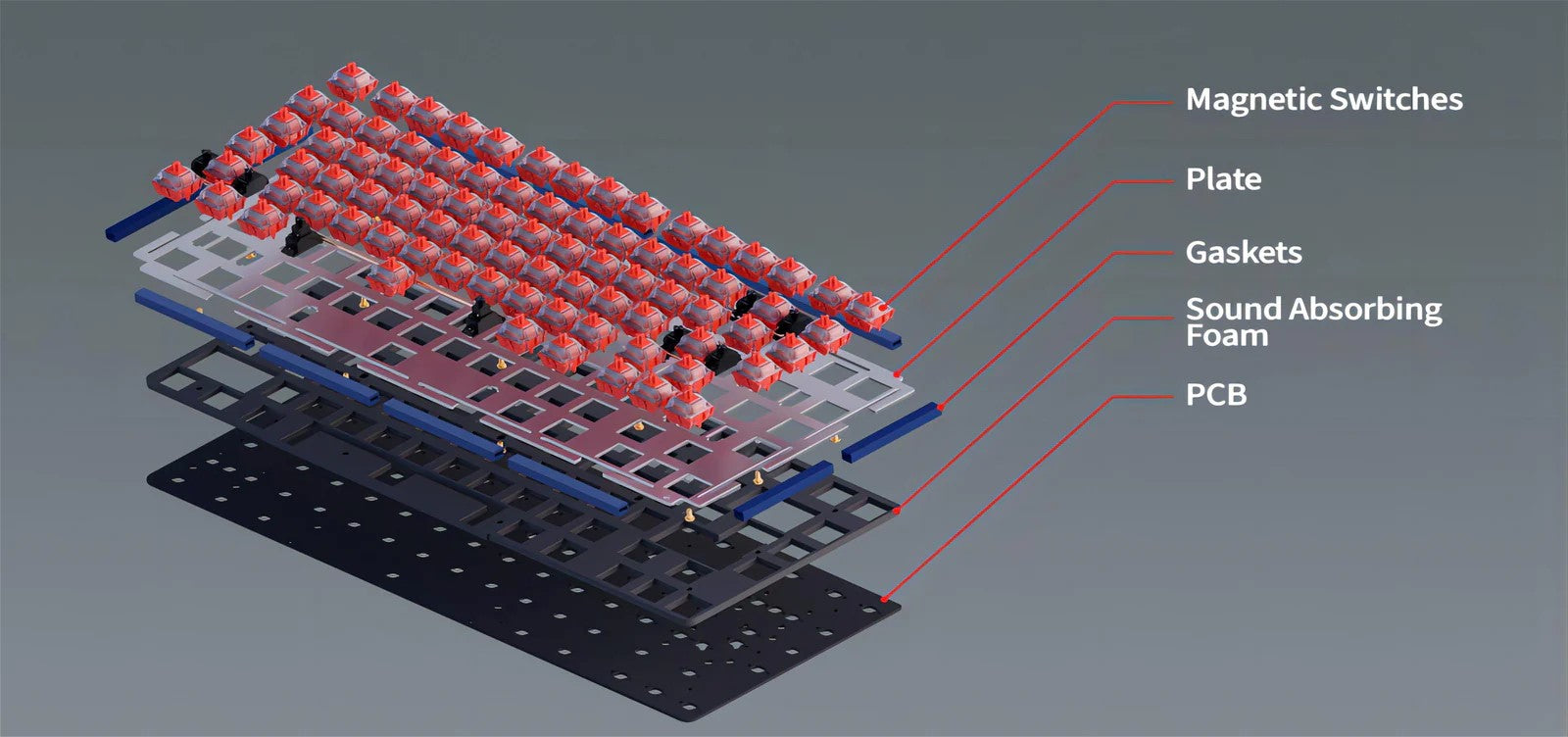

Compatible with Zoom75 - HE Module
BOOG75 HE Module is fully compatible with your existing Zoom75 Keyboard. Magnetic switches, Plate, PCB and gaskets are included in the module.
Render & Photo Disclaimer
Colors in the final product may vary since renders are done under idealistic artificial lighting.
We use photos of our products in hand when possible to show how they look in realistic situations. Sometimes the product might look different within the same listing- this is generally caused by different lighting conditions. When possible, we try to use different lighting conditions to show what the product might look like in different scenarios.
QC Disclaimer
Please see the QC Disclaimer PDF provided by Meletrix.
