Zoom65 V2.5 Keyboard (Air Shipping)

$214.00

Color
PCB

Zoom65 V2

Introducing the Meletrix Zoom65 V2.5 - the newest keyboard in the Zoom Series. This revised version features 4 new colors, nightlight knob, and a tri-mode RGB PCB!

A superbly customizable feature full keyboard at an approachable price.

This pre-order will be live until October 10th 2023 at 11:59PM ET. This project is estimated to ship to us in late December, and arrive in January 2024.

Available Addons

Zoom65 V2.5 Configurator

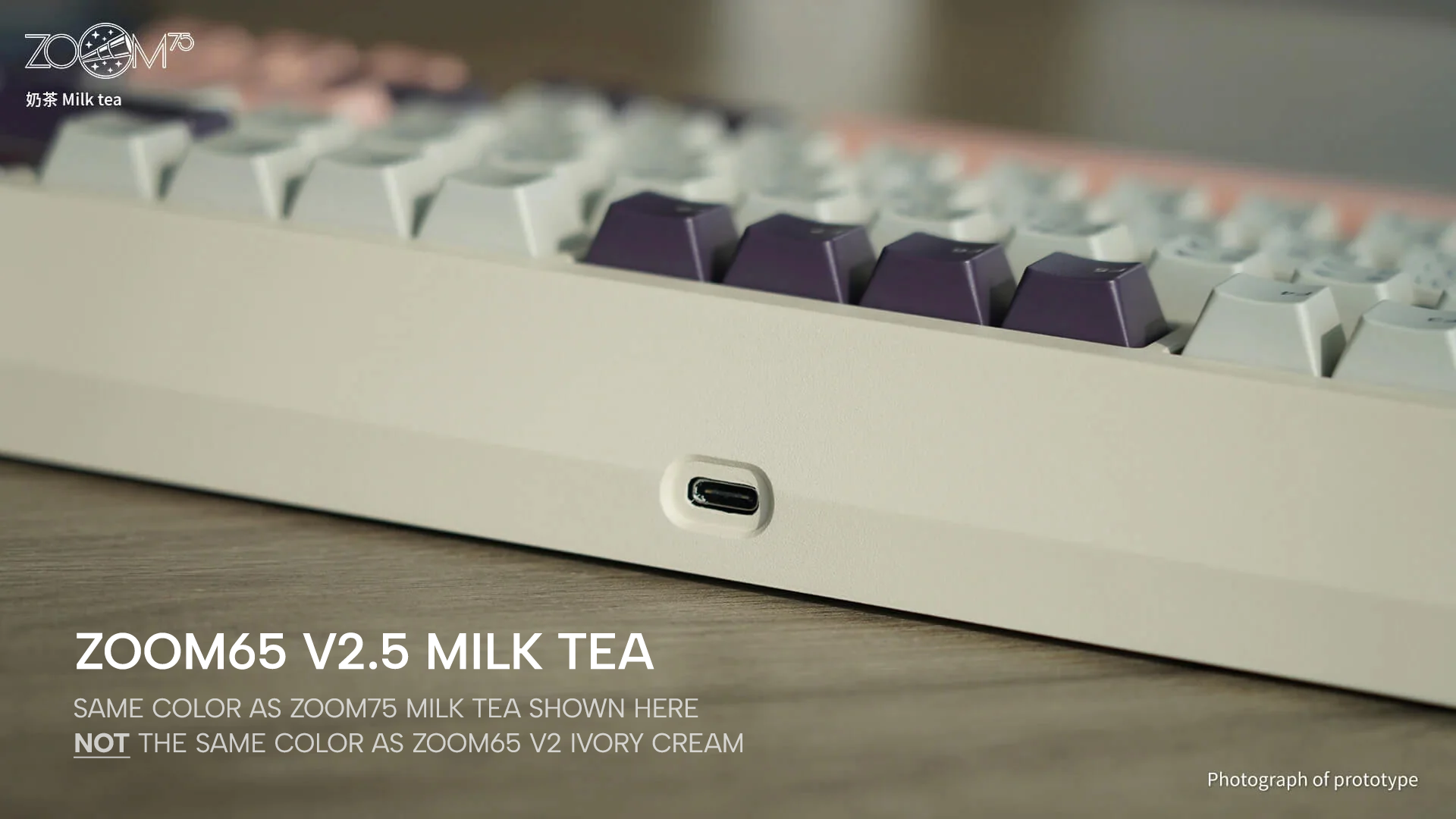

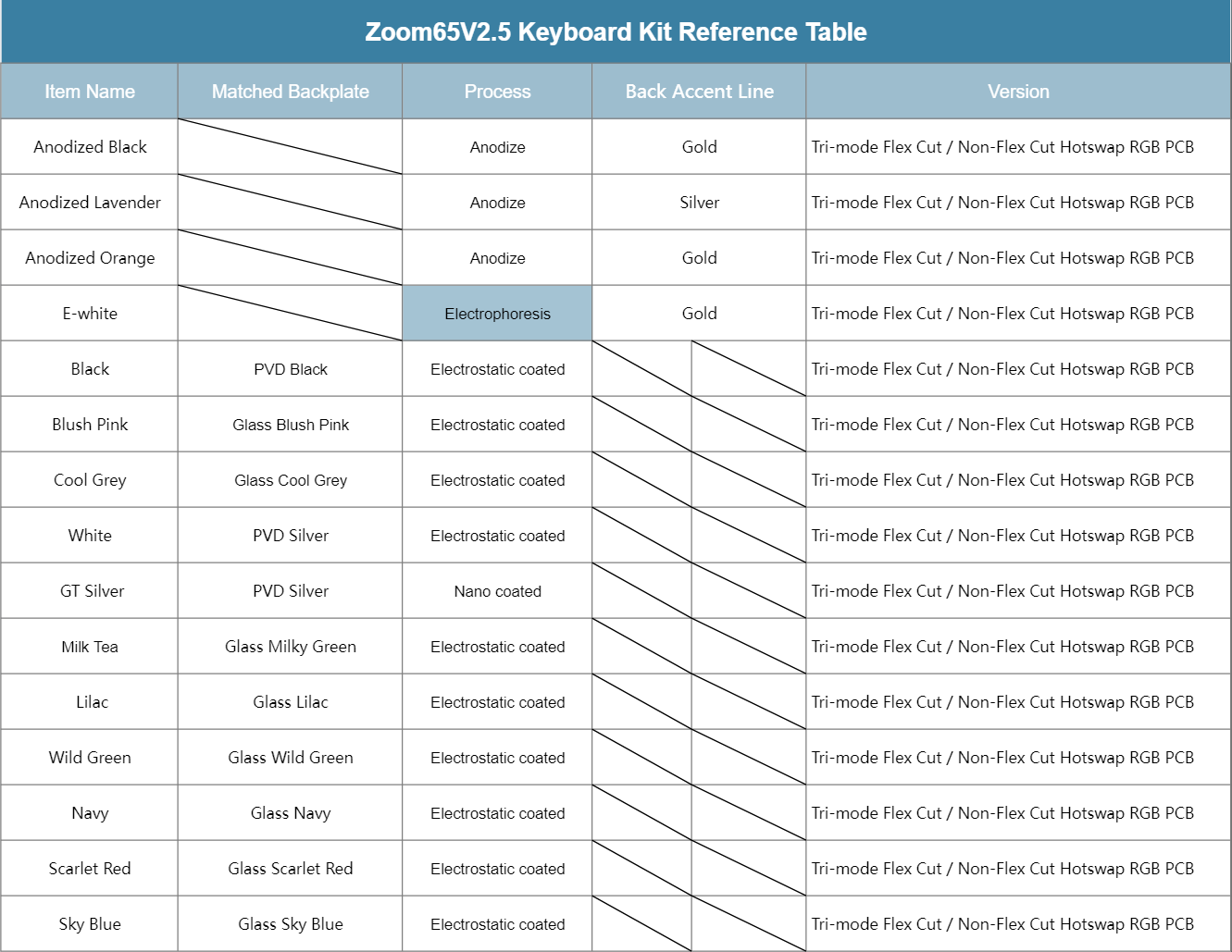

Note: The ivory cream is now Milk Tea. Use the image in the above slider for color reference.

Zoom65 V2 x Soul Land

Three assembled keyboards with customized cases, deskmats, coiled cables, and even a matching Artisan!

Full Keyboard Details

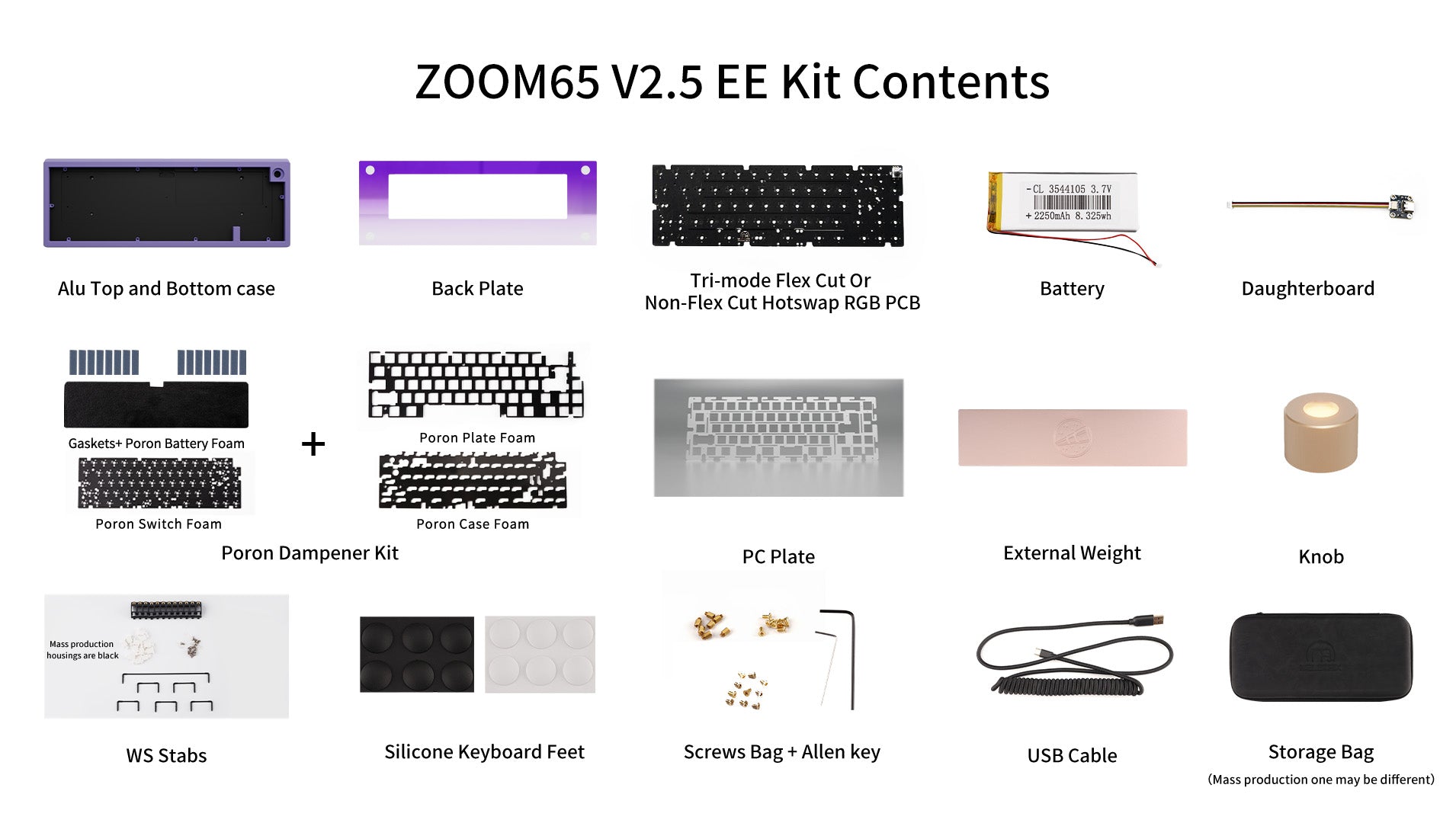

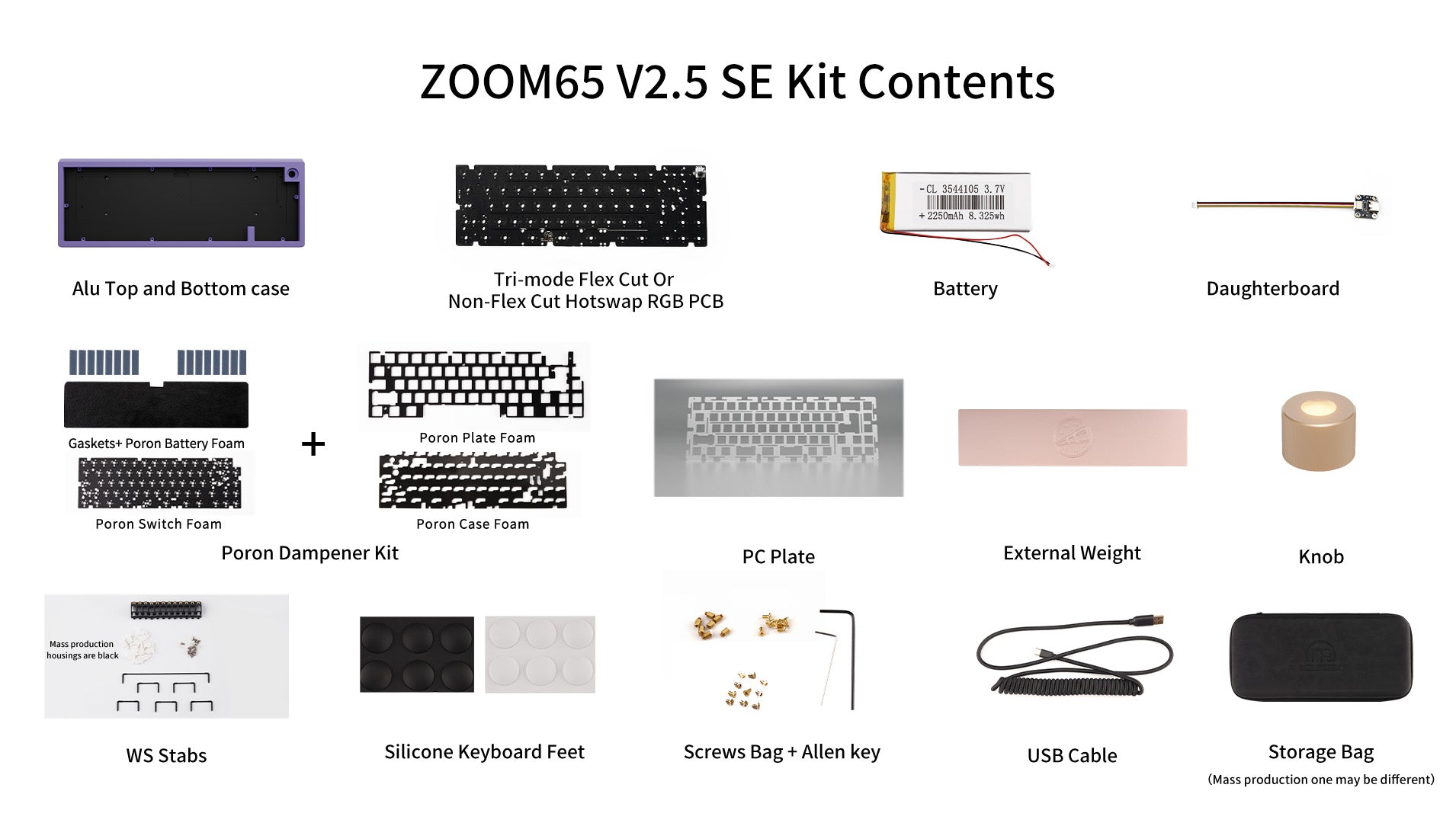

Kit Contents
  • Aluminum top & bottom case

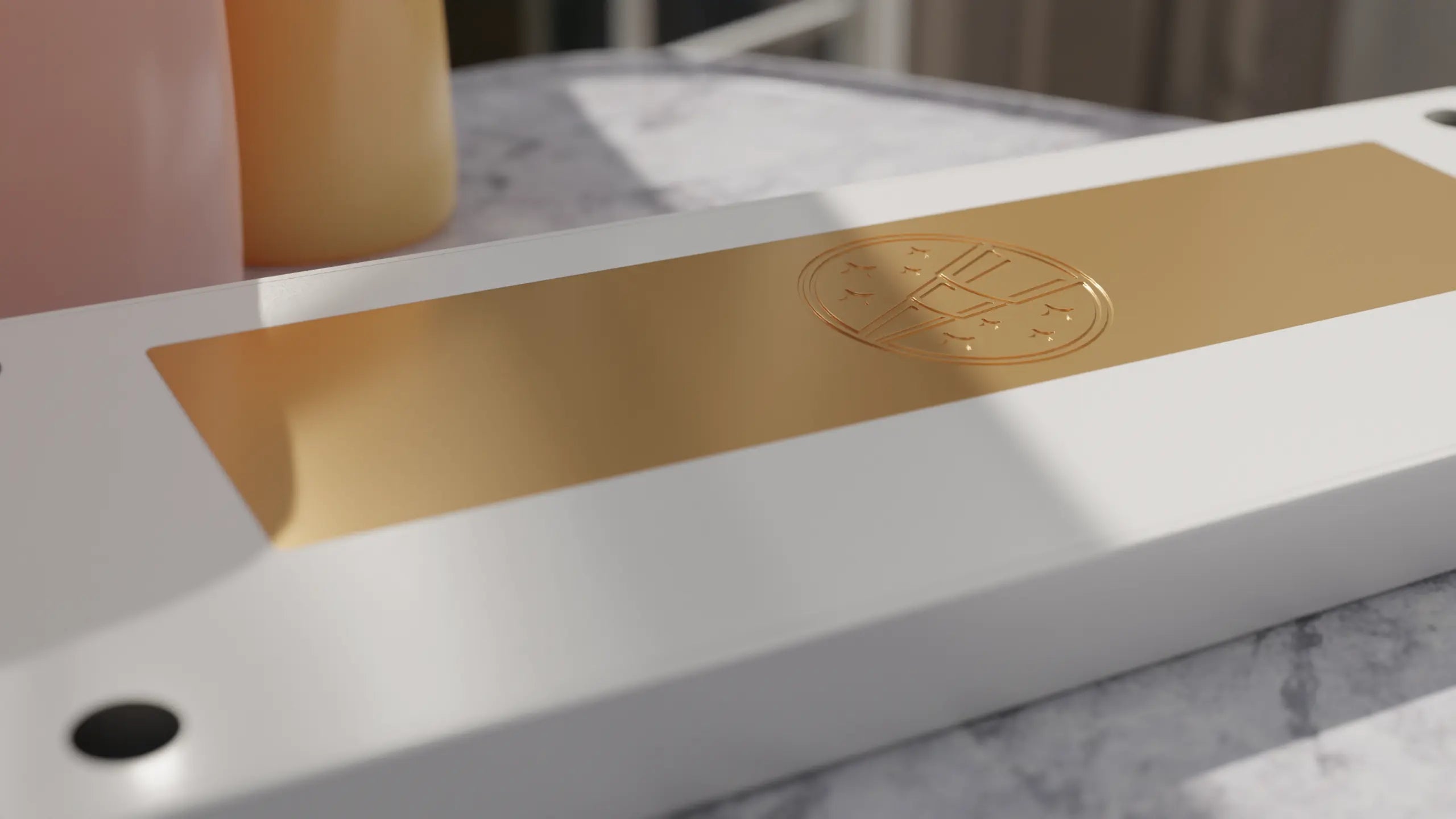

  • Aluminum or SS external weight
  • Backplate in the same color as the case (Matched color Glass/PVD for EE, SE not compatible with backplates)
  • Aluminum/brass rotary knob matching the external weight
  • Hot-swap, multi-layout Tri-Mode VIA PCB with per-key RGB.
  • Daughterboard/JST cable
  • Polycarbonate plate
  • Gasket Sleeves
  • Set of WS Stabilizers V3.1
  • Li-ion battery
  • Coiled USB-C cable
  • Poron Dampener kit
  • Silicone keyboard feet
  • Screws and other hardware/accessories
  • Keyboard case
Specs
  • Gasket mount
  • 65% Layout
  • PCB: 1.2mm with unified C3 daughterboard
  • 6.5° Typing angle
  • 2mm front height
  • Aluminum case finish - Upgraded electrostatic finish (most colors), nano coated (GT Silver only), anodized (SE Only), E-Coat (E-White only)
  • PC Plate included
  • Tri-Mode RGB PCB

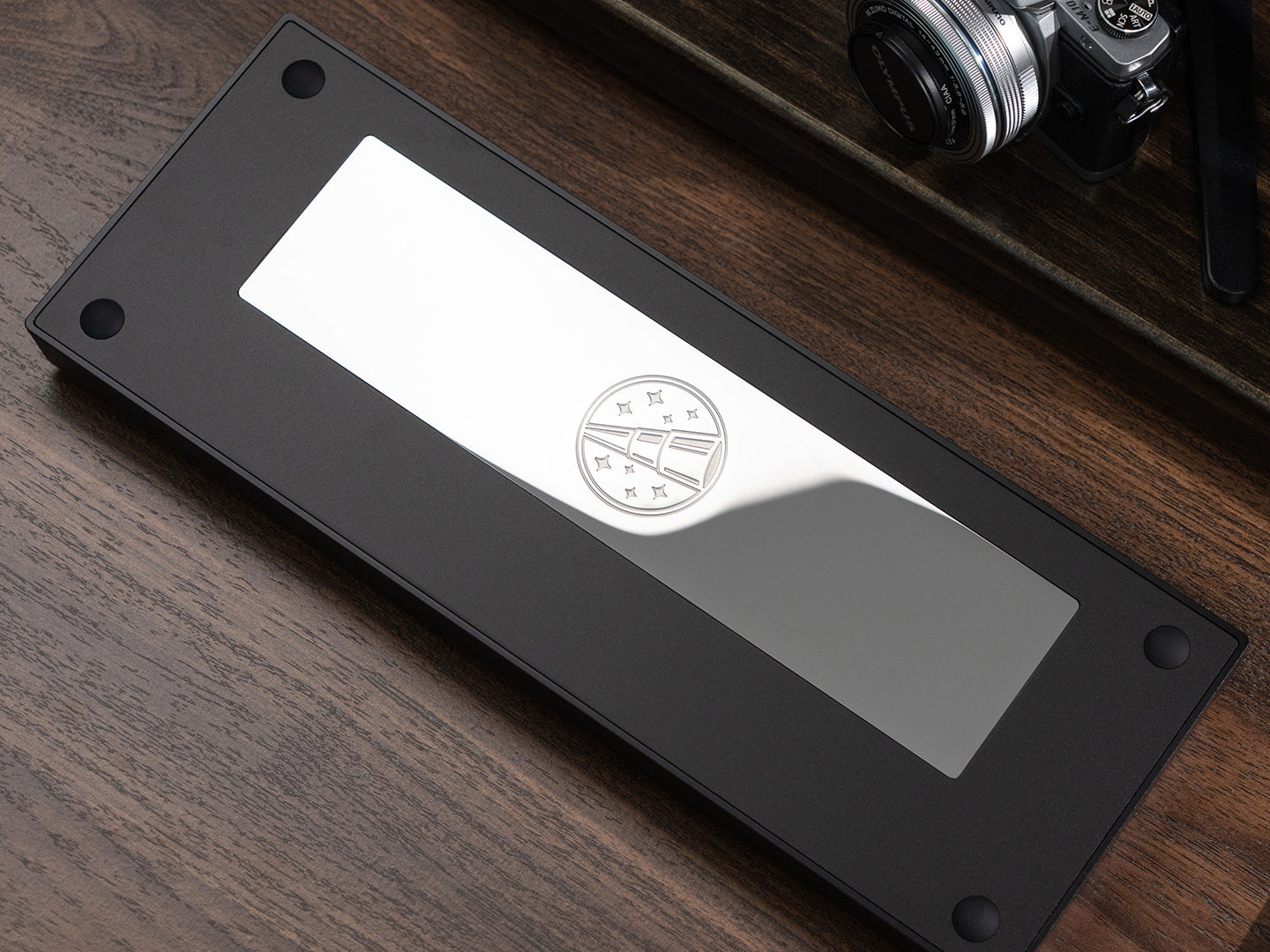

  • The bottom of all EE cases is sparkling black, which is covered by the included glass backplate. SE gets color matched backplate.
Keyboard Weight
  • Aluminum weight with glass backplate - unbuilt weight of 1.35 kg
  • PVD SS weight with glass backplate - unbuilt weight of 1.64kg
  • Aluminum weight with PVD backplate - unbuilt weight of 1.44 kg
  • PVD SS weight with PVD backplate - unbuilt weight of 1.73 kg
  • Internal SS weight - 0.234 kg (In addition to keyboard weight)

What's New in Zoom65 V2.5

New Colors

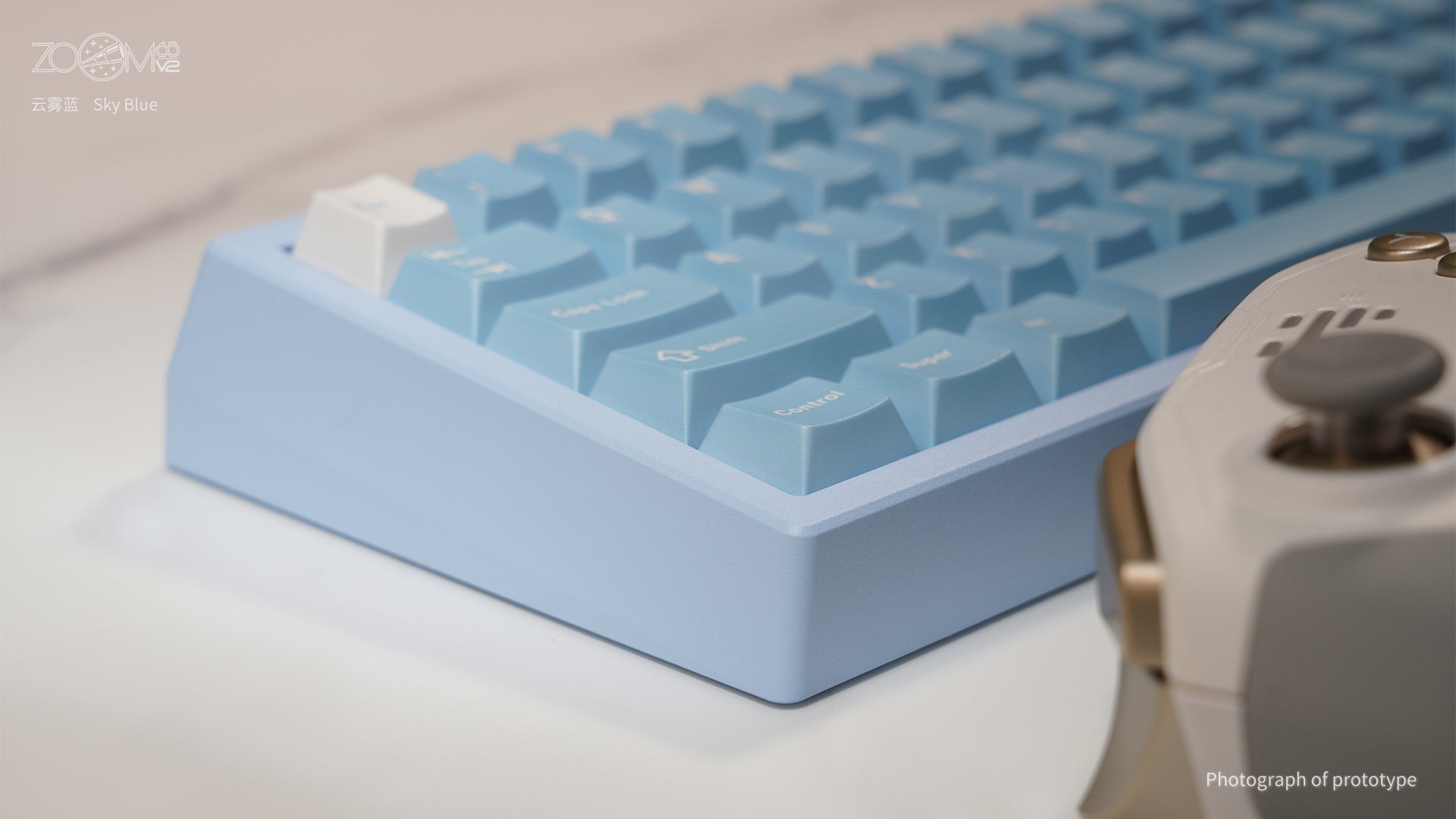

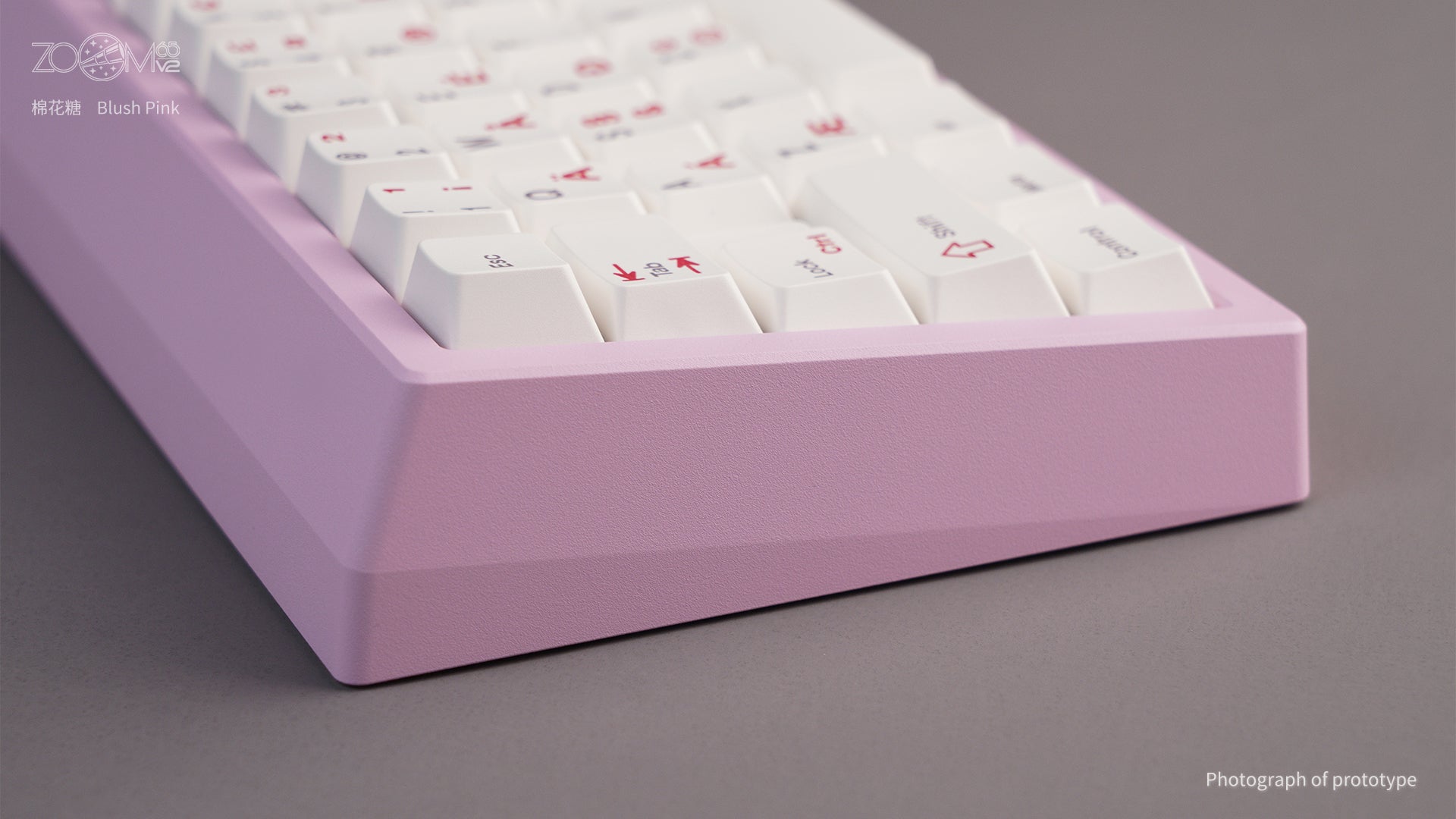

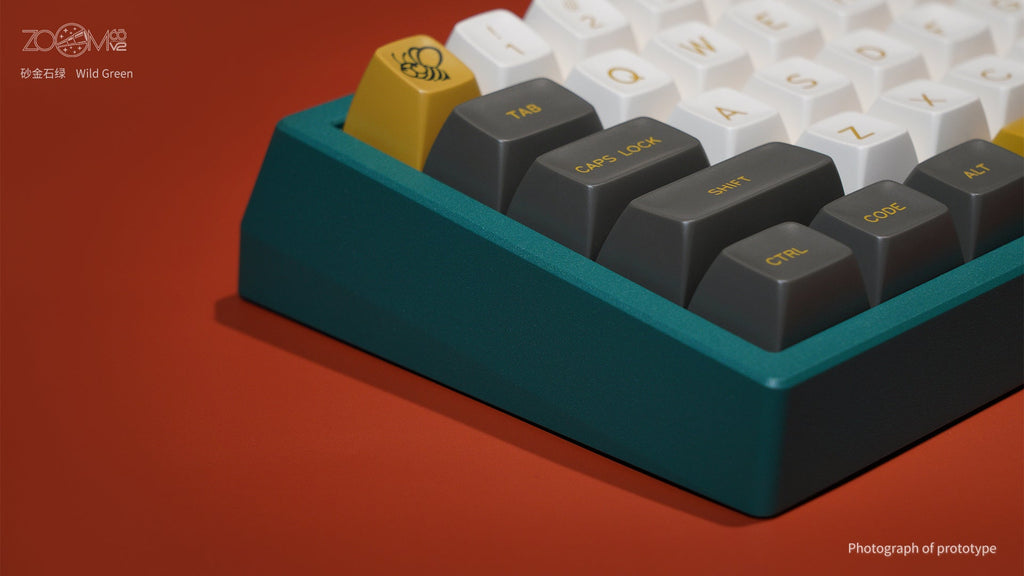

Four new special edition colors this round, available in either anodized or e-coat!

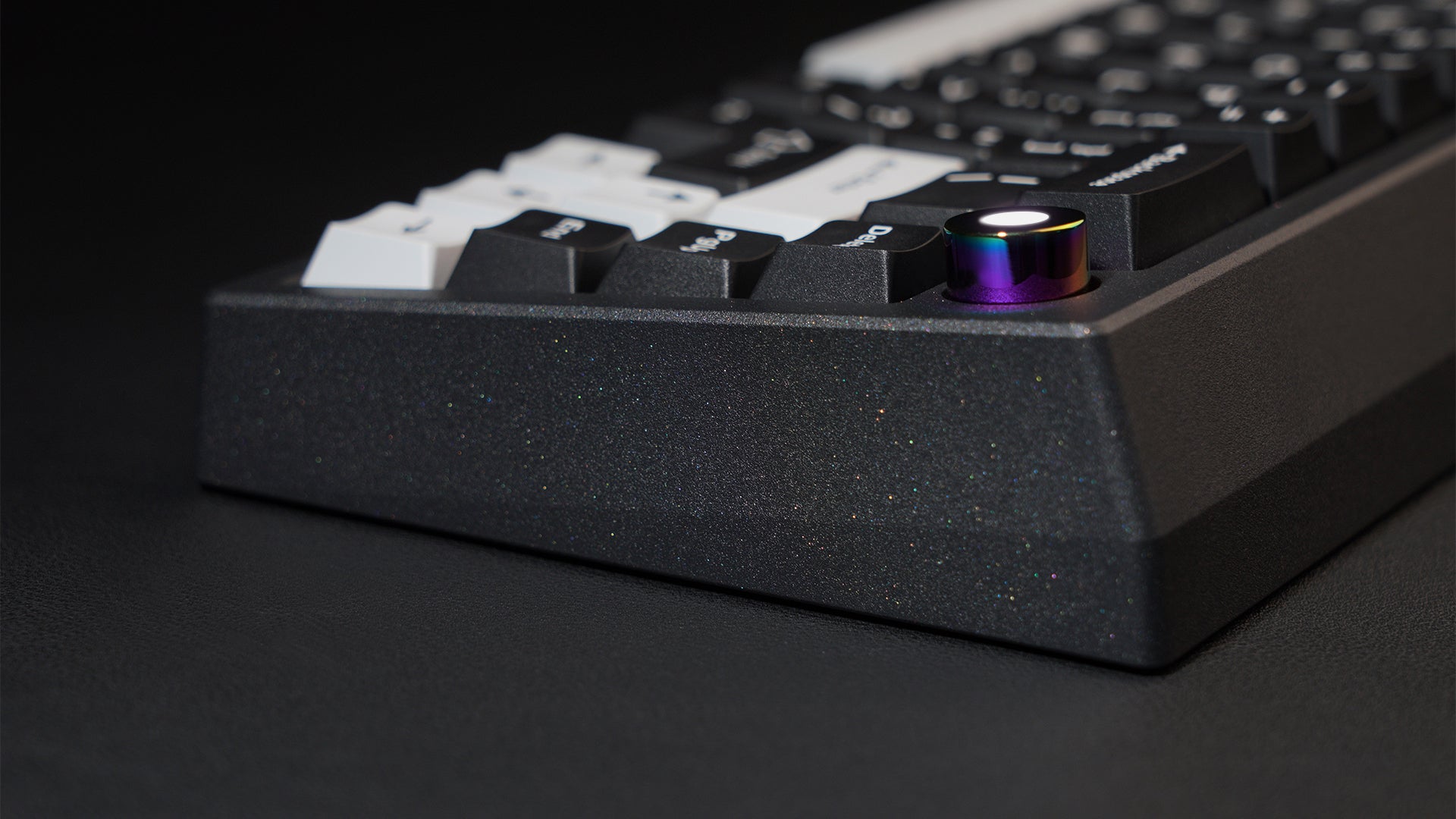

New Nightlight Knob

New to this round, the nightlight knob allows the encoder LED to shine through your knob!

New PCB

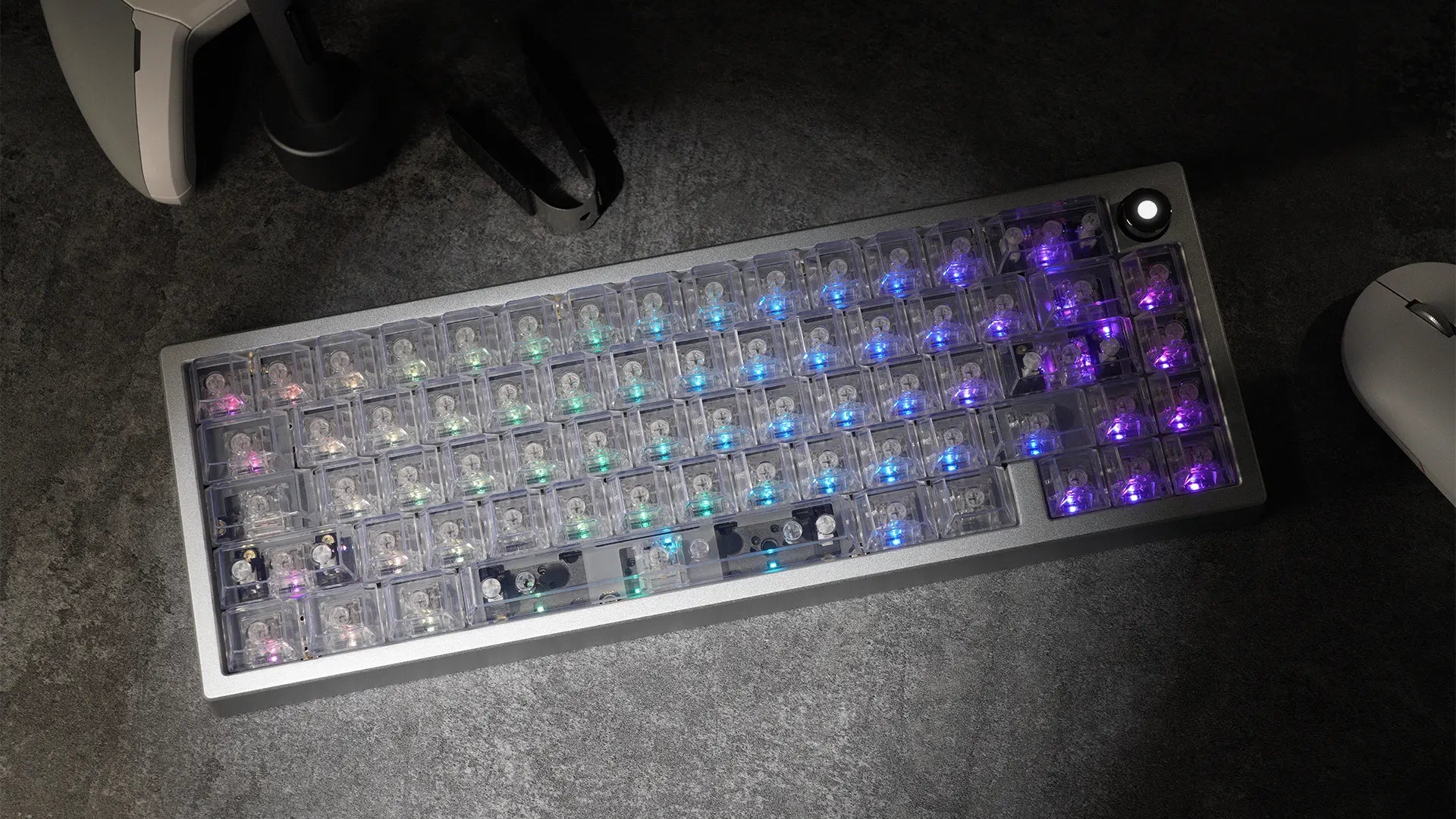

This latest round features a tri-mode PCB with per-key RGB!

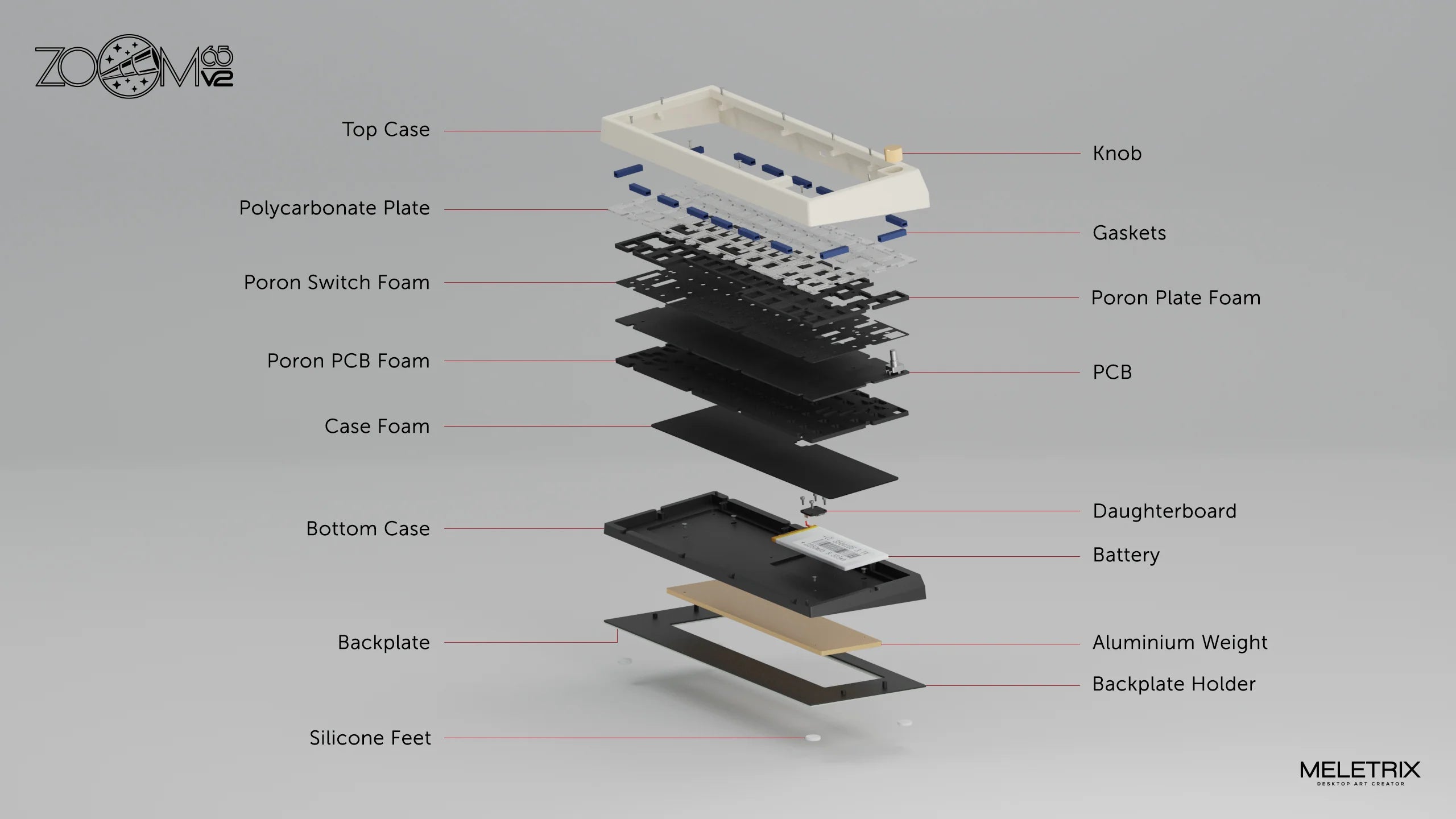

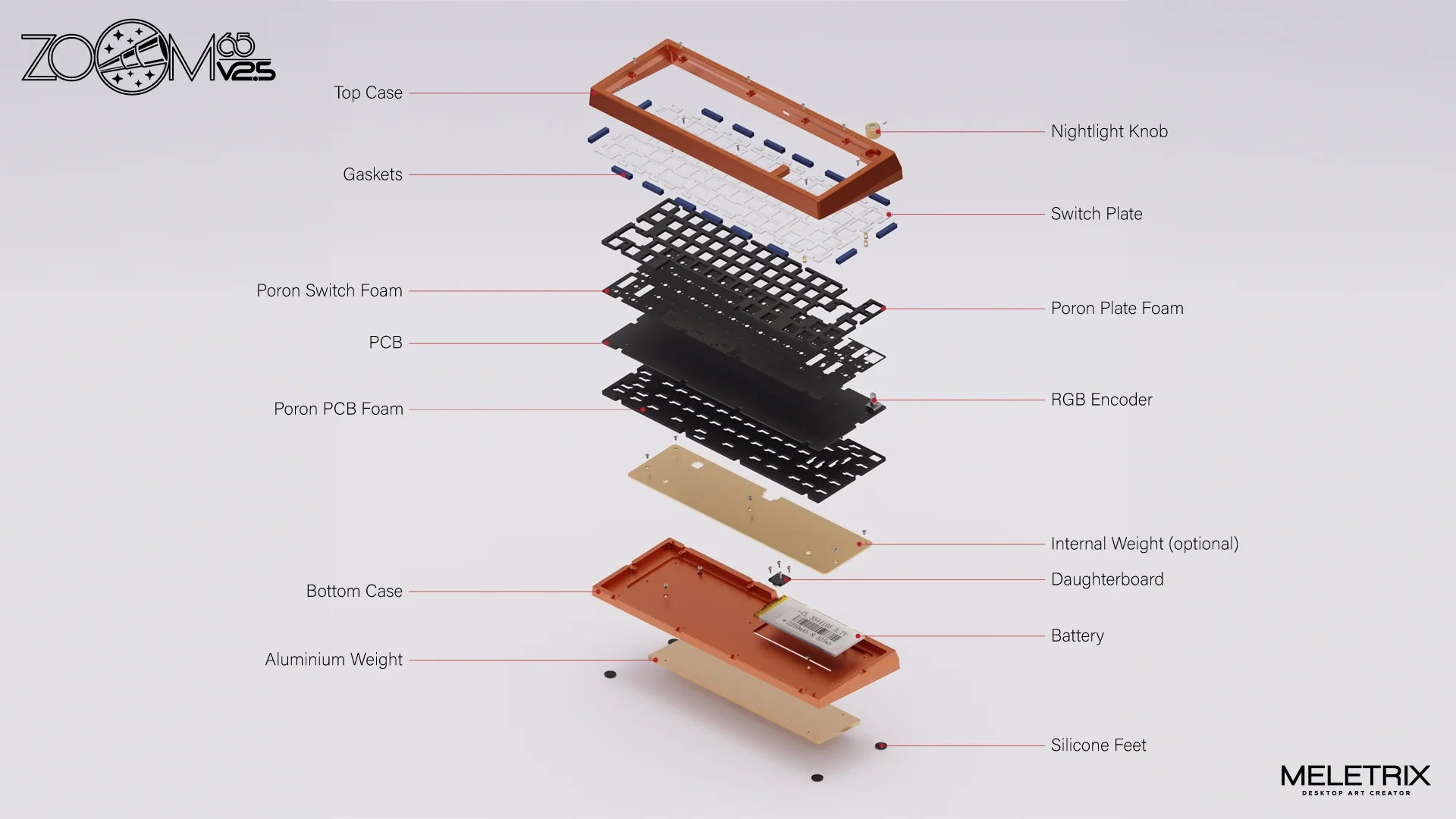

Exploded View

EE

SE

QC Disclaimer

Please see the QC Disclaimer PDF provided by Meletrix.

Group Buy Disclaimer

This is a Group Buy, and Group Buy terms and conditions apply. The estimated date of delivery is just that - an estimate. Delays and setbacks may occur. Upon purchase, you will be charged immediately. And by purchasing this item, you acknowledge everything stated above. For cancellation and refund policies on this order, please refer to our policies and FAQ.
