MKC75 Tri-Mode Version

This version comes with a wireless hotswap PCB.

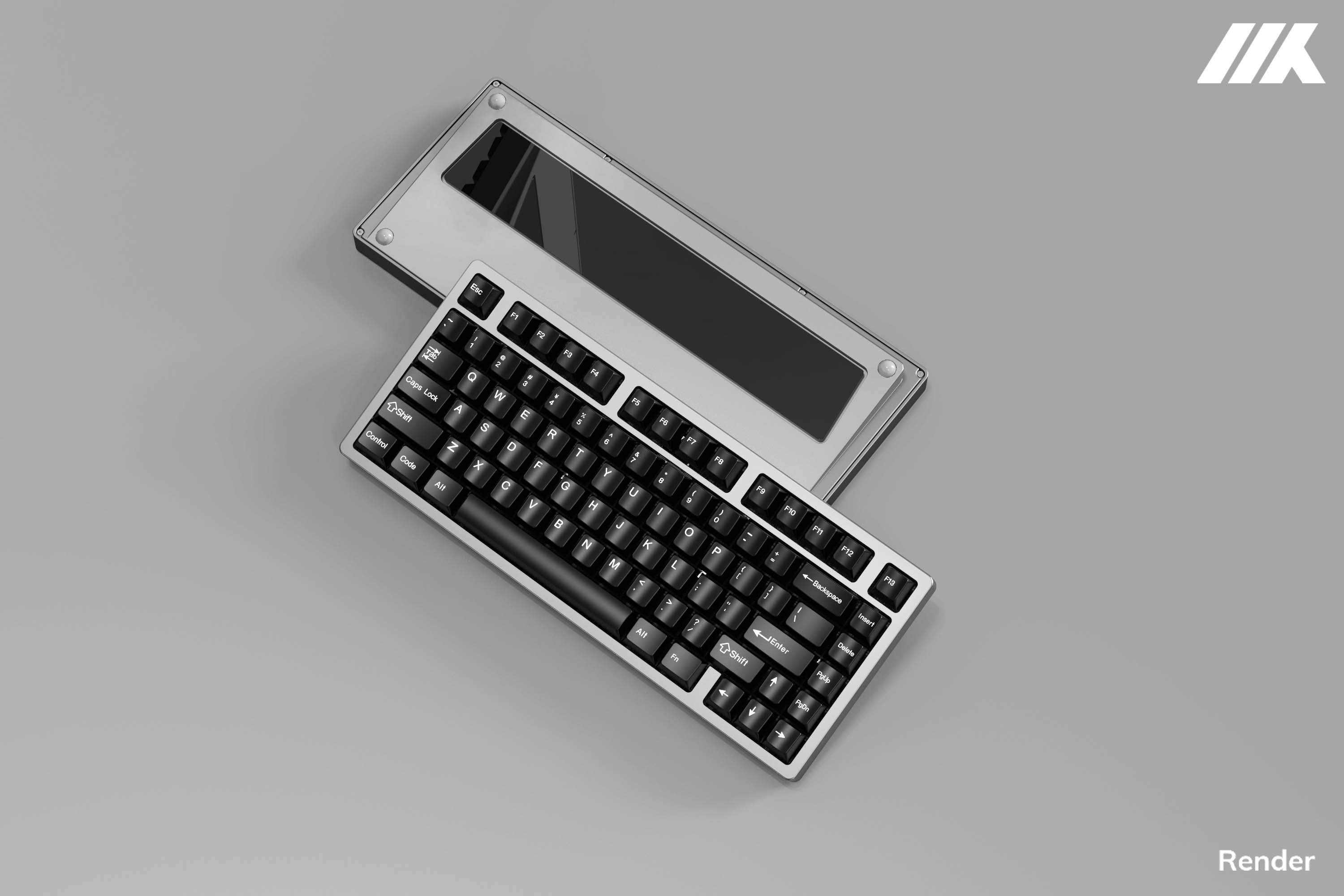

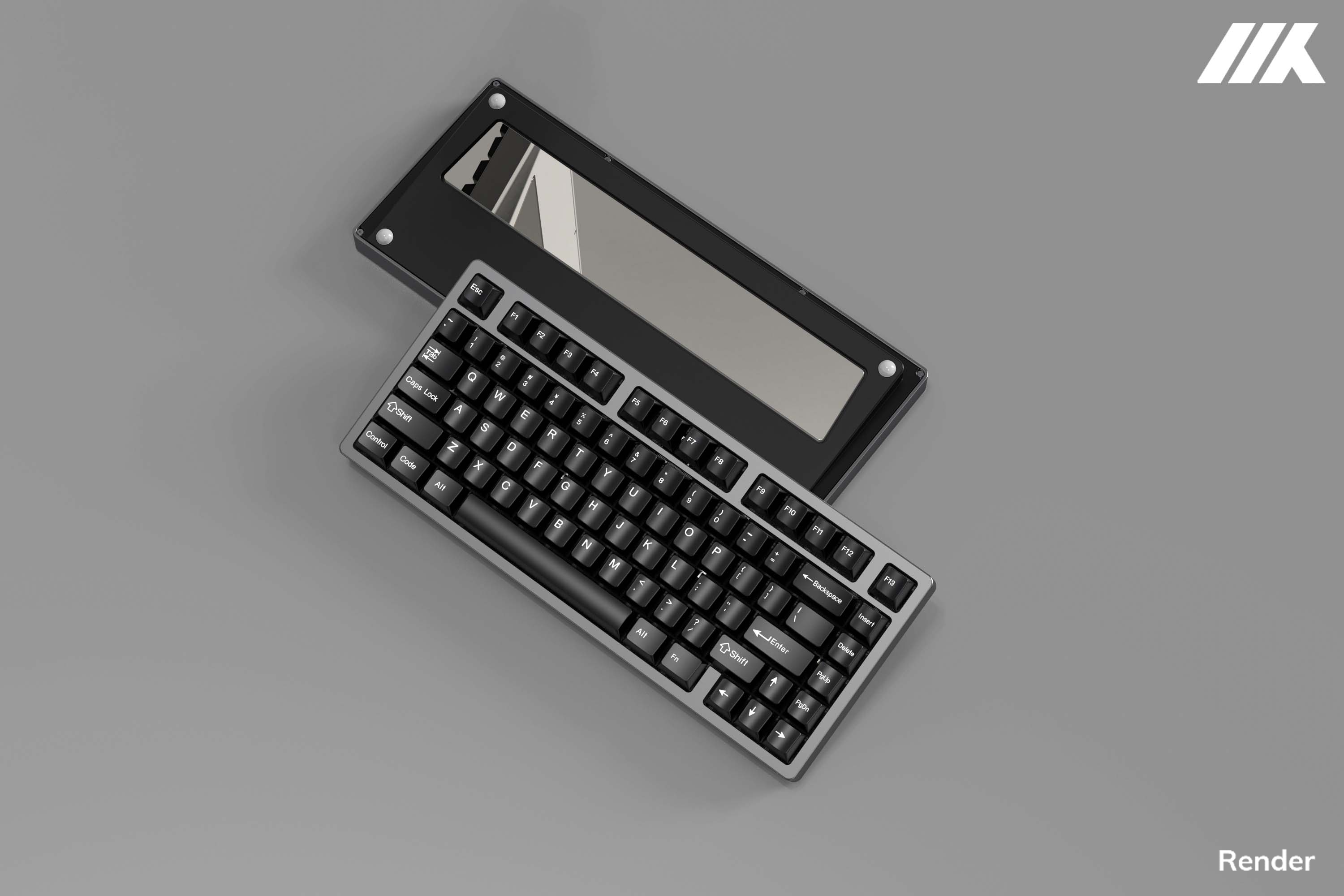

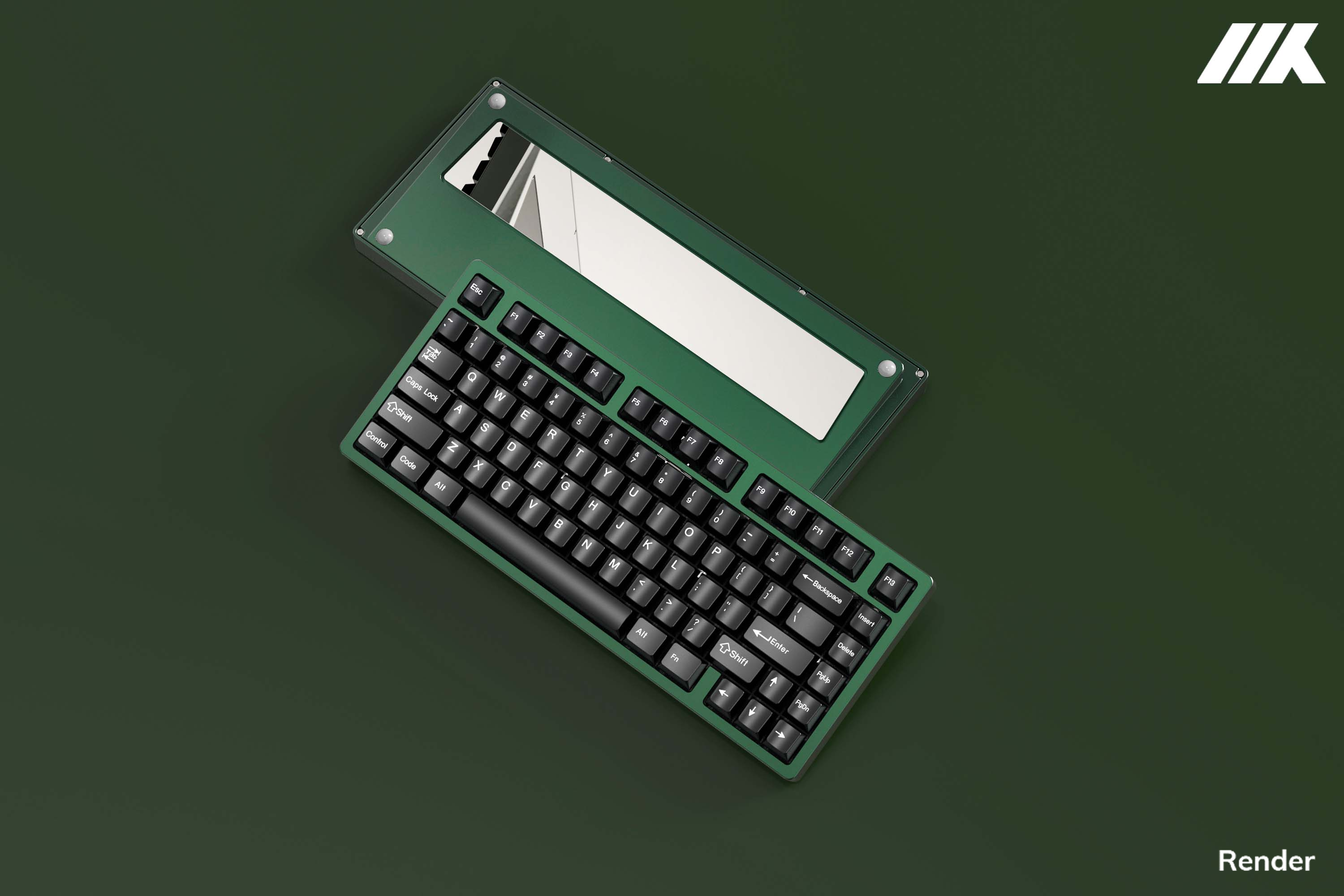

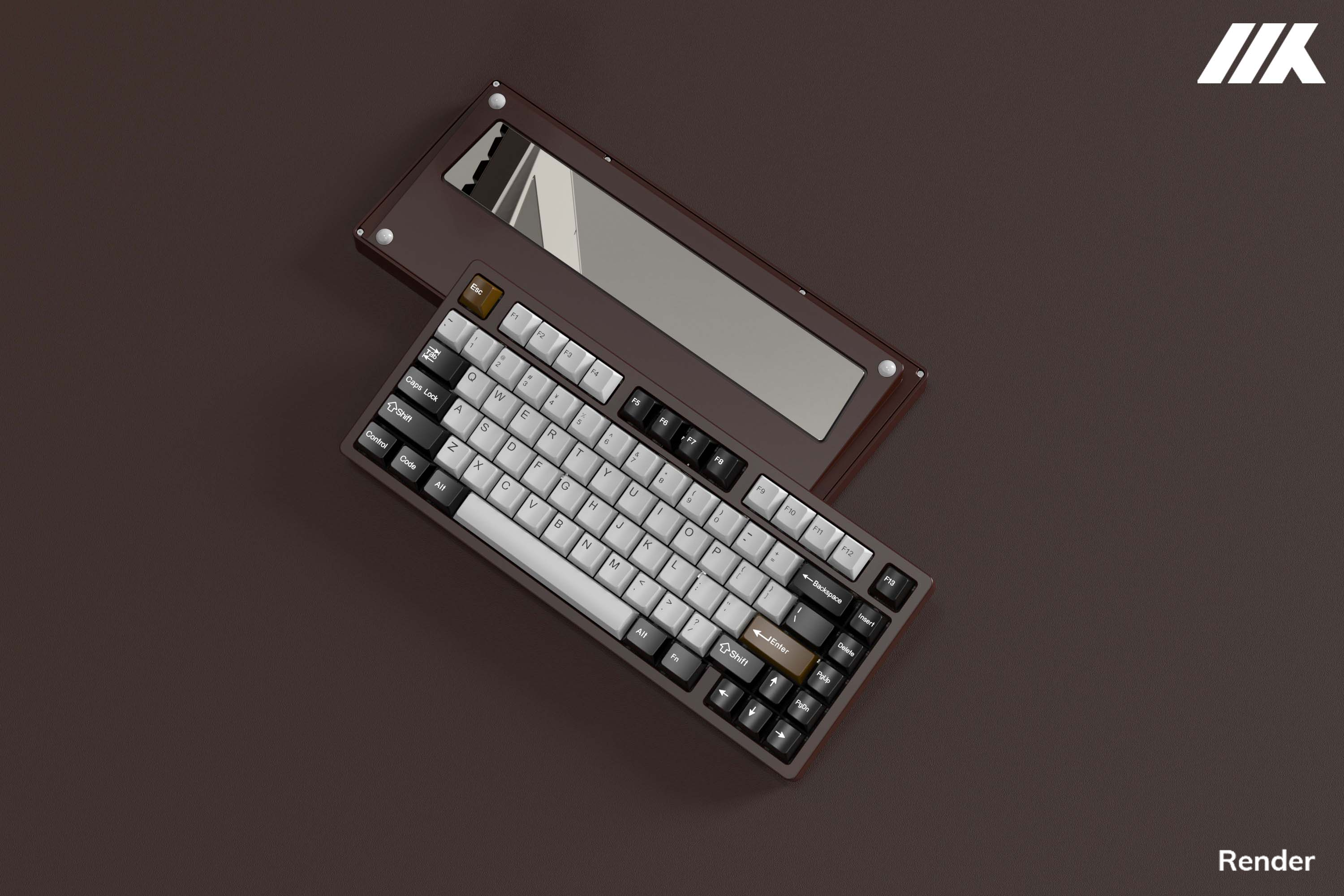

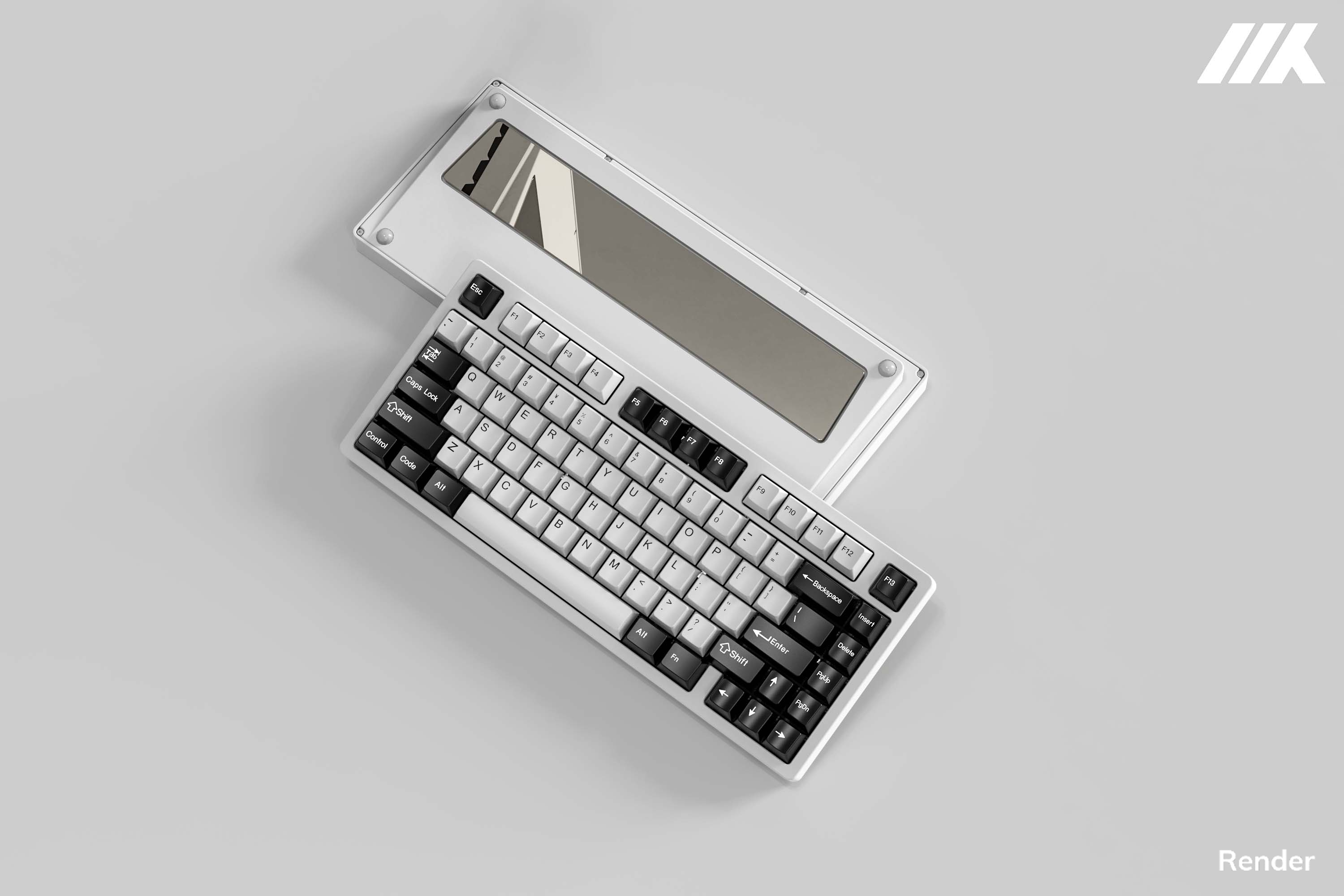

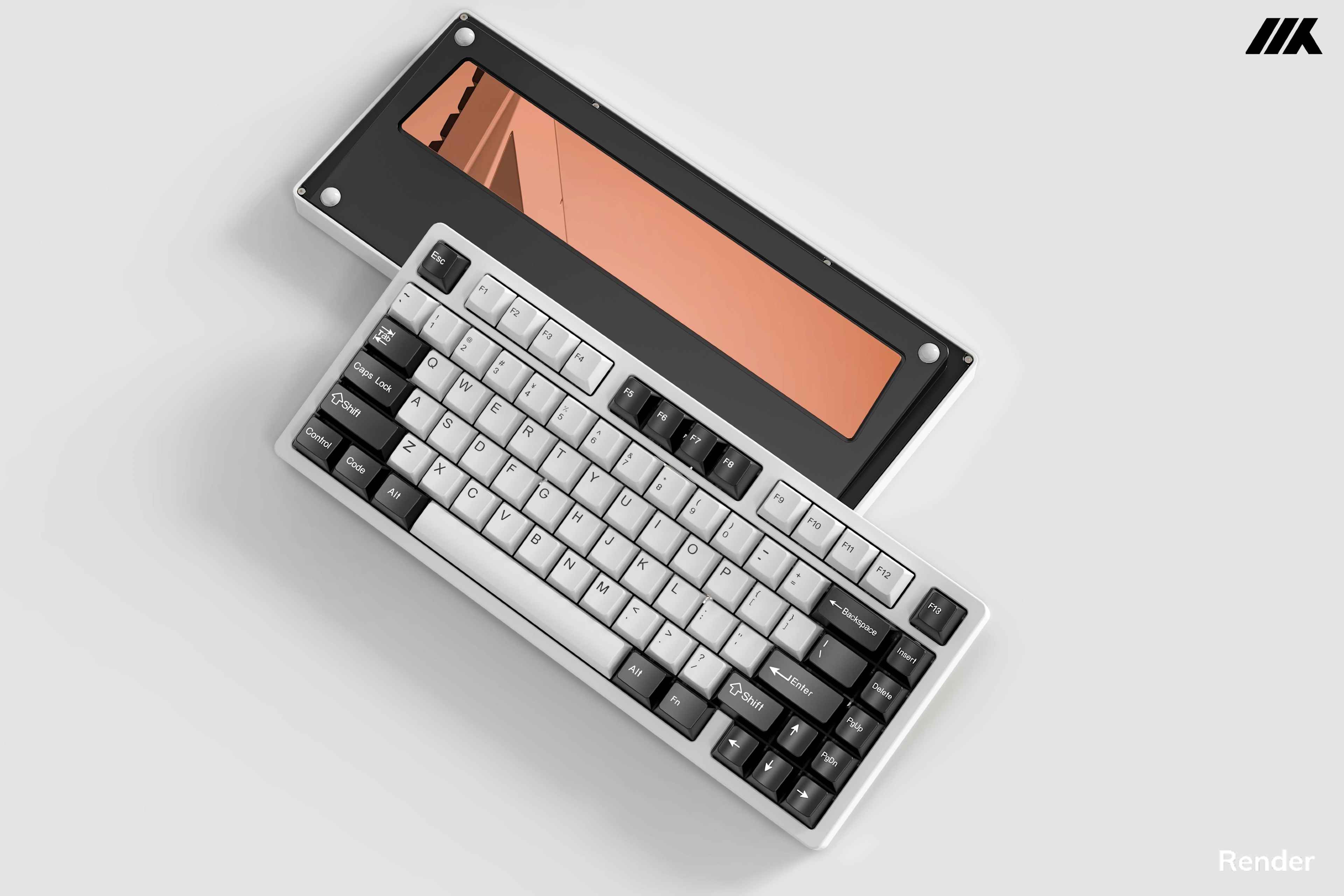

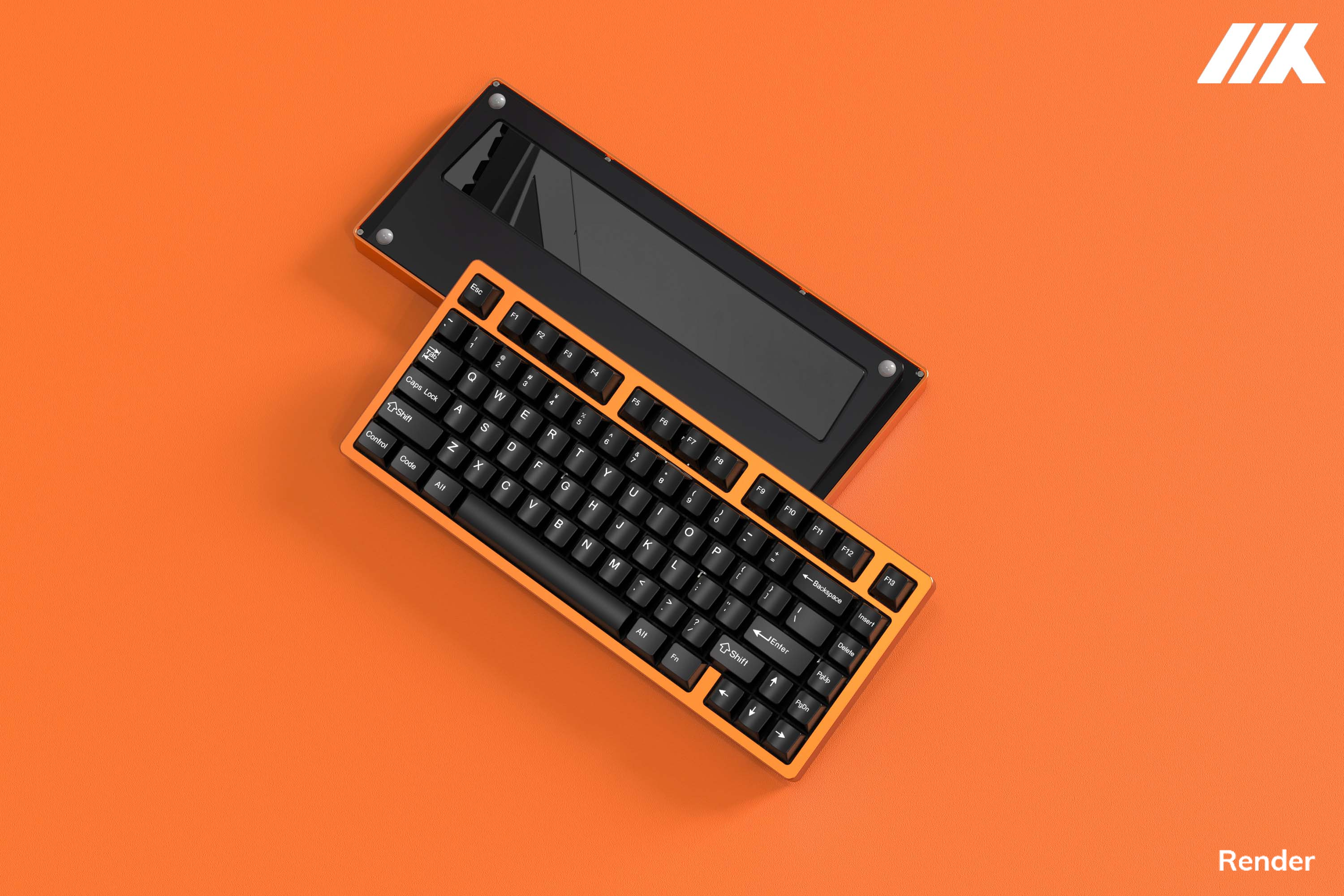

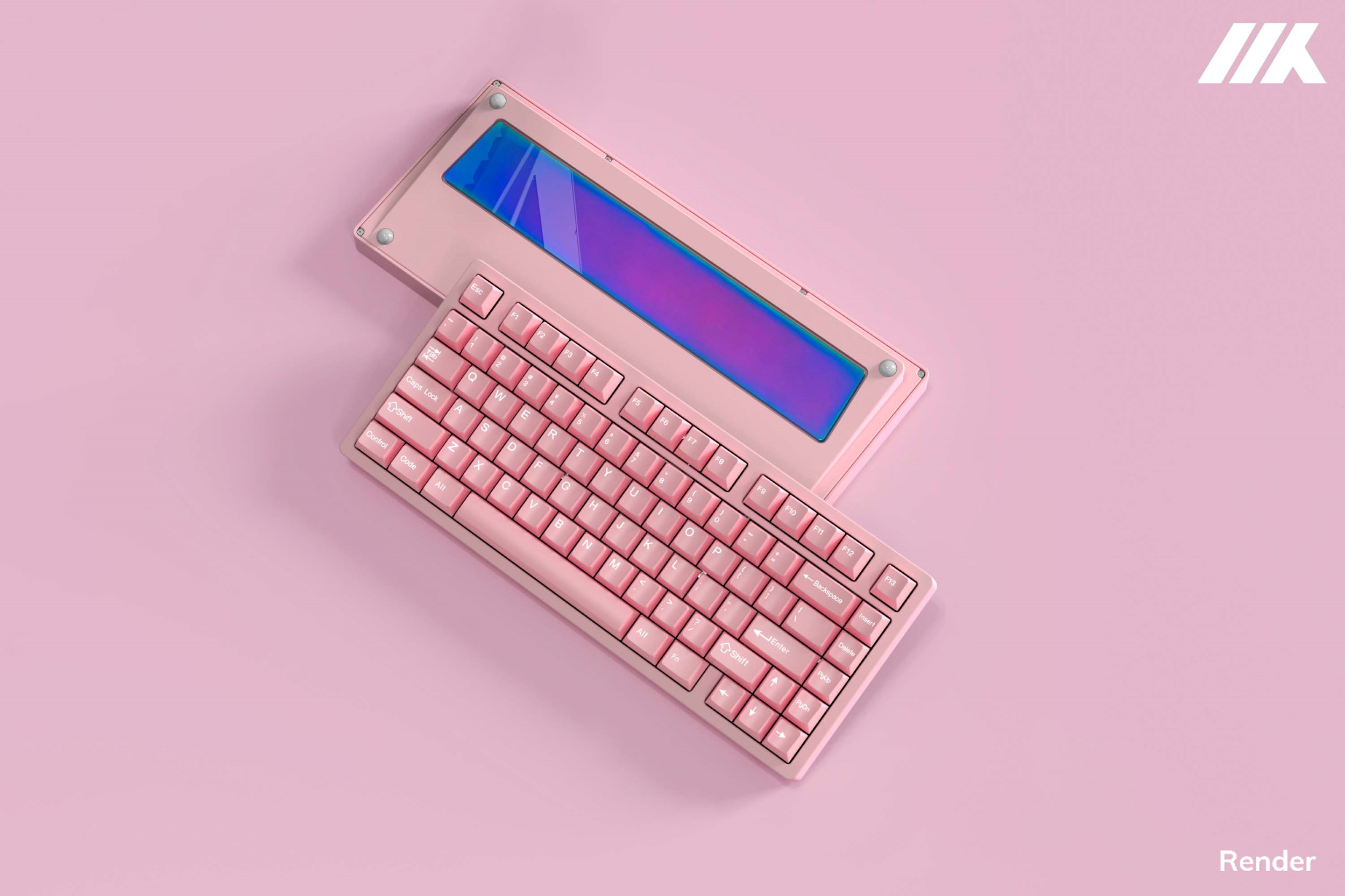

Important Render Information

Due to the amount of versions, the render seen is meant to give an idea of the case color only. The weight included will be what you choose when selecting your version.

When you purchase this keyboard, you automatically qualify for our Budget Keyboard Bundle! Take 25% off any of our keycap sets on clearance!

To learn more about our bundles, click here.

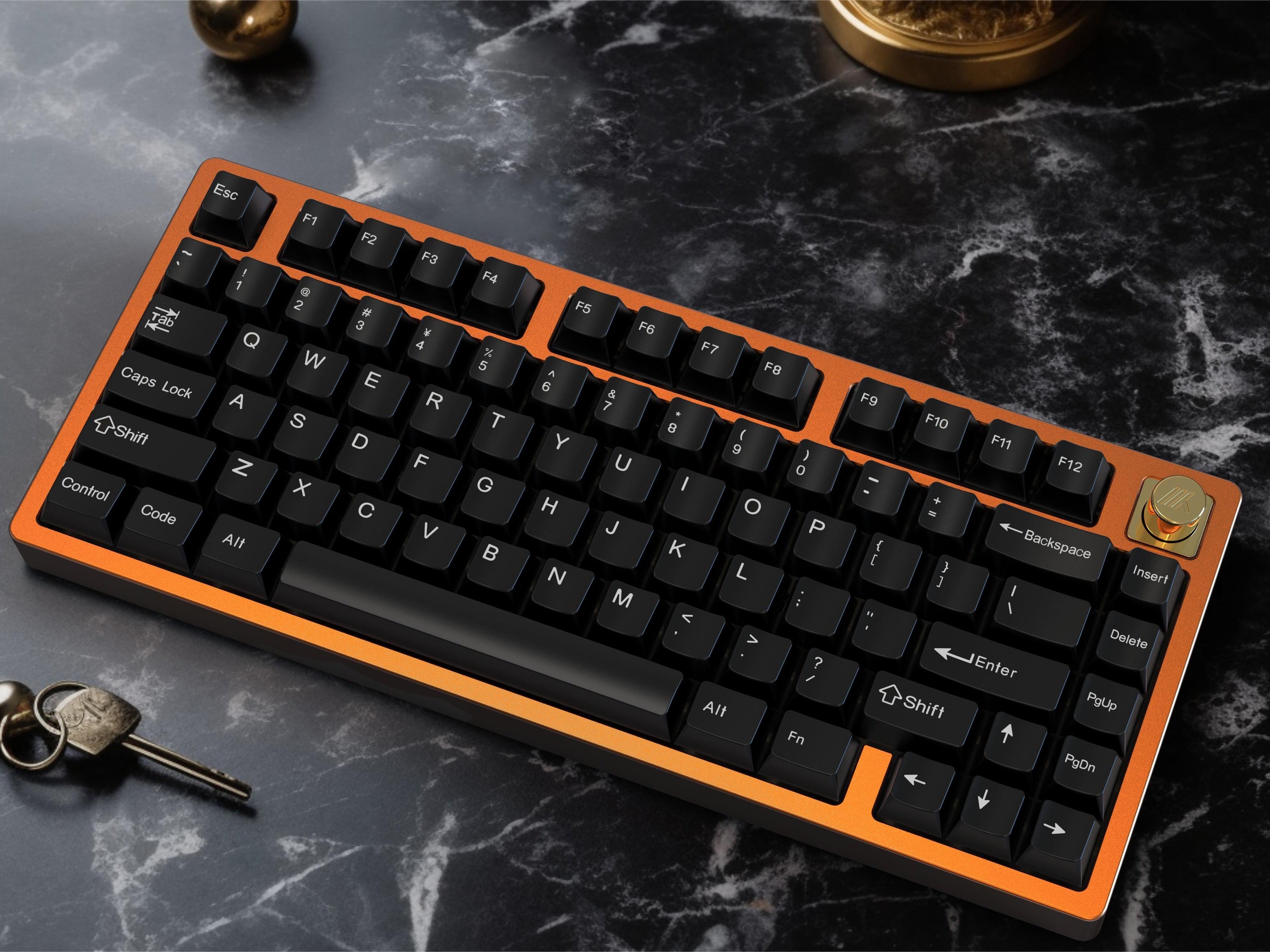

Introducing MKC75

75% aluminum keyboard at an ultra affordable price

The MKC75 by Mykeyclub is brought to you by the same creator of JRIS series keyboards.

Starting at only $104, this 75% aluminum keyboard offers tons of features and customization options.

MKC75 supports wired and wireless Tri-mode PCB, multiple plate position options (Plate gasket/top mount/PCB mount), rotary knobs, and LED light signs.

GB live 8/4 - 8/31. ETA of November/December 2023

MKC75 Addons

MKC75 Keyboard Details

  • Typing angle: 7°
  • Front height: 18.5 mm
  • Material: Full CNC 6063 aluminum
  • Dimensions: 320mm x 134.4mm x 33mm
  • Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
  • QMK/VIA Supported (Wired PCB)
  • MKC Software (Tri-Mode PCB)
  • Support PCB stabilizers
  • With PVD weight (Unbuilt): 1.693kg
  • With Alu weight (Unbuilt): 1.425kg
  • With PVD weight (Built): 1.86kg
  • With Alu weight (Built): 1.592kg
What's included
  • Full CNC Aluminum Top case
  • Full CNC Aluminum Bottom case
  • Weight (Anodized Alu Weight or Stainless steel PVD Weight)
  • Internal Alu Weight (Only for the Tri-mode Version Case)
  • Plateless or Plate
  • PCB
  • IXPE Foam
  • Poron Case Foam
  • Poron Plate Foam
  • Type-C Daughterboard with JST Cable
  • PCB GAS Silicone Column
  • Plate GAS Silicone Sock
  • Top mount screw and spacer
  • PCB stabilizers o-ring
  • Footpad
  • Poron case strip
  • 1.6mm hex key
  • Carrying Case
  • Stabilizers

The following items are spare and misc parts that are not subject to post purchase support.

  • 1 Pack of Extra Screw
  • M2x3mm cylindrical head screw x2
  • M2x8mm cylindrical head screw x2
  • M3x12mm countersunk screw x2
  • M3x6mm countersunk screw x2
  • 2200mha battery (Only for the Tri-mode Version Case) x2
  • Silicone pad of battery compartment (Only for the Tri-mode Version Case) x2
Plate Options
  • Flex Cut plates: FR4, Aluminium, Brass (Add-on only)
  • Non-Flex Cut plates: PC, POM
  • Aluminium & FR4 Half-plate (Add-on only)
  • Plateless

MKC75 videos from your favorite creators!

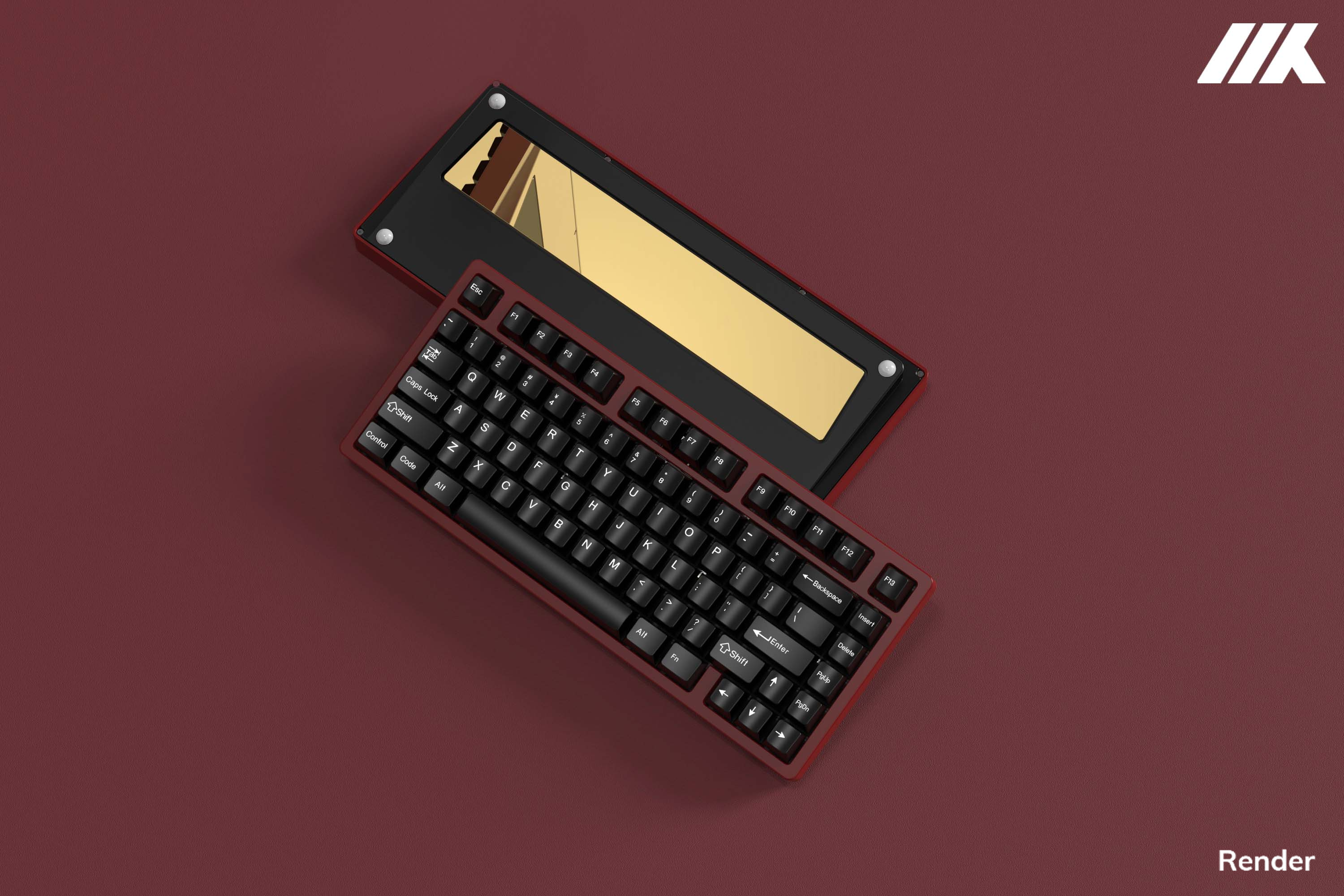

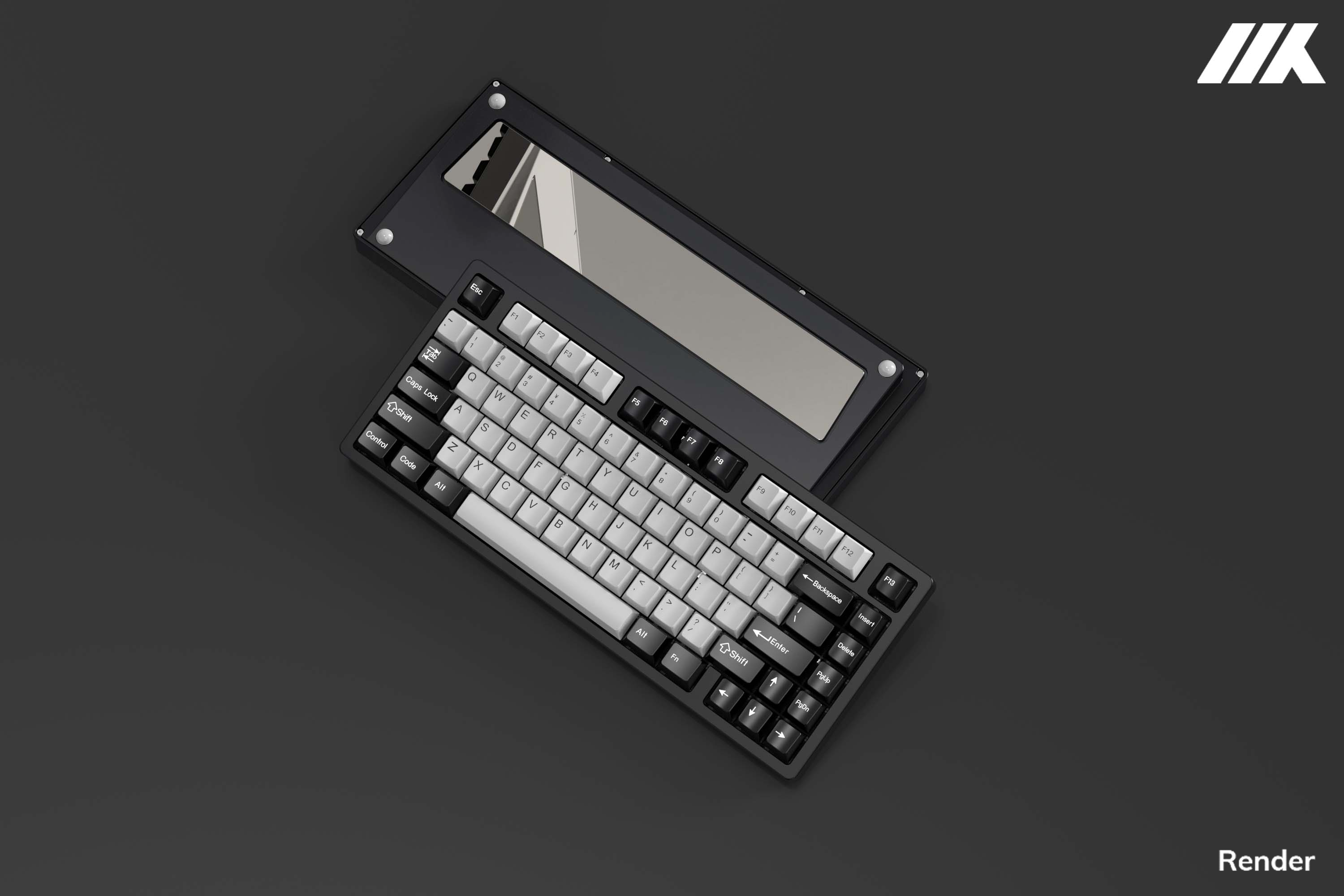

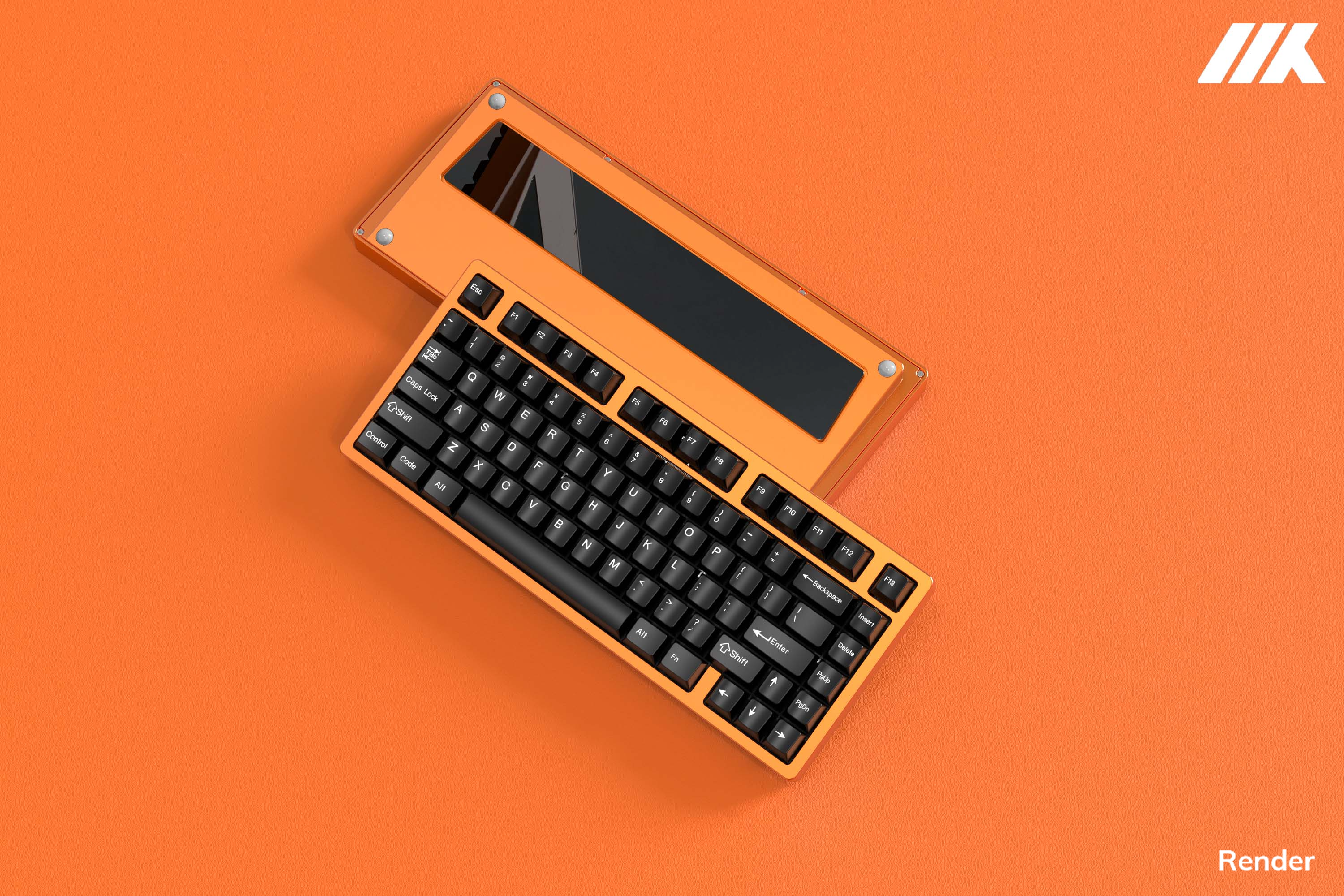

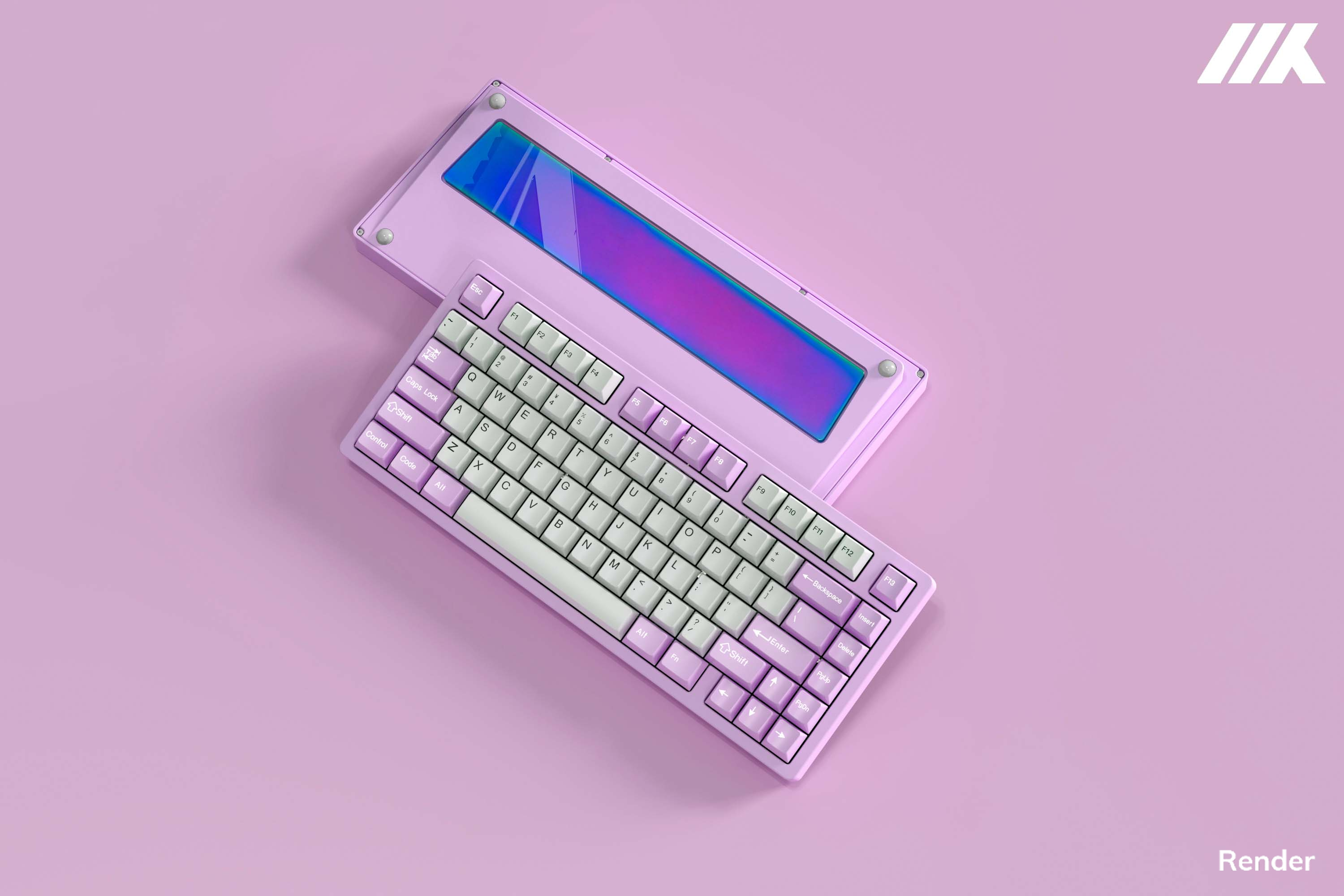

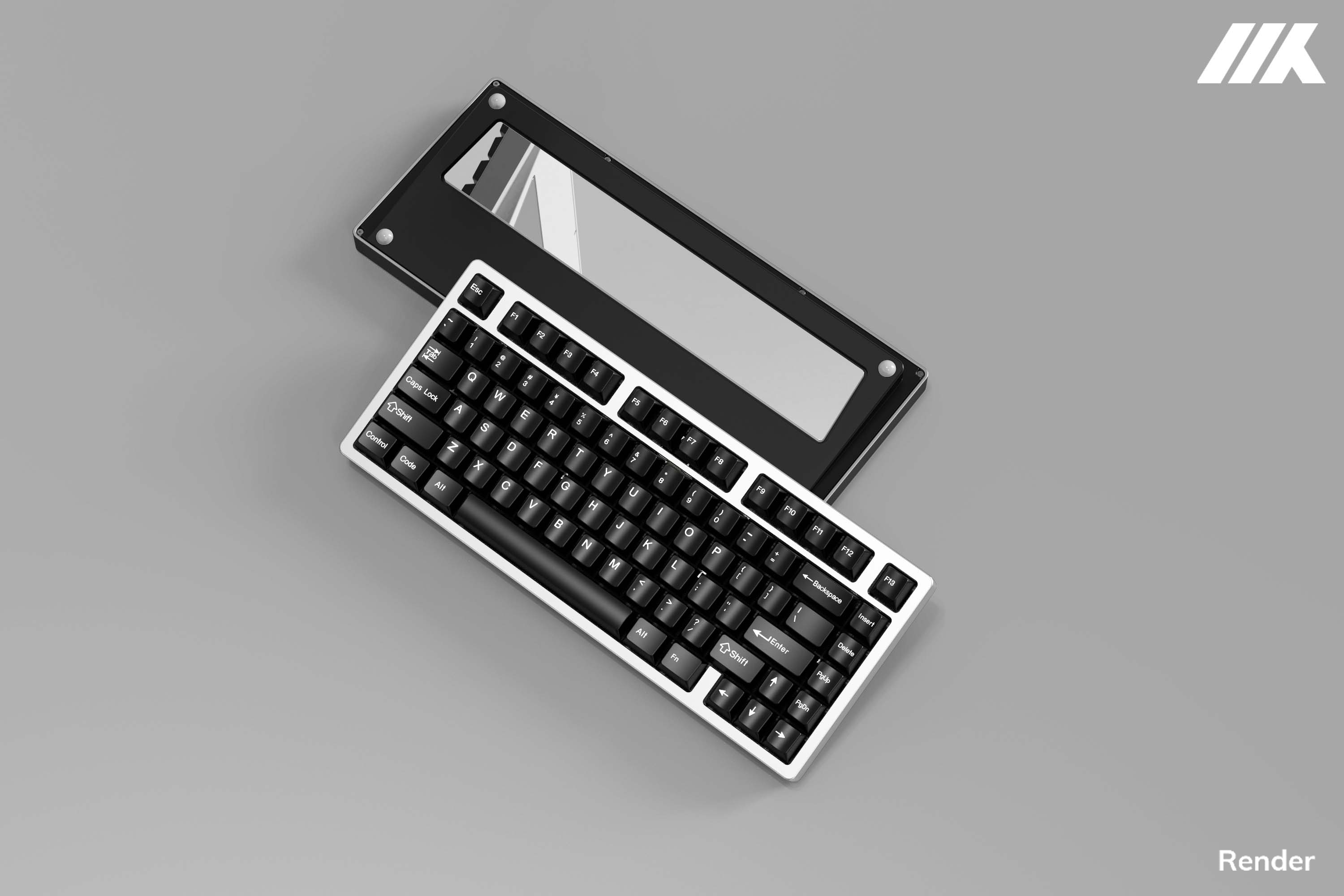

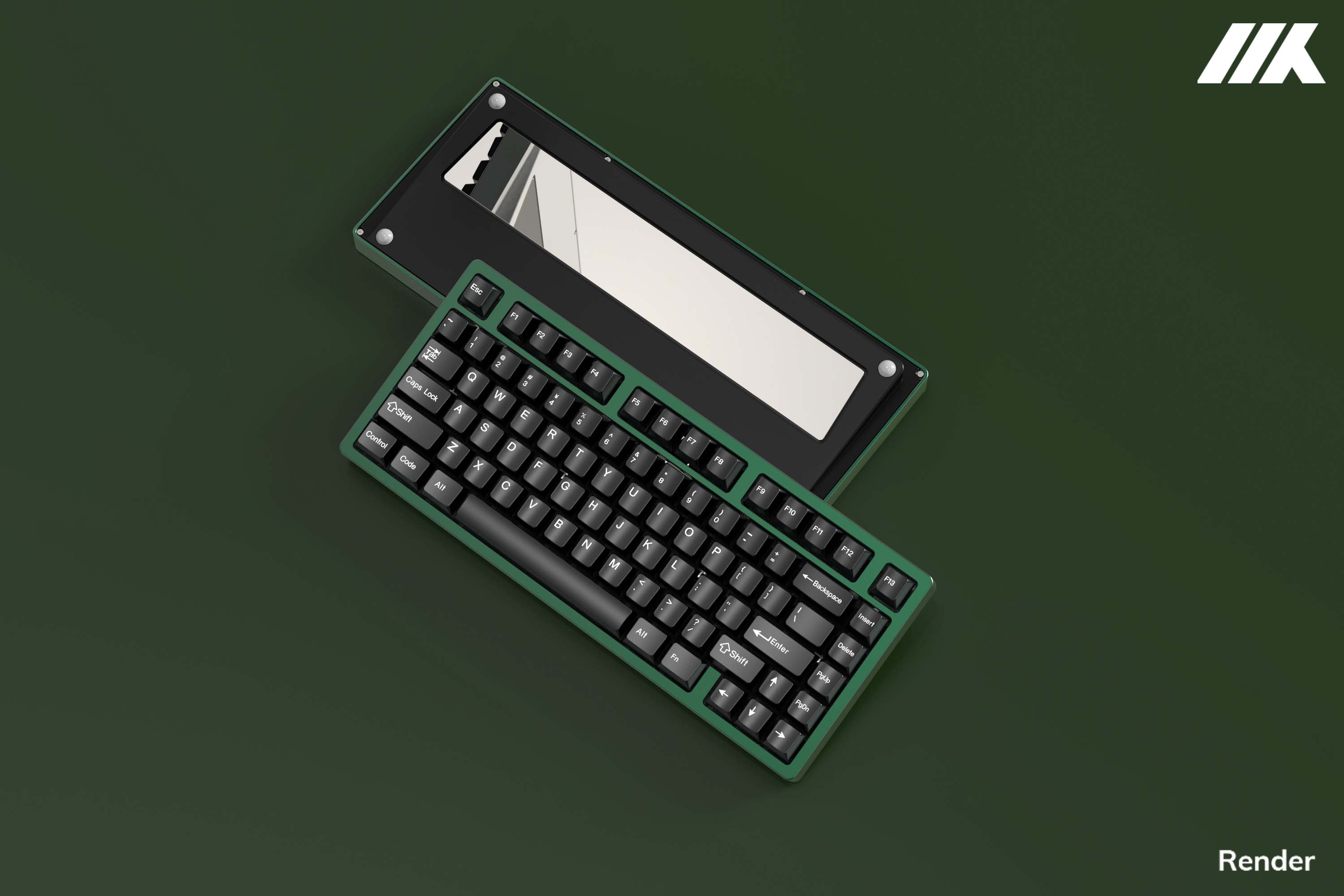

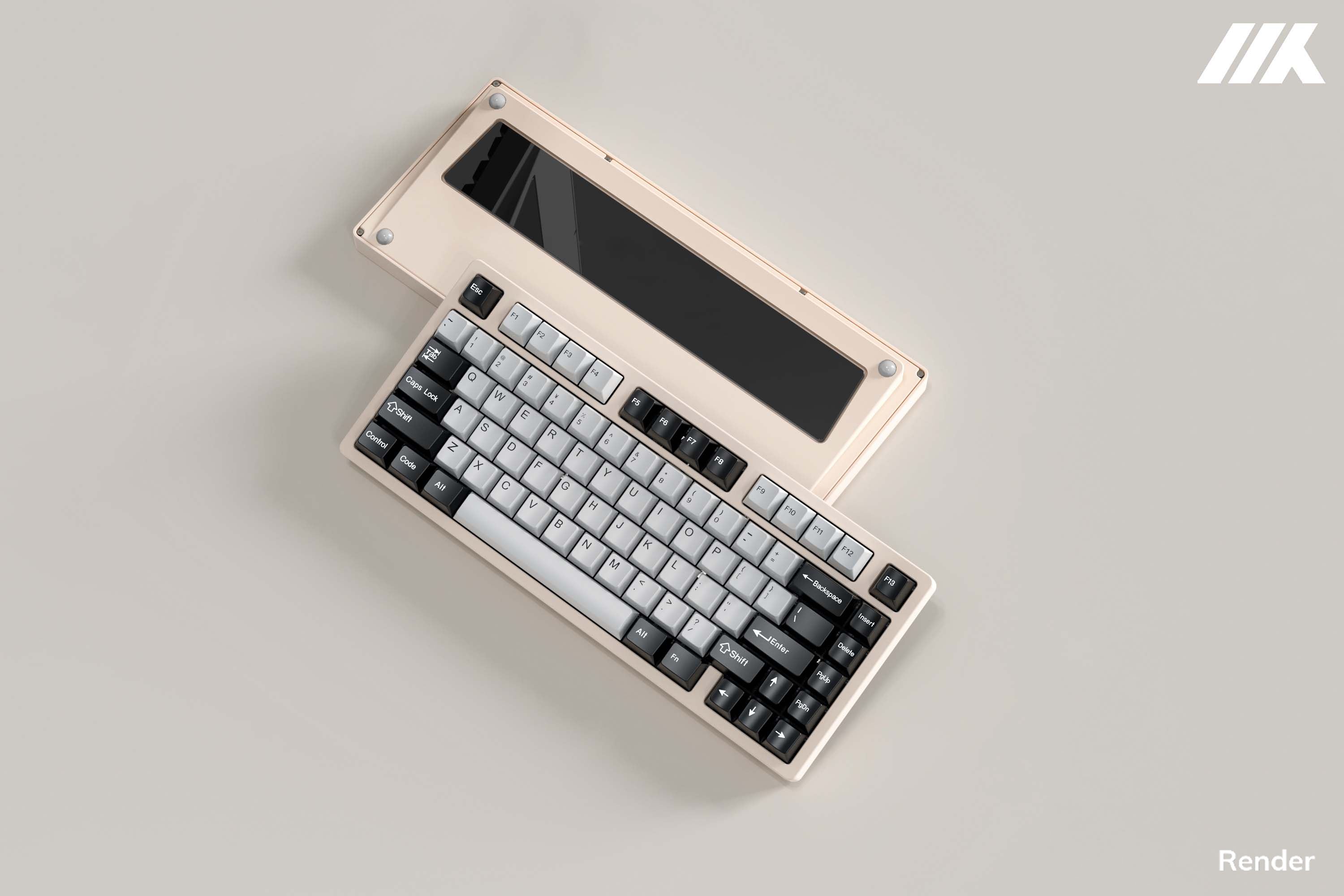

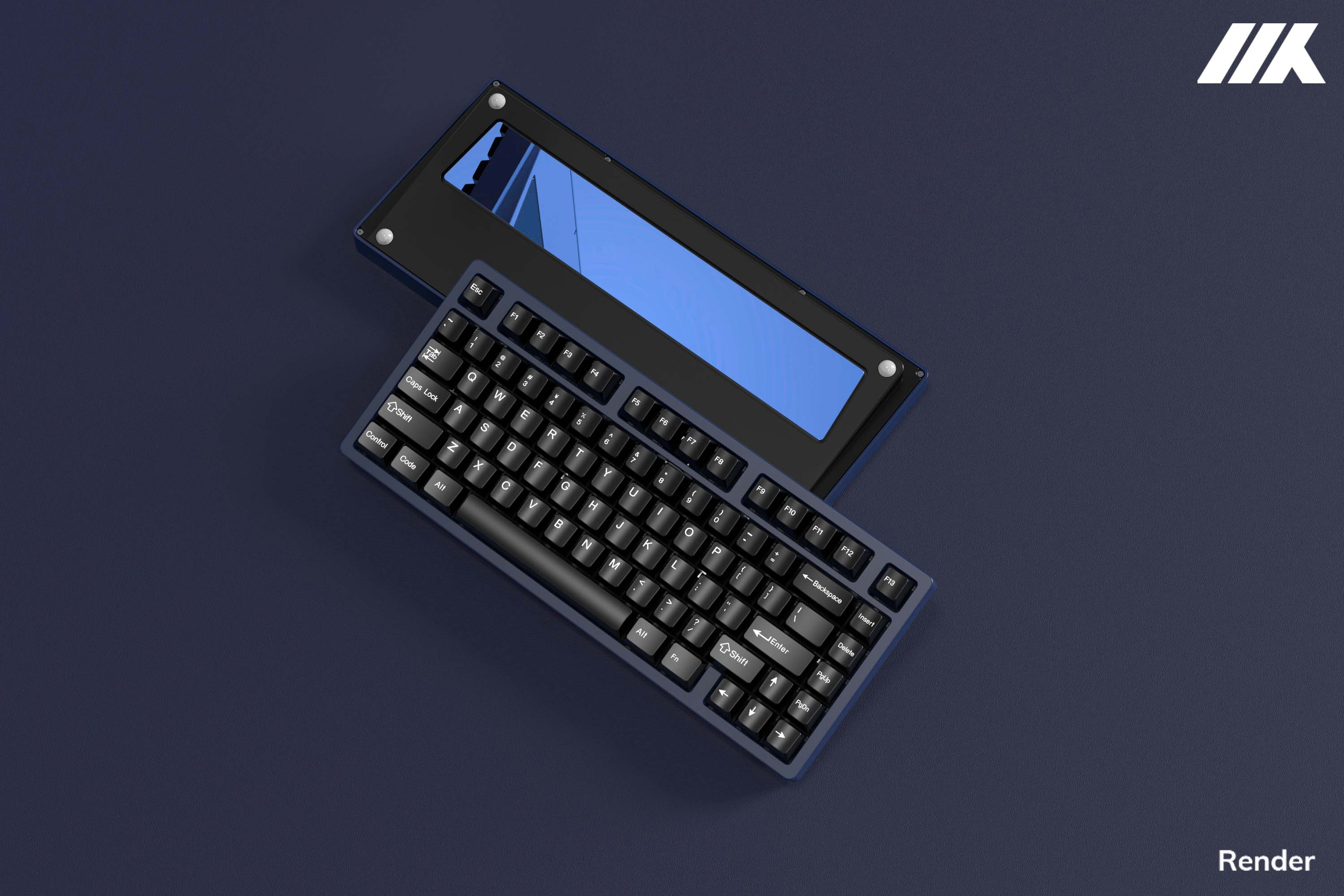

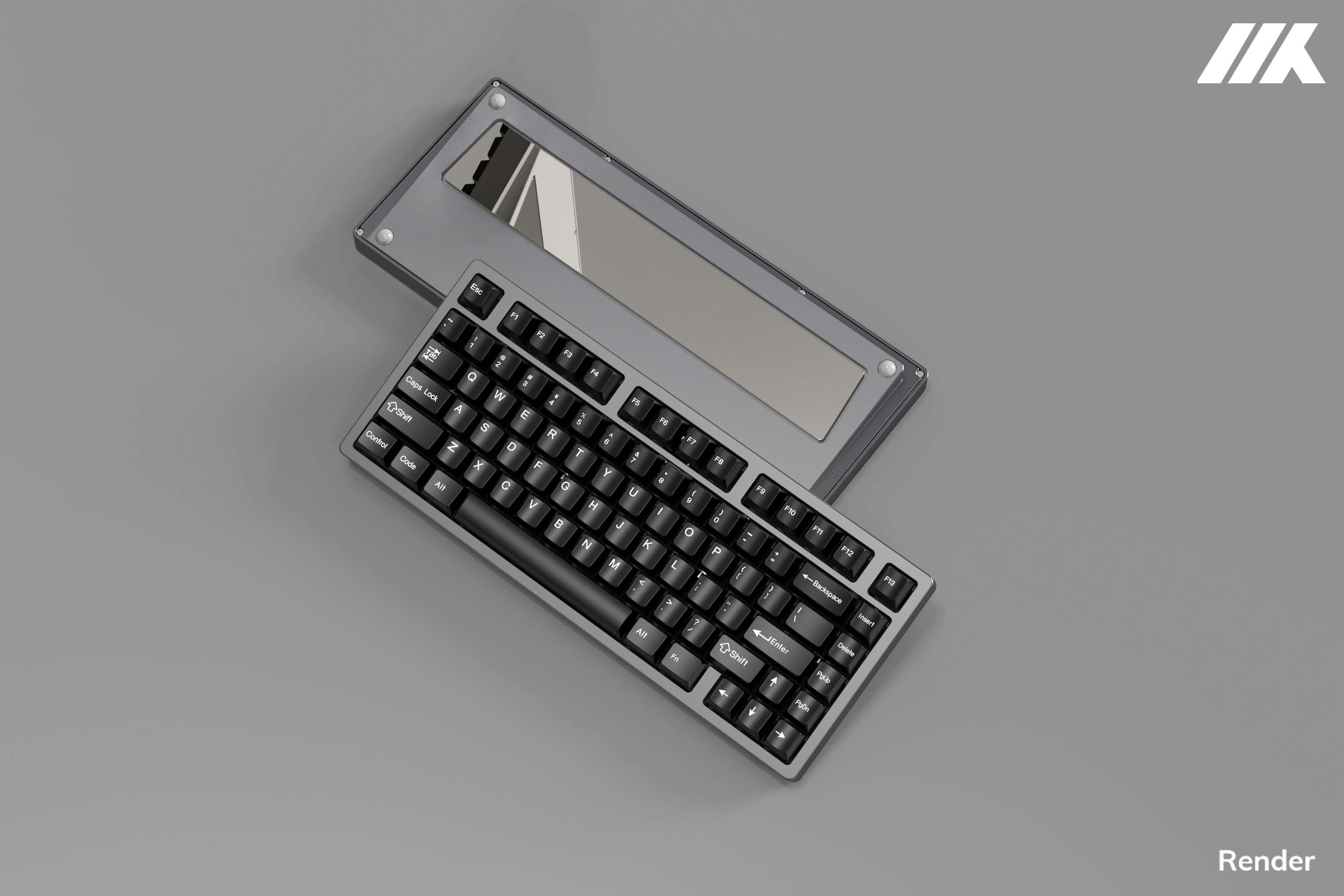

Case colors

Weight Options

Each MKC75 comes with the default Blank Weight. The cursive weights are available as an addon only.

Tri-Mode Hotswap PCB Layout

Non-Flex and Flex Cut Hotswap and Solder PCB

Per-Key RGB Hotswap PCB Layout

Mounting Styles

Three mounting styles are available on the MKC75- PCB gasket, top mount, and plate gasket.

PCB Gasket

Top Mount

Plate Gasket

Rotary Knobs & Light Signs

These are compatible with the JRIS75 Rotary Knobs/Badges/LED Light Signs.

Wireless Version Exploded View

Wired Version Exploded View

QC Disclaimer

A Stock units should not have any major external scratches or egregious marks seen when built. Any internal flaws and marks (including hook marks) that are not seen when built do not constitute a B Stock unit.

Screw holes are not fully anodized or coated, and small marks near the hole opening might be present.

Photo and Render Disclaimer

We try to use as many real pictures as we can to represent the keyboard as best as possible, however to supplement these photos we use renders occasionally. These renders may vary slightly compared to the final product.

Colors in the final product may vary since renders are done under idealistic artificial lighting.
