CK980C
Specs
- EC & MX PCBs will be offered
- 6° typing angle
- Internal weight

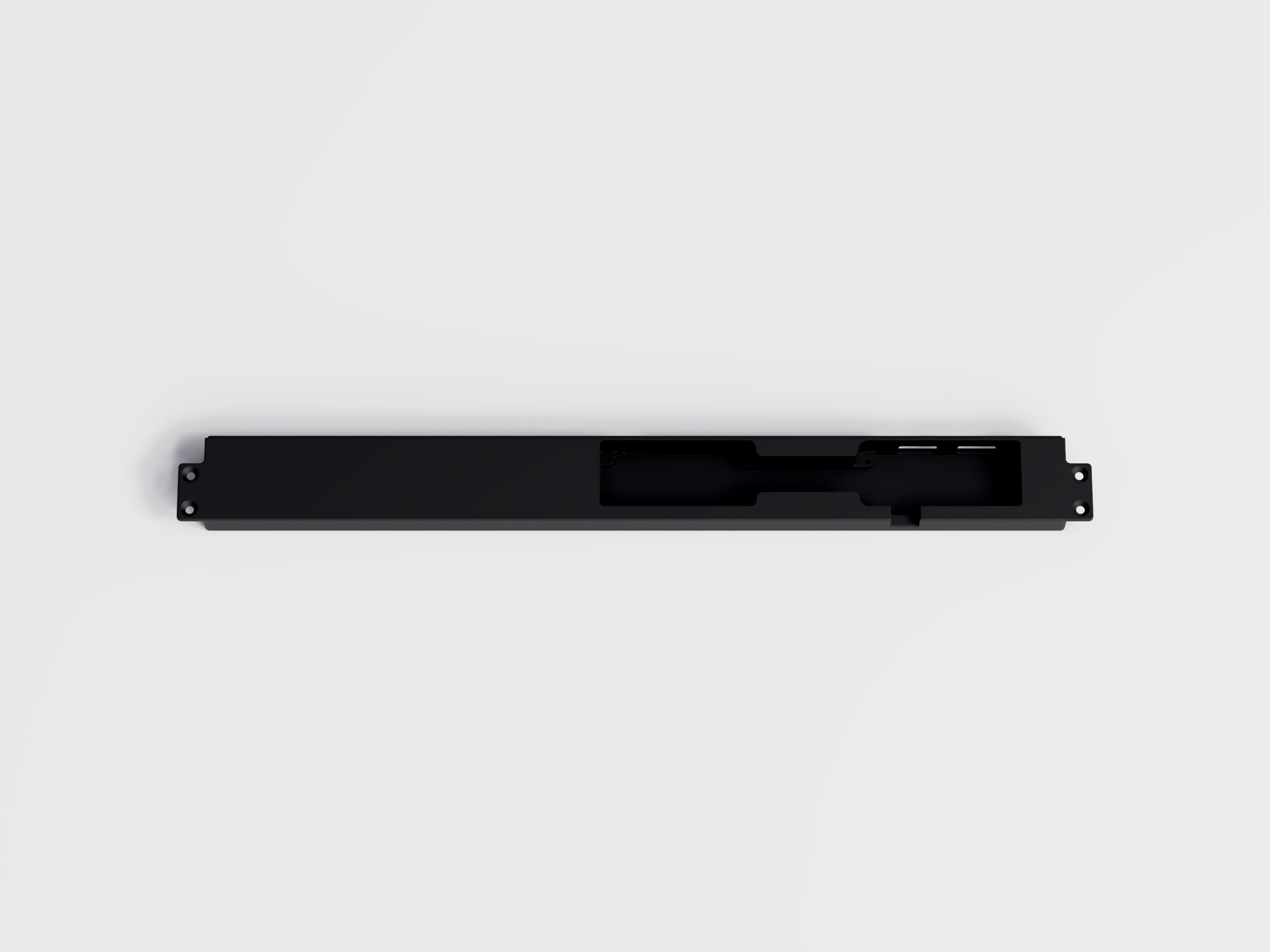

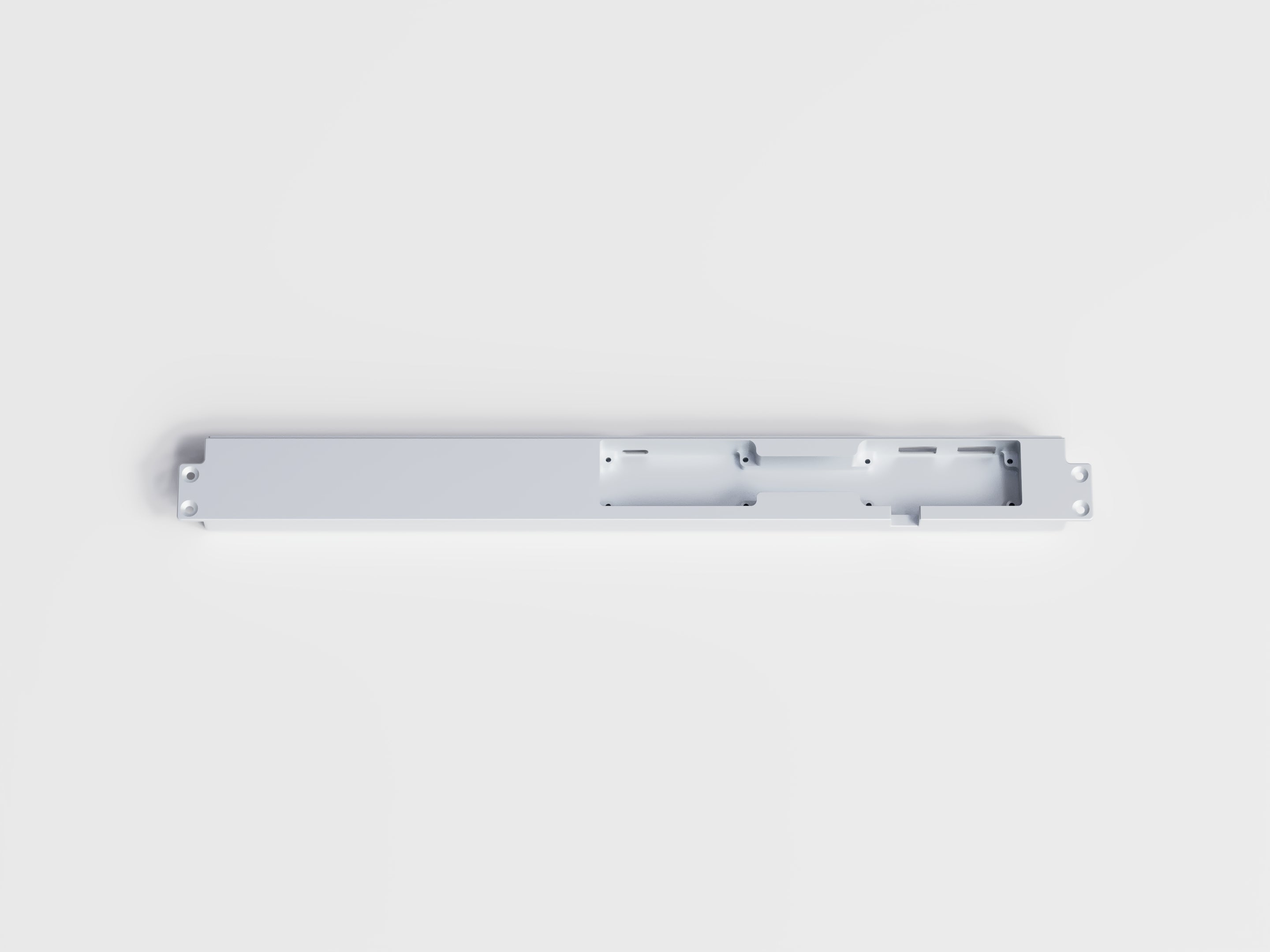

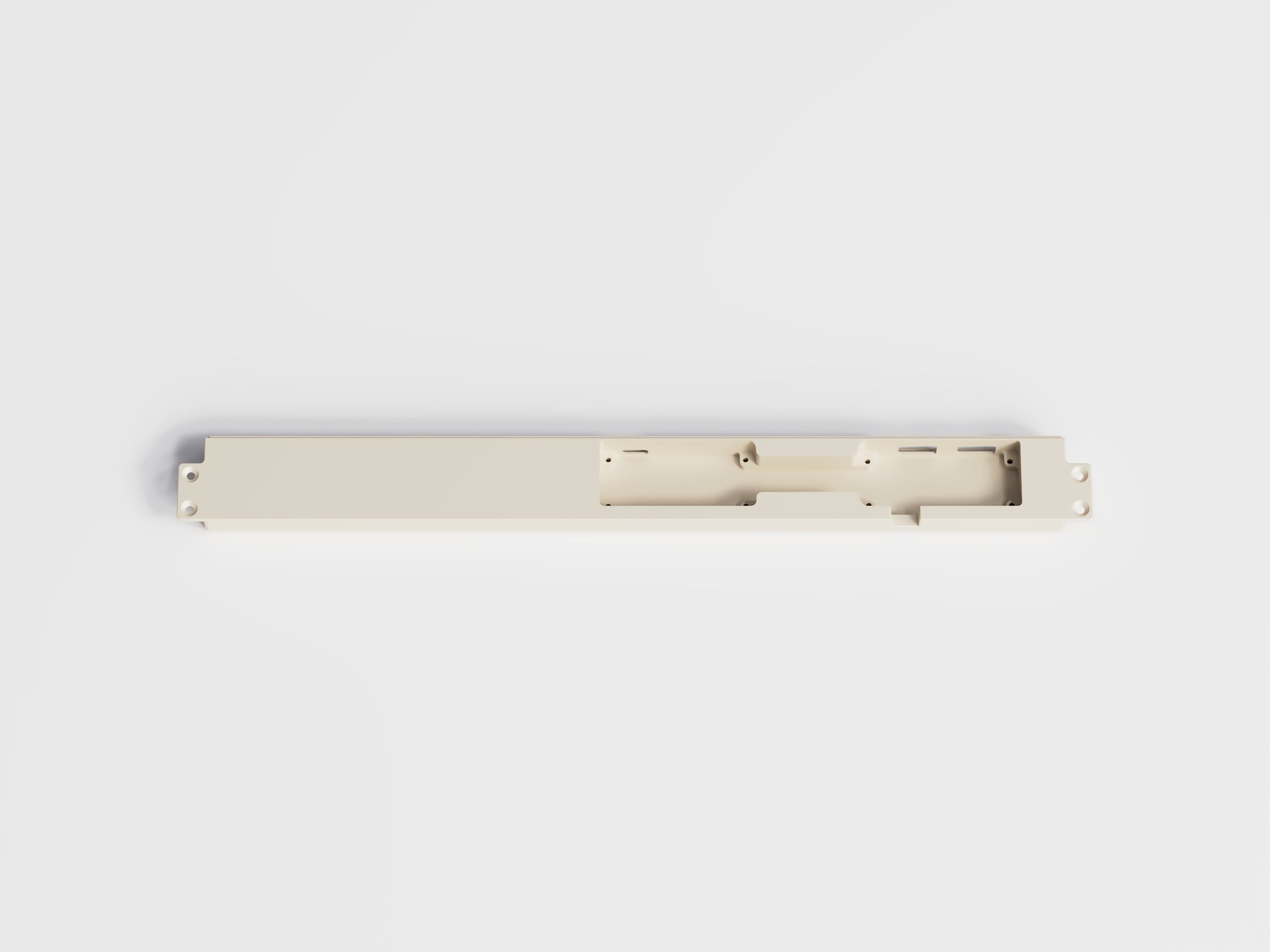

- External accent piece
- Gasket mount

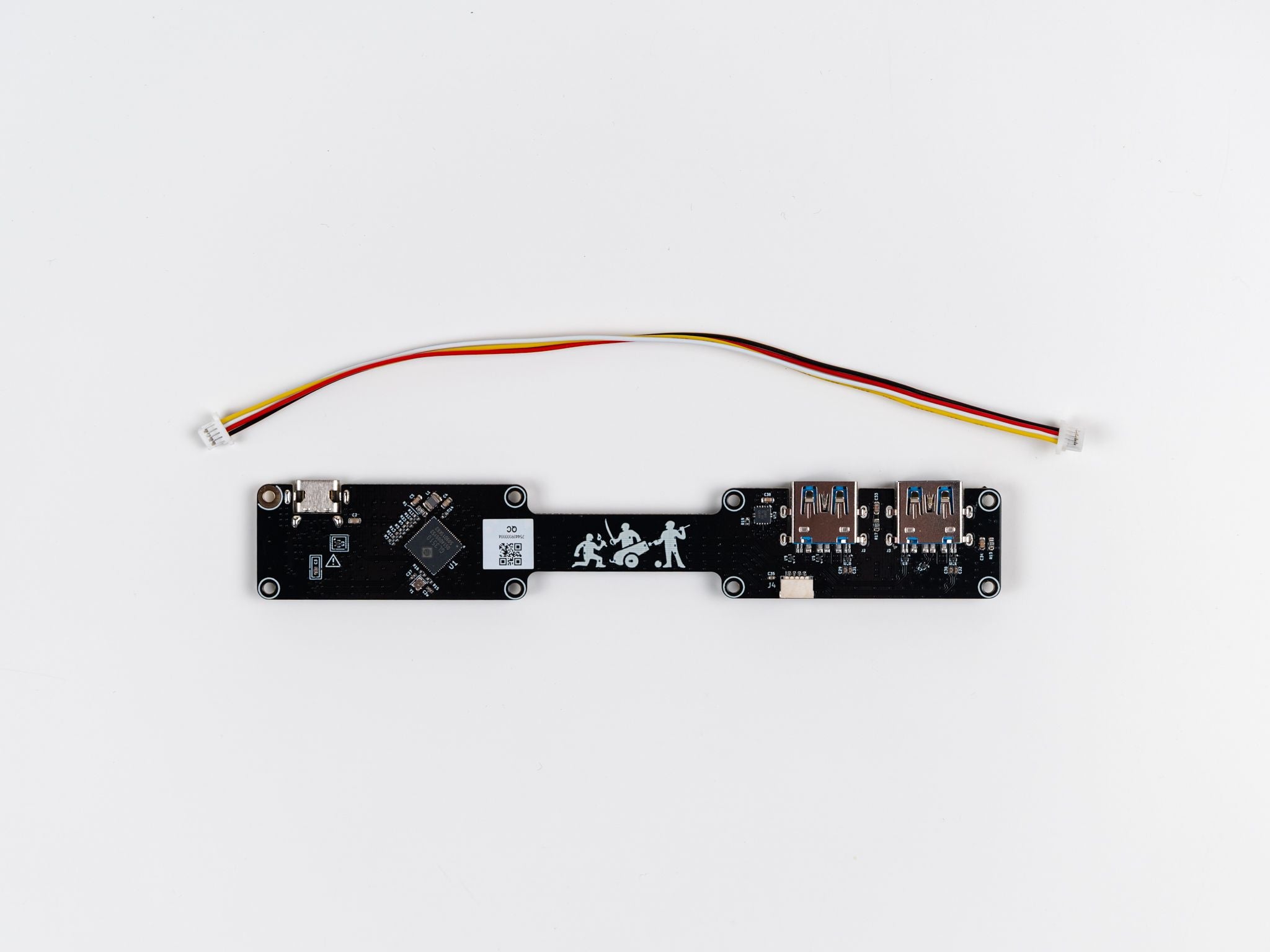

- USB 3.0 hub
EC Building Requirements & Info
We will have different build packs available during the GB to make sourcing parts as easy as possible. Please refer to the following information when planning your build:
OEM Topre Version
- 1.2mm threaded brass plate included

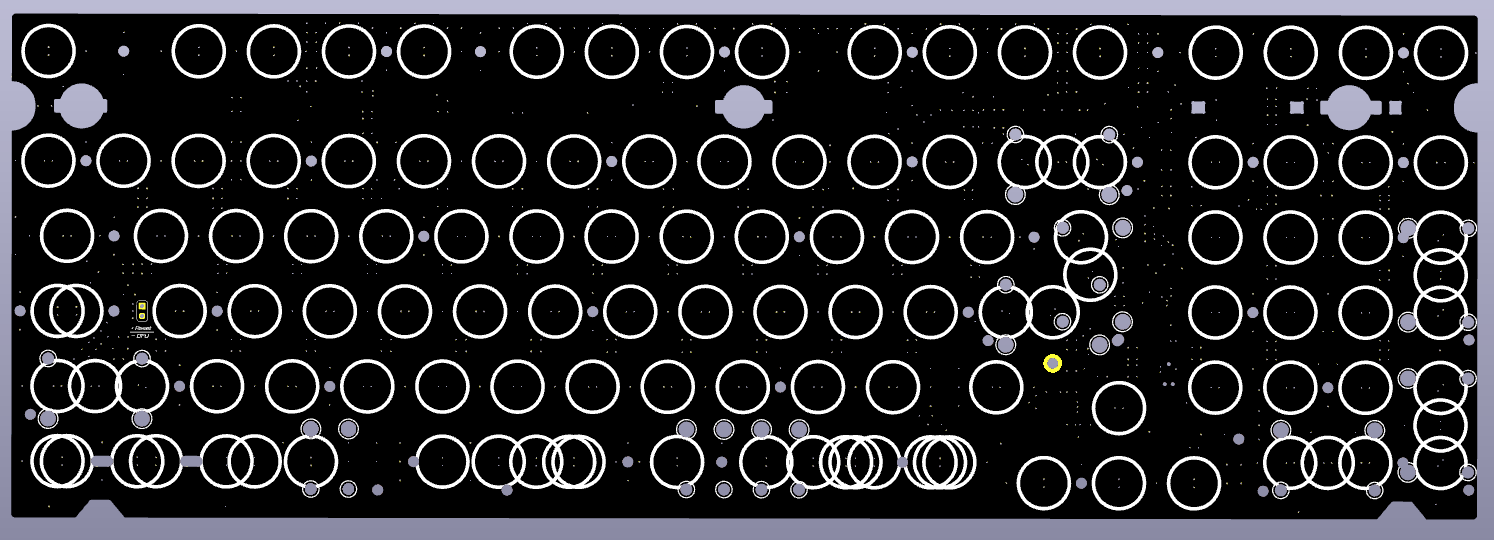

- EC PCB included
- Standoffs and/or screws for assembly included
- Supports OEM parts such as DynaCaps, KLS, Deskeys, and true OEM Topre parts [NOT included in the keyboard kit]
- OEM compatible stabilizers required [NOT included in the keyboard kit]
Naevy Topre Version
- 1.5mm threaded aluminum plate included
- EC PCB included
- Standoffs and/or screws for assembly included
- Supports Naevy EC switches [NOT included in the keyboard kit]
- MX compatible stabilizers required [NOT included in the keyboard kit]
DynaCap Info
The DynaCap kit for this keyboard will cost $155 and come with the following parts (enough for a full CK980C build)
- 1u Sliders - 98
- 2u Sliders + Wires - 5
- 1u Housings - 98
- 2u Housings - 5
- Stab Housings + Stems - 2
- 6u Spacebar Wire - 1
- 7u Spacebar Wire - 1
- Uncoated Springs - 1
- Dome strips (6 per strip) - 17
- Silencing Rings packs - 1

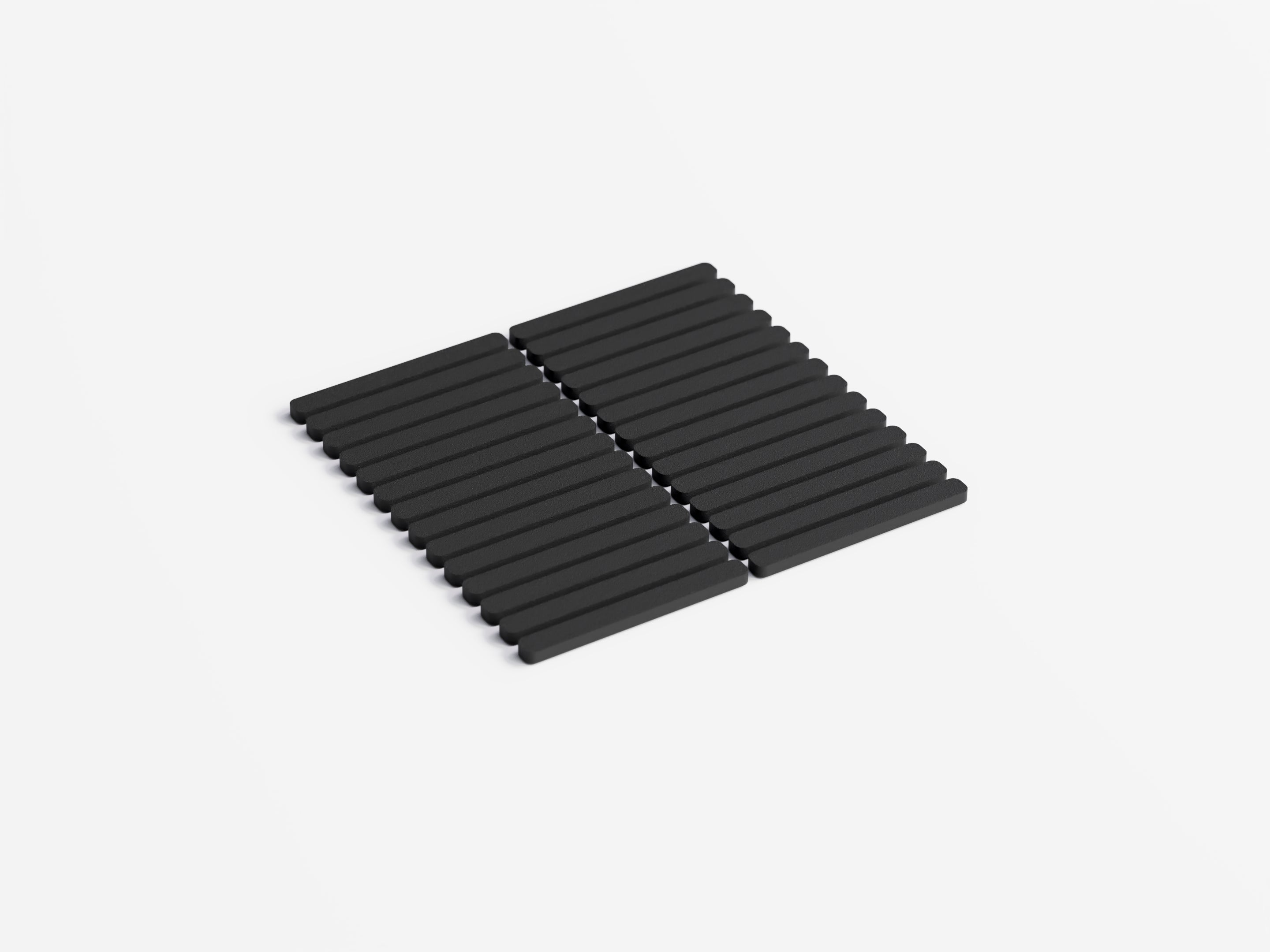

- Gaskets - 1
CK980C

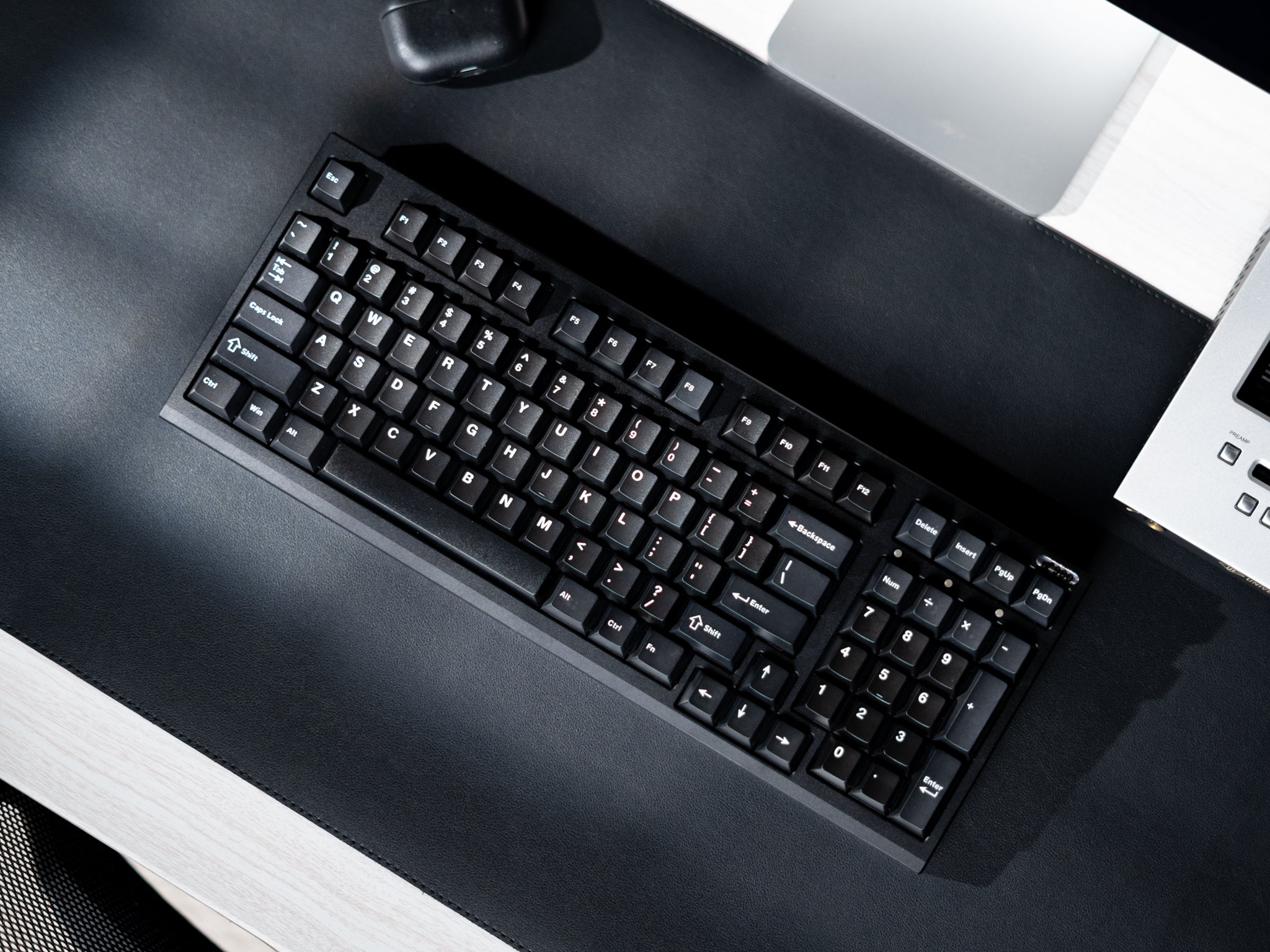

Designed to be EC first, the CK980C is an in-house designed take on the classic FC980C electrocapacitive keyboard. Featuring a modernized isolated gasket mount, MX and EC compatibility, USB hub, and much more.
Coming to group buy August 29th through September 28th!
Let's make Topre approachable
Traditionally, Topre keyboard builds have been difficult due to all the extra parts needed. With CK980C, we want to make it as simple as possible to source parts.
We will be offering multiple different part packs to assist with builds, including a special DynaPack kit. More info coming soon.

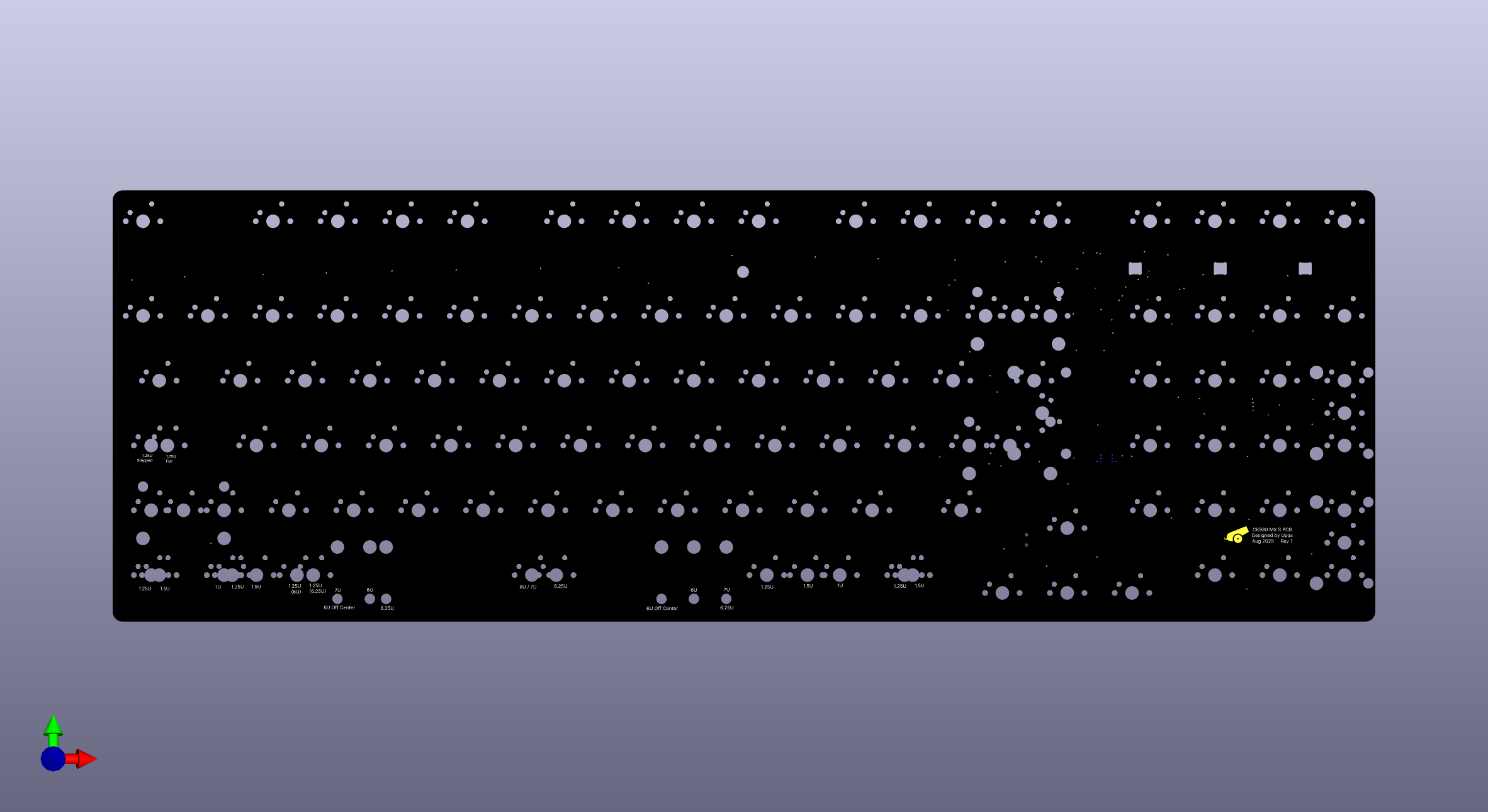

Build Requirements

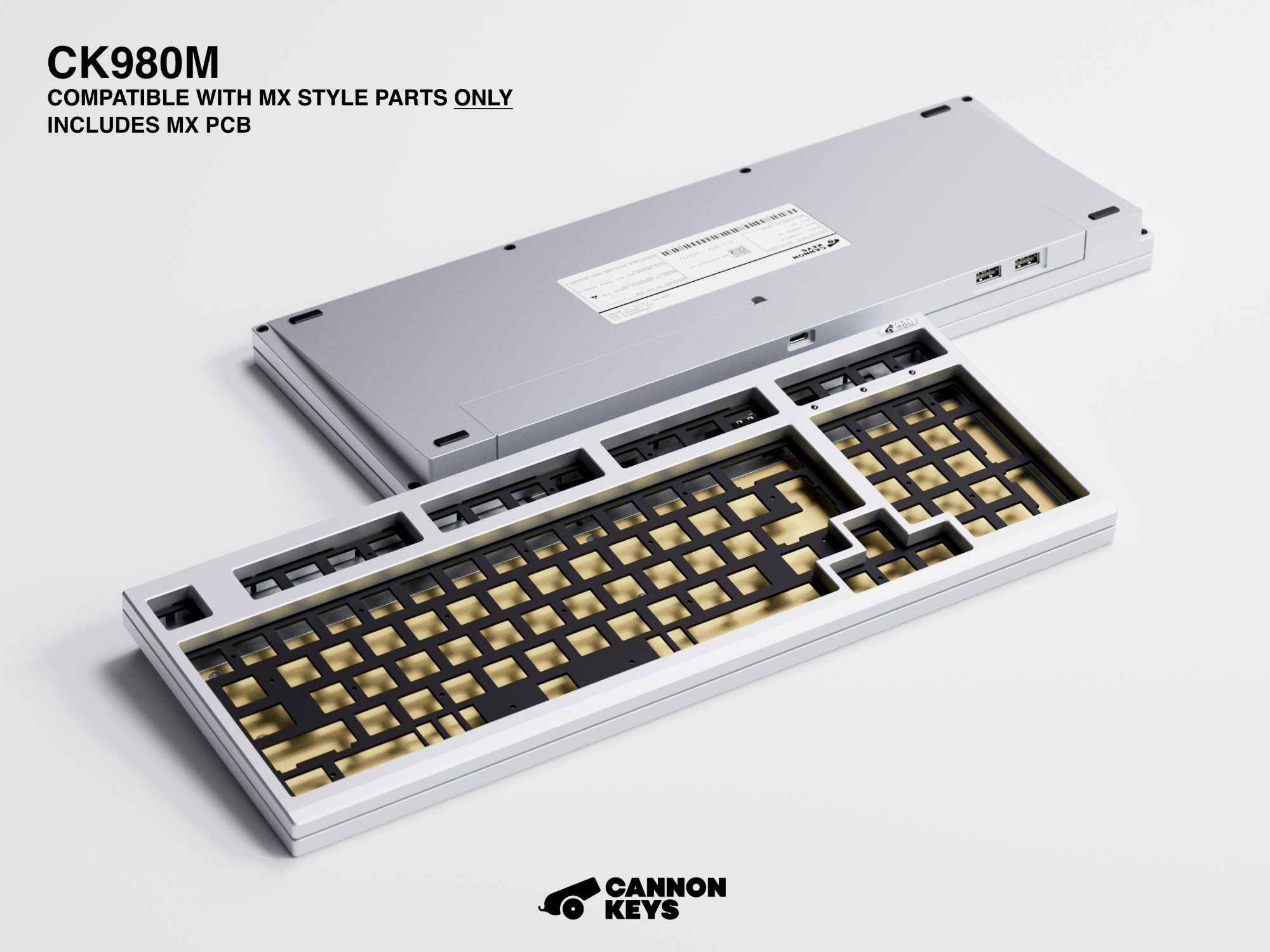

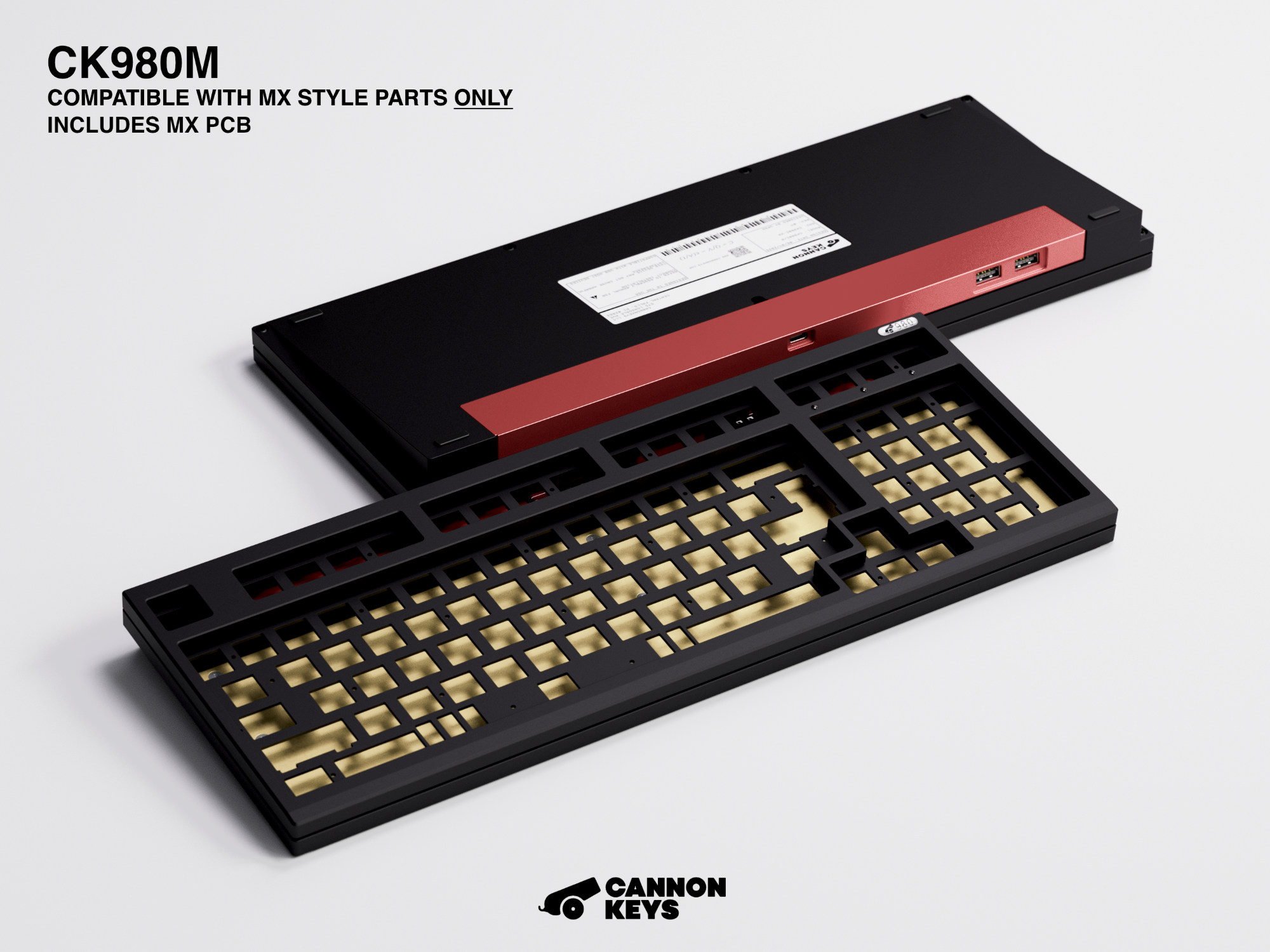

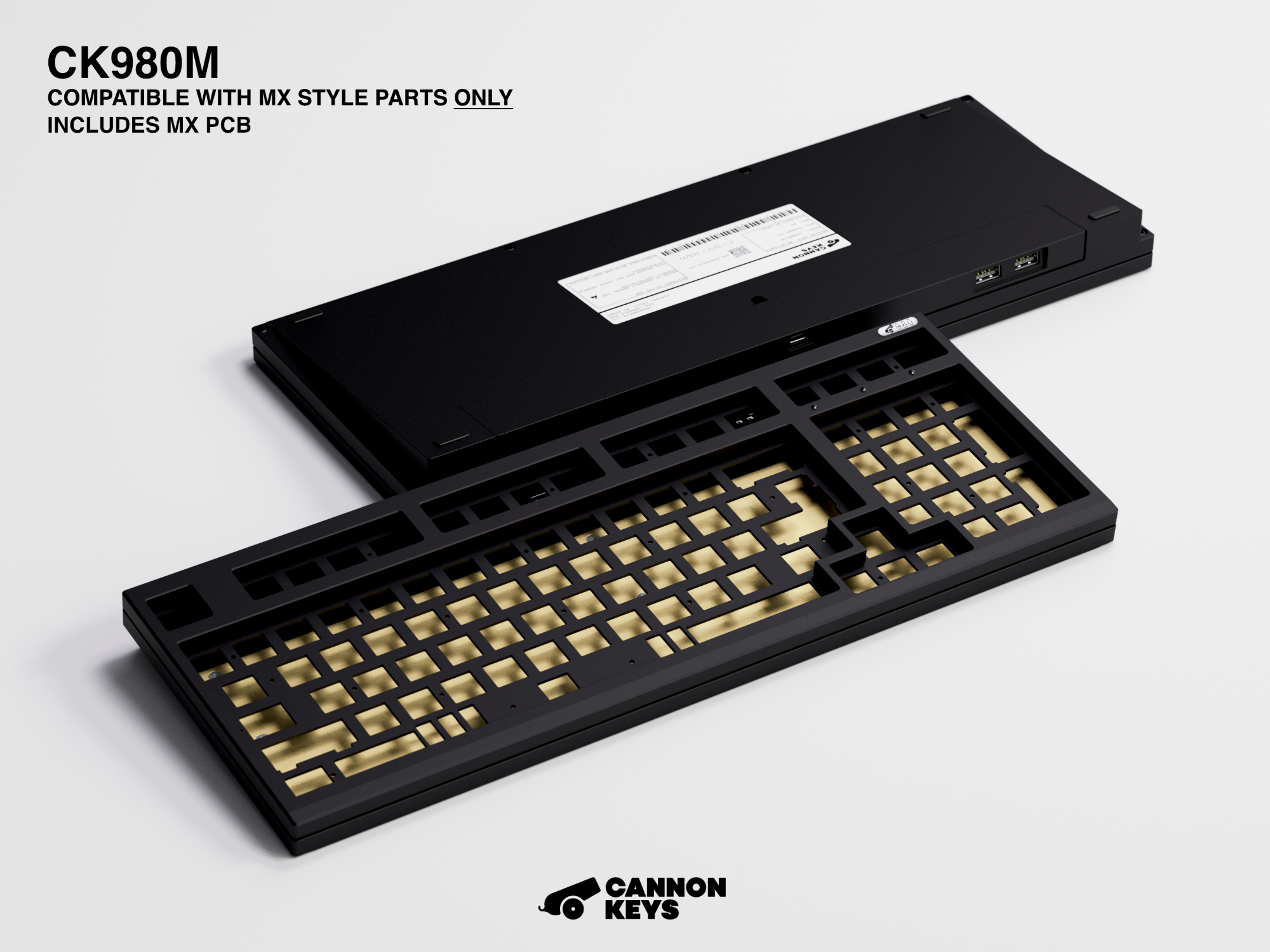

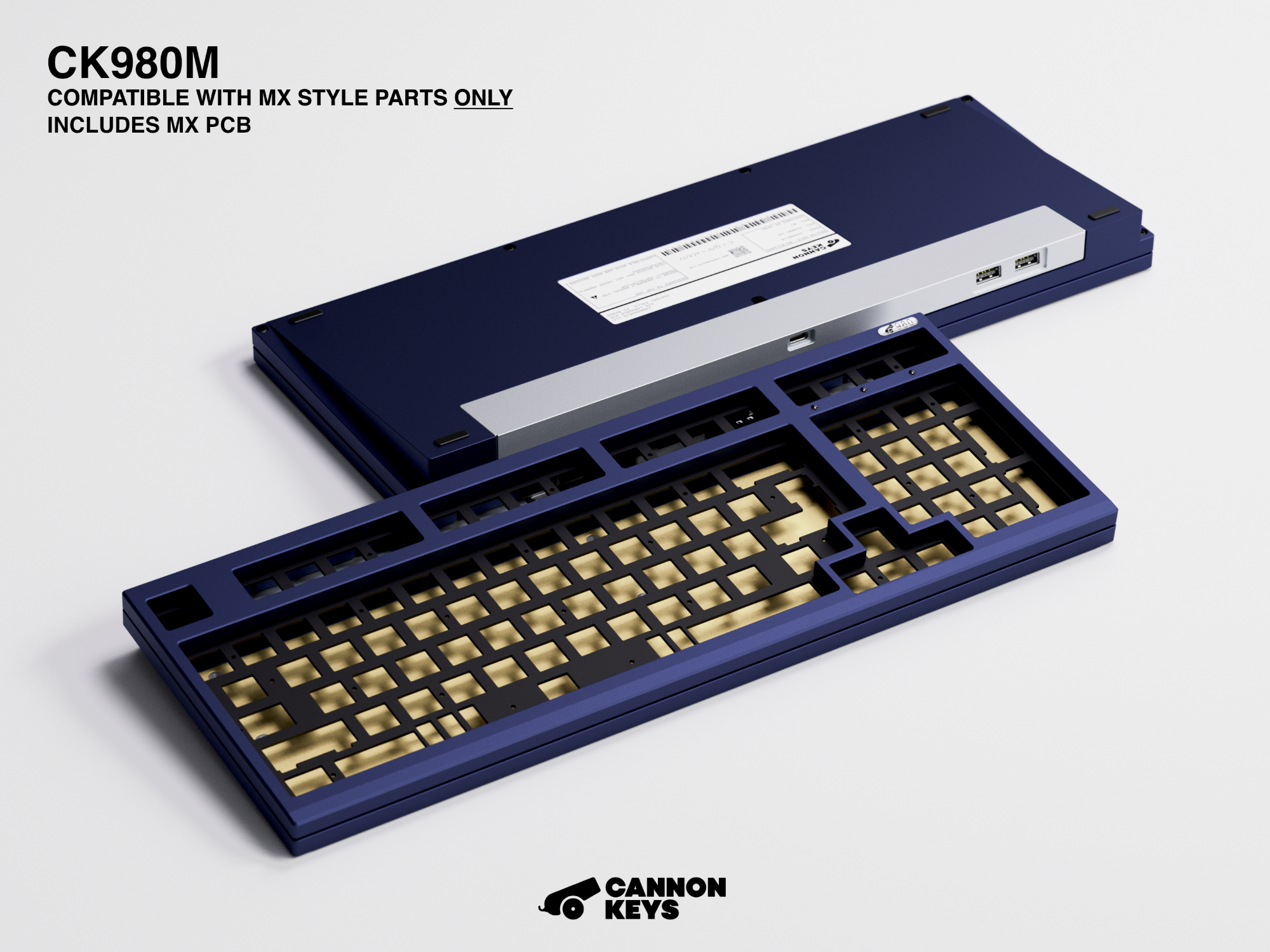

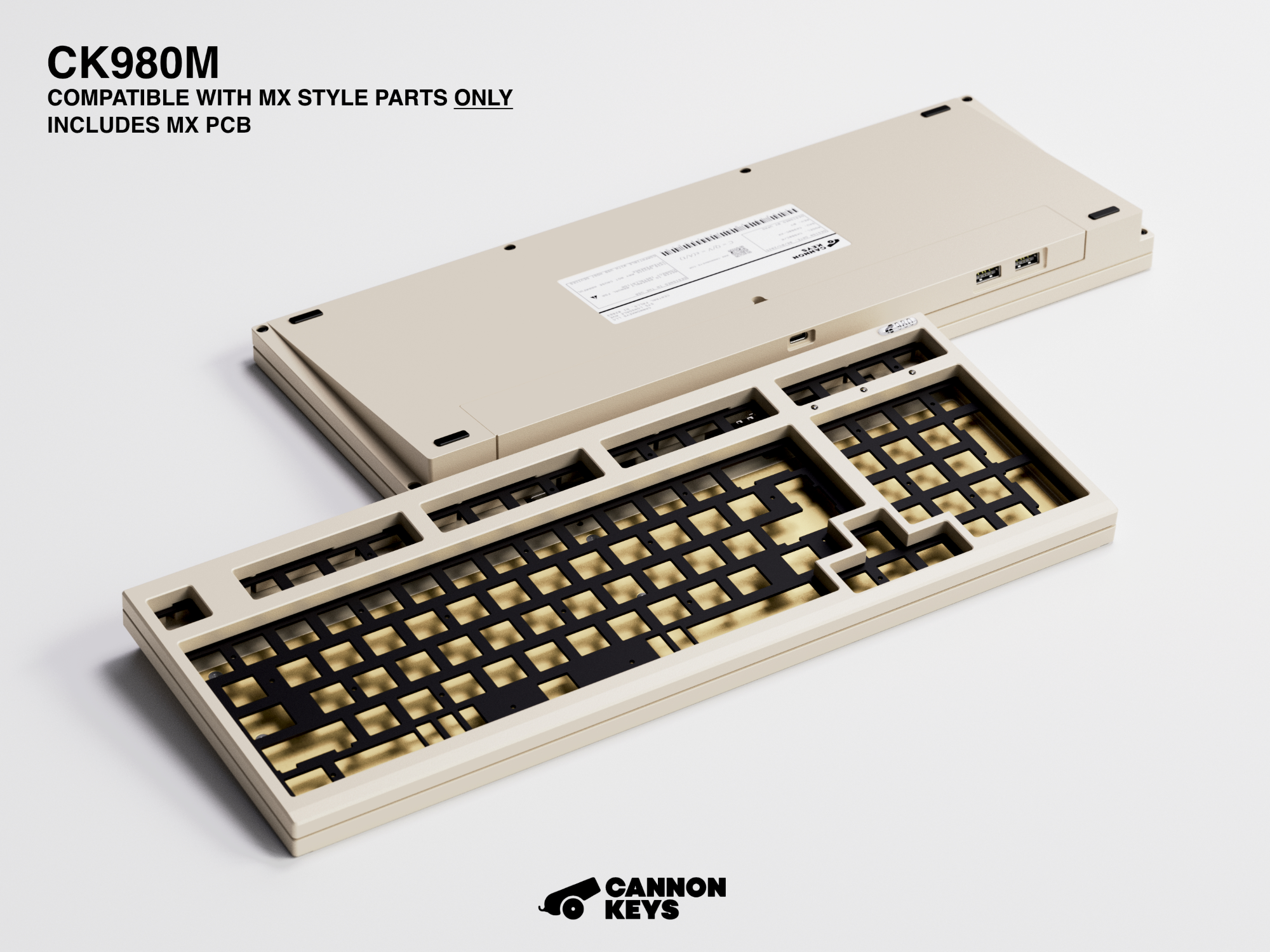

MX Version
- 1.5mm aluminum plate

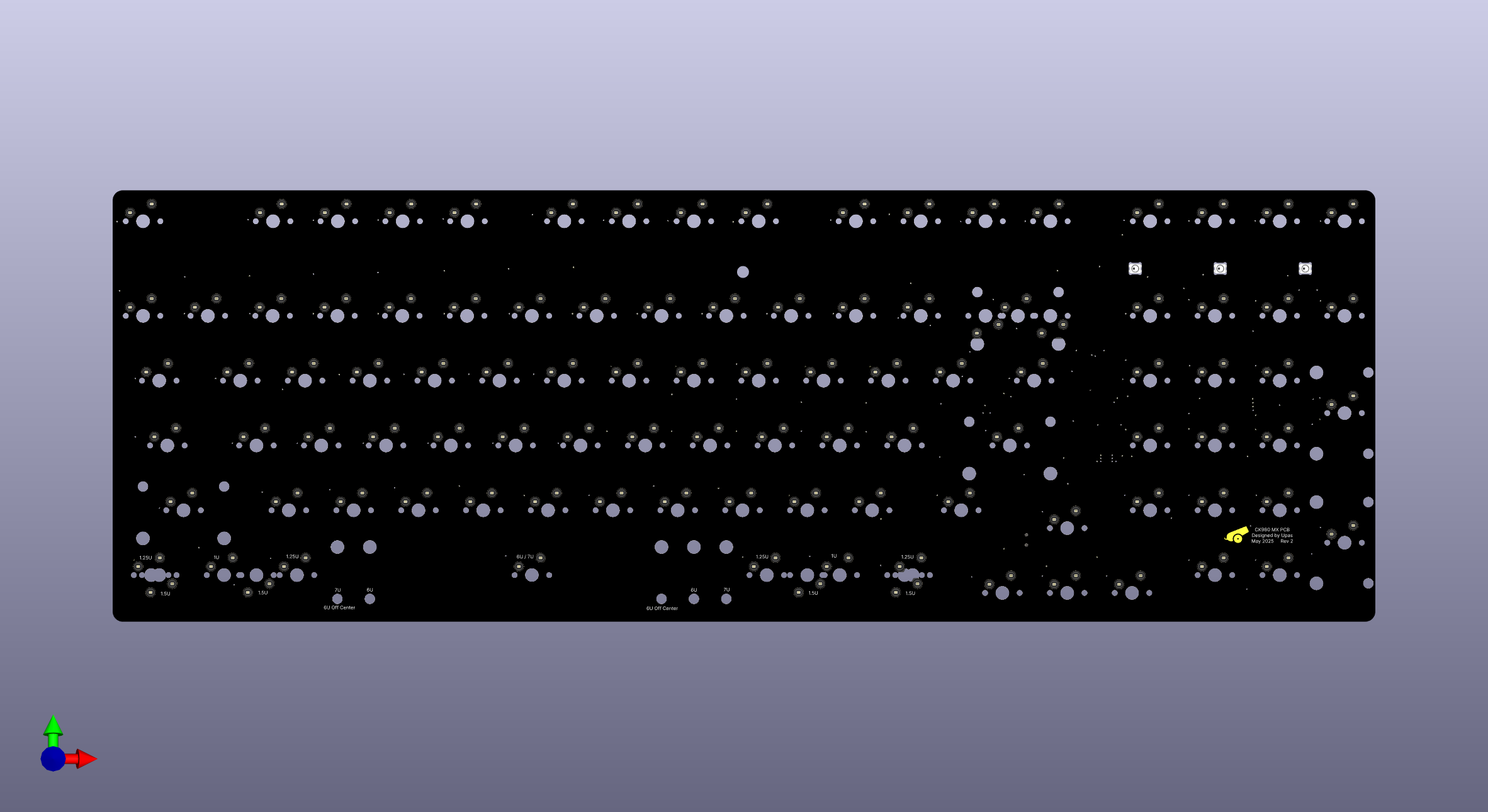

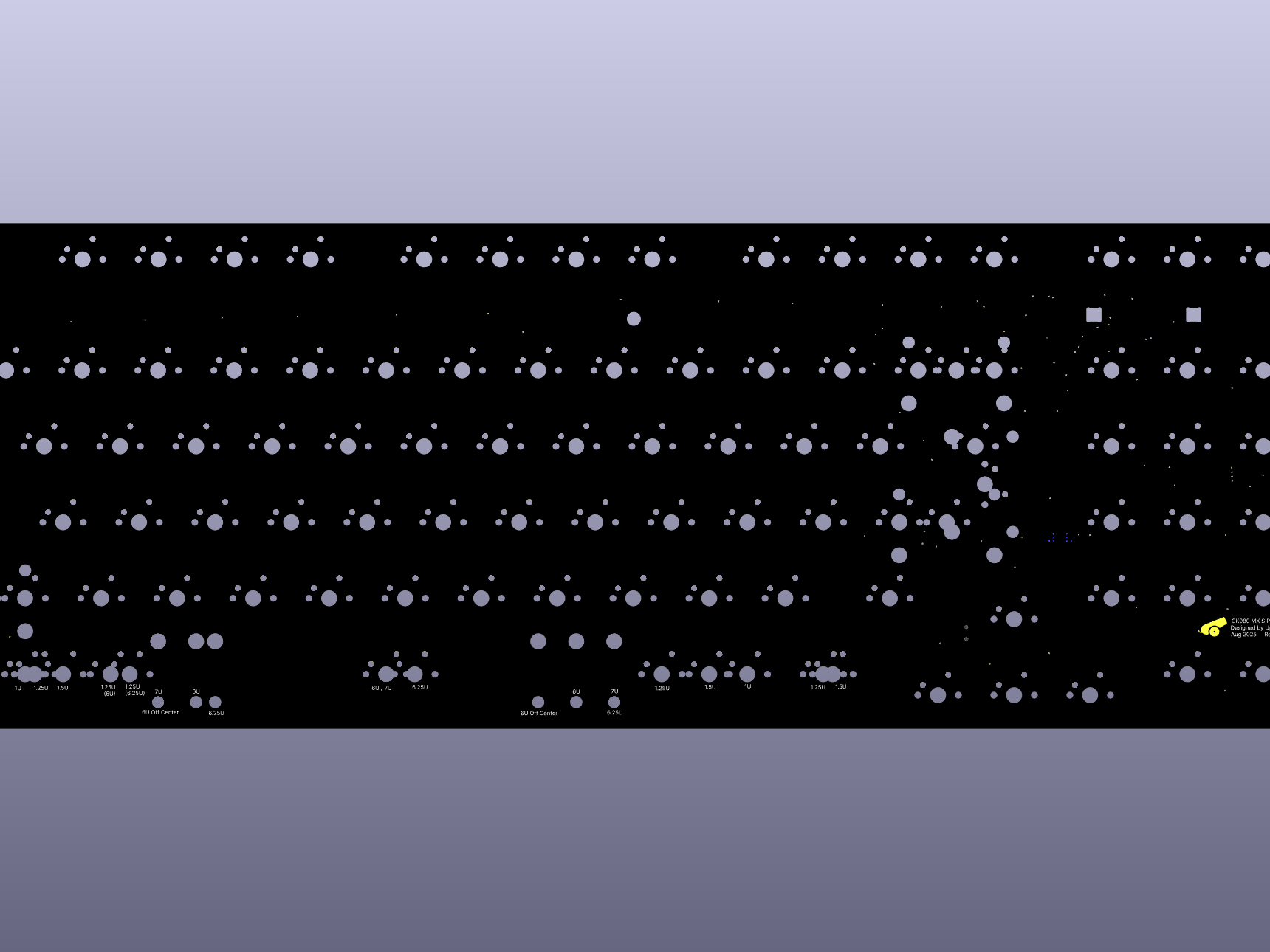

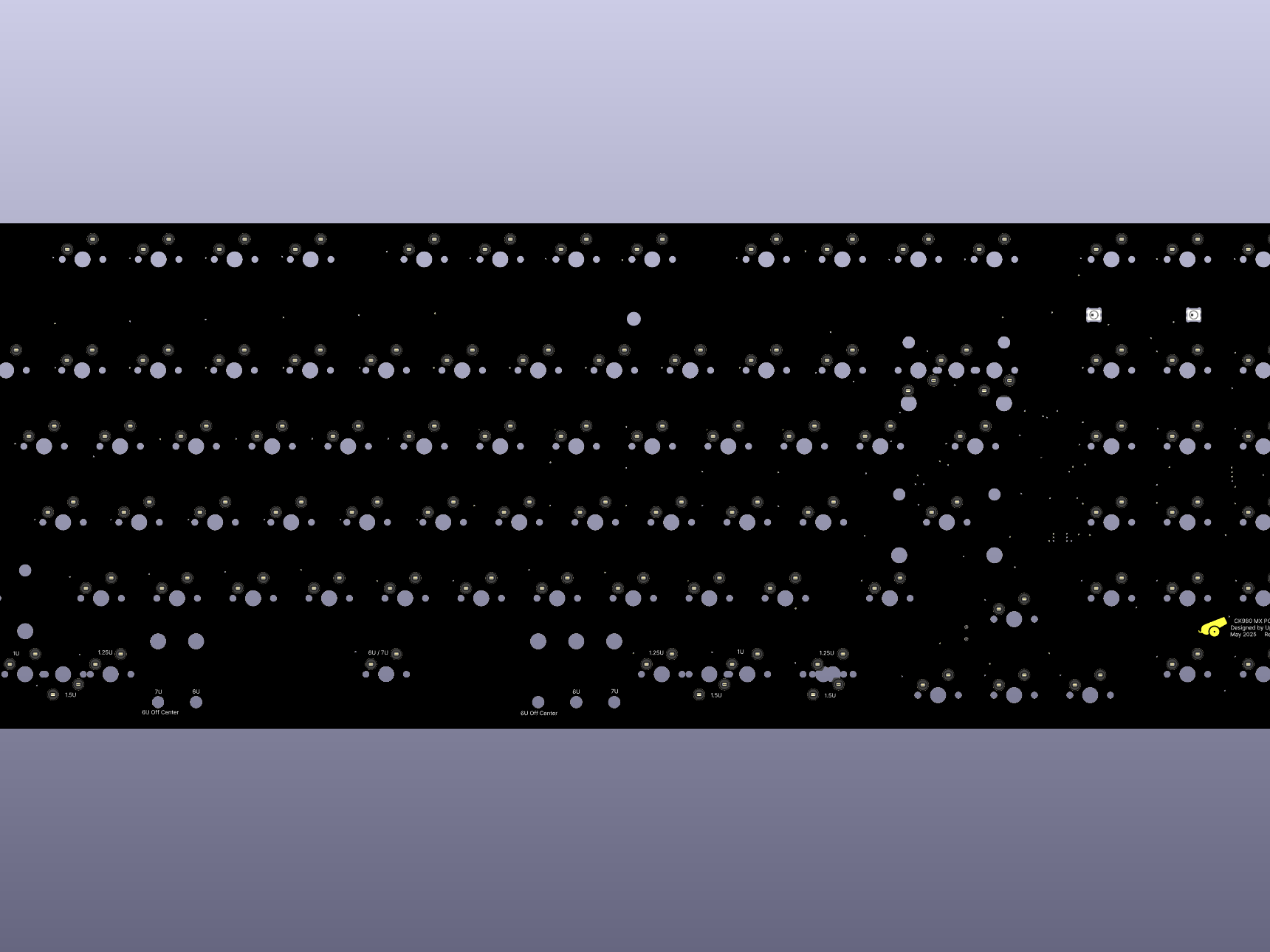

- Hotswap MX PCB
- Supports MX switches [NOT included in the keyboard kit]
- MX compatible stabilizers required [NOT included in the keyboard kit]

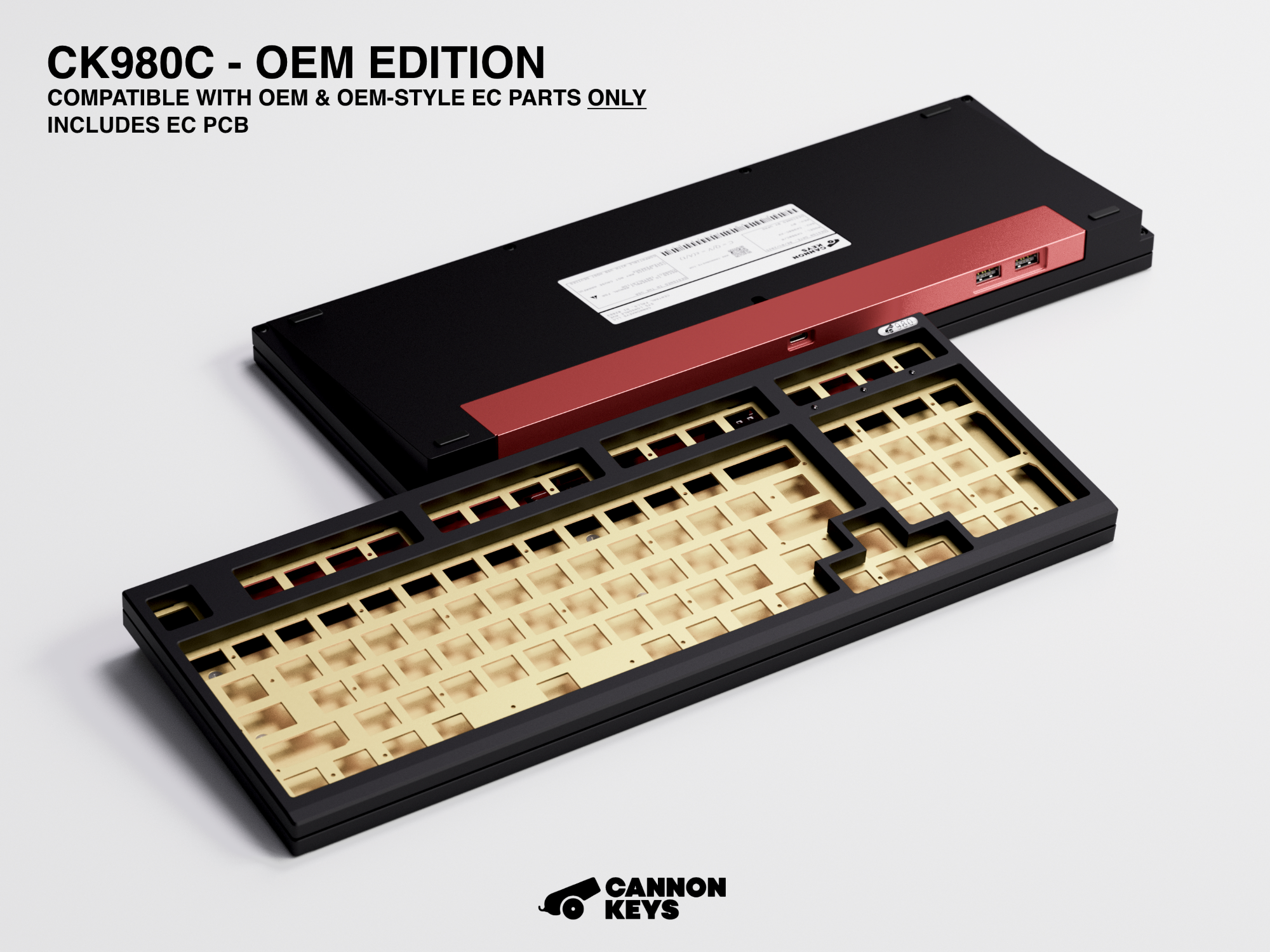

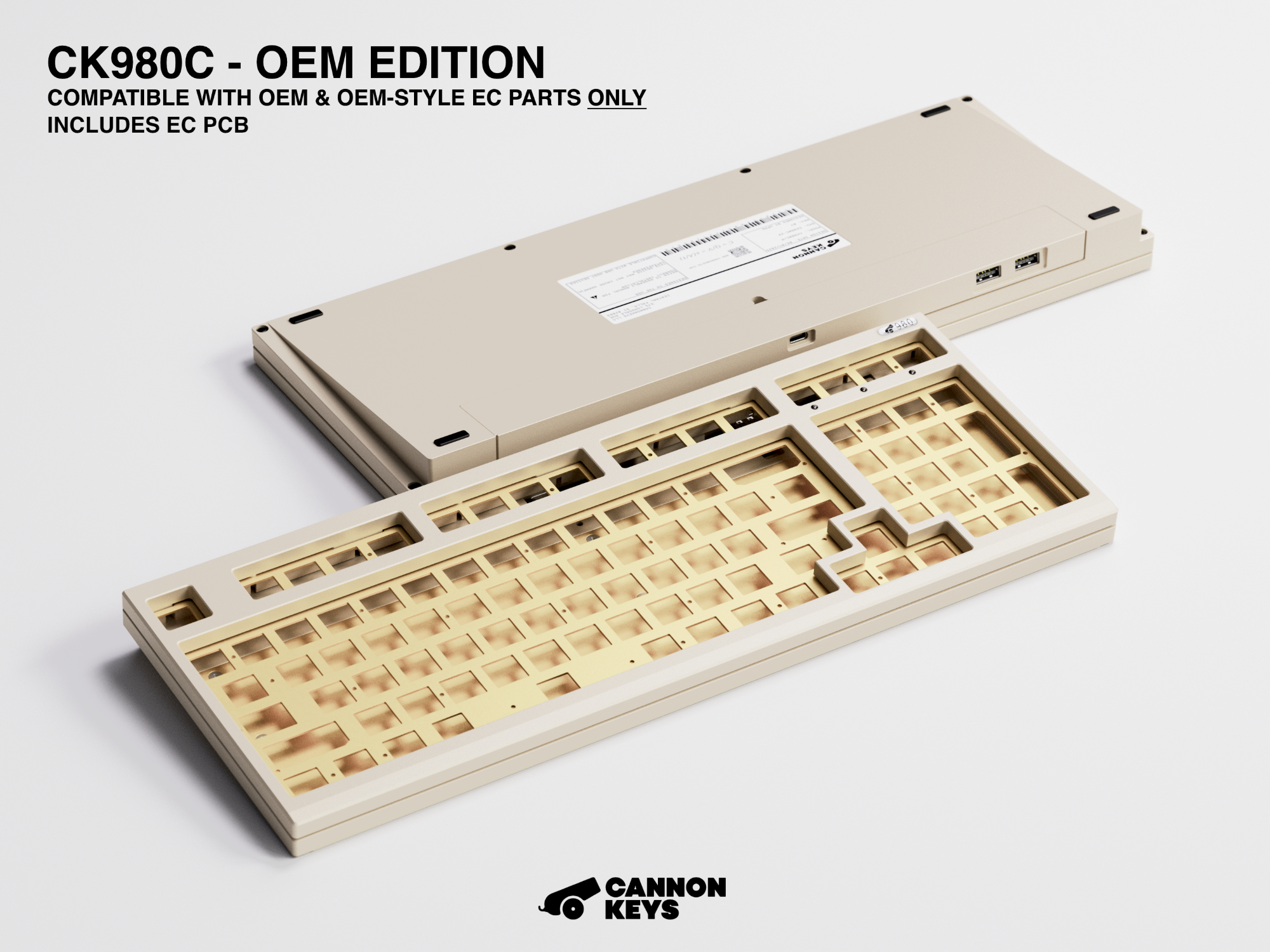

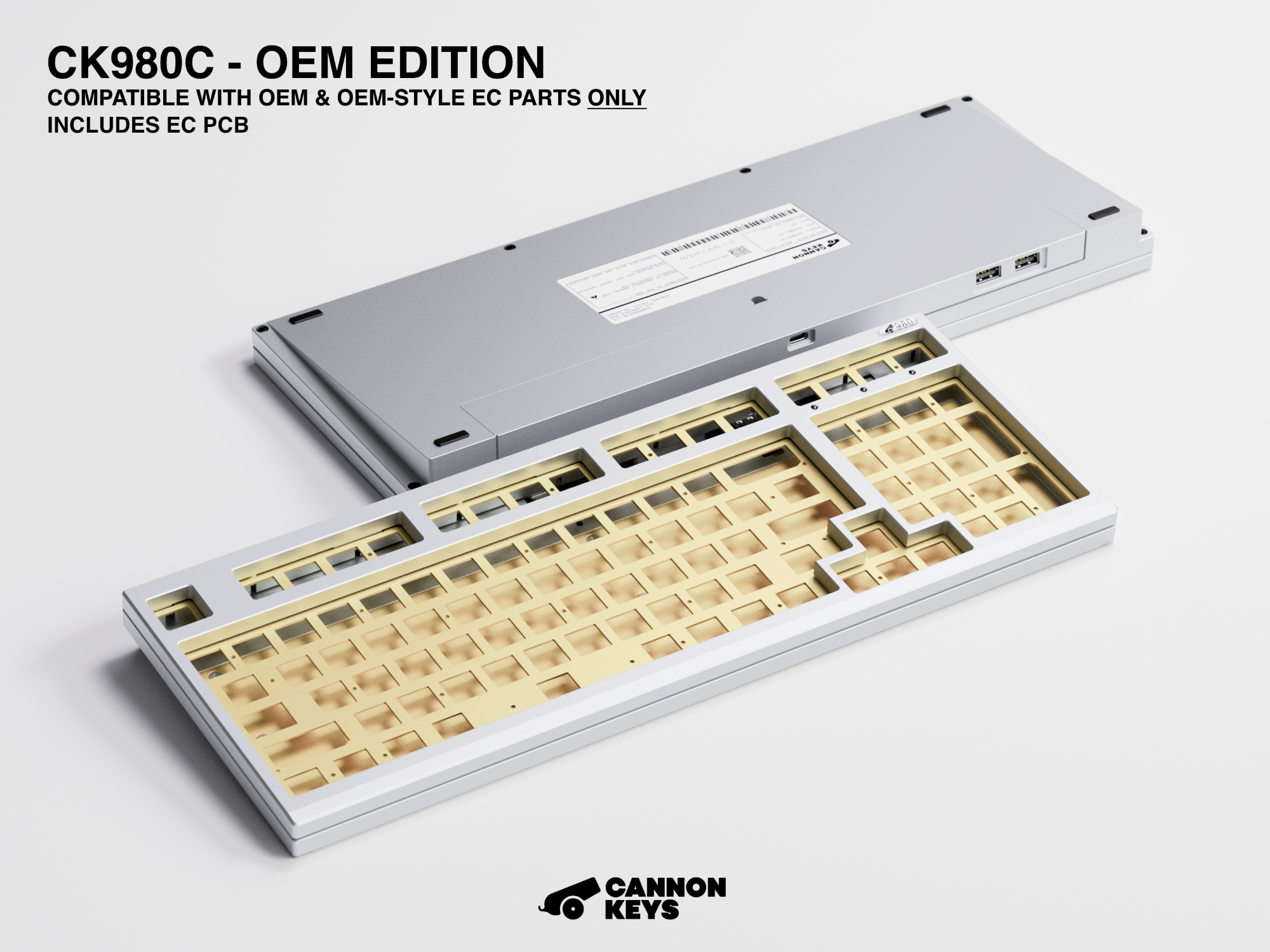

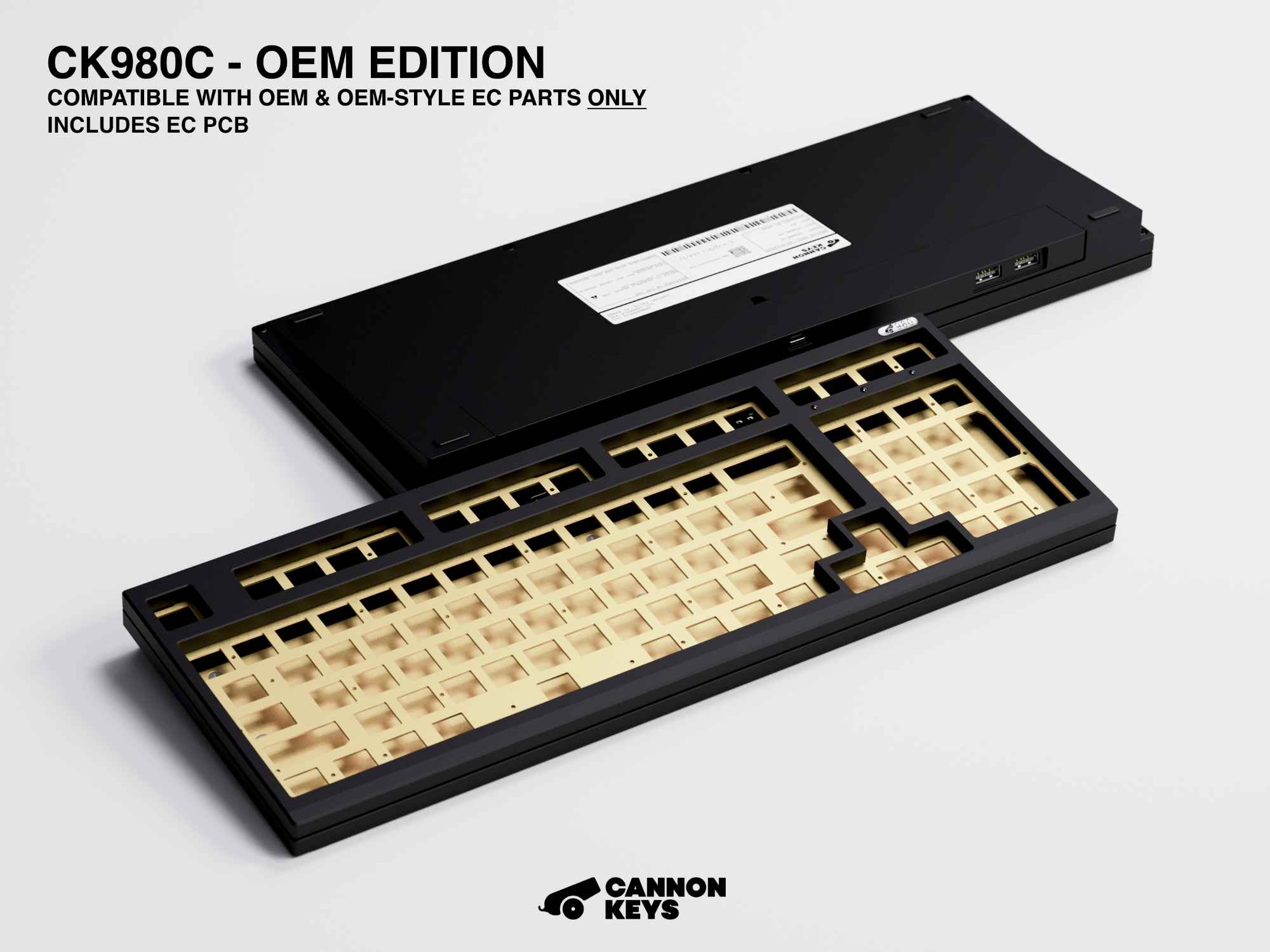

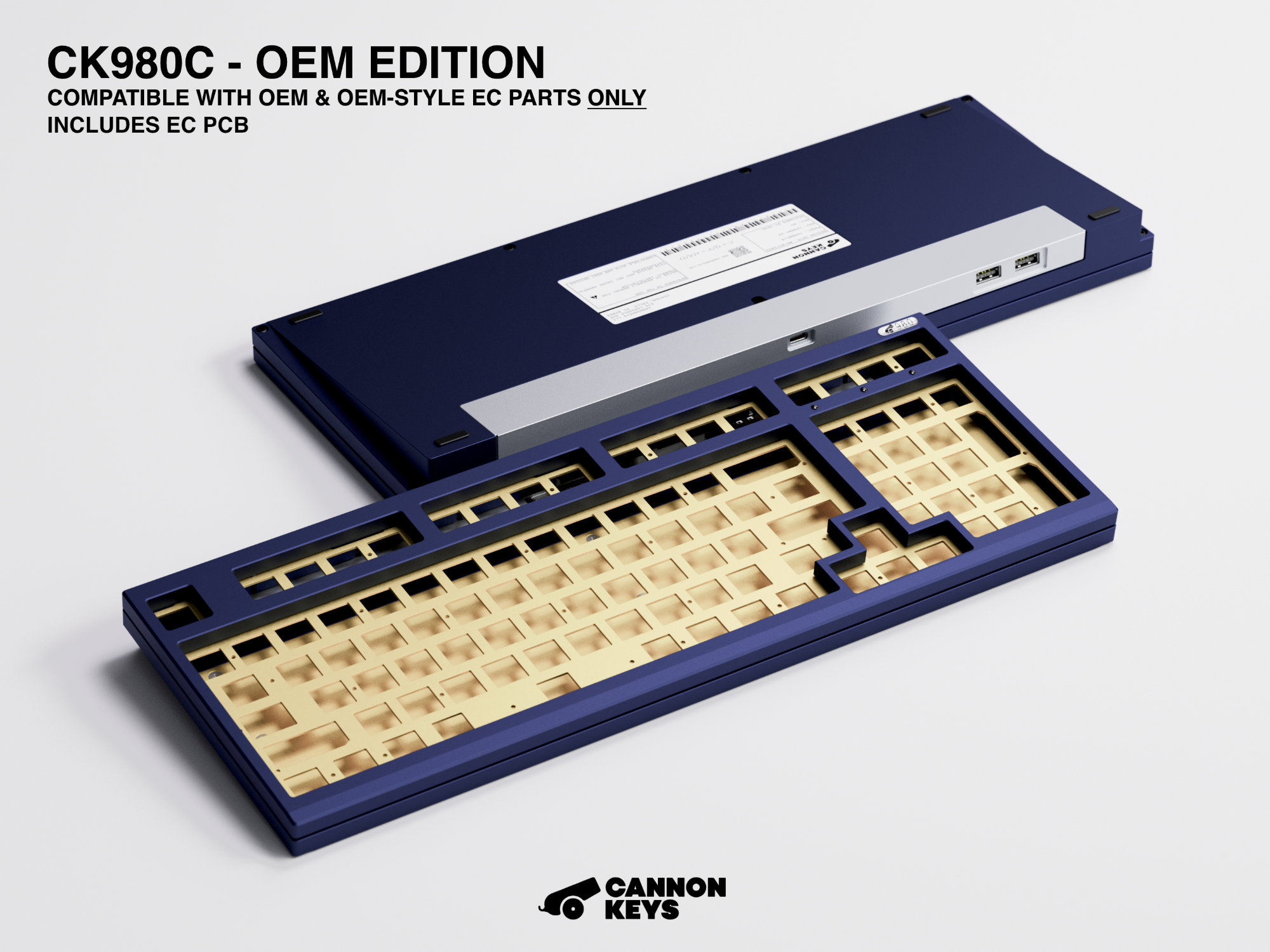

OEM Topre Version
- 1.2mm threaded brass plate included

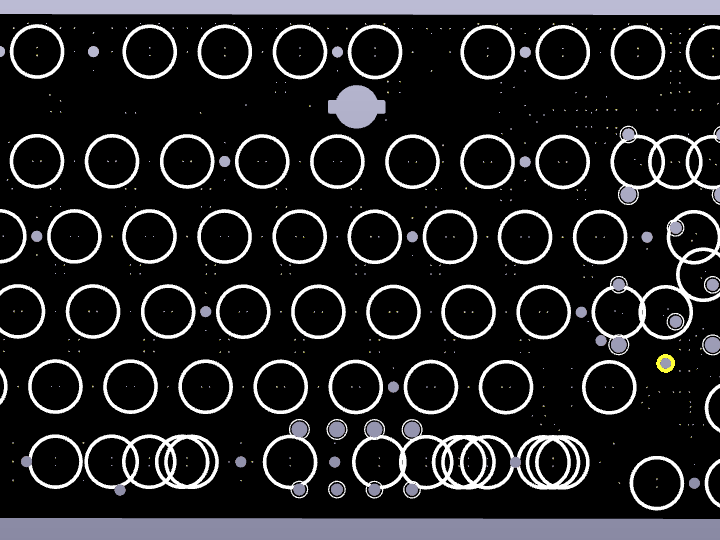

- EC PCB included
- Standoffs and/or screws for assembly included
- Supports OEM parts such as DynaCaps, KLS, Deskeys, and true OEM Topre parts [NOT included in the keyboard kit]
- OEM compatible stabilizers required [NOT included in the keyboard kit]

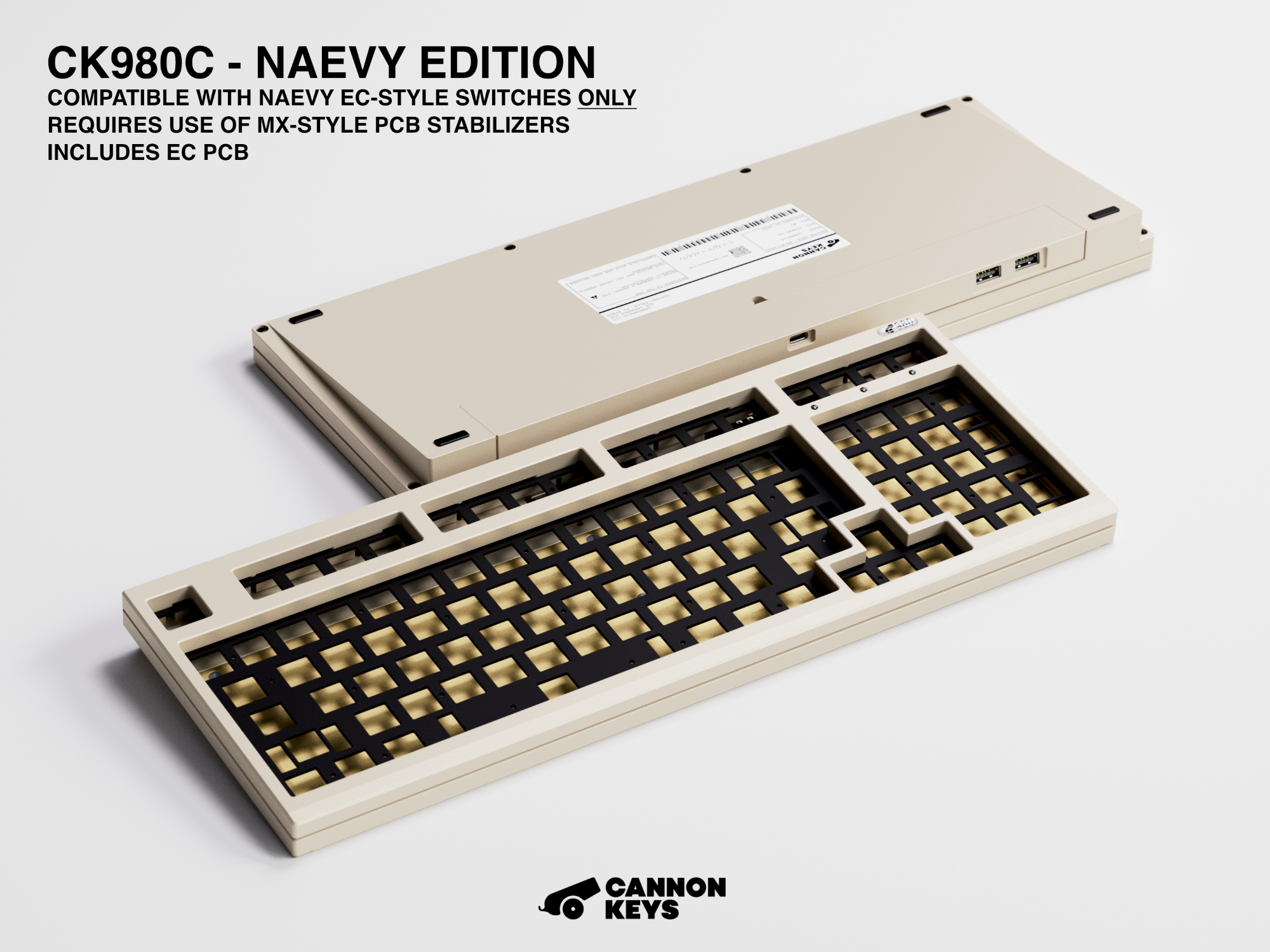

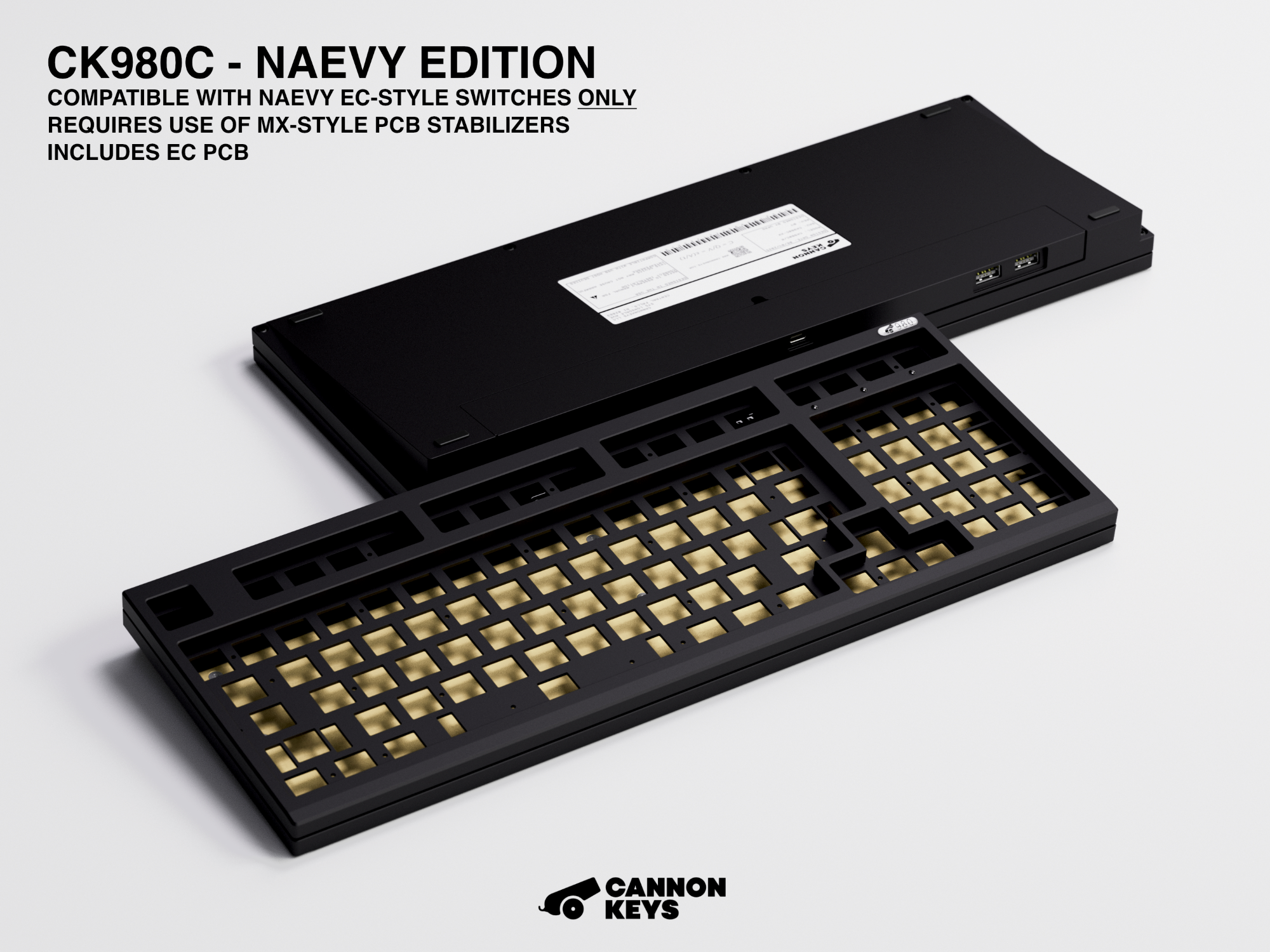

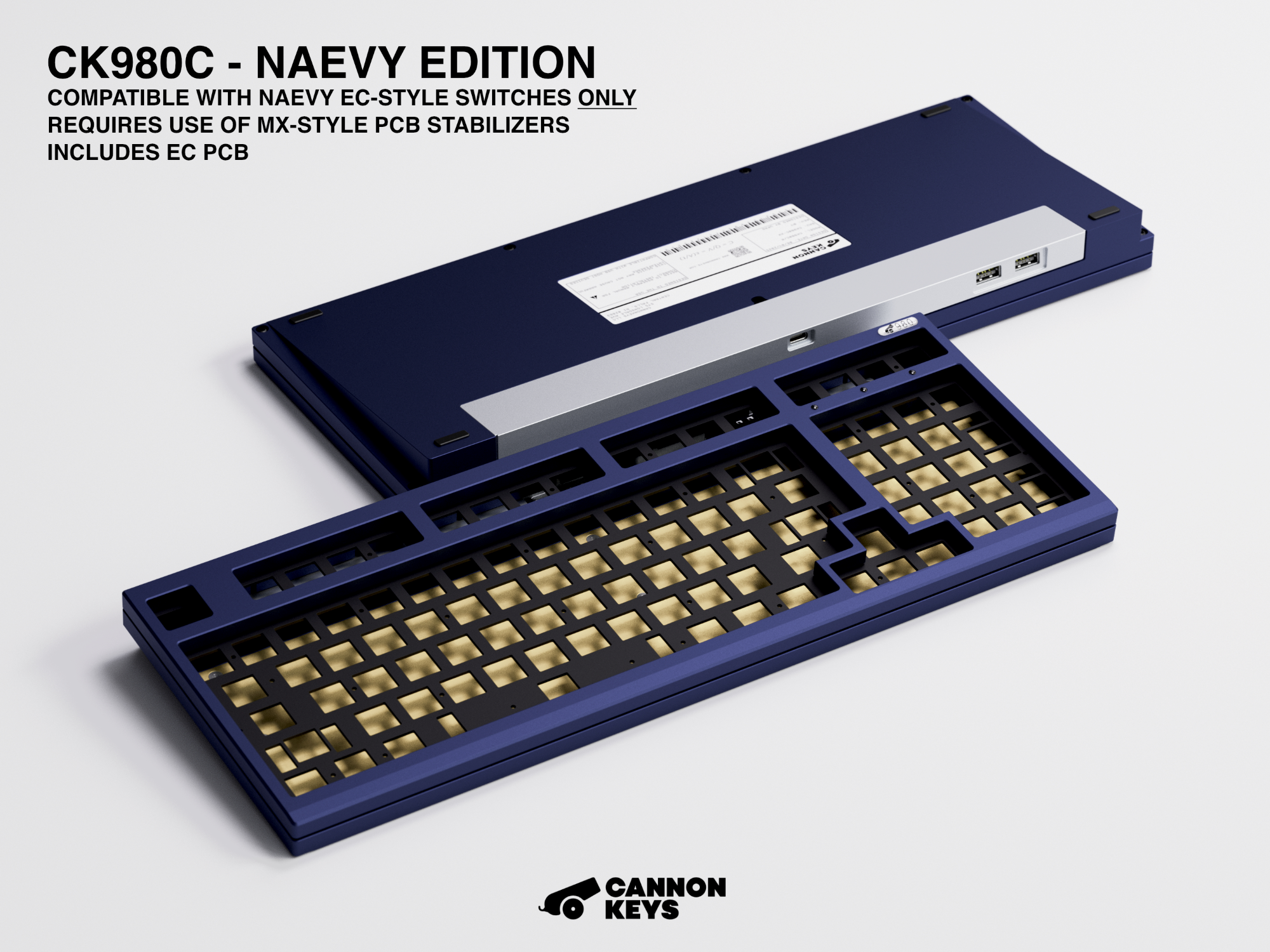

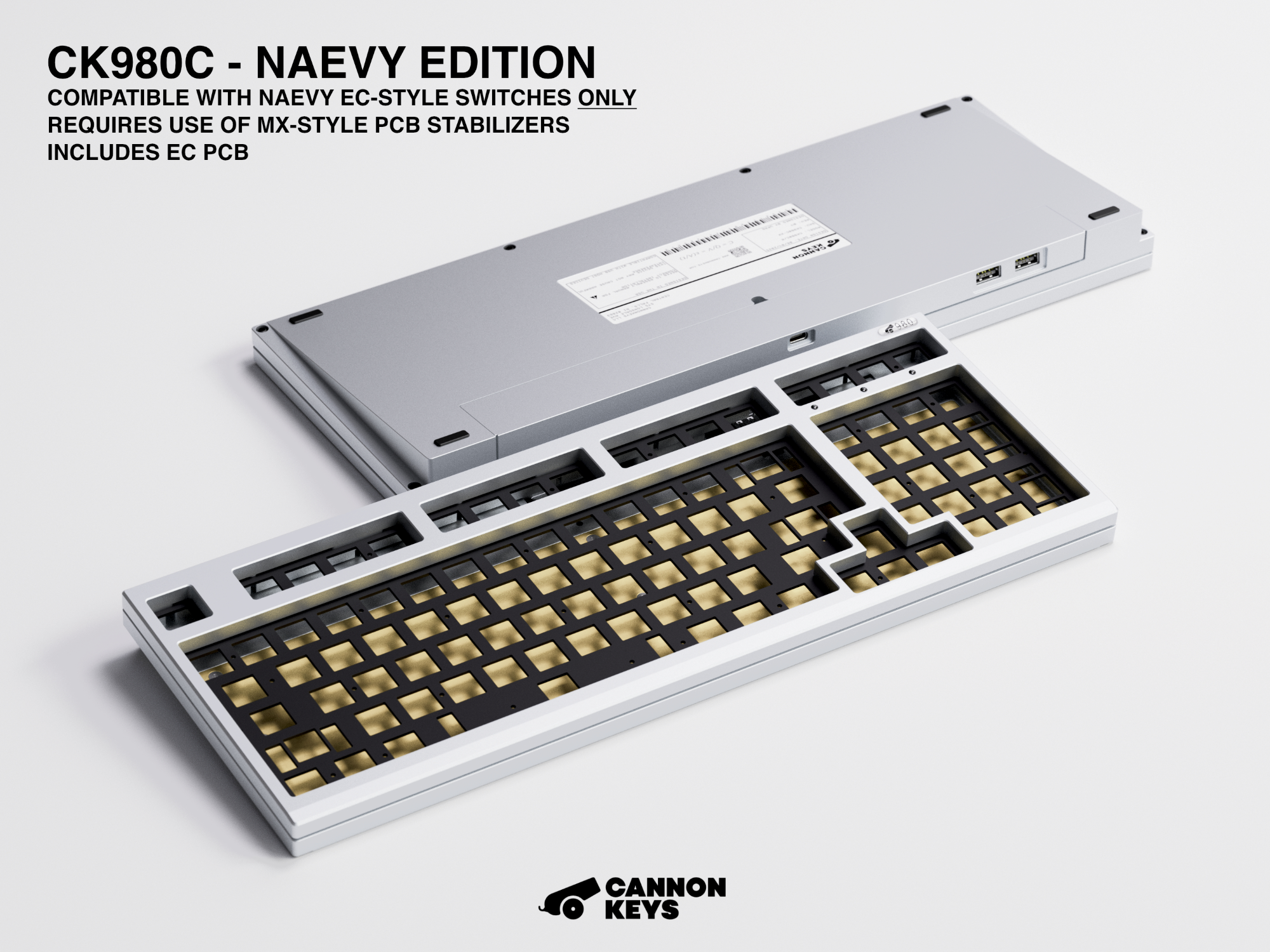

Naevy Version
- 1.5mm threaded aluminum plate included
- EC PCB included
- Standoffs and/or screws for assembly included
- Supports Naevy EC switches [NOT included in the keyboard kit]
- MX compatible stabilizers required [NOT included in the keyboard kit]
1.2mm Brass Plate Layouts (OEM Topre)

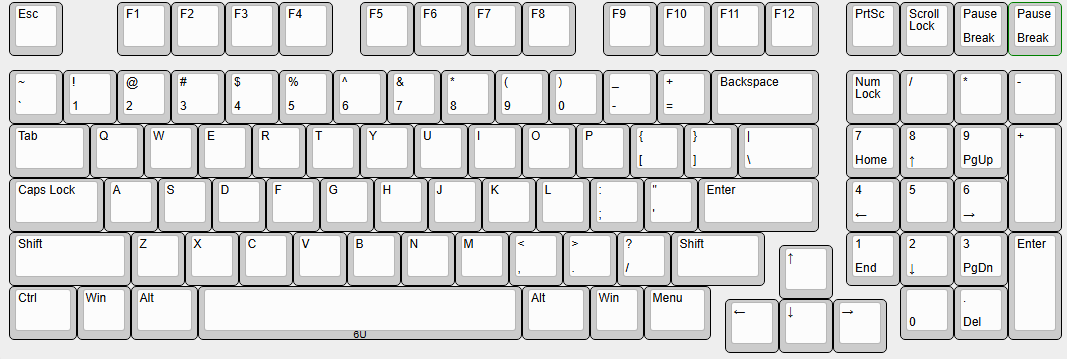

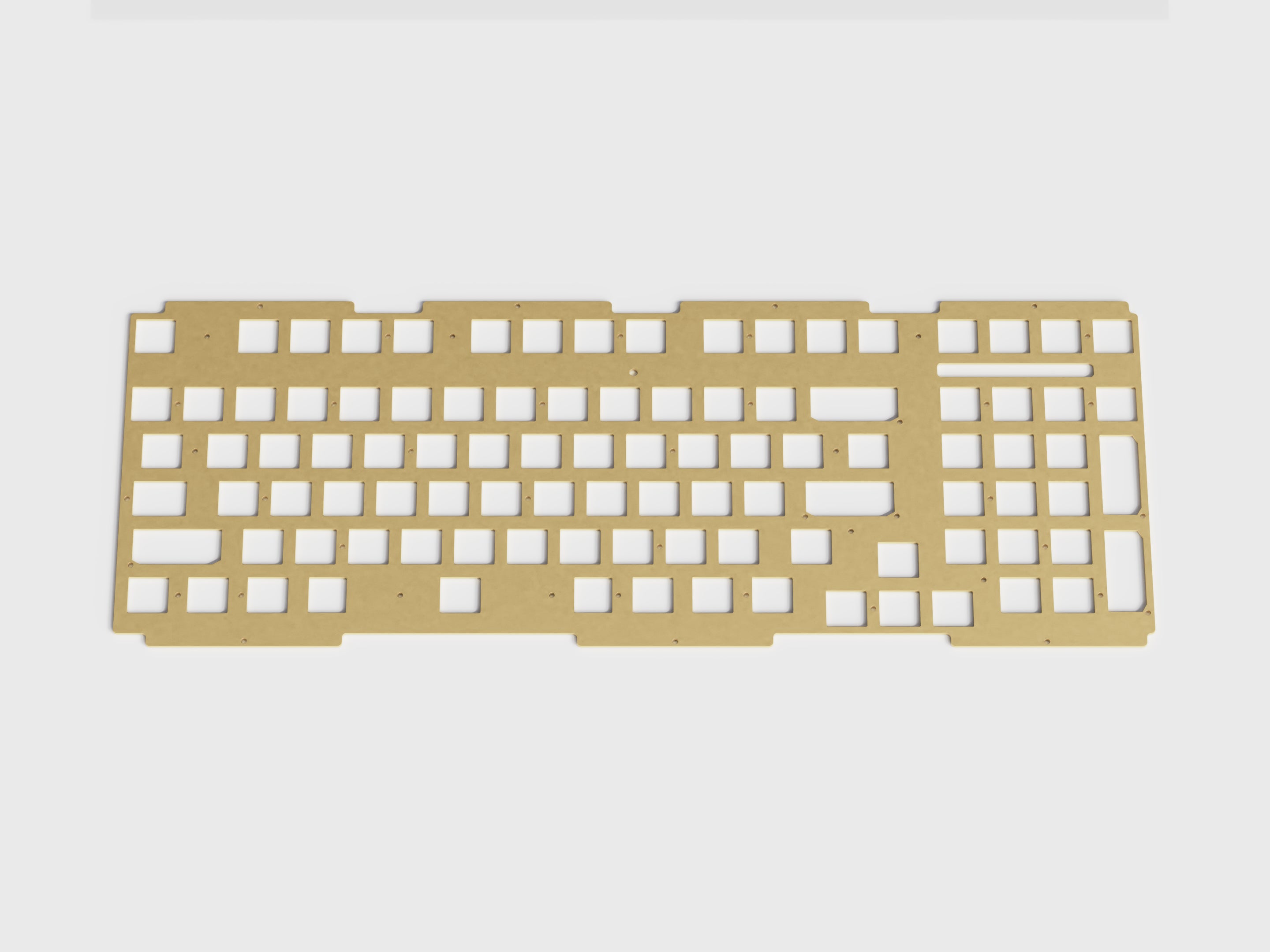

FC980C (6U)

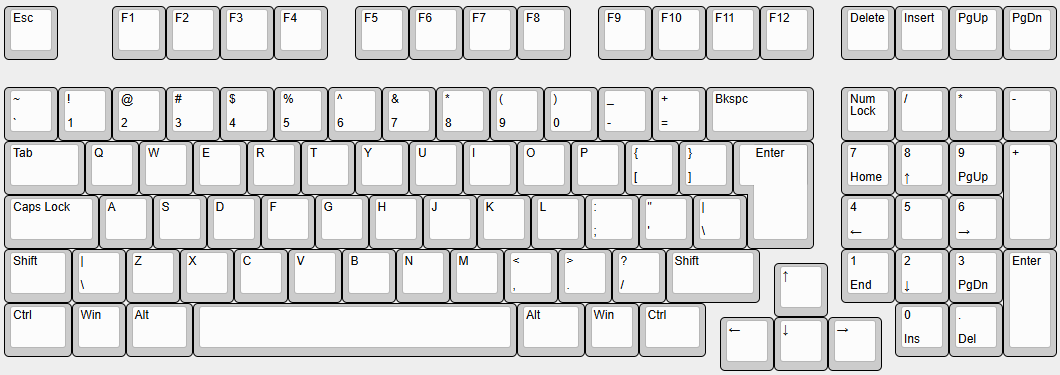

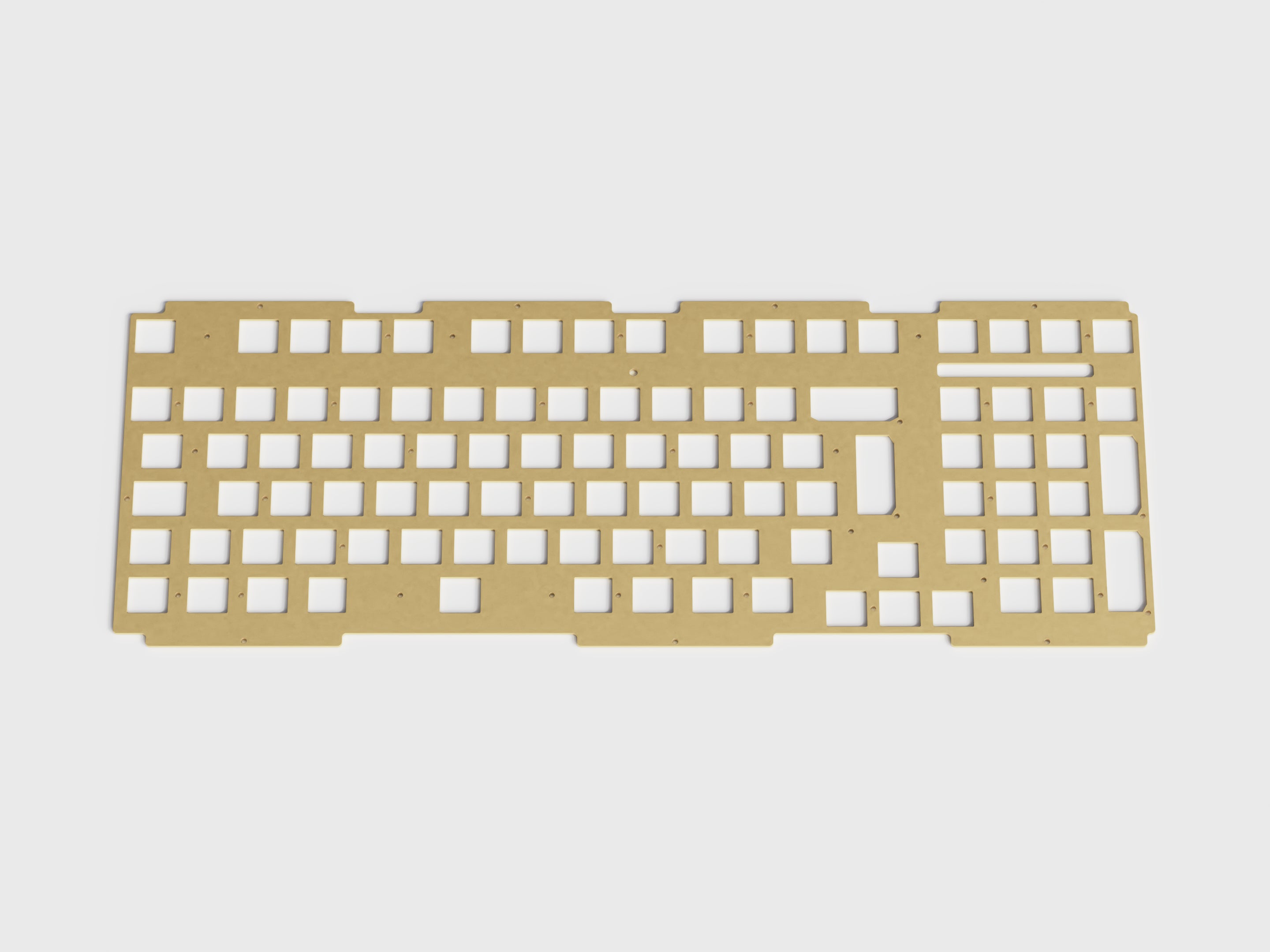

FC980C ISO (6U)

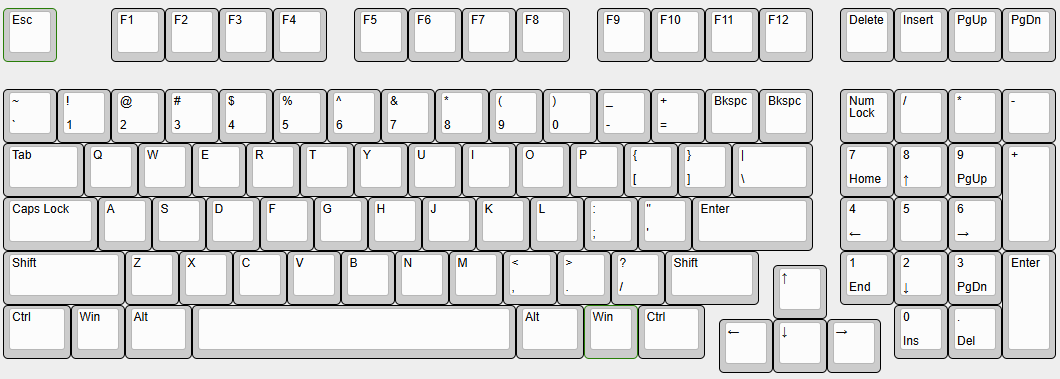

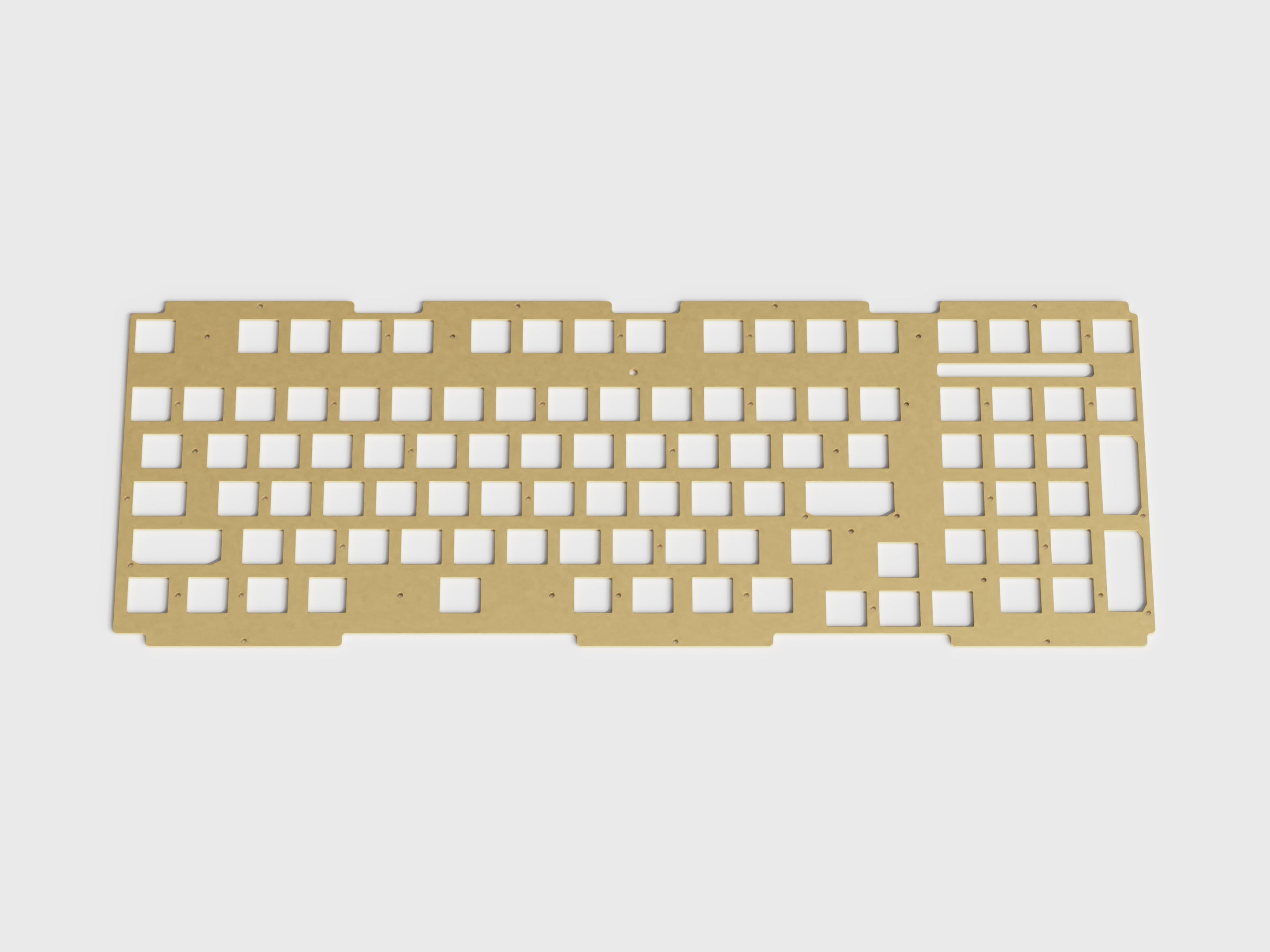

FC980C Split Backspace (6U)

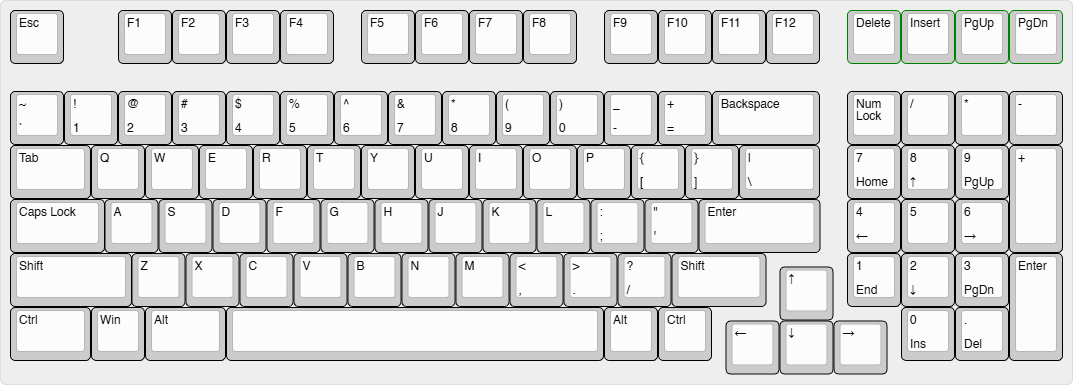

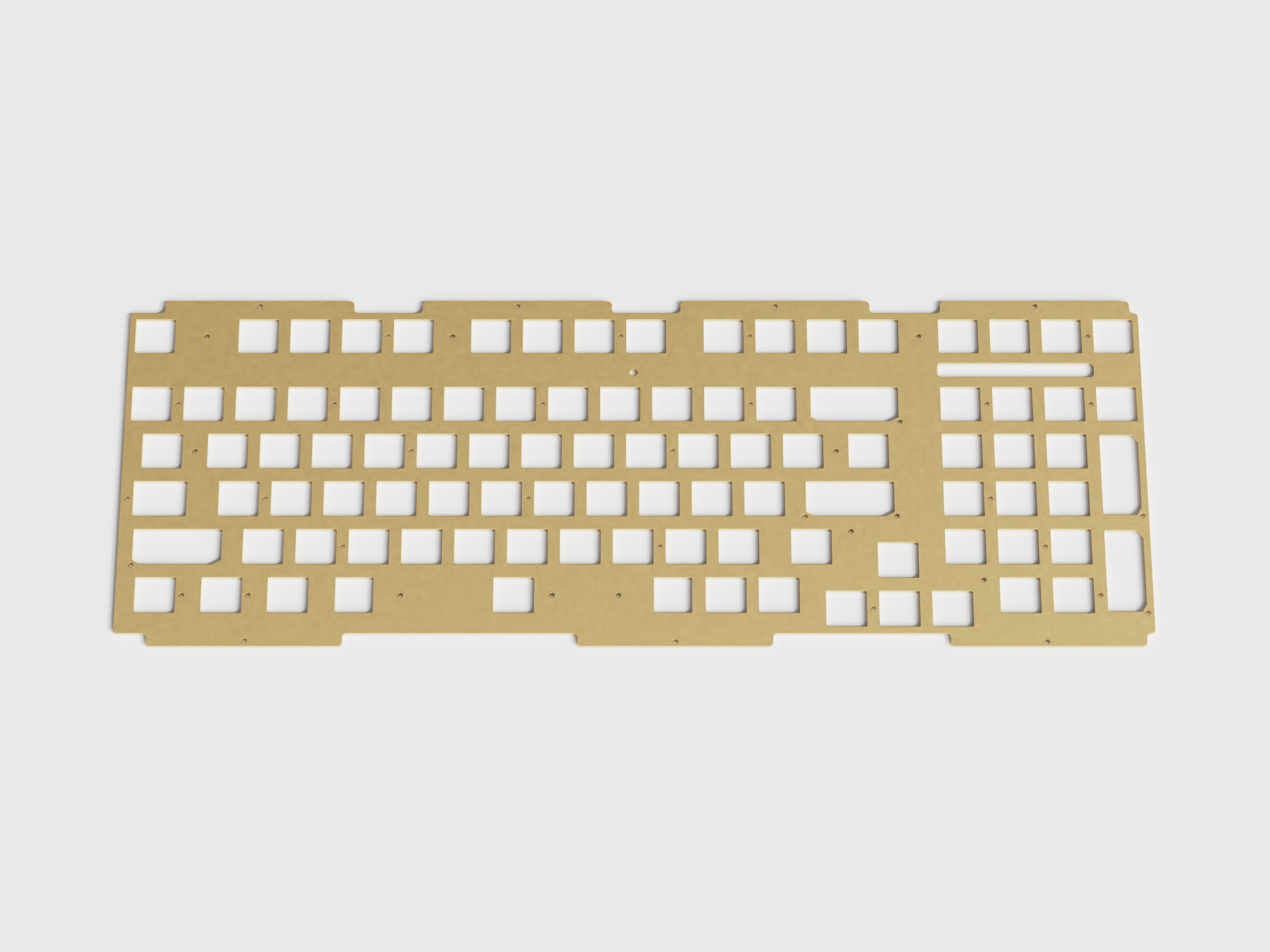

7U Bottom Row, ANSI, Full Backspace

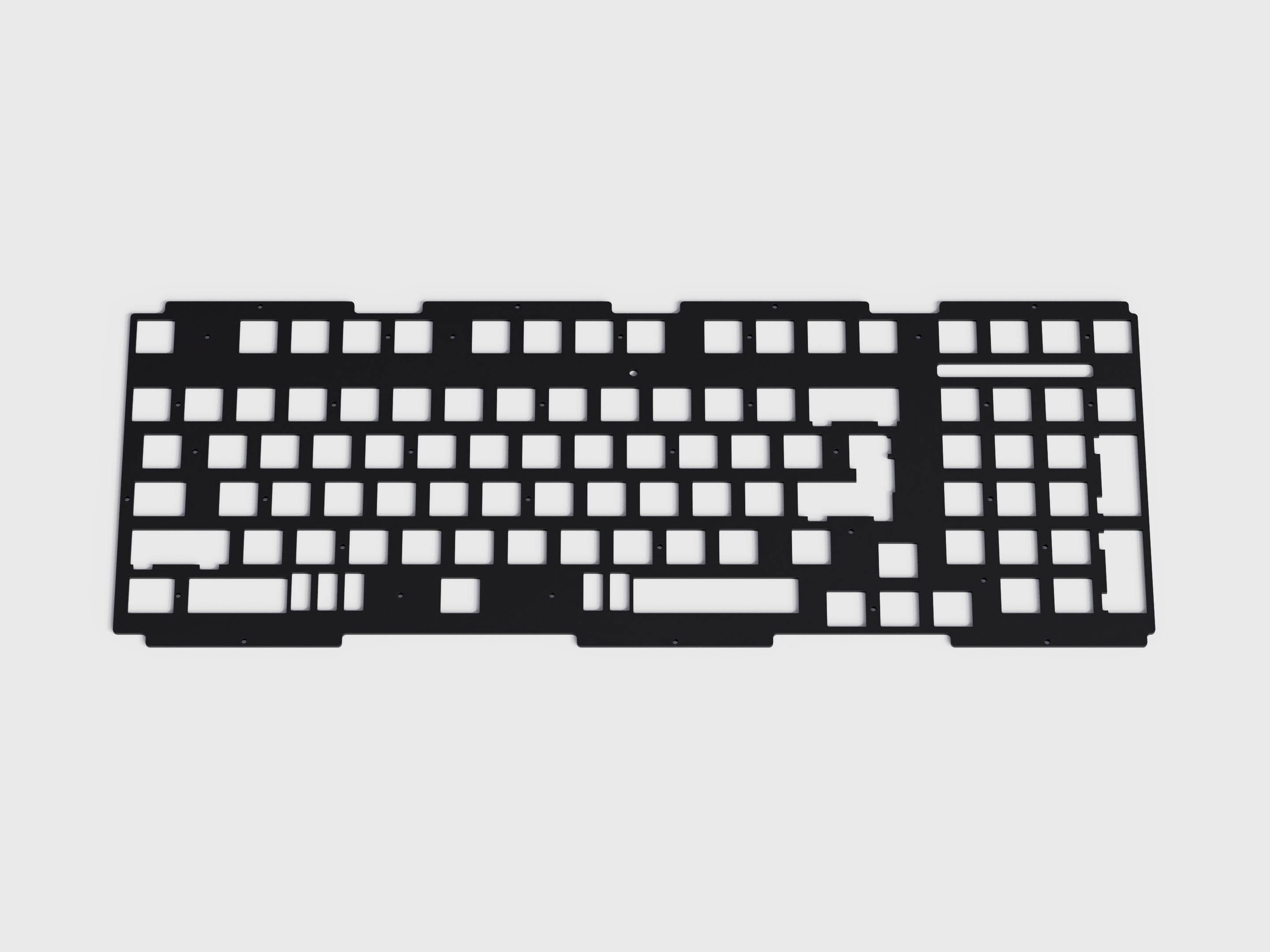

1.5mm Alu Plate Layouts (MX & Naevy)

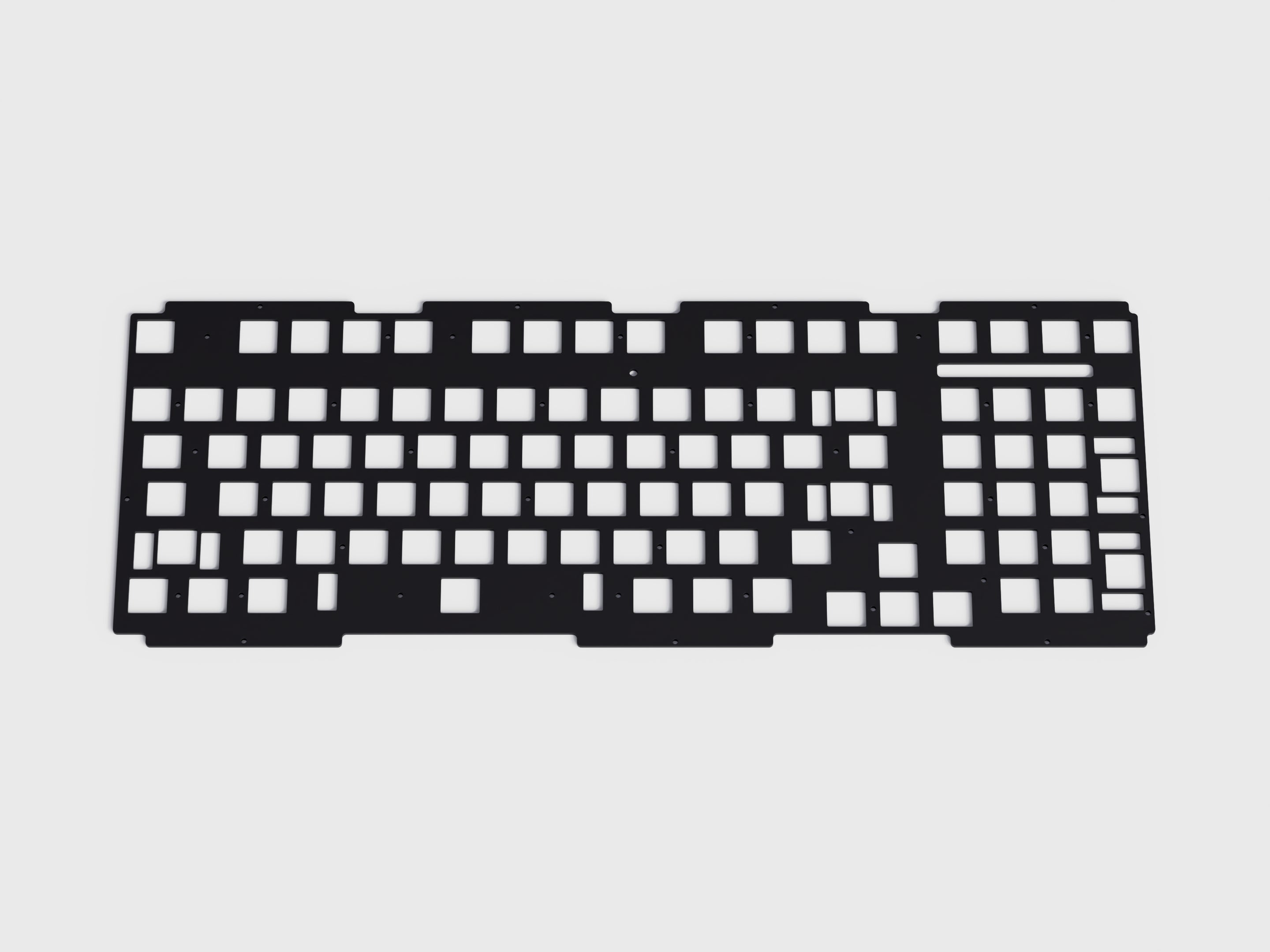

FC980C ANSI Fixed (6U)

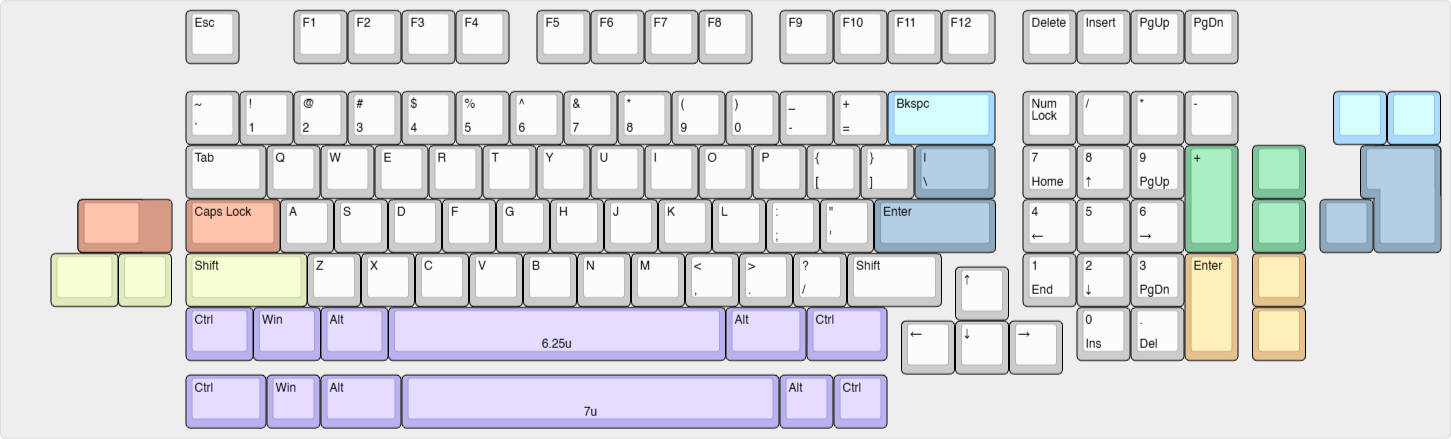

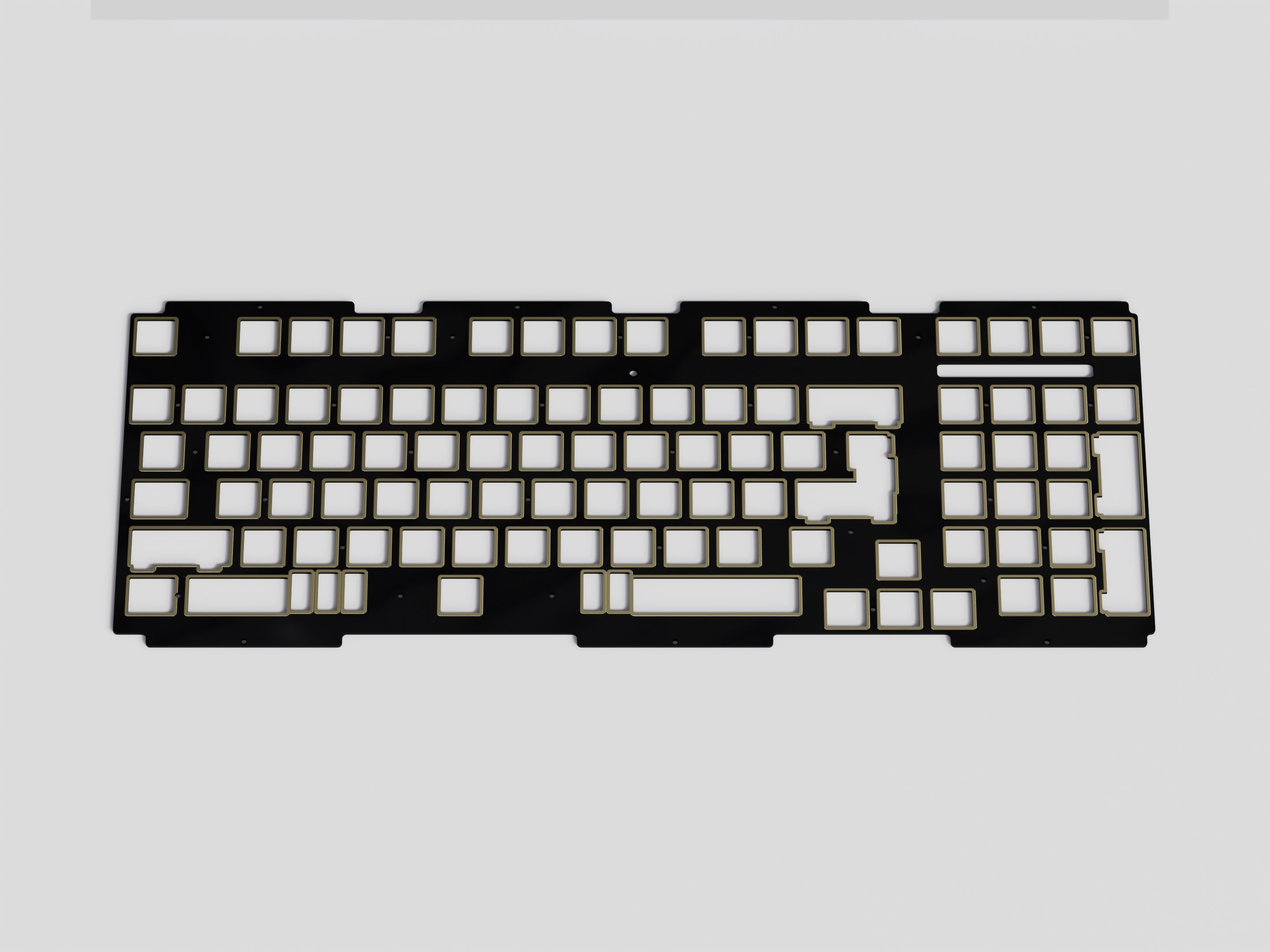

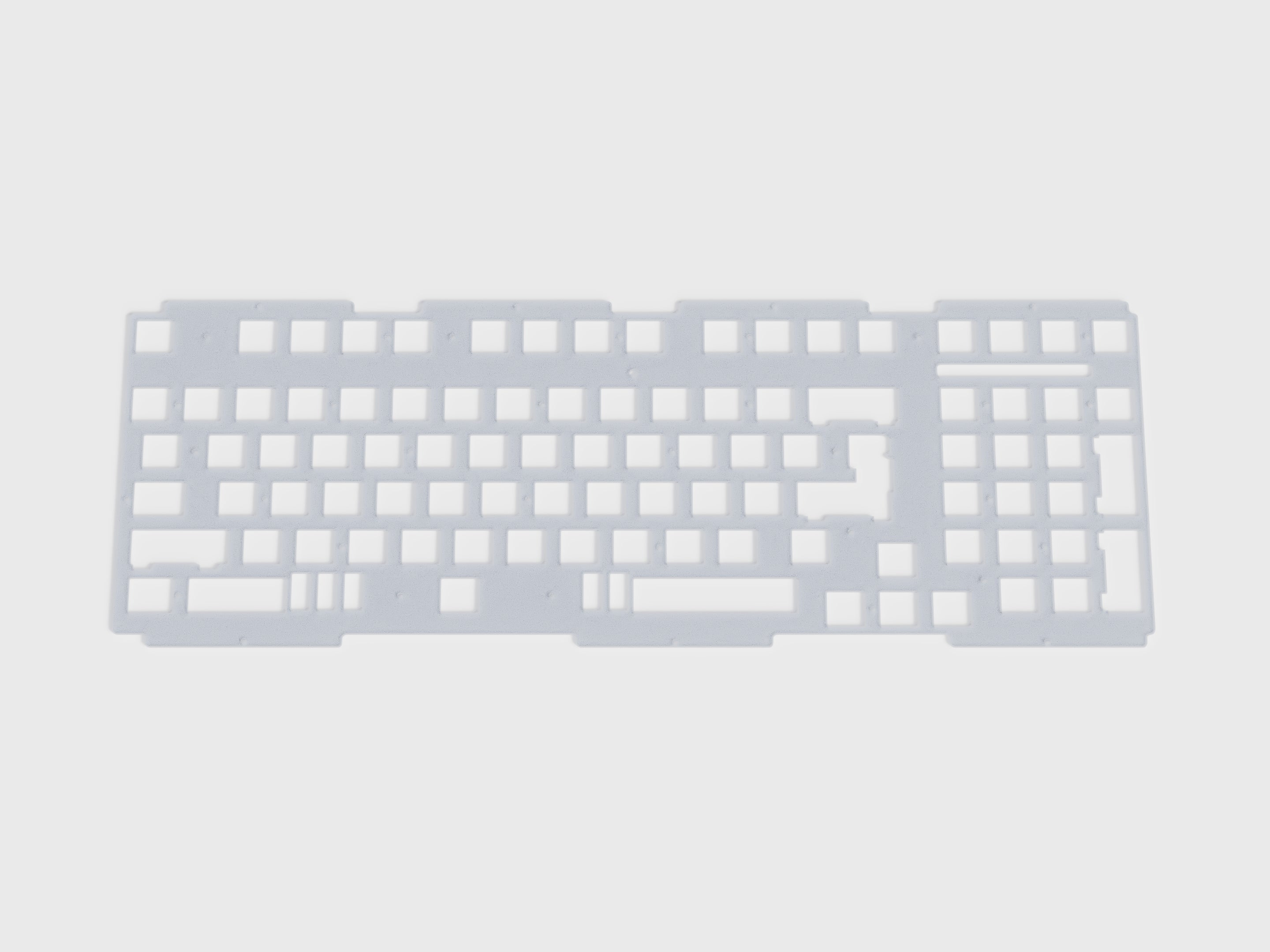

Universal
