Mammoth75 - The newest keyboard from Wuque Studio!
This version has an Aluminum Mirror PVD Bottom. Upon purchasing this keyboard.
We are pleased to be working with wuque.studio to bring you their newest keyboard- Mammoth75.

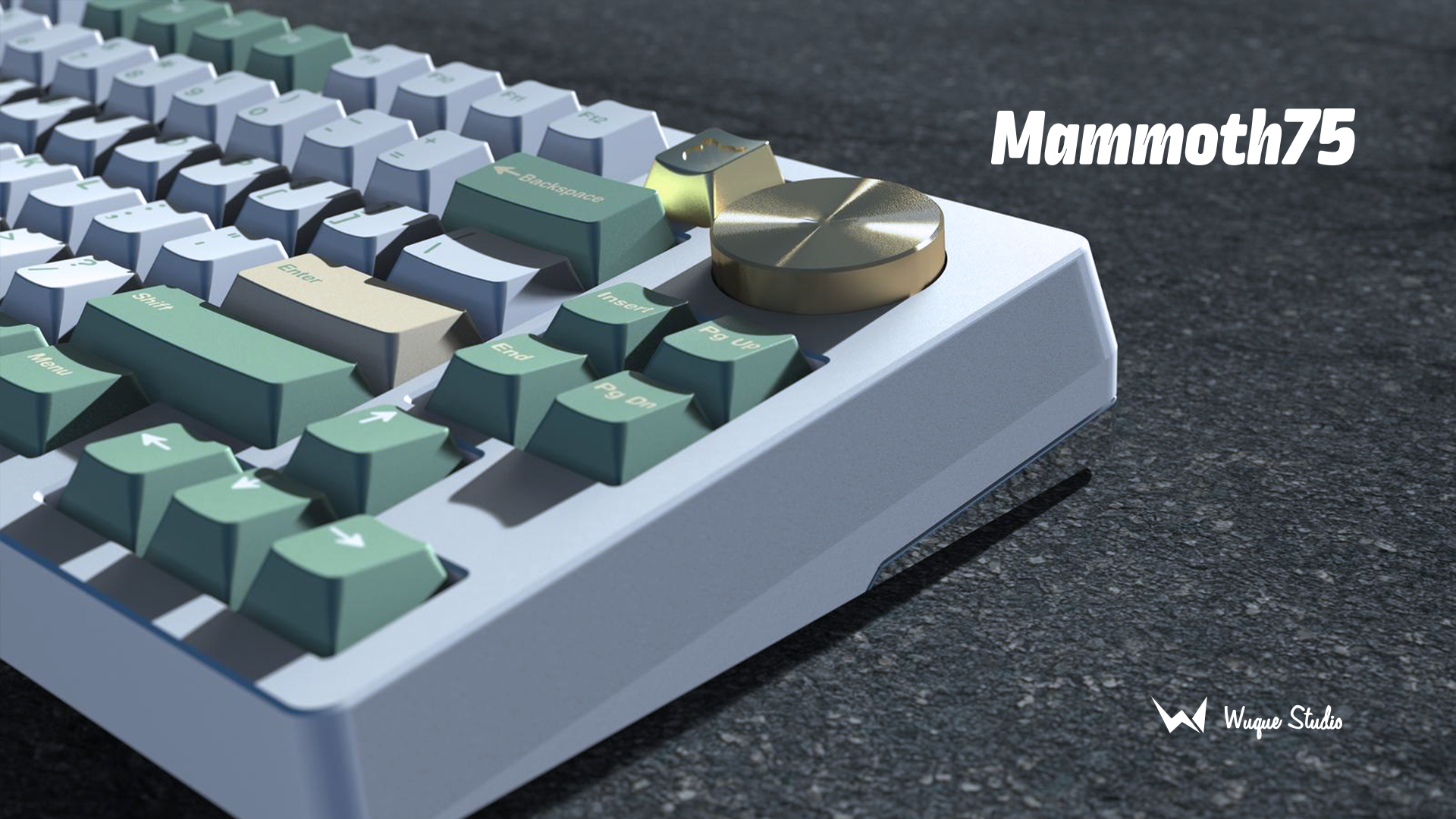

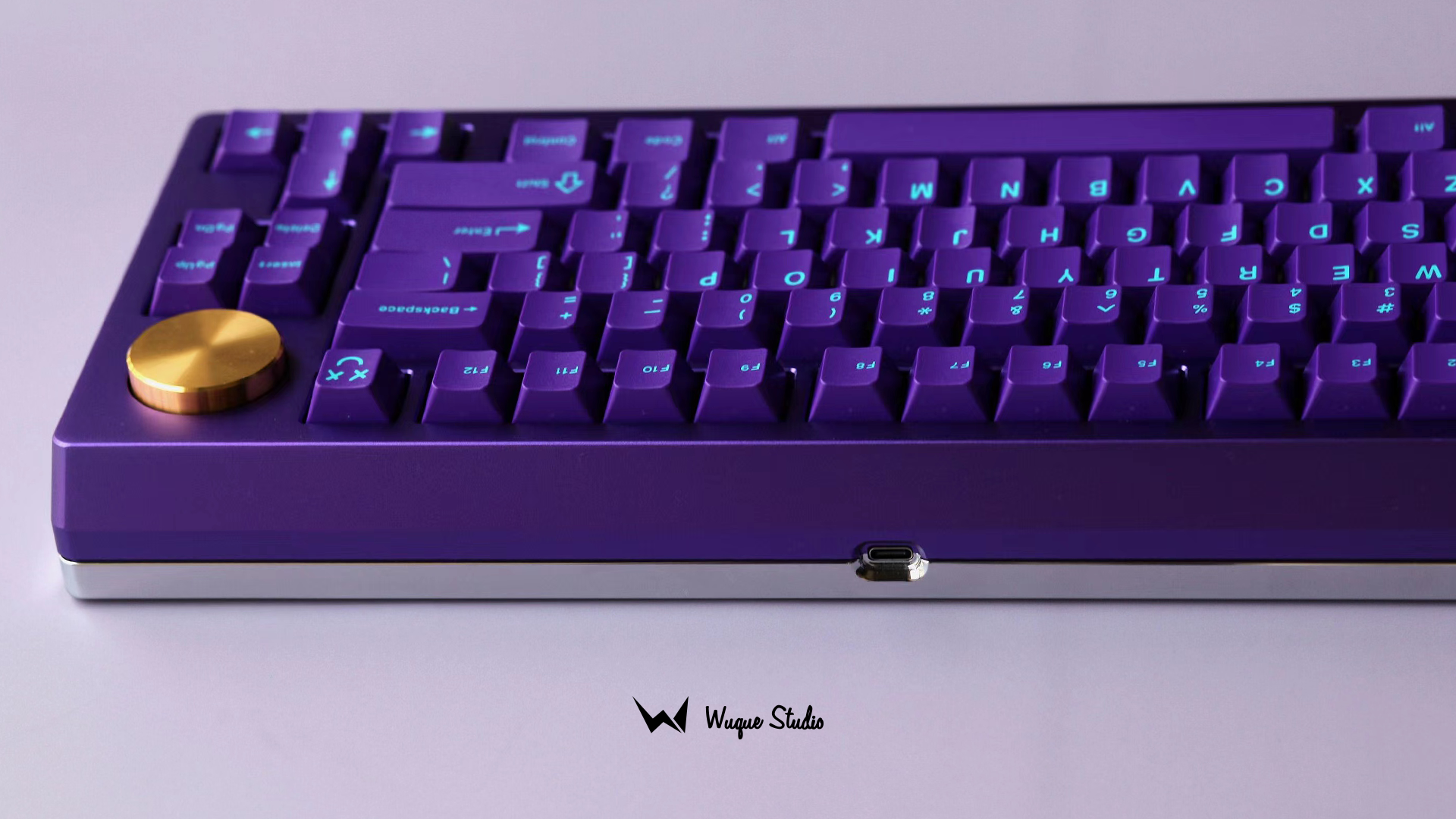

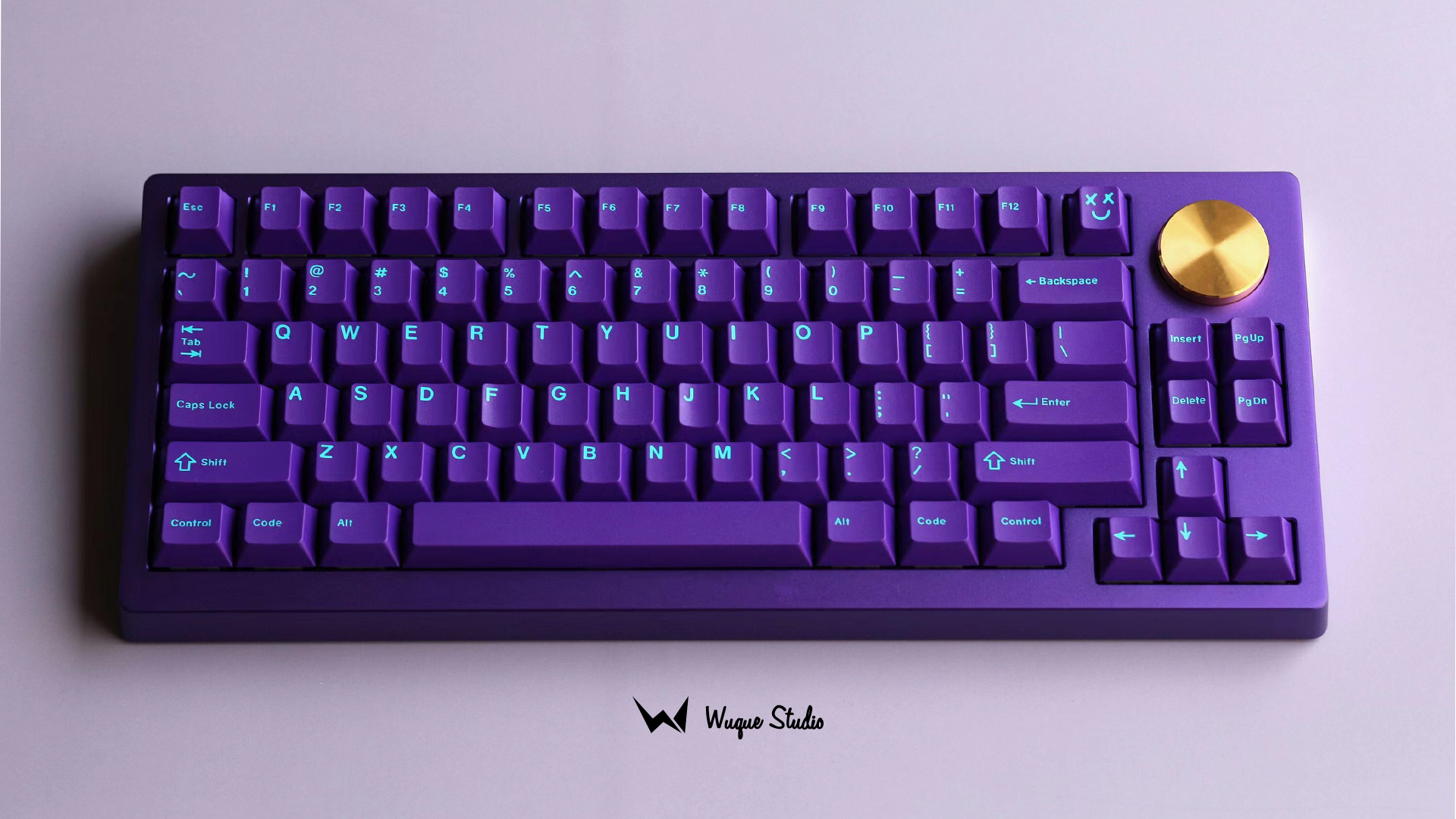

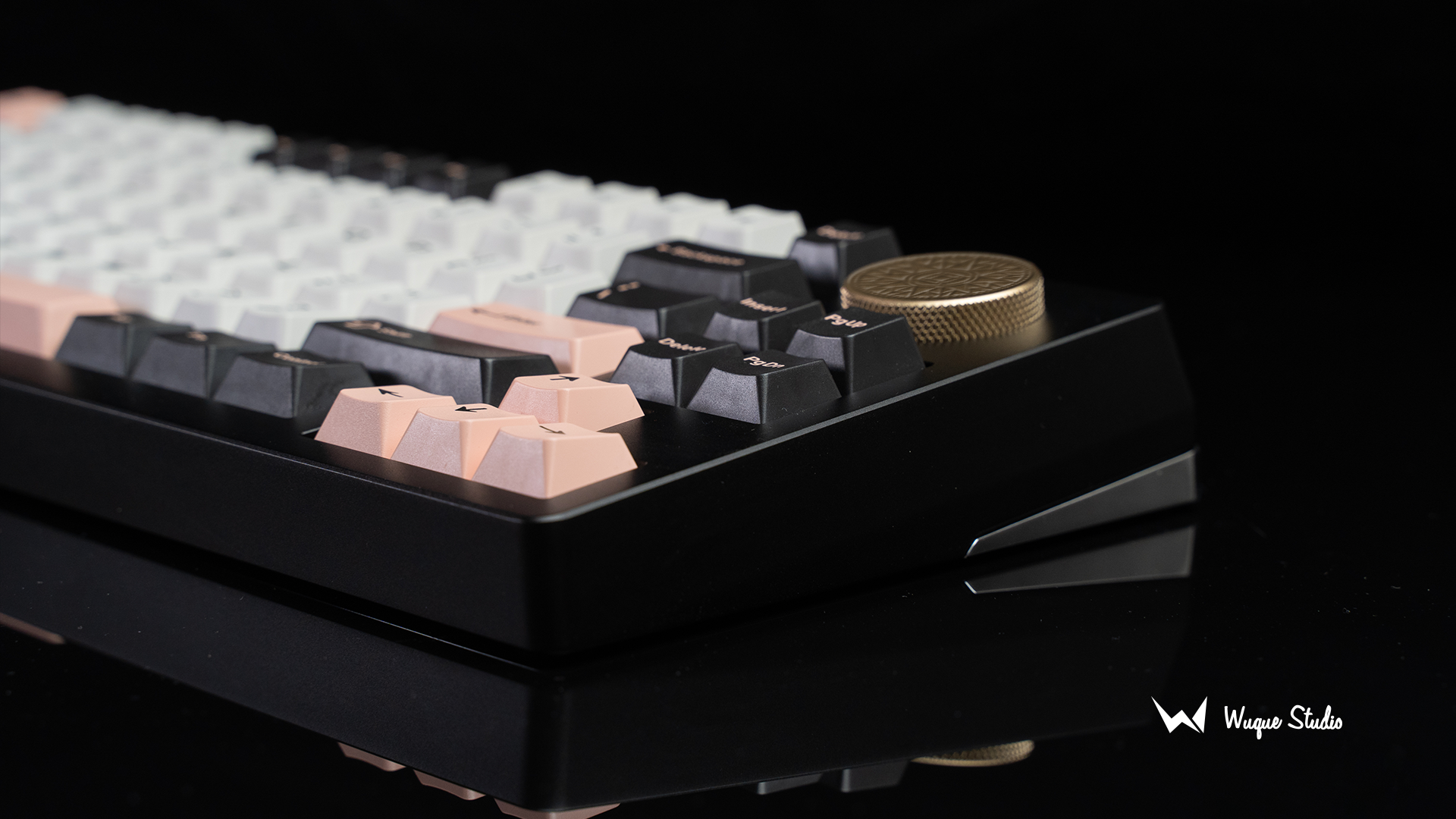

This keyboard is a gasket mounted 75% with exploded arrow keys and a large knob. It is being offered in four colors, four bottom materials/finishes, and with 3 PCB options available as addons. Plenty of options to make this keyboard truly yours!
ADDONS ARE AVAILABLE HERE
Addons include PCBs, Plates, Daughterboards, and foam.
Specs:
- Typing angle: 6.5 degrees
- Front height: 19.5 mm
- Top case material: Aluminum
- Bottom case material: Aluminum
- Mounting structure: Gasket Mount
- Aluminum top case, aluminum bottom case kit weight (unbuilt): 2.0kg
Top Colors:
- E-White
- Black

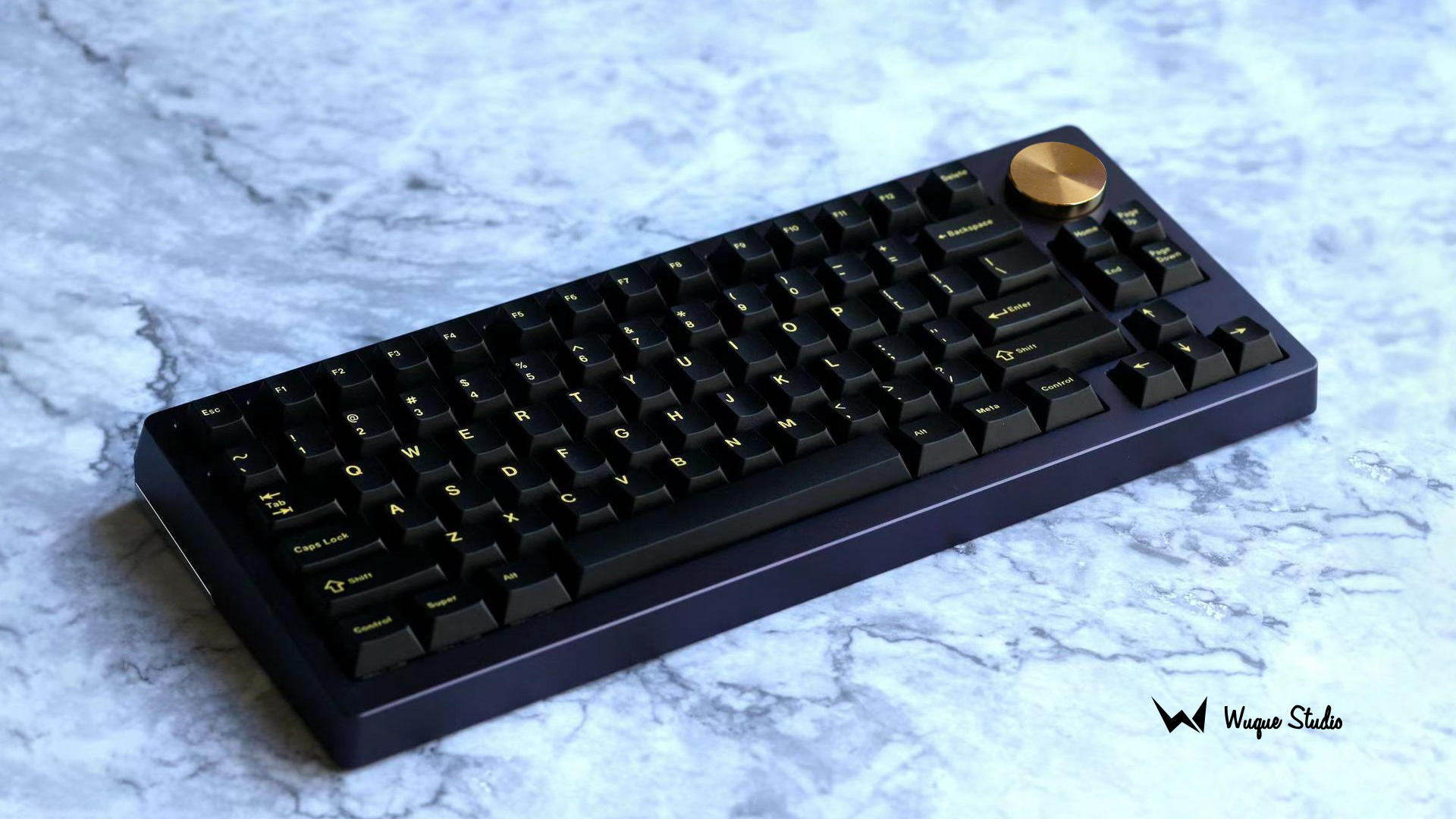

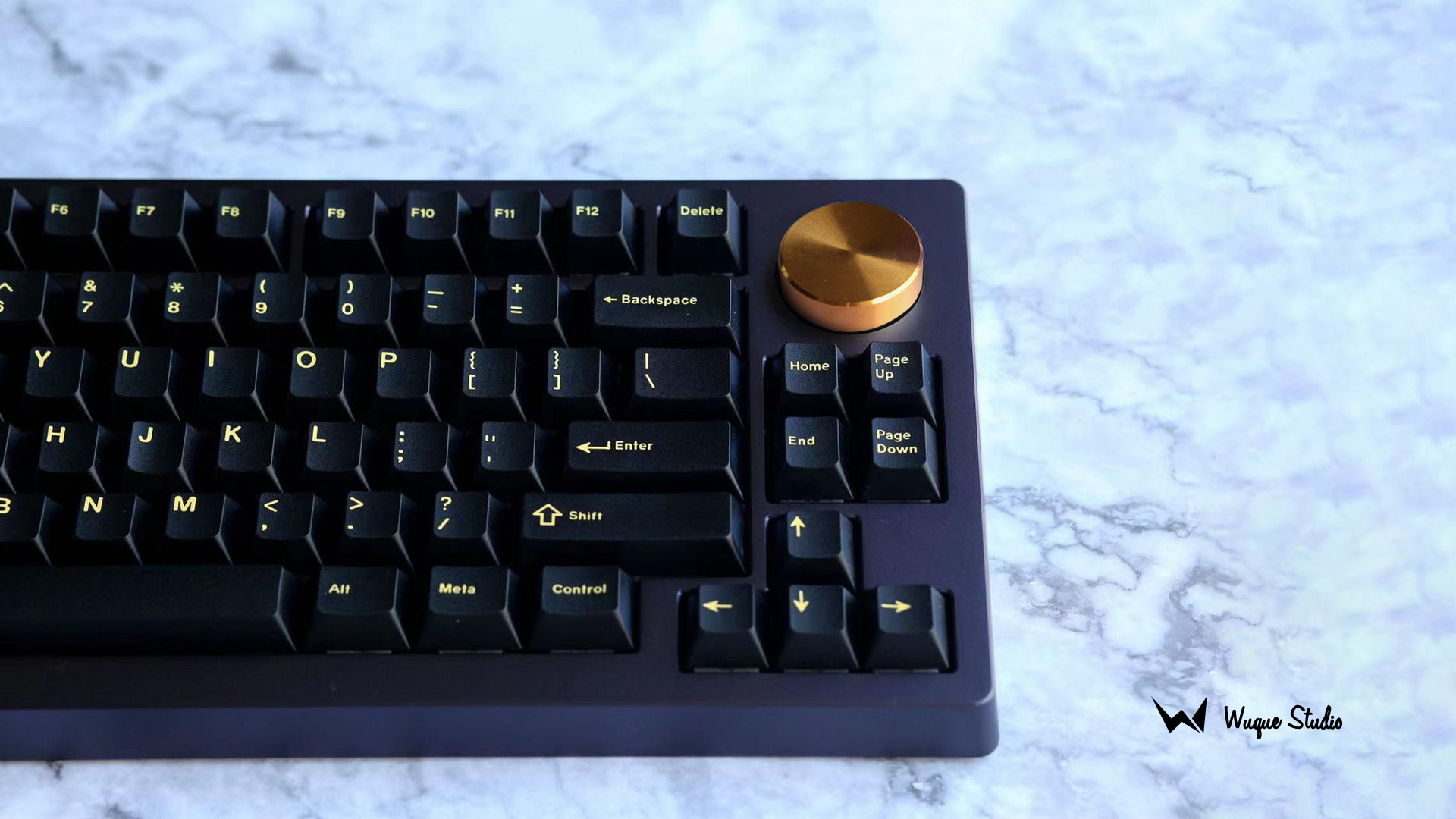

- Navy
- Violet
Bottom Finish:

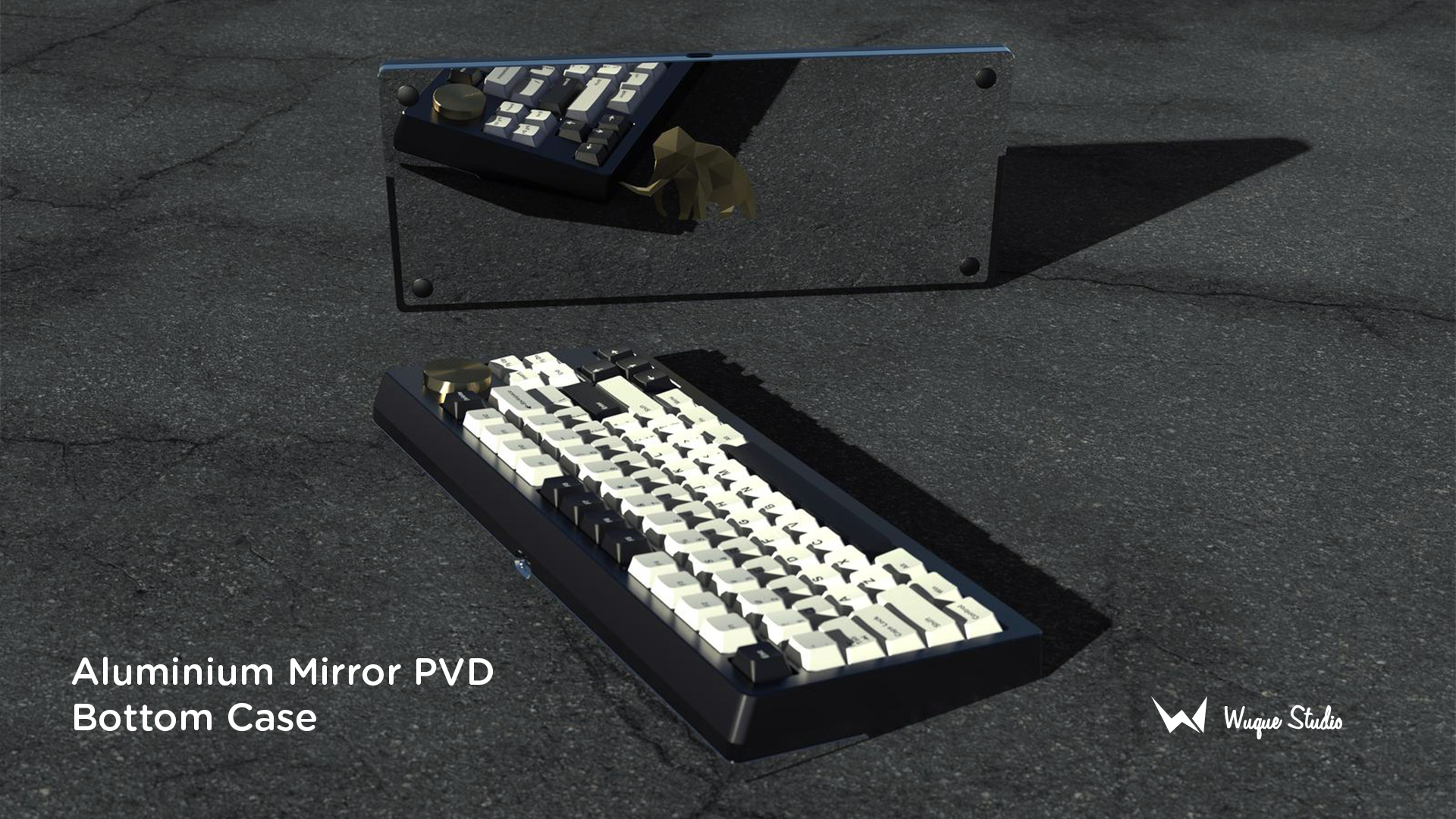

- Mirror PVD Aluminum
What's included:
- Top Case (Aluminum)
- Bottom Case (Aluminum Mirror PVD)
- PC Plate
- WS Stabilizers for a complete build
- PCB and daughter board
- Chosen via form post purchase. All PCBs are 1.2mm thick.
- PORON gaskets
- PORON dampener between plate and PCB
- PORON foam between PCB and switches
- PORON foam under PCB
- Gaskets

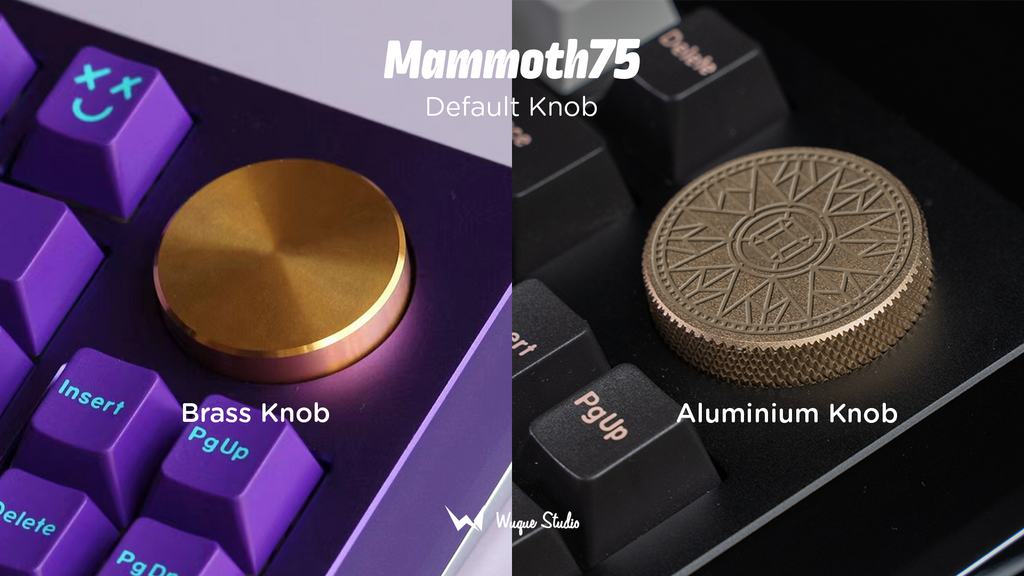

- Knobs
- 1x Brass, 1x Aluminum, magnetic bottom
- Encoder holder
- Screws and rubber feet
PCB Specifications:
M1 PCB
Wired, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.
M2 PCB
Wired, soldered, supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock, ISO enter.
M3 PCB
Wireless, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.
For all PCB specifications, please check PCB table here.
A standard sized, widely available LiPo battery is required for Bluetooth editions but it's not included with the kit. The battery spec for this keyboard is 3543114.
For more information on Mammoth75, and links to international vendors, check out the Informational Page and quality guide.
