Balance Keyboard

$515.00

Color
Quality
PCB Kitting Information

All Iron160s come with a solder PCB.

The Balance Keyboard by CannonKeys

When you purchase this keyboard, you automatically qualify for our Premium Keyboard Bundle! Take 25% off any keycap base kit on the site!

To learn more about our bundles, click here.

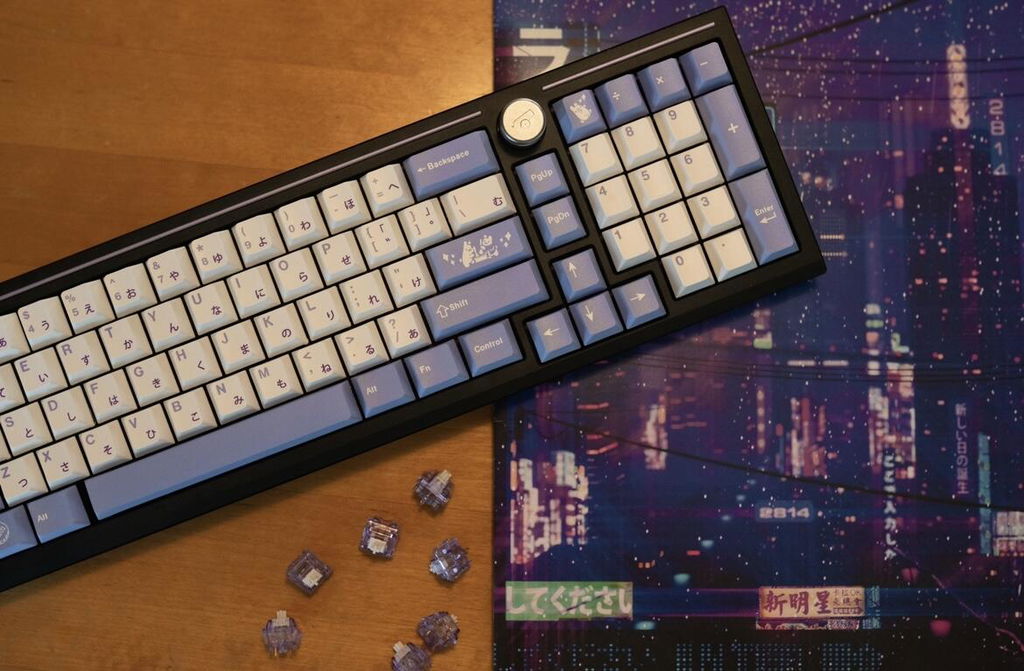

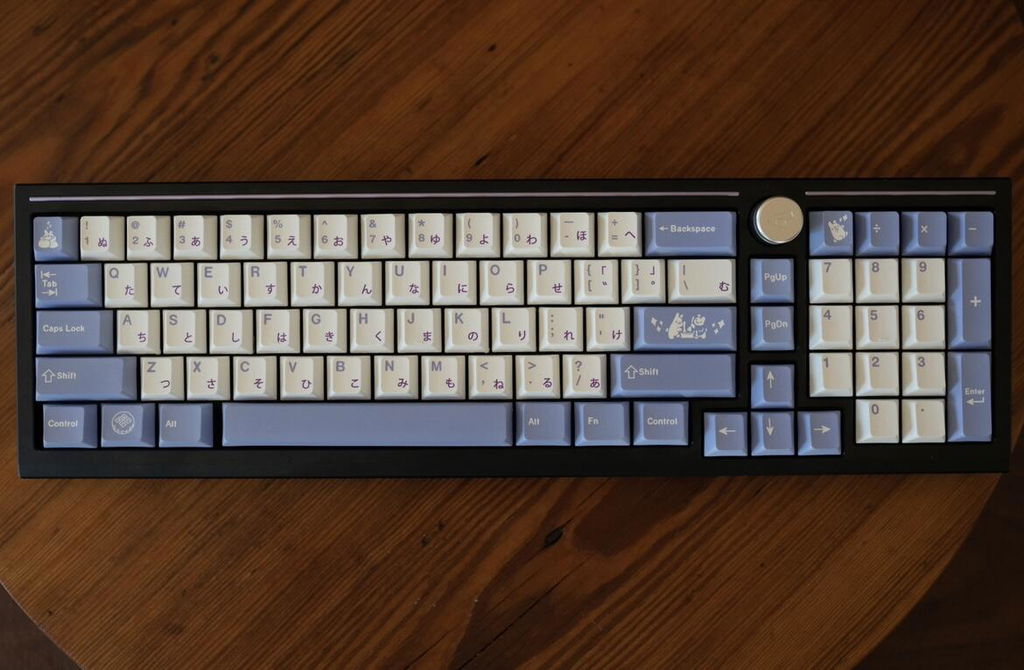

The Balance is a complex FRL-1800 with a knob designed by Upas to fill a gap within the keyboard hobby. The name Balance comes from the way the keyboard appears to balance on the back accent of the keyboard. Here is some background on the keyboard, as told by Upas:

One of my favorite keyboards to use is the Cypher - but when I use it, I really do miss having a knob to control volume and media. For that reason, even when doing tasks that are better suited for a numpad, I find myself using my Satisfaction75 quite frequently. This board was meant to fill that gap for me, while also playing with a new interesting side profile, considering two-tone color as a first-class design element, and integrating gasket mounting.

Specs

  • Typing angle: 5.5°
  • Case Material: Aluminum
  • Mounting system: Poron gasket isolation sandwich mount
  • Front height: ~15.7mm (without feet)
  • PCB: Designed by Upas (with assistance from Ender) using STM32, with some ESD protection. Paired with the ai03 unified daughterboard. QMK & VIA compatible PCB. Solder only.
  • Plates: Black aluminum as standard, with FR4, PC and brass as optional extras

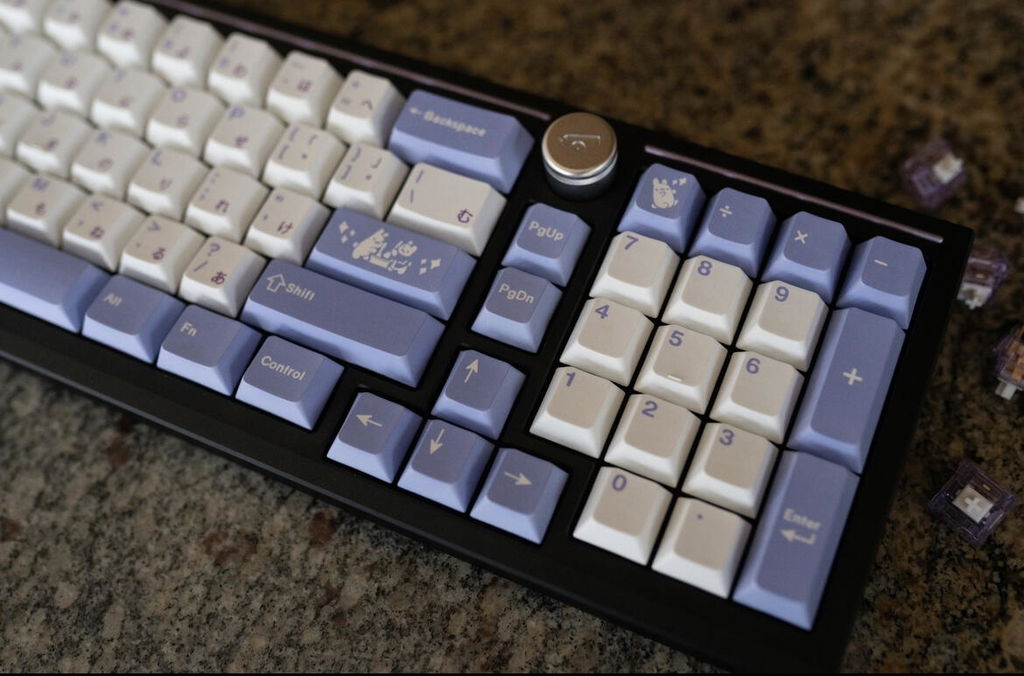

  • Knob: Alps encoder, CannonKeys knob comes stock, specifics below. Extra knobs in different materials and colors available.
  • Weight: 1.6kg unbuilt (est.)

Kit Contents

  • Keyboard top, bottom, top left accent, top right accent, bottom accent piece
  • Black aluminum plate
  • Balance PCB (USB-C, ESD Production)
  • Unified C3 Daughterboard and JST Cable
  • ALPS Encoder
  • CannonKeys Logo Knob
  • Poron Gaskets
  • Rubber feet (bumpon compatible)
  • Foam Carrying Case
  • Microfiber Cloth

Colors available

  • Navy top/Silver bottom, Silver top accent/Navy bottom accent, Silver CK knob*
  • Grey top/Lilac bottom, Lilac top accent/Grey bottom accent, Silver CK knob
  • Black top/Silver bottom, Silver top accent/Black bottom accent, Silver CK knob
  • (+$20) E-white top/Gold Alu bottom, Brass top accent, E-white bottom accent, Gold PVD brass CK knob

*In the images the navy version has a gold top accent. the group buy version will have a silver top accent.

The black/silver and white/gold versions are shown as renders and will vary slightly from what is shown.

>>Check out the rest of the Balance collection for more extras!<<



Exploded View

PCB Compatibility

Universal Plate Compatibility

Quality Expectations

A stock units should not have any unwanted marks visible once built. A- and B stock units will have some marks showing when built, with A- having less visible than B stock. Screw holes are not fully anodized or coated, and small marks near the hole opening might be present.

Brass Material Disclaimer

When raw or thinly coated, brass will oxidize and patina naturally. Small blemishes and discolorations may be visible.

We use photos of our products in hand when possible to show how they look in realistic situations. Sometimes the product might look different within the same listing- this is generally caused by different lighting conditions. When possible, we try to use different lighting conditions to show what the product might look like in different scenarios.
